NSN 5306-00-109-3317 177588, 00-109-3317, 001093317
Product Details | INTERNALLY RELIEVED BODY BOLT
5306-00-109-3317 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: 177588, 5306-00-109-3317, 00-109-3317, 5306001093317, 001093317
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-109-3317 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5306-00-109-3317
Cross Reference | NSN 5306-00-109-3317
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 177588 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-109-3317
Technical Data | NSN 5306-00-109-3317
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.875 INCHES |
| THREAD QUANTITY PER INCH | 14 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.160 INCHES MINIMUM |
| FASTENER LENGTH | 2.000 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6050 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |

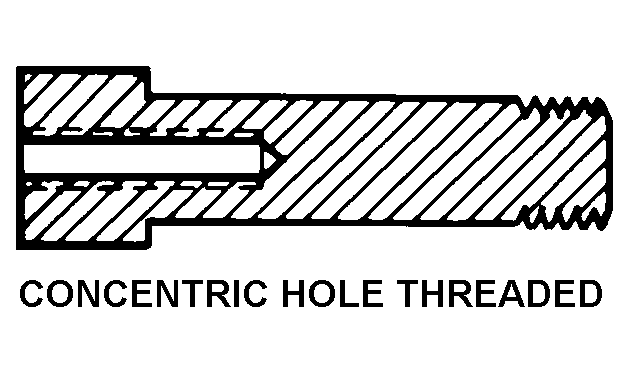

| STYLE DESIGNATOR | B40A CONCENTRIC HOLE THREADED |
| THREAD SERIES | UNF CONCENTRIC HOLE |
| NOMINAL THREAD SIZE | 0.625 INCHES CONCENTRIC HOLE |
| THREADS PER INCH | 18 CONCENTRIC HOLE |
| INTERNAL THREAD CLASS | 3B HEAD |
| INTERNAL THREAD DIRECTION | RIGHT-HAND HEAD |
| INTERNAL THREAD LENGTH | 1.000 INCHES NOMINAL CONCENTRIC HOLE |
| HEAD STYLE | C1 HEXAGON |
| HEAD DIAMETER | 1.312 INCHES NOMINAL |
| HEAD HEIGHT | 0.512 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 1.380 INCHES NOMINAL |
| EXTENDED WASHER THICKNESS | 0.100 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | T-33 |
Restrictions/Controls & Freight Information | NSN 5306-00-109-3317
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-109-3317
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9K | Navy-owned stocks of material managed by the Air Force within the Sacramento Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FFZ | |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
