NSN 5306-00-058-7085 9002524800, 900-25248-00 , 00-058-7085
Product Details | EYE BOLT
5306-00-058-7085 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.
Part Alternates: 9002524800, 900-25248-00 , 5306-00-058-7085, 00-058-7085, 5306000587085, 000587085
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-058-7085 | 01853 ( BOLT, EYE ) |
Drawings & Photos | NSN 5306-00-058-7085
Demand History | NSN 5306-00-058-7085
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-058-7085 | 2024-11-308 | 12 | DIBBS |
| 5306-00-058-7085 | 2023-09-257 | 24 | DIBBS |
| 5306-00-058-7085 | 2017-07-192 | 98 | MANUAL |
| 5306-00-058-7085 | 2017-02-40 | 1 | DIBBS-RFPs |
| 5306-00-058-7085 | 2016-02-56 | 2 | DIBBS |
| 5306-00-058-7085 | 2016-02-43 | 2 | DIBBS |
| 5306-00-058-7085 | 2016-02-35 | 2 | DIBBS |
| 5306-00-058-7085 | 2016-01-03 | 11 | DIBBS |
| 5306-00-058-7085 | 2012-09-264 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-058-7085
Related Products | NSN 5306-00-058-7085
Technical Data | NSN 5306-00-058-7085
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | LEFT-HAND |
| THREAD LENGTH | 3.500 INCHES MINIMUM |
| MATERIAL | STEEL COMP 1010 OR STEEL COMP 1011 OR STEEL COMP 1013 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1023 OR STEEL COMP 1025 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-13048 MIL SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TYPE 2,CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL |

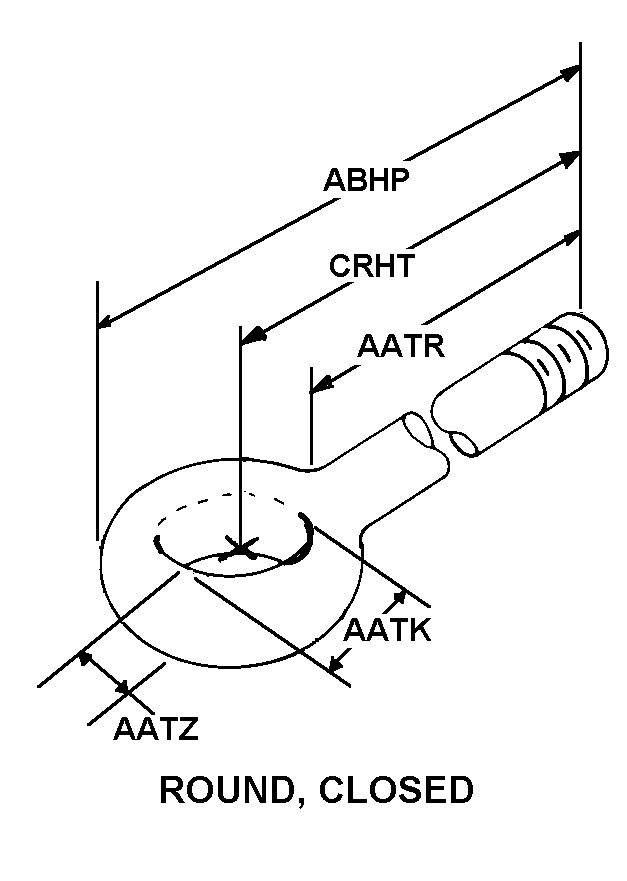

| STYLE DESIGNATOR | B9 ROUND, CLOSED |
| EYE INSIDE DIAMETER | 0.507 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| SHANK LENGTH | 4.781 INCHES NOMINAL |
| EYE STOCK DIAMETER | 0.531 INCHES MINIMUM AND 0.578 INCHES MAXIMUM |
| OVERALL LENGTH | 5.719 INCHES NOMINAL |
| DISTANCE FROM CENTER OF EYE TO SHANK END | 5.463 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5306-00-058-7085
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-058-7085
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
