Product Details | INTERNALLY RELIEVED BODY BOLT
5306-00-055-5866 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: 7977491, 797749-1, 5306-00-055-5866, 00-055-5866, 5306000555866, 000555866
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-055-5866 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5306-00-055-5866
Cross Reference | NSN 5306-00-055-5866
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 797749-1 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-055-5866
Technical Data | NSN 5306-00-055-5866
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.395 INCHES MINIMUM |
| FASTENER LENGTH | 1.313 INCHES NOMINAL |
| MATERIAL | STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 4130 OVERALL |
| MINIMUM TENSILE STRENGTH | 150000 POUNDS PER SQUARE INCH |

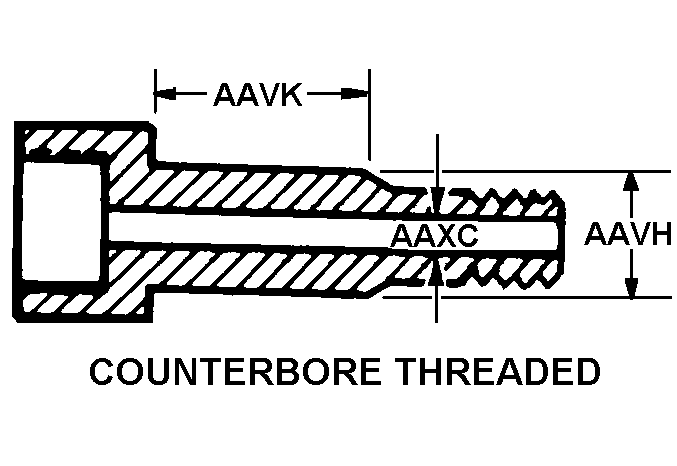

| STYLE DESIGNATOR | B49A COUNTERBORE THREADED |
| SHOULDER DIAMETER | 0.417 INCHES NOMINAL |
| SHOULDER LENGTH | 0.375 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.090 INCHES NOMINAL |
| THREAD SERIES | UNF COUNTERBORE |
| NOMINAL THREAD SIZE | 0.250 INCHES COUNTERBORE |
| THREADS PER INCH | 28 COUNTERBORE |
| INTERNAL THREAD CLASS | 3B COUNTERBORE |
| INTERNAL THREAD DIRECTION | RIGHT-HAND COUNTERBORE |
| INTERNAL THREAD LENGTH | 0.250 INCHES NOMINAL COUNTERBORE |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.250 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.619 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E5 HEXAGON LONGITUDINAL HOLE |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 6 |
| HOLE DIAMETER | 0.062 INCHES NOMINAL |
