NSN 5305-01-607-2093 NAS1580C6T8 , 01-607-2093, 016072093
Product Details | CLOSE TOLERANCE SCREW
5305-01-607-2093 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: NAS1580C6T8 , 5305-01-607-2093, 01-607-2093, 5305016072093, 016072093
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2012157 | 01-607-2093 | 29294 ( SCREW, CLOSE TOLERANCE ) |

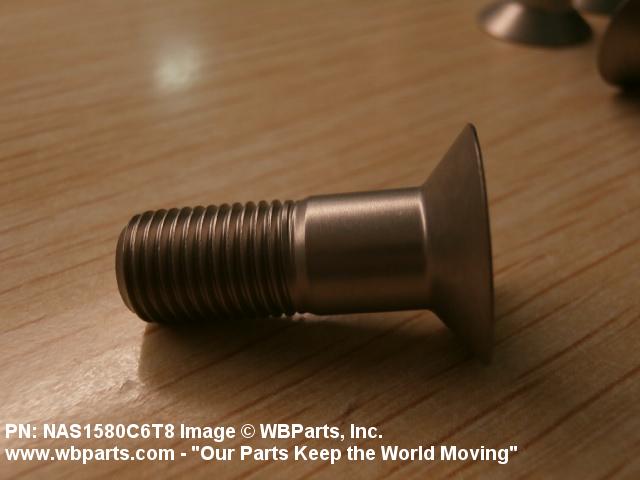

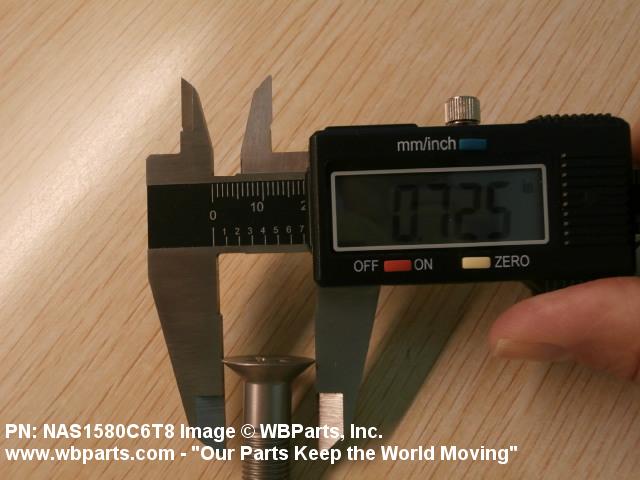

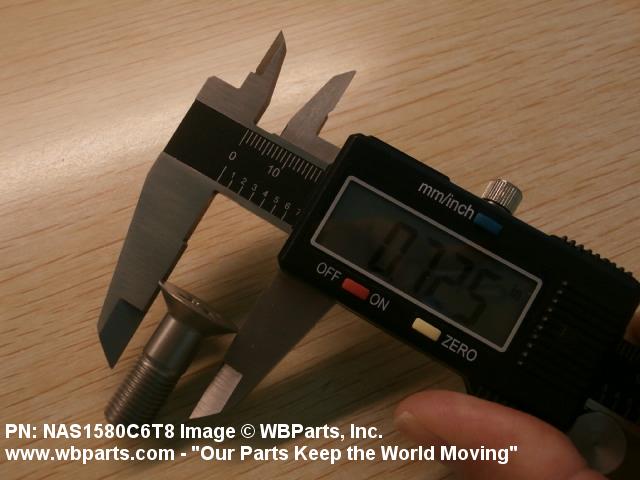

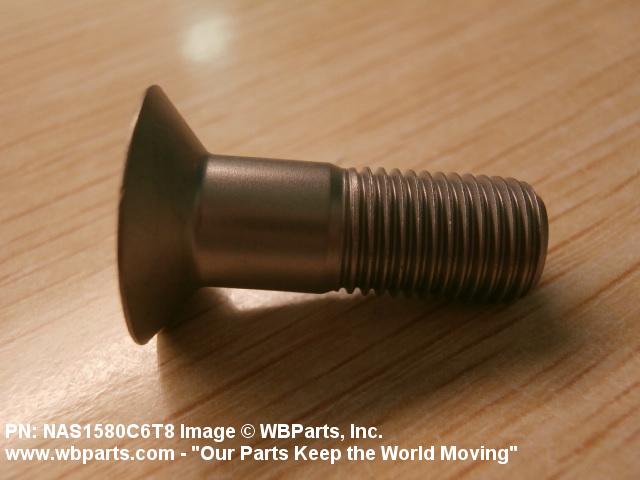

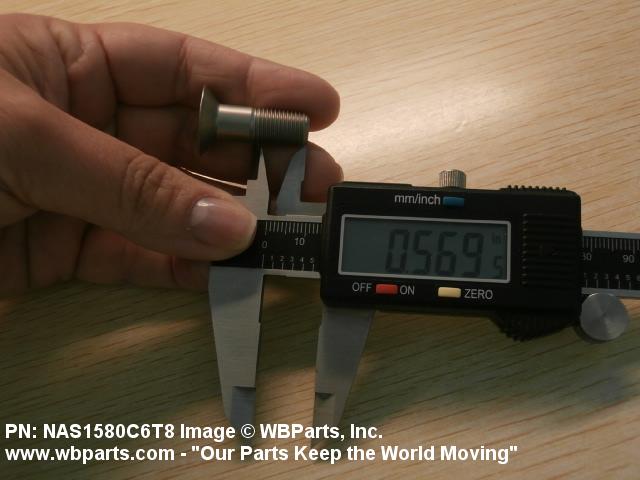

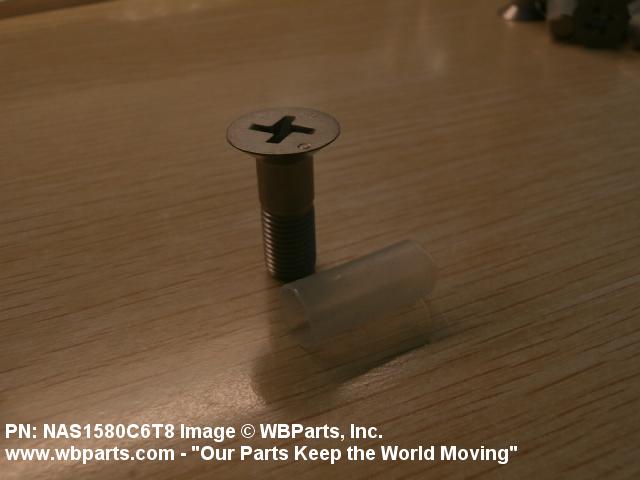

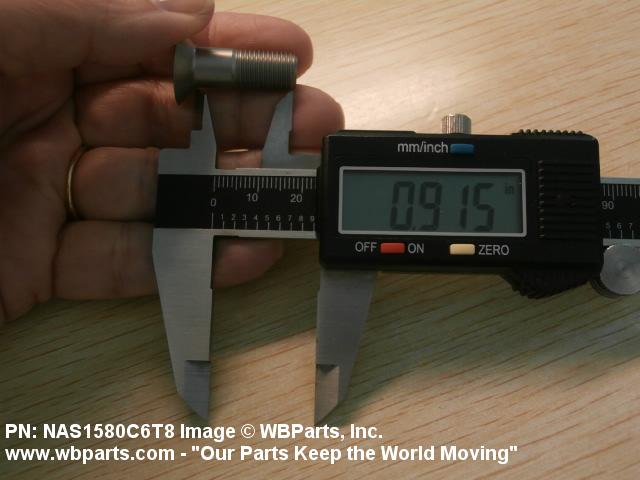

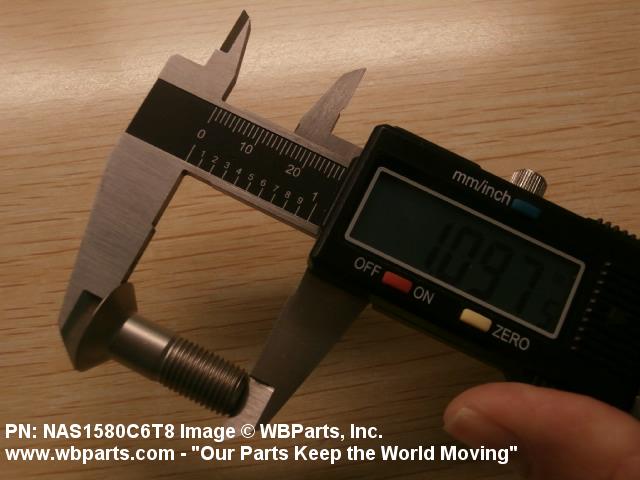

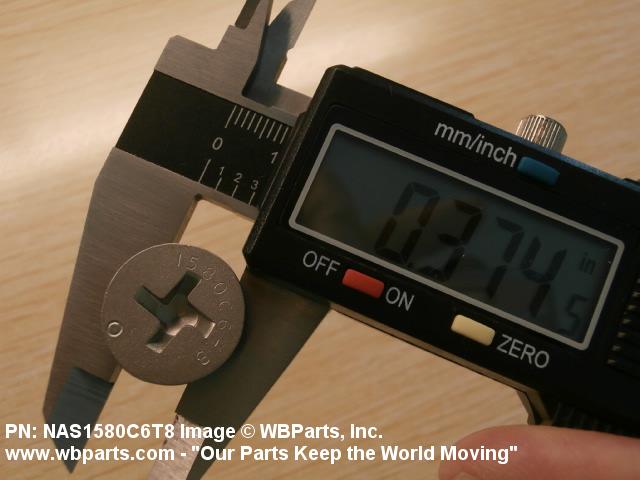

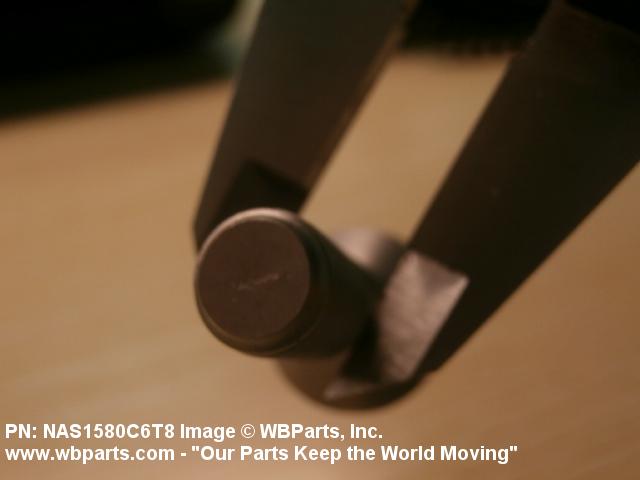

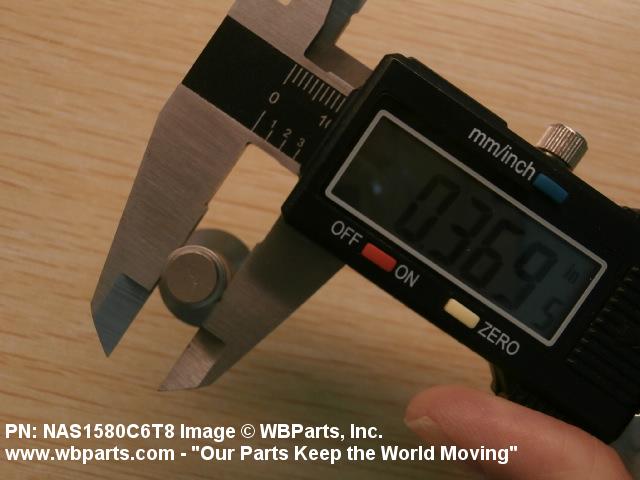

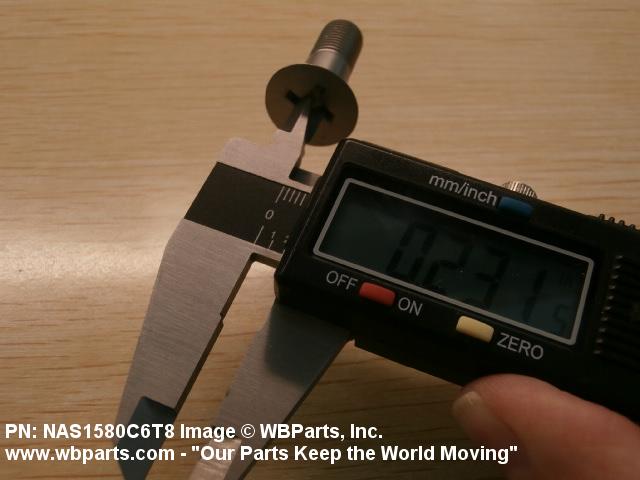

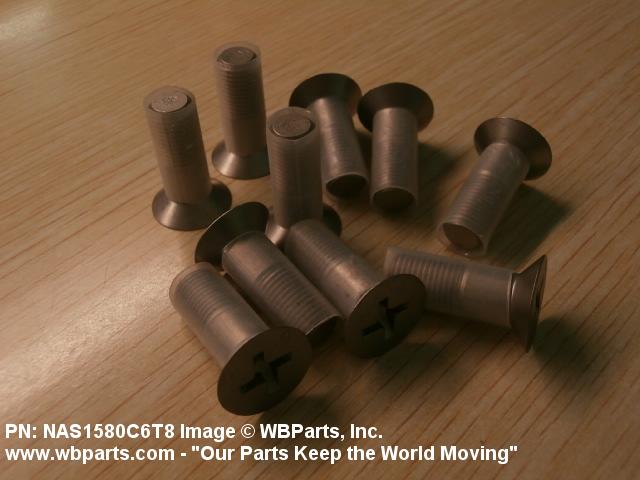

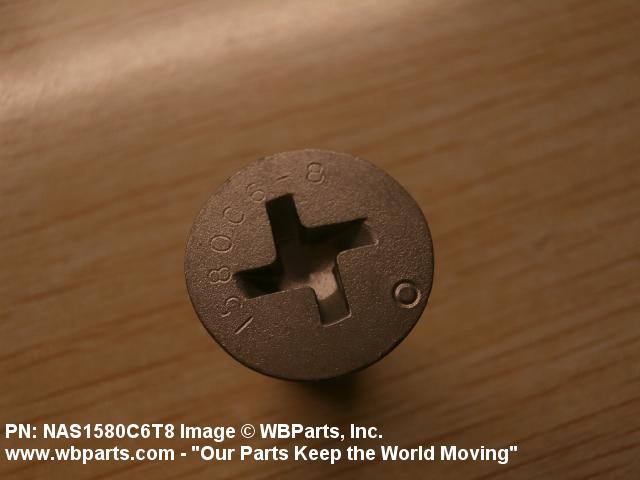

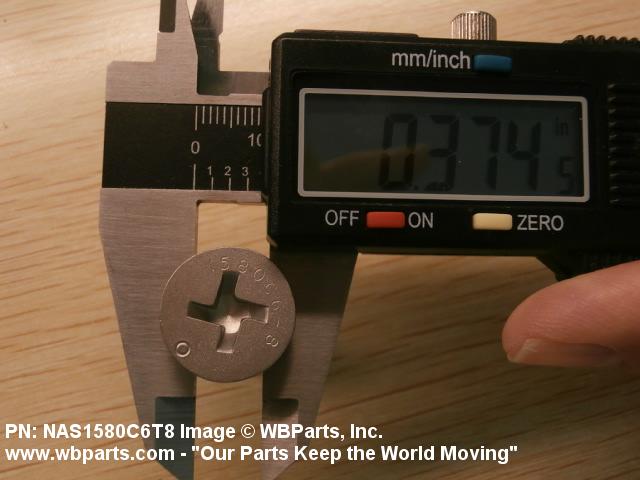

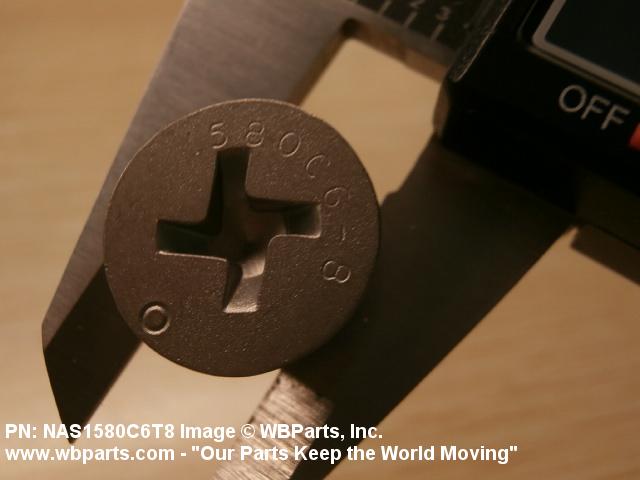

Drawings & Photos | NSN 5305-01-607-2093
Demand History | NSN 5305-01-607-2093
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1580C6T8 | 2016-04-120 | 10 | us |
| NAS1580C6T8 | 2016-04-109 | 10 | United States |
| NAS1580C6T8 | 2016-04-103 | 25 | United States |
| NAS1580C6T8 | 2014-09-251 | 10 | Australia |
| NAS1580C6T8 | 2014-09-245 | 10 | Australia |
Cross Reference | NSN 5305-01-607-2093
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1580C6T8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-607-2093
Technical Data | NSN 5305-01-607-2093
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.594 INCHES NOMINAL |
| FASTENER LENGTH | 1.079 INCHES MINIMUM AND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | A-286 CRES PER AMS5731,AMS7532 OR AMS5737 NATIONAL STD/SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 14000 POUNDS PER SQUARE INCH |
| HEAD STYLE | FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.7170 INCHES MINIMUM AND |
| HEAD HEIGHT | 0.167 INCHES NOMINAL |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND |
| INTERNAL DRIVE STYLE | OFFSET CRUCIFORM (TORQUE SET) |
| GRIP LENGTH | 0.49 INCHES MINIMUM AND |
| GRIP DIAMETER | 0.3740 INCHES MINIMUM AND |
| SPECIFICATION/STANDARD DATA | 80205-NAS1580 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BOLT,100 DEG FLUSH HEAD |
Restrictions/Controls & Freight Information | NSN 5305-01-607-2093
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096640 | SCREWS, IRON OR STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-607-2093
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
