NSN 5305-01-372-9921 1451M12P02, 01-372-9921, 013729921
Product Details | CLOSE TOLERANCE SCREW

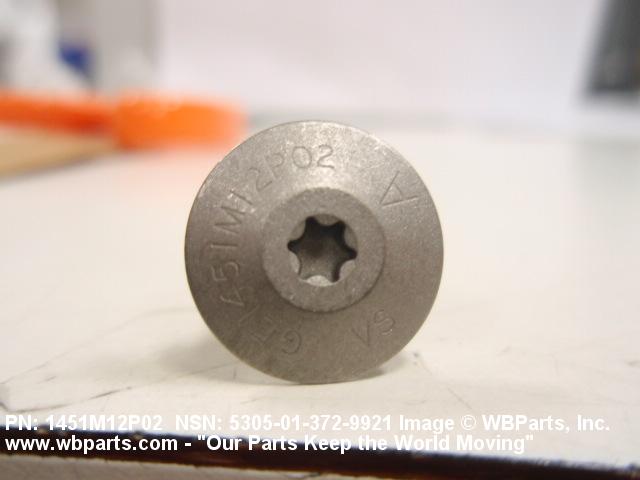

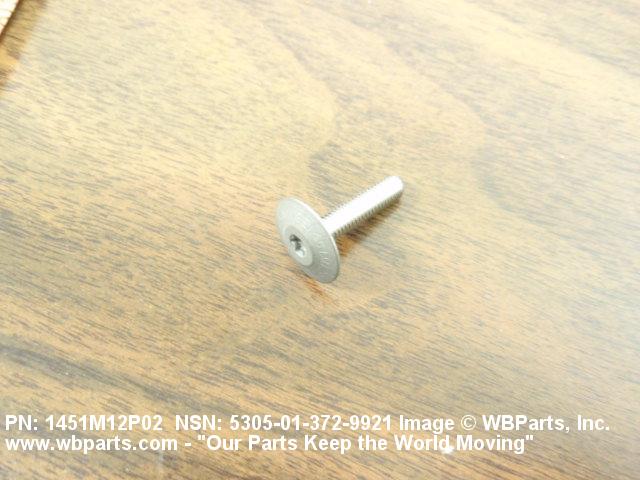

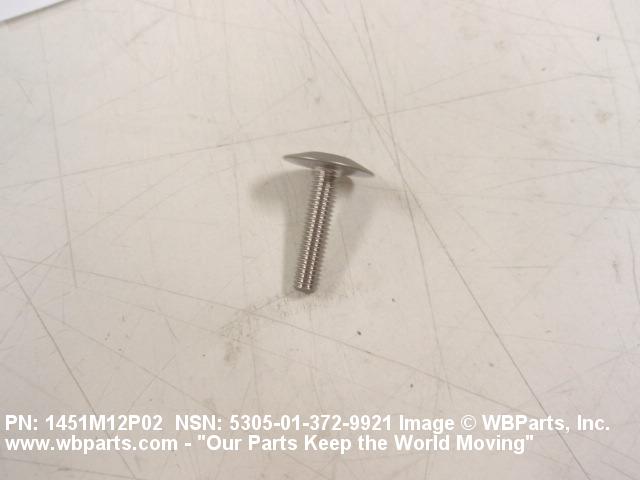

5305-01-372-9921 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 1451M12P02, 5305-01-372-9921, 01-372-9921, 5305013729921, 013729921
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 MAR 1993 | 01-372-9921 | 29294 ( SCREW, CLOSE TOLERANCE ) |
Drawings & Photos | NSN 5305-01-372-9921
Demand History | NSN 5305-01-372-9921
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1451M12P02 | 2024-09-259 | 121 | DIBBS |
| 1451M12P02 | 2024-05-140 | 224 | DIBBS |
| 1451M12P02 | 2024-02-52 | 671 | DIBBS |
| 1451M12P02 | 2024-02-46 | 171 | DIBBS |
| 1451M12P02 | 2024-02-44 | 671 | DIBBS |
| 1451M12P02 | 2024-02-36 | 671 | DIBBS |
| 1451M12P02 | 2024-01-24 | 671 | DIBBS |
| 1451M12P02 | 2024-01-16 | 671 | DIBBS |
| 1451M12P02 | 2024-01-07 | 671 | DIBBS |
| 1451M12P02 | 2023-06-170 | 40 | DIBBS |
| 1451M12P02 | 2023-03-85 | 631 | DIBBS |
| 1451M12P02 | 2023-03-75 | 631 | DIBBS |
| 1451M12P02 | 2022-12-356 | 555 | DIBBS |
| 1451M12P02 | 2022-12-353 | 58 | DIBBS |
| 1451M12P02 | 2022-12-341 | 555 | DIBBS |
| 1451M12P02 | 2022-11-326 | 555 | DIBBS |
| 5305-01-372-9921 | 2022-10-287 | 15000 | US |
| 1451M12P02 | 2022-09-261 | 66 | DIBBS |
| 1451M12P02 | 2022-02-33 | 391 | DIBBS |
| 1451M12P02 | 2021-08-235 | 324 | DIBBS |
| 5305-01-372-9921 | 2017-04-117 | 54 | DIBBS |
| 5305-01-372-9921 | 2016-10-298 | 50 | DIBBS |
| 5305-01-372-9921 | 2016-10-286 | 50 | DIBBS |
| 5305-01-372-9921 | 2016-07-190 | 104 | DIBBS |
| 5305-01-372-9921 | 2016-06-164 | 54 | DIBBS |
| 5305-01-372-9921 | 2015-12-362 | 60 | DIBBS |
| 5305-01-372-9921 | 2015-12-348 | 60 | DIBBS |
| 5305-01-372-9921 | 2015-08-238 | 55 | DIBBS |
| 5305-01-372-9921 | 2015-08-216 | 243 | DIBBS |
| 5305-01-372-9921 | 2013-11-328 | 50 | DIBBS |
| 5305-01-372-9921 | 2013-08-235 | 218 | DIBBS |
| 5305-01-372-9921 | 2012-04-111 | 400 | DIBBS |
| 5305-01-372-9921 | 2012-04-102 | 227 | DIBBS |
| 5305-01-372-9921 | 2012-04-95 | 227 | DIBBS |
| 5305-01-372-9921 | 2012-03-75 | 400 | DIBBS |
| 5305-01-372-9921 | 2012-02-58 | 136 | DIBBS |
| 5305-01-372-9921 | 2011-06-165 | 311 | DIBBS |
| 5305-01-372-9921 | 2011-05-126 | 71 | DIBBS |
| 5305-01-372-9921 | 2011-05-126 | 52 | DIBBS |
| 1451M12P02 | 2010-07-187 | 60 | United States |
| 1451M12P02 | 2010-05-140 | 60 | United States |
| 5305-01-372-9921 | 2009-10-278 | 58 | DIBBS |
| 5305-01-372-9921 | 2009-08-224 | 15 | DIBBS |
| 5305-01-372-9921 | 2009-06-174 | 28 | DIBBS |
| 5305-01-372-9921 | 2009-06-161 | 8 | DIBBS |
