NSN 5305-01-334-6195 275585D, 2755-8-5D, 01-334-6195
Product Details | CLOSE TOLERANCE SCREW
5305-01-334-6195 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 275585D, 2755-8-5D, 5305-01-334-6195, 01-334-6195, 5305013346195, 013346195
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 FEB 1991 | 01-334-6195 | 29294 ( SCREW, CLOSE TOLERANCE ) |

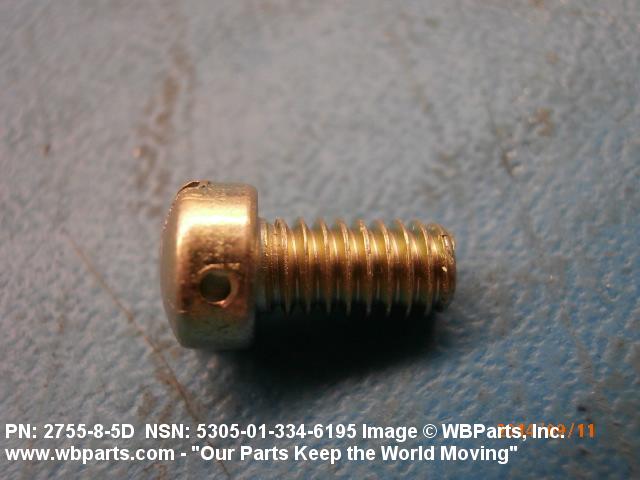

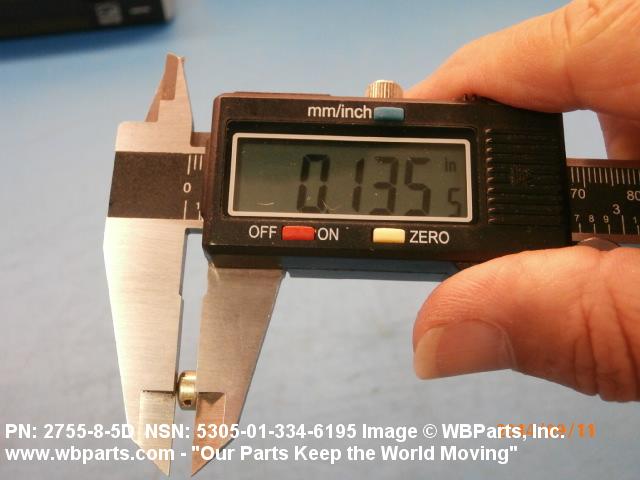

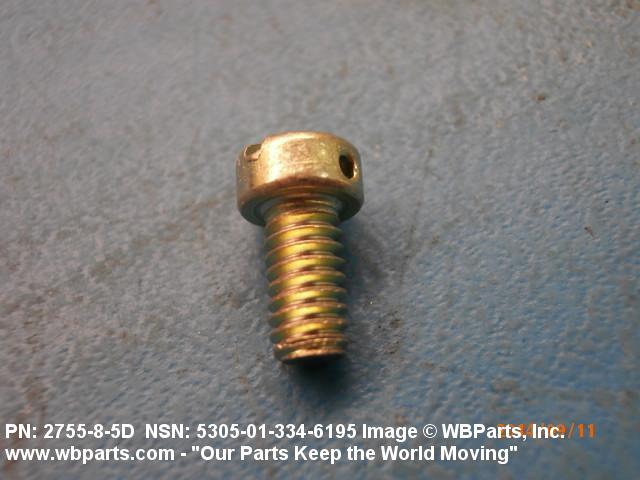

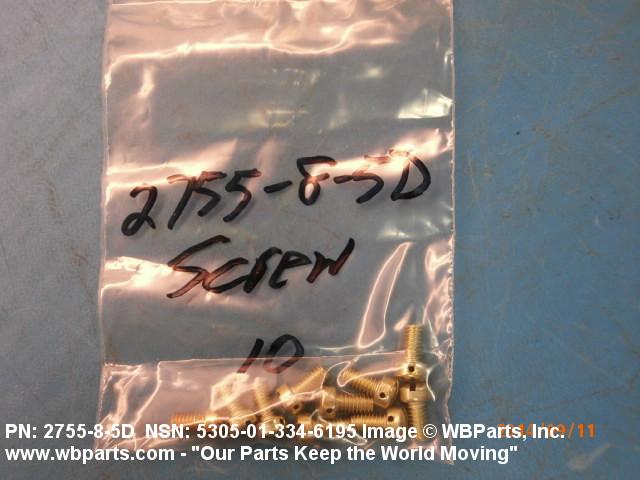

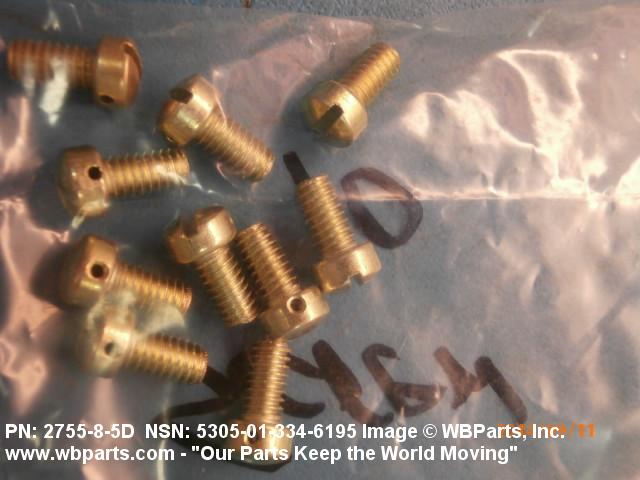

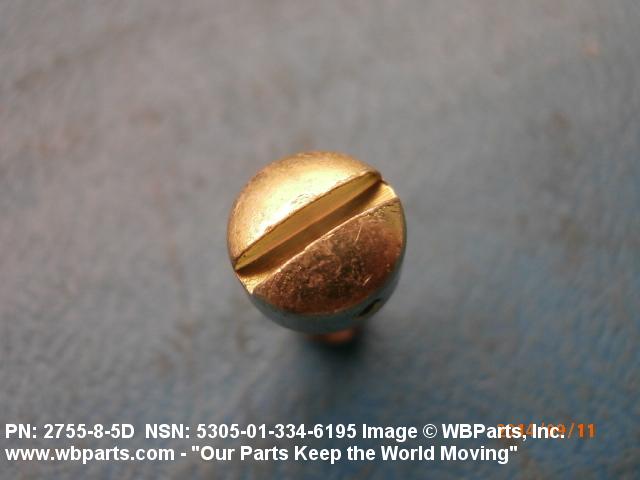

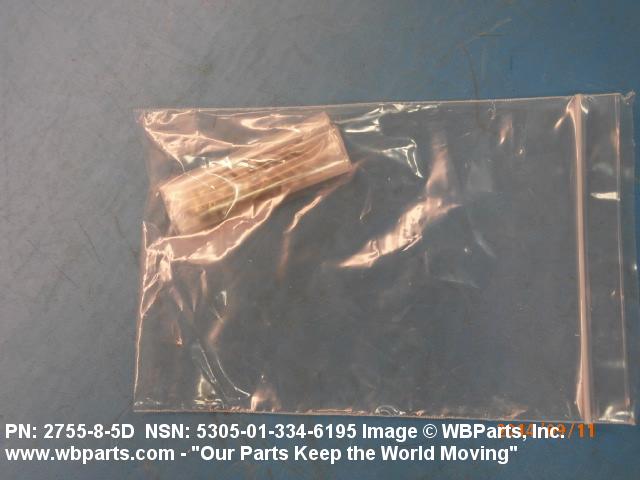

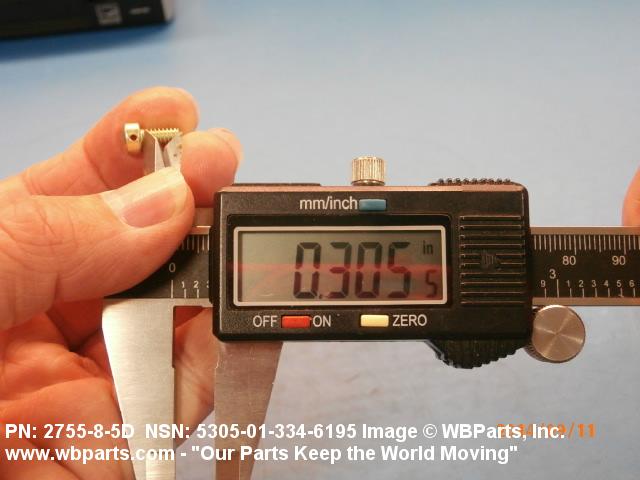

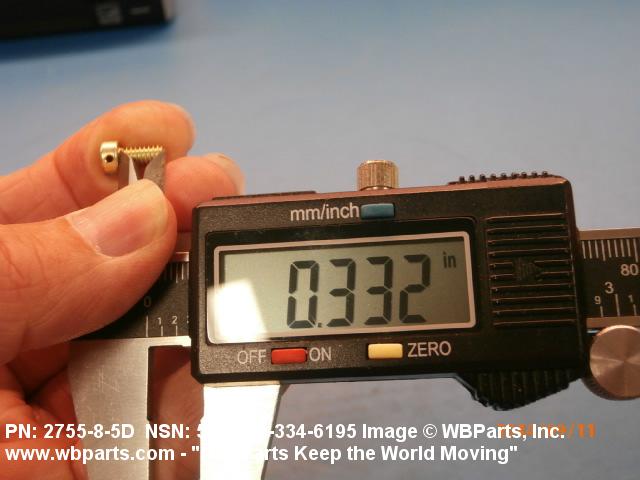

Drawings & Photos | NSN 5305-01-334-6195
Demand History | NSN 5305-01-334-6195
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-334-6195 | 2021-09-245 | 25 | DIBBS |
| 5305-01-334-6195 | 2014-06-181 | 10 | United States |
Cross Reference | NSN 5305-01-334-6195
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2755-8-5D | 73760 | ITT CORPORATION DBA ITT AEROSPACE CONTROLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-334-6195
Restrictions/Controls & Freight Information | NSN 5305-01-334-6195
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
