NSN 5305-01-596-2335 NAS88022, NAS8802-2, 01-596-2335
Product Details | CLOSE TOLERANCE SCREW
5305-01-596-2335 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: NAS88022, NAS8802-2, 5305-01-596-2335, 01-596-2335, 5305015962335, 015962335
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 MAY 2011 | 01-596-2335 | 29294 ( SCREW, CLOSE TOLERANCE ) |

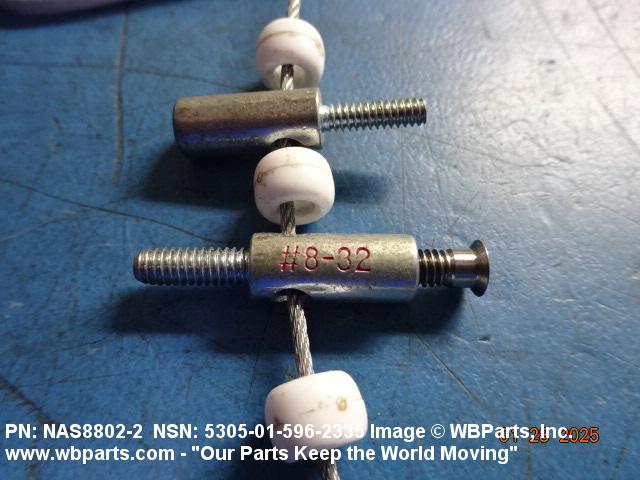

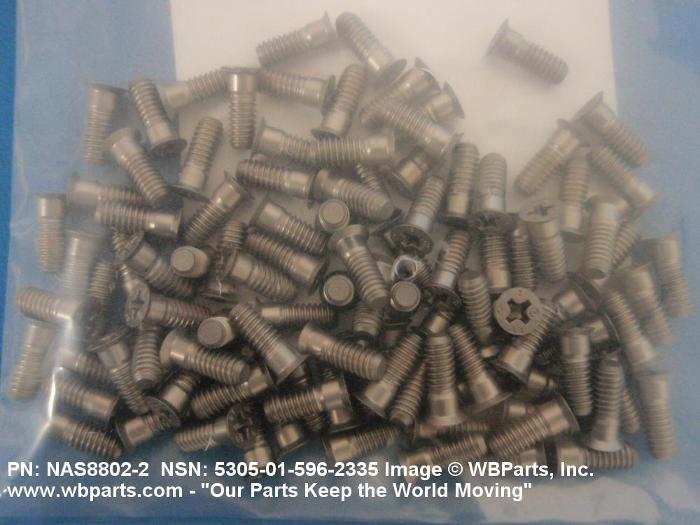

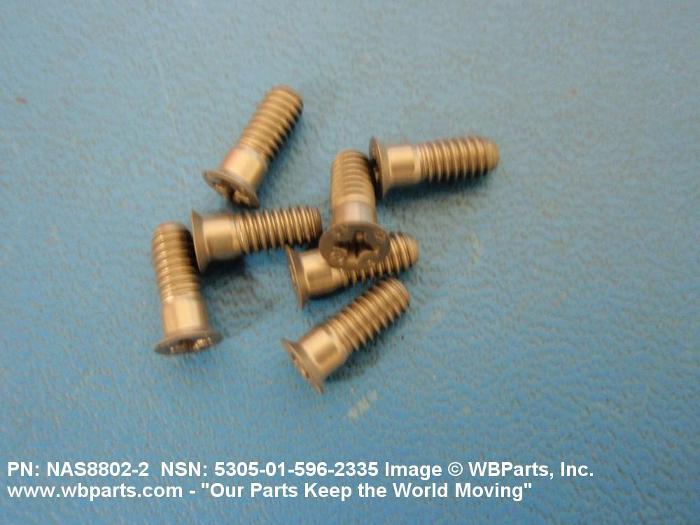

Drawings & Photos | NSN 5305-01-596-2335
Demand History | NSN 5305-01-596-2335
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS88022 | 2024-08-28 | 25 | US |
| NAS88022 | 2024-08-28 | 25 | US |
| NAS88022 | 2024-08-20 | 25 | United States |
| NAS88022 | 2024-08-19 | 40 | US |
| NAS88022 | 2024-08-19 | 40 | US |
| NAS88022 | 2024-08-14 | 110 | US |
| NAS88022 | 2024-06-26 | 150 | us |
| 5305-01-596-2335 | 2024-03-29 | 150 | United States |
| 5305-01-596-2335 | 2023-09-20 | 20 | United States |
| NAS88022 | 2023-08-22 | 10 | Spain |
| NAS88022 | 2015-06-25 | 680 | United States |
| NAS88022 | 2012-01-11 | 198 | us |
| NAS88022 | 2011-06-01 | 46 | United States |
Cross Reference | NSN 5305-01-596-2335
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS8802-2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-596-2335
Technical Data | NSN 5305-01-596-2335
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

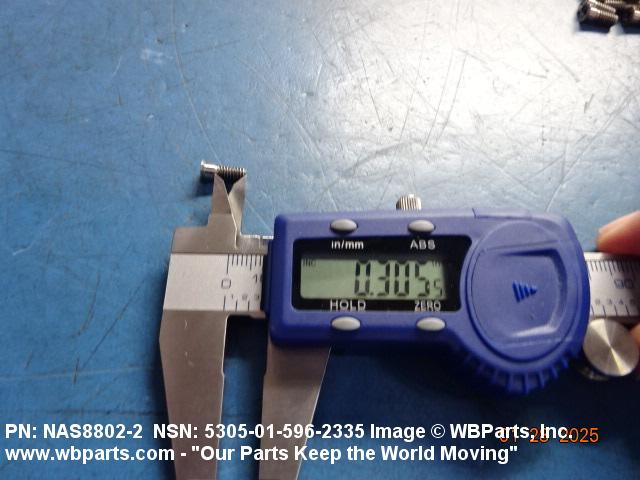

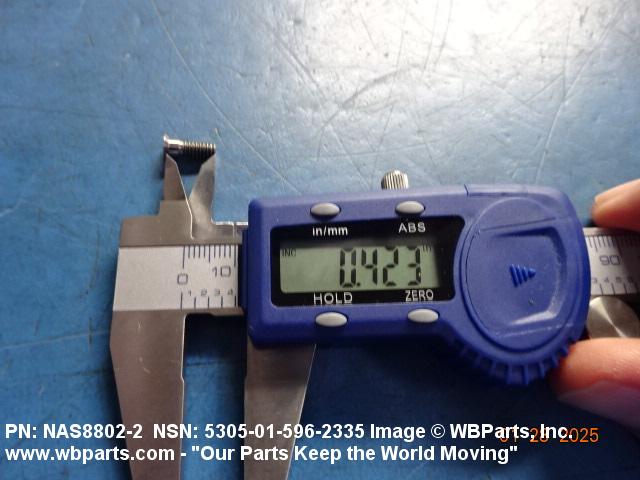

| THREAD LENGTH | 0.323 INCHES MINIMUM |
| FASTENER LENGTH | 0.433 INCHES MINIMUM AND |
| MATERIAL | TITANIUM ALLOY UNS R56440 OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.226 INCHES MINIMUM AND |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND |
| INTERNAL DRIVE STYLE | CROSS RECESS TYPE 1 |
| GRIP LENGTH | 0.115 INCHES MINIMUM AND |

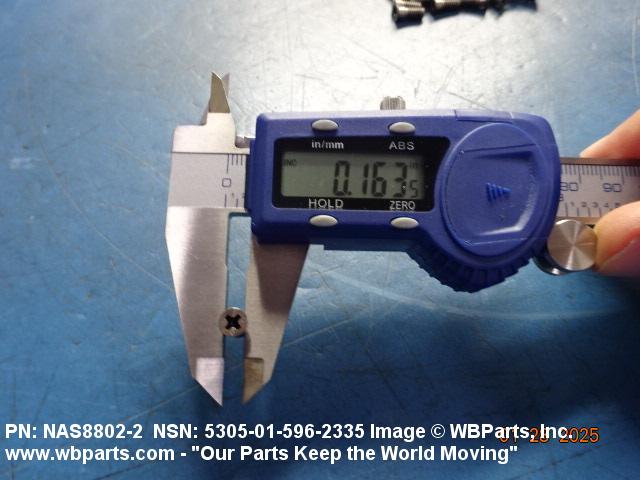

| GRIP DIAMETER | 0.163 INCHES MINIMUM AND |
Restrictions/Controls & Freight Information | NSN 5305-01-596-2335
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
