NSN 5305-01-513-4334 BACS12JC4A17, 01-513-4334, 015134334
Product Details | CLOSE TOLERANCE SCREW
5305-01-513-4334 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: BACS12JC4A17, 5305-01-513-4334, 01-513-4334, 5305015134334, 015134334
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 SEP 2003 | 01-513-4334 | 29294 ( SCREW, CLOSE TOLERANCE ) |

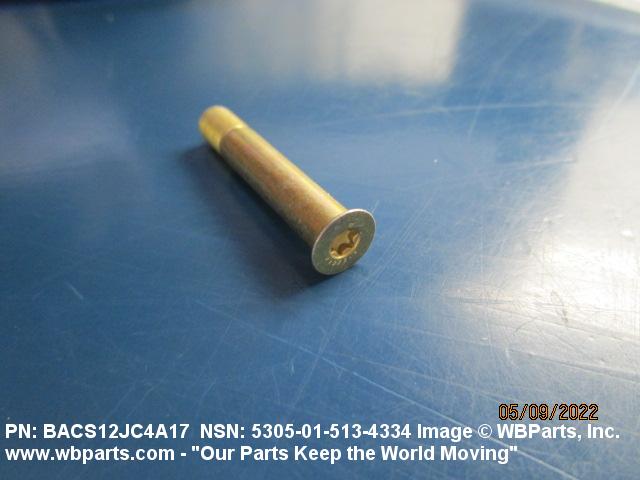

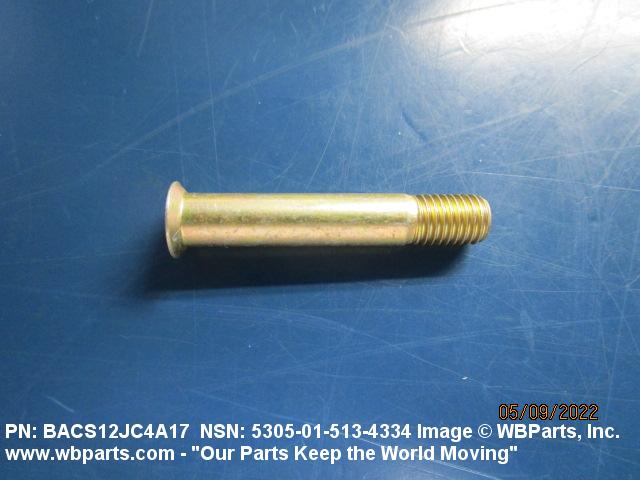

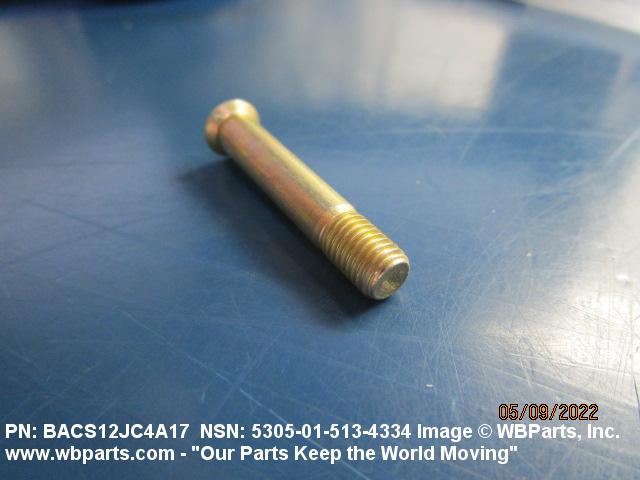

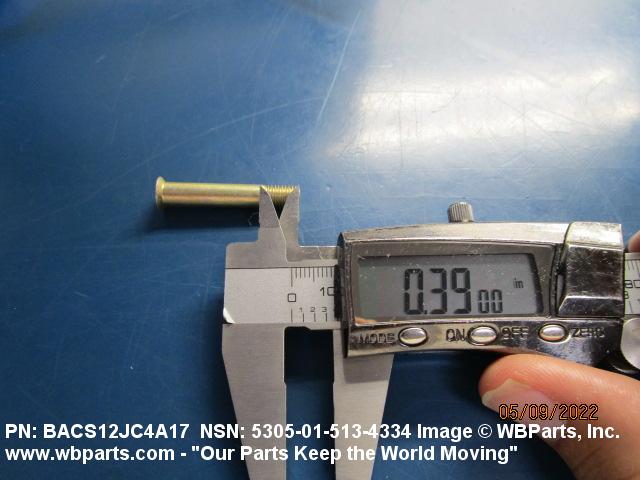

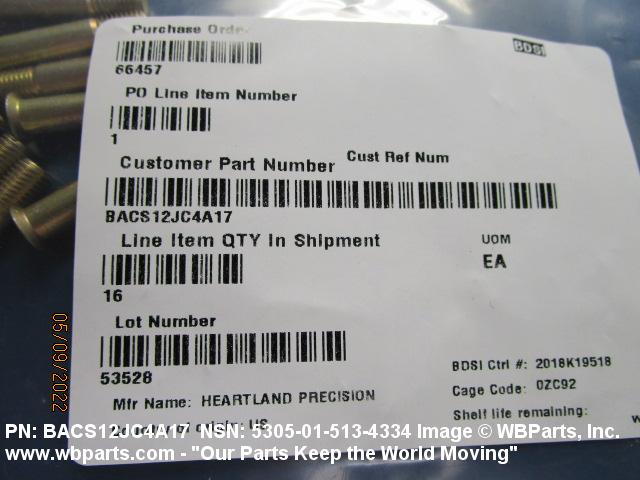

Drawings & Photos | NSN 5305-01-513-4334
Demand History | NSN 5305-01-513-4334
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-513-4334 | 2022-04-115 | 16 | United States |
| 5305-01-513-4334 | 2018-10-289 | 20152 | DIBBS |
| 5305-01-513-4334 | 2018-10-281 | 20152 | DIBBS |
| 5305-01-513-4334 | 2018-05-144 | 1 | DIBBS-RFPs |
| 5305-01-513-4334 | 2017-05-136 | 28310 | DIBBS |
| 5305-01-513-4334 | 2016-01-12 | 84619 | DIBBS |
| 5305-01-513-4334 | 2016-01-11 | 58128 | DIBBS |
| 5305-01-513-4334 | 2015-12-356 | 15109 | DIBBS |
| 5305-01-513-4334 | 2015-12-342 | 15109 | DIBBS |
| 5305-01-513-4334 | 2015-11-309 | 24276 | DIBBS |
| 5305-01-513-4334 | 2015-10-298 | 24276 | DIBBS |
| 5305-01-513-4334 | 2015-08-216 | 11876 | DIBBS |
| 5305-01-513-4334 | 2015-04-97 | 14182 | DIBBS |
| 5305-01-513-4334 | 2015-01-13 | 10879 | DIBBS |
| 5305-01-513-4334 | 2014-12-337 | 9343 | DIBBS |
| 5305-01-513-4334 | 2014-11-308 | 10669 | DIBBS |
| 5305-01-513-4334 | 2014-09-246 | 16677 | DIBBS |
| 5305-01-513-4334 | 2014-01-26 | 24421 | DIBBS |
| 5305-01-513-4334 | 2013-07-191 | 12911 | DIBBS |
| 5305-01-513-4334 | 2013-07-185 | 12373 | DIBBS |
| 5305-01-513-4334 | 2013-03-64 | 7721 | DIBBS |
| 5305-01-513-4334 | 2013-02-39 | 9566 | DIBBS |
| 5305-01-513-4334 | 2012-12-364 | 6559 | DIBBS |
| 5305-01-513-4334 | 2012-11-312 | 12102 | DIBBS |
| 5305-01-513-4334 | 2012-10-303 | 6744 | DIBBS |
| 5305-01-513-4334 | 2012-09-269 | 6022 | DIBBS |
| 5305-01-513-4334 | 2012-09-263 | 6744 | DIBBS |
| 5305-01-513-4334 | 2012-07-187 | 10082 | DIBBS |
| 5305-01-513-4334 | 2012-06-158 | 6724 | DIBBS |
| 5305-01-513-4334 | 2012-01-09 | 17373 | DIBBS |
| 5305-01-513-4334 | 2011-11-307 | 6744 | DIBBS |
| 5305-01-513-4334 | 2011-09-262 | 3788 | DIBBS |
| 5305-01-513-4334 | 2011-07-193 | 8105 | DIBBS |
| 5305-01-513-4334 | 2011-06-155 | 4069 | DIBBS |
Cross Reference | NSN 5305-01-513-4334
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACS12JC4A17 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| BACS12JC4A17 | 0E0Z8 | AEROSPACE MANUFACTURING, INC. |
| BACS12JC4A17 | 0ZC92 | HEARTLAND PRECISION FASTENERS, INC. |
| BACS12JC4A17 | 1GP79 | PILGRIM SCREW CORPORATION DIV ARIZONA |
| BACS12JC4A17 | 77272 | THE BOEING COMPANY DBA BOEING |
| BACS12JC4A17 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-513-4334
Related Products | NSN 5305-01-513-4334
Technical Data | NSN 5305-01-513-4334
| Characteristic | Specifications |
|---|---|

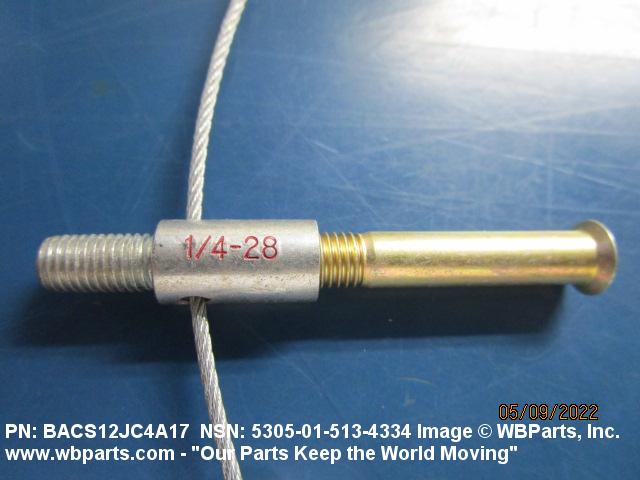

| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.403 INCHES MAXIMUM |

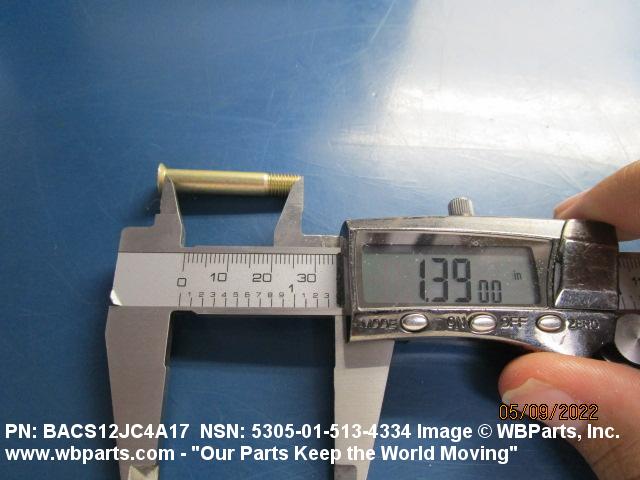

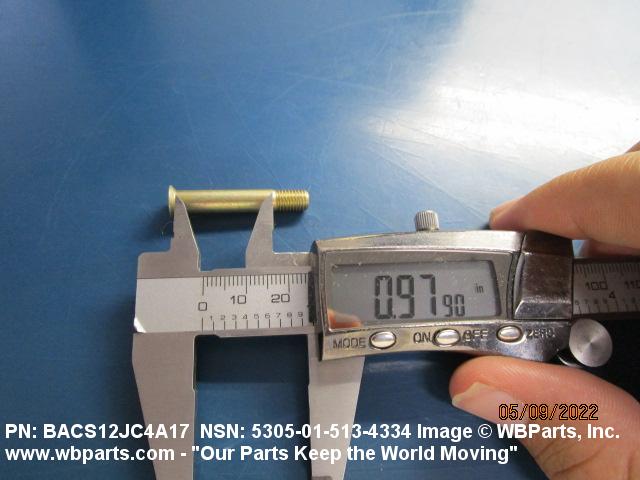

| FASTENER LENGTH | 1.062 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5853 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TY 2, CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C50 FLAT COUNTERSUNK |

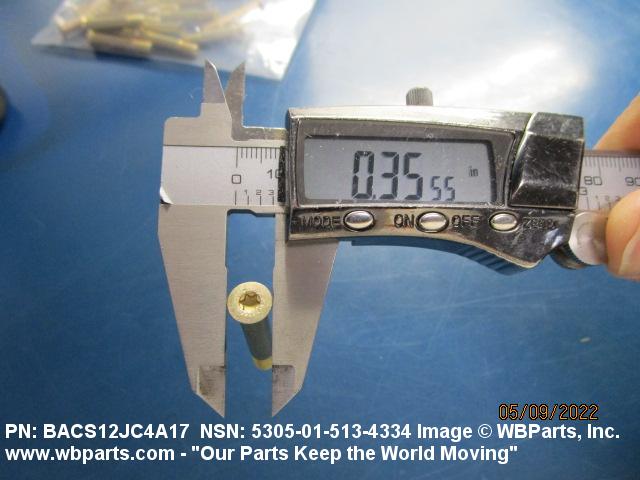

| HEAD DIAMETER | 0.350 INCHES MINIMUM AND 0.398 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | D24 TORX |
| SPLINE MAJOR DIAMETER | 0.300 INCHES NOMINAL |
| GRIP LENGTH | 0.649 INCHES MINIMUM AND 0.669 INCHES MAXIMUM |

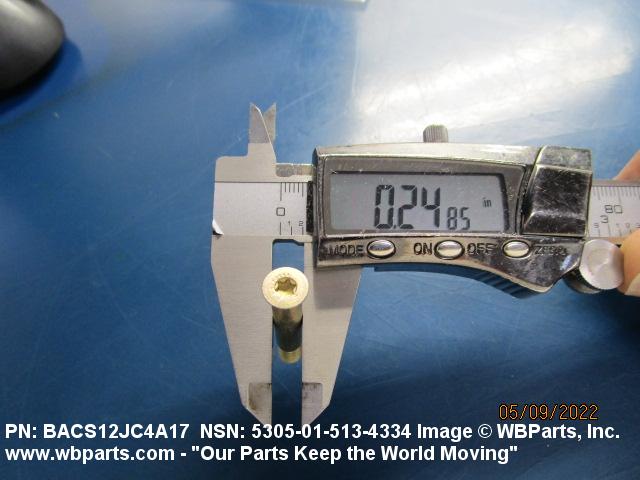

| GRIP DIAMETER | 0.248 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | EMER NSN - ISIL |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | (INAVY) SCREW, 100 DEGREE SIX LOBE REDUCED HEAD, TENSION, CLOSE TOLERANCE3 |
Restrictions/Controls & Freight Information | NSN 5305-01-513-4334
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096640 | SCREWS, IRON OR STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-513-4334
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | NV | TG:JOINT VERTICAL LIFT AIRCRAFT CV-22 (OSPREY) |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | V2 | MV-22 aircraft |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
