NSN 5305-01-494-7020 NAS1580C4T3, 01-494-7020, 014947020
Product Details | CLOSE TOLERANCE SCREW
5305-01-494-7020 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: NAS1580C4T3, 5305-01-494-7020, 01-494-7020, 5305014947020, 014947020
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 FEB 2002 | 01-494-7020 | 29294 ( SCREW, CLOSE TOLERANCE ) |

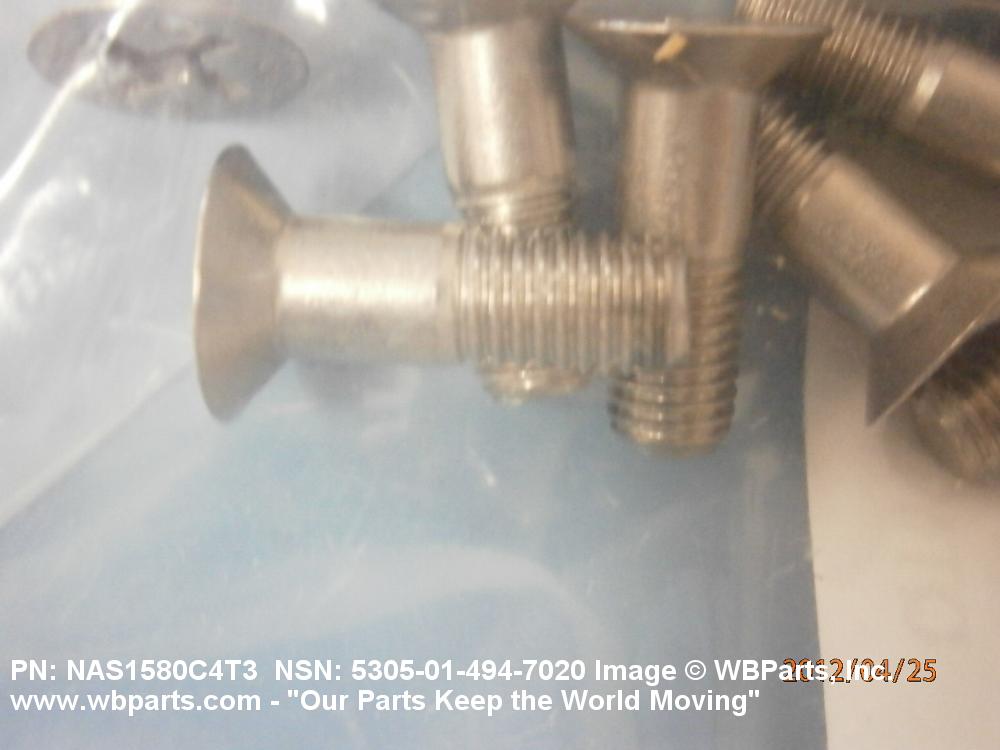

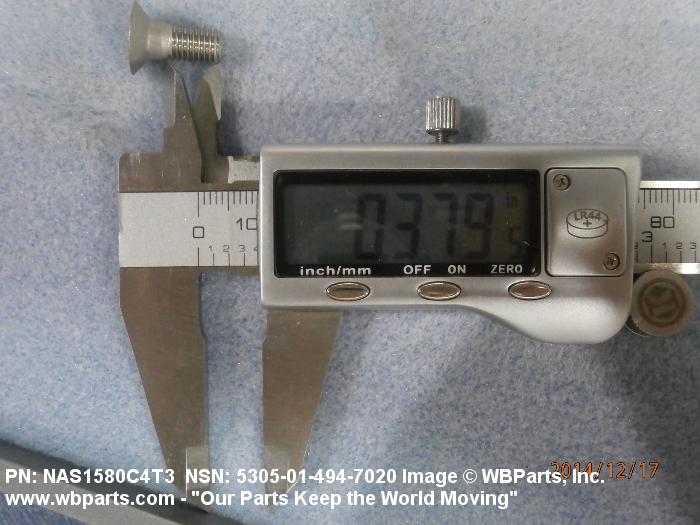

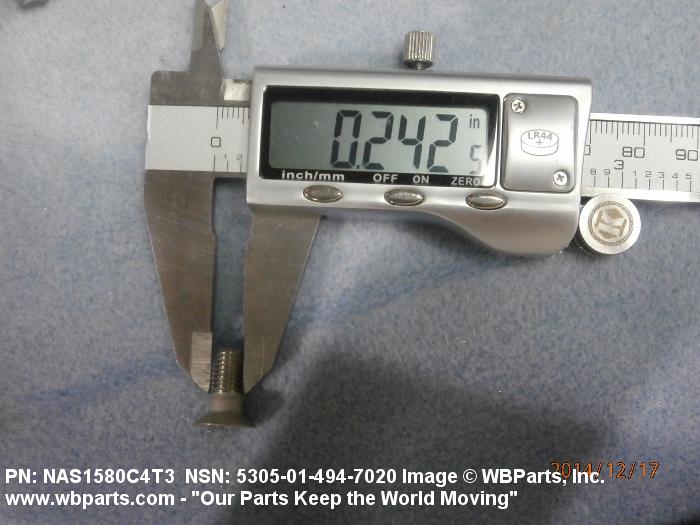

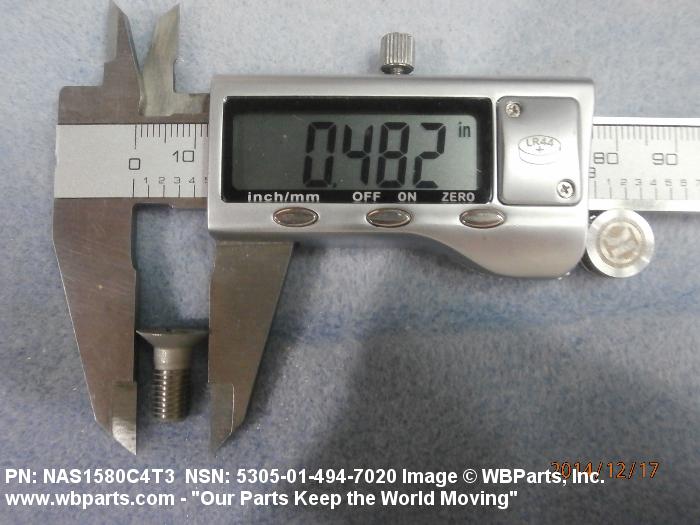

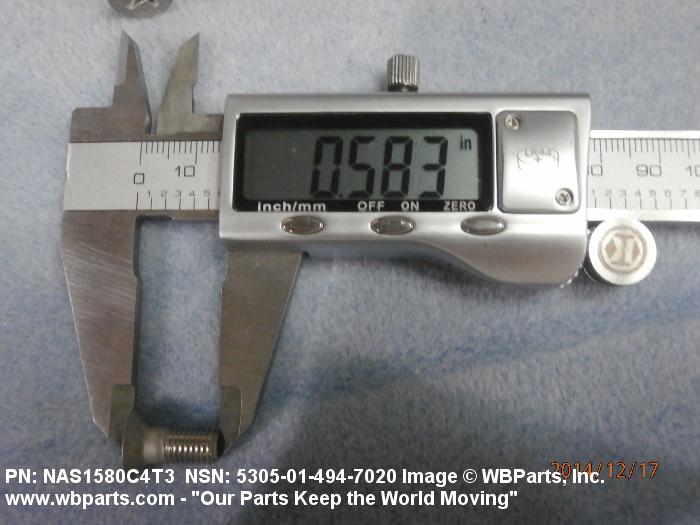

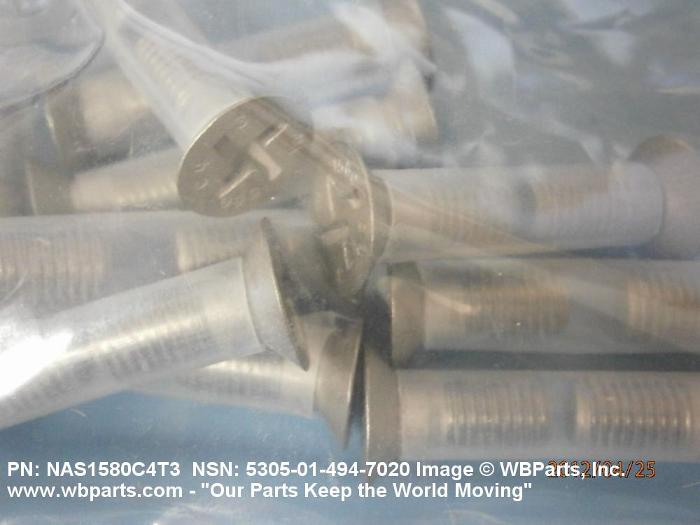

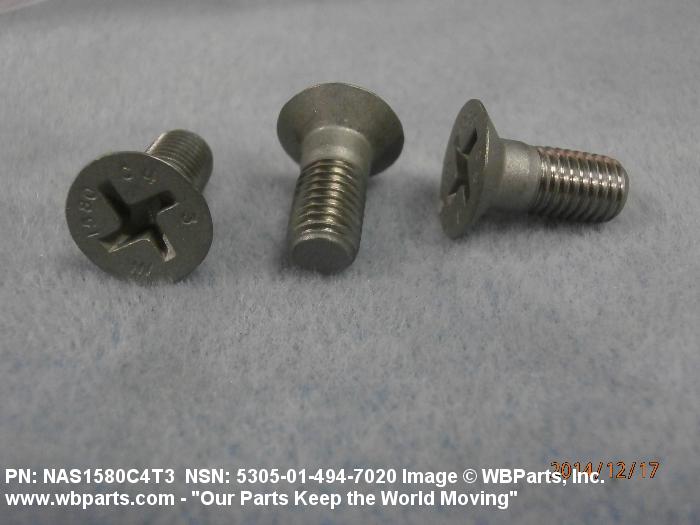

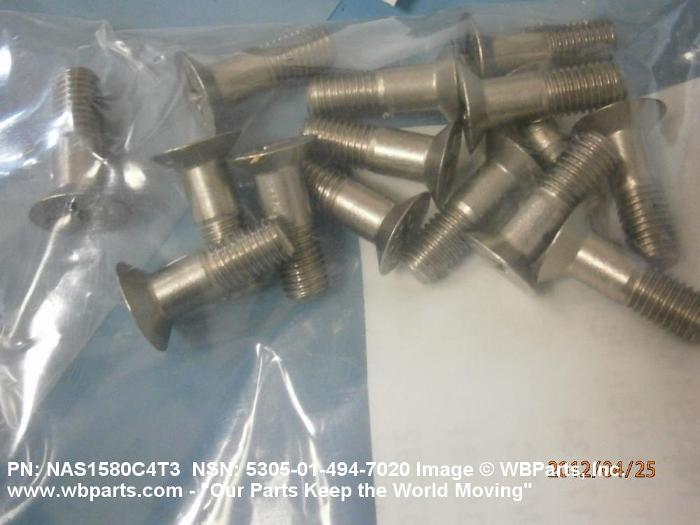

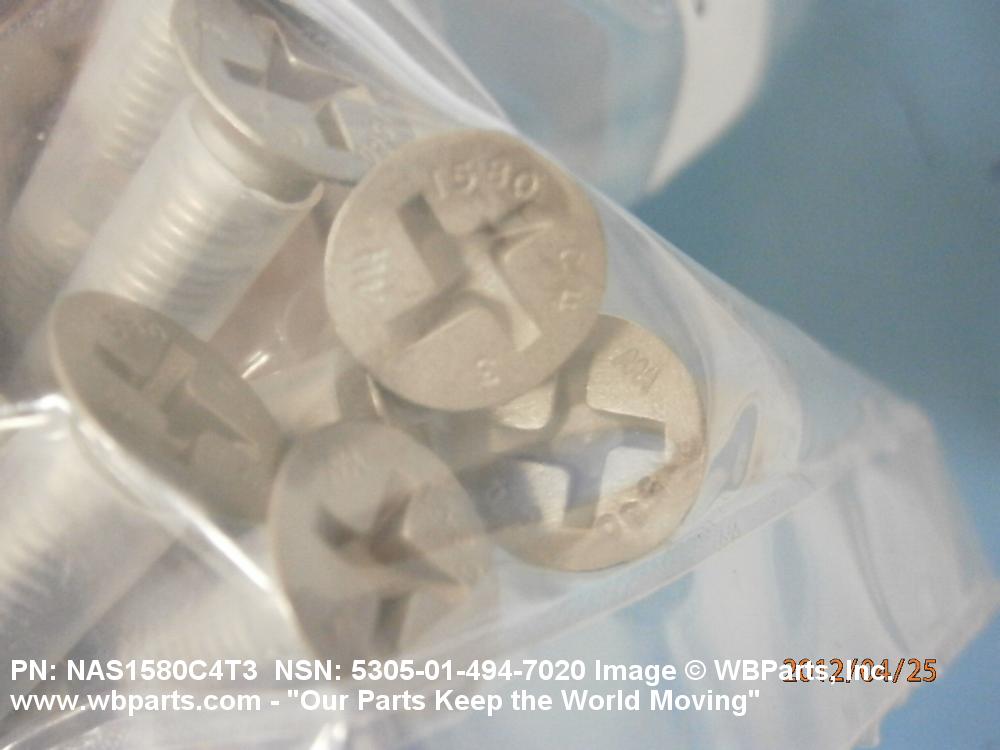

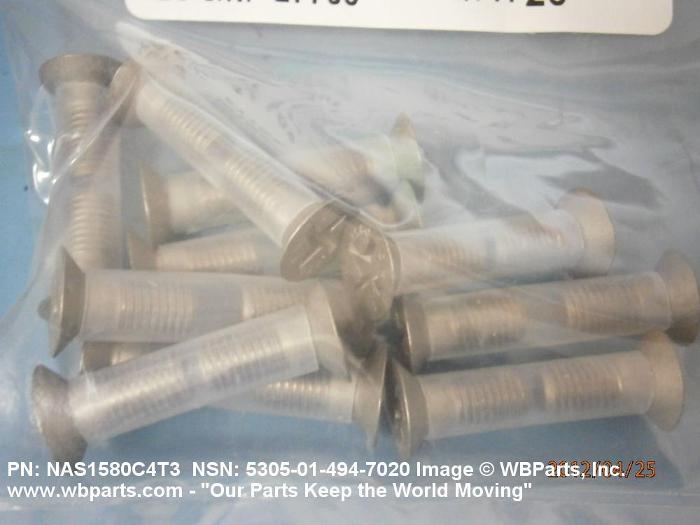

Drawings & Photos | NSN 5305-01-494-7020
Demand History | NSN 5305-01-494-7020
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1580C4T3 | 2019-07-210 | 300 | us |
| NAS1580C4T3 | 2018-12-344 | 350 | us |
| NAS1580C4T3 | 2012-04-110 | 20 | United States |
Cross Reference | NSN 5305-01-494-7020
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1580C4T3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-494-7020
Technical Data | NSN 5305-01-494-7020
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.2500 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.403 INCHES NOMINAL |
| FASTENER LENGTH | 0.575 INCHES MINIMUM AND 0.605 INCHES MAXIMUM |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5731 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5853 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 5790 POUNDS PER SQUARE INCH |
| HEAD STYLE | C50 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.464 INCHES NOMINAL |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | D25 TORQUE-SET RIBBED |
| GRIP LENGTH | 0.177 INCHES MINIMUM AND 0.197 INCHES MAXIMUM |
| GRIP DIAMETER | 0.2485 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| POINT STYLE | F19 FLAT |
| SPECIFICATION/STANDARD DATA | 80205-NAS1580 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-01-494-7020
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
