NSN 5305-01-367-9829 SC5046U37, SC5046U3-7, 3D017937
Product Details | CLOSE TOLERANCE SCREW
5305-01-367-9829 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: SC5046U37, SC5046U3-7, 3D017937, 3D0179-3-7, 5305-01-367-9829, 01-367-9829, 5305013679829, 013679829
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 NOV 1992 | 01-367-9829 | 29294 ( SCREW, CLOSE TOLERANCE ) |
Drawings & Photos | NSN 5305-01-367-9829
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-367-9829
Technical Data | NSN 5305-01-367-9829
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.431 INCHES NOMINAL |
| FASTENER LENGTH | 0.854 INCHES MINIMUM AND 0.884 INCHES MAXIMUM |
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

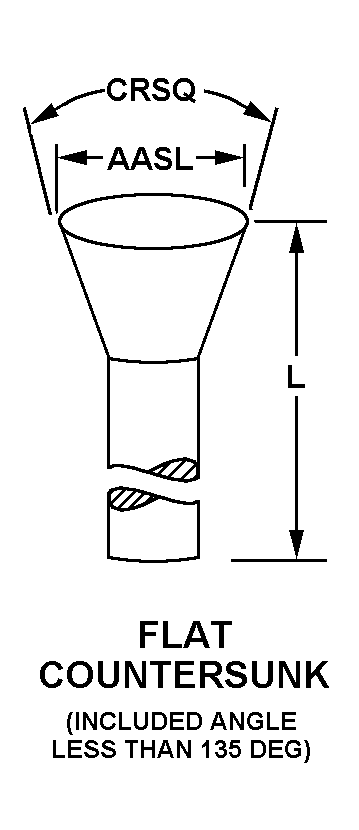

| HEAD STYLE | C50 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.265 INCHES MINIMUM AND 0.303 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

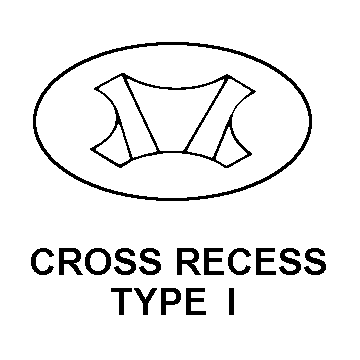

| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
