NSN 5305-01-367-9828 MILDTL1222, MIL-DTL-1222, MILS1222
Product Details | HEXAGON HEAD CAP SCREW
5305-01-367-9828 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.
Part Alternates: MILDTL1222, MIL-DTL-1222, MILS1222, MIL-S-1222, 53A0019316, 53A-00-193-16, 53A00193X16, 53A-00-193-X-16, 80321779170813, 803-2177917-08-13, 803-2177917-8-1 3, 5305-01-367-9828, 01-367-9828, 5305013679828, 8032177917813, 013679828
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 NOV 1992 | 01-367-9828 | 18257 ( SCREW, CAP, HEXAGON HEAD ) |

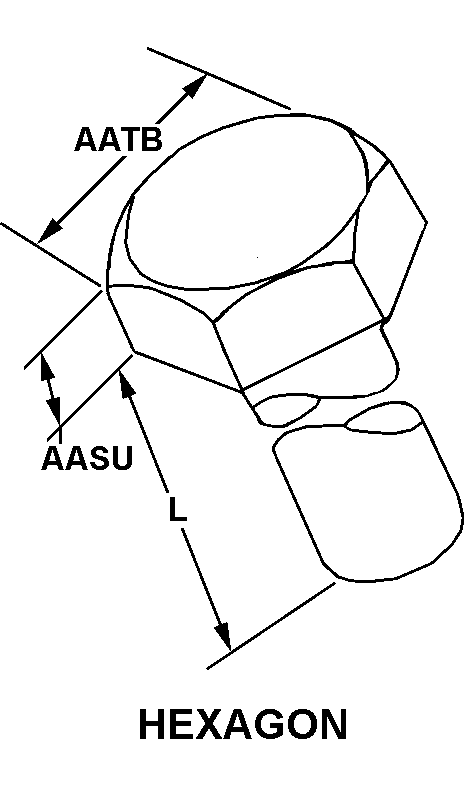

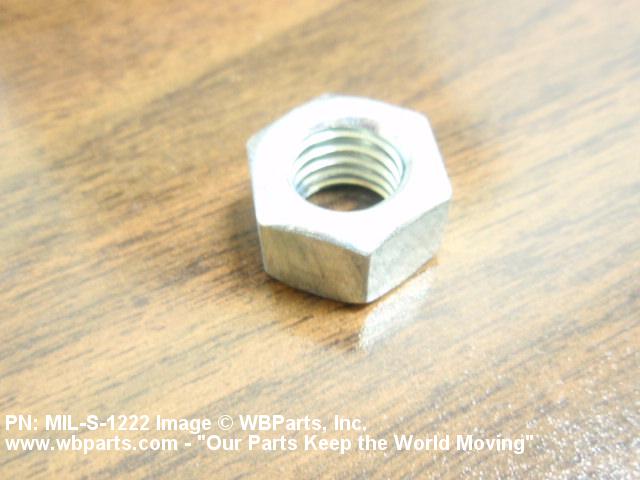

Drawings & Photos | NSN 5305-01-367-9828
Demand History | NSN 5305-01-367-9828
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILDTL1222 | 2025-03-72 | 40 | United States |
| MILDTL1222 | 2025-02-49 | 40 | United States |
| MILS1222 | 2025-01-22 | 8 | United States |
| MILS1222 | 2025-01-22 | 8 | United States |
| MILDTL1222 | 2023-06-159 | 12 | United States |
| 5305-01-367-9828 | 2023-02-51 | 228 | DIBBS |
| 5305-01-367-9828 | 2022-11-324 | 201 | DIBBS |
| 5305-01-367-9828 | 2022-08-226 | 120 | DIBBS |
| 5305-01-367-9828 | 2022-05-135 | 84 | DIBBS |
| 5305-01-367-9828 | 2021-11-322 | 12 | DIBBS |
| 5305-01-367-9828 | 2020-07-202 | 1 | DIBBS-RFPs |
| MILS1222 | 2015-03-89 | 3000 | BH |
| MILS1222 | 2014-08-230 | 1 | US |
| MILDTL1222 | 2013-06-169 | 59 | US |
| MILS1222 | 2012-07-209 | 4 | United States |
| 5305-01-367-9828 | 2012-03-89 | 130 | DIBBS |
| MILS1222 | 2012-03-74 | 1 | US |
| 5305-01-367-9828 | 2012-01-27 | 43 | DIBBS |
| MILS1222 | 2011-02-49 | 3 | US |
| MILS1222 | 2011-02-49 | 4 | US |
| MILS1222 | 2011-02-49 | 5 | US |
| MILS1222 | 2011-02-49 | 10 | US |
| MILS1222 | 2011-02-49 | 18 | US |
| MILS1222 | 2011-02-49 | 35 | US |
| MILS1222 | 2011-02-49 | 40 | US |
| MILS1222 | 2011-02-49 | 42 | US |
| MILS1222 | 2011-02-49 | 185 | US |
| MILS1222 | 2011-02-49 | 195 | US |
Cross Reference | NSN 5305-01-367-9828
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 53A-00-193-16 | 32386 | ILLINOIS TOOL WKS INC LINAC DIV |
| 53A-00-193-16 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 53A-00-193-X-16 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 803-2177917-08-13 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 803-2177917-8-1 3 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MIL-DTL-1222 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-1222 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
