NSN 5305-01-360-3033 NAS1300C3T16D, NAS1300-C3T16D, 01-360-3033
Product Details | THUMBSCREW
5305-01-360-3033 An externally threaded fastener whose threaded portion is of one nominal diameter. It may have an unthreaded portion with a diameter less than, equal to, or greater than the diameter of the threaded portion. It has either a vertically flattened, circular knurled, or wing type head, all of which are designed for rotation by the thumb and fingers. For items having wrenching facilities such as socket recess, multiple spline or slot heads, use SCREW (as modified) or BOLT (as modified).
Part Alternates: NAS1300C3T16D, NAS1300-C3T16D, 5305-01-360-3033, 01-360-3033, 5305013603033, 013603033
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 JUN 1992 | 01-360-3033 | 06673 ( THUMBSCREW ) |
Drawings & Photos | NSN 5305-01-360-3033
Demand History | NSN 5305-01-360-3033
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1300C3T16D | 2009-08-237 | 10 | US |
Cross Reference | NSN 5305-01-360-3033
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1300-C3T16D | 70318 | ALLMETAL SCREW PRODUCTS CORP DBA ALL METAL SCREW PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-360-3033
Technical Data | NSN 5305-01-360-3033
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.000 INCHES NOMINAL |
| FASTENER LENGTH | 1.000 INCHES NOMINAL |
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7720 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |

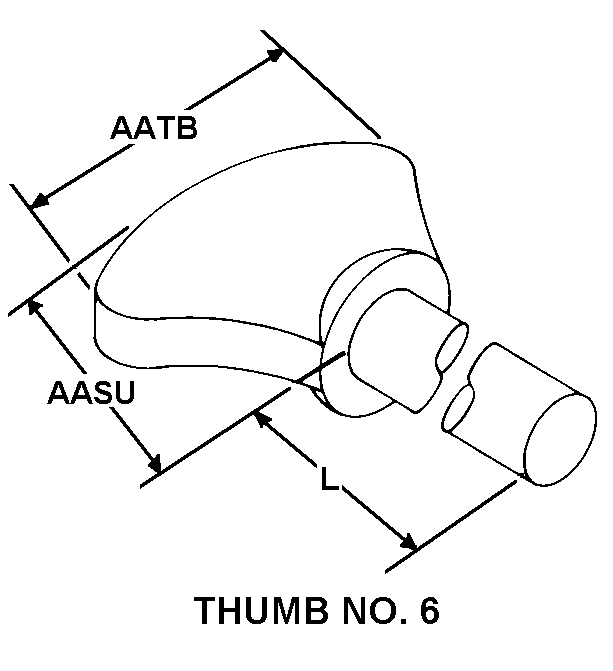

| HEAD STYLE | C82 THUMB NO. 6 |
| HEAD HEIGHT | 0.453 INCHES MINIMUM AND 0.483 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.395 INCHES MINIMUM AND 0.425 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1300-C3T16D PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-01-360-3033
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
