NSN 5305-00-955-2940 29623, 296-23, 00-955-2940
Product Details | THUMBSCREW
5305-00-955-2940 An externally threaded fastener whose threaded portion is of one nominal diameter. It may have an unthreaded portion with a diameter less than, equal to, or greater than the diameter of the threaded portion. It has either a vertically flattened, circular knurled, or wing type head, all of which are designed for rotation by the thumb and fingers. For items having wrenching facilities such as socket recess, multiple spline or slot heads, use SCREW (as modified) or BOLT (as modified).
Part Alternates: 29623, 296-23, 5305-00-955-2940, 00-955-2940, 5305009552940, 009552940
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-955-2940 | 06673 ( THUMBSCREW ) |

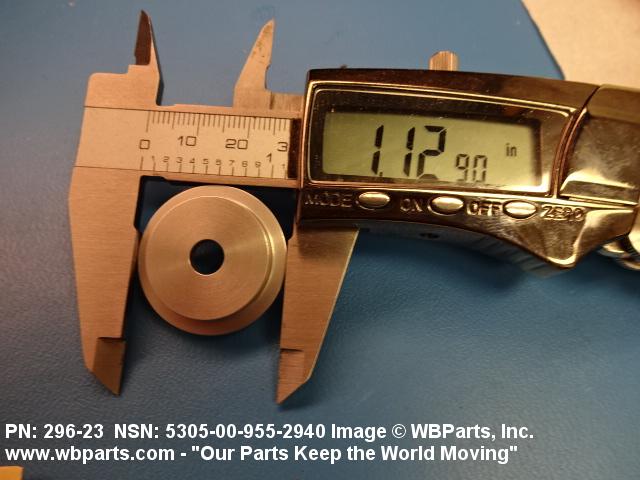

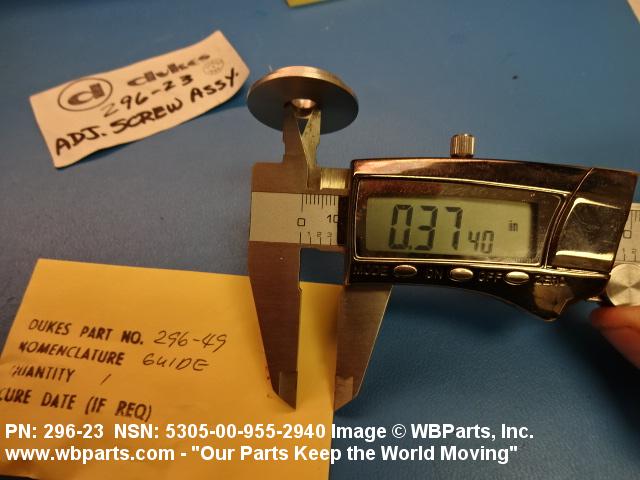

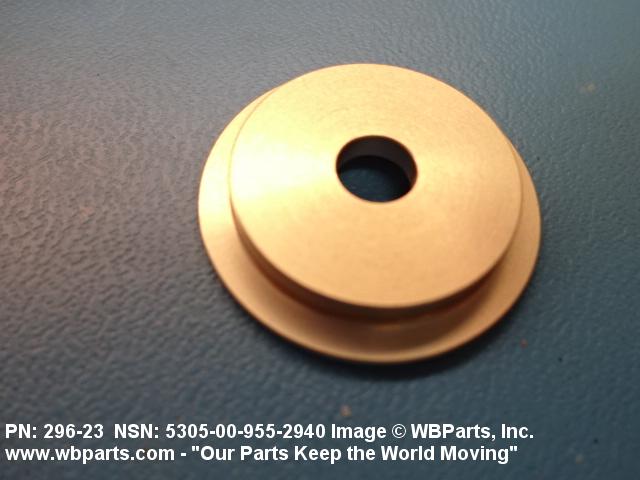

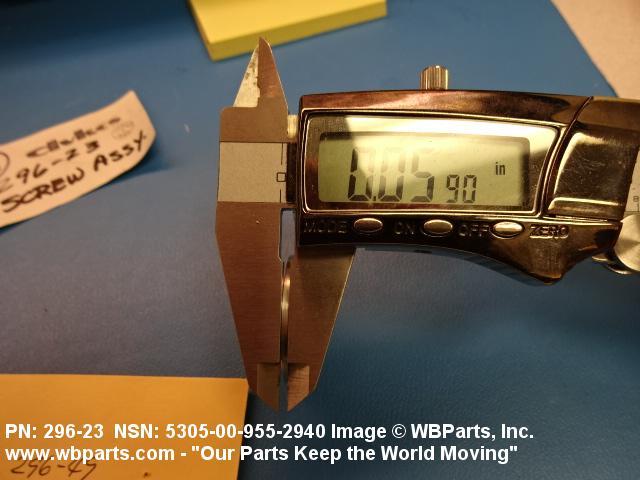

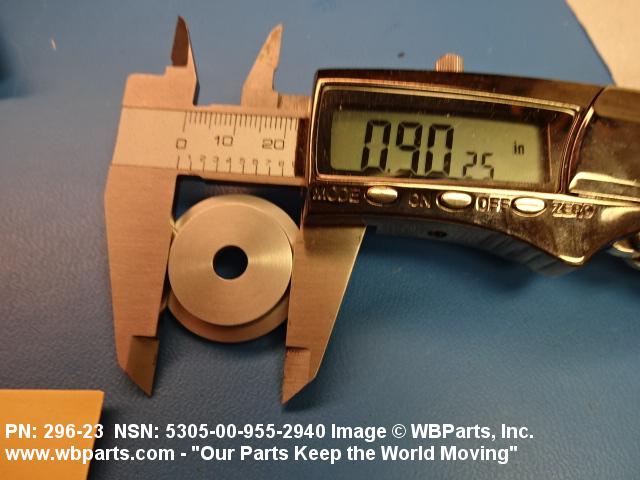

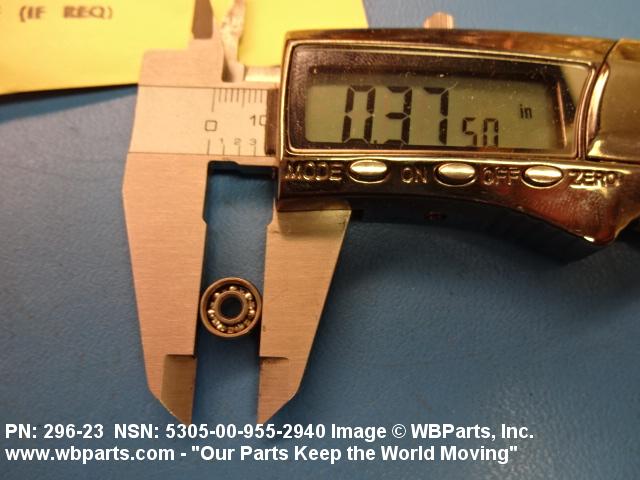

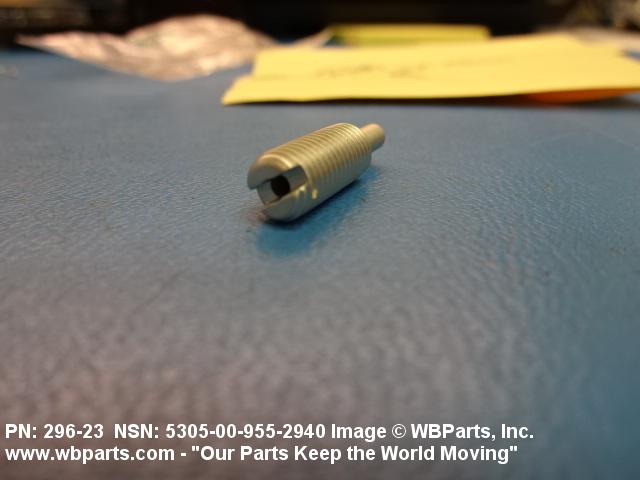

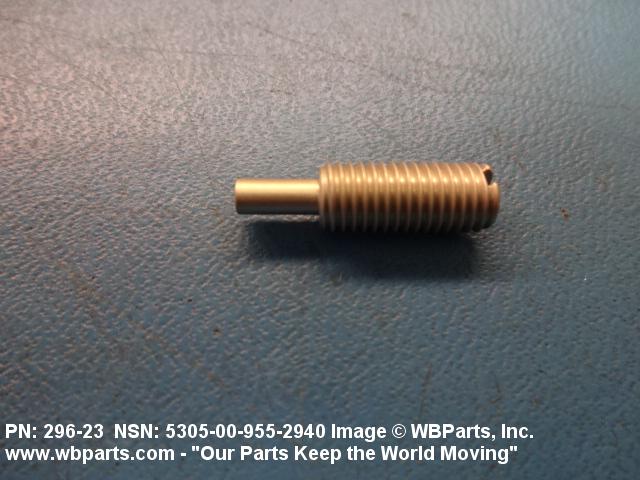

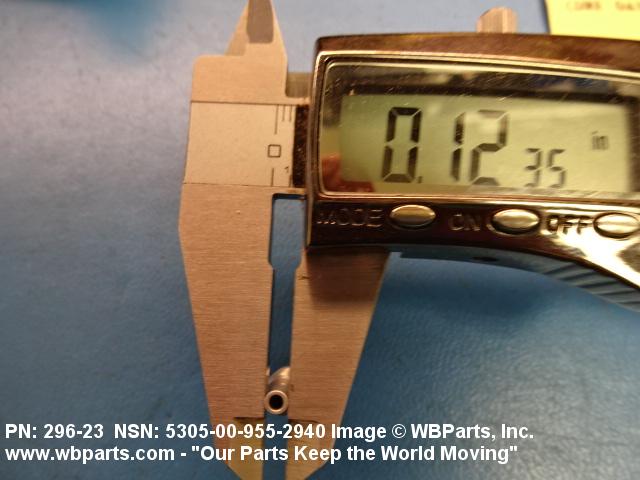

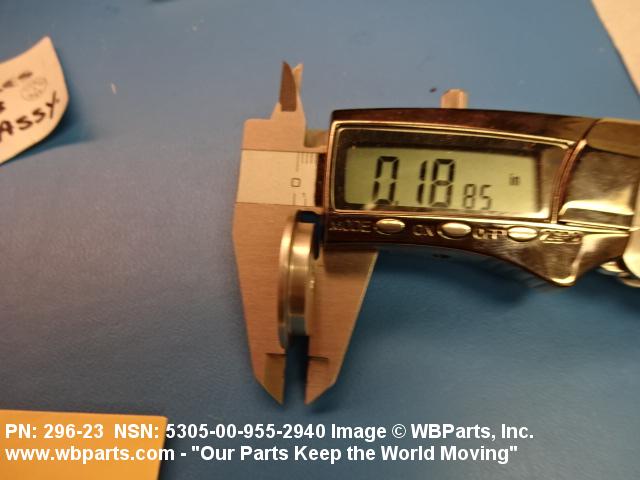

Drawings & Photos | NSN 5305-00-955-2940
Demand History | NSN 5305-00-955-2940
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 296-23 | 2021-02-46 | 7 | DIBBS |
| 296-23 | 2019-12-360 | 5 | DIBBS |
| 296-23 | 2019-12-350 | 5 | DIBBS |
| 5305-00-955-2940 | 2019-08-226 | 7 | United States |
| 296-23 | 2019-04-98 | 20 | DIBBS |
| 296-23 | 2019-03-90 | 5 | DIBBS |
| 296-23 | 2019-03-64 | 2 | DIBBS |
| 296-23 | 2019-02-56 | 2 | DIBBS |
| 5305-00-955-2940 | 2018-12-350 | 1 | DIBBS |
| 5305-00-955-2940 | 2018-04-108 | 2 | DIBBS |
| 5305-00-955-2940 | 2016-05-152 | 4 | DIBBS |
| 5305-00-955-2940 | 2016-05-131 | 4 | DIBBS |
| 5305-00-955-2940 | 2010-04-91 | 1 | DIBBS |
| 5305-00-955-2940 | 2009-08-219 | 2 | DIBBS |
| 5305-00-955-2940 | 2009-07-193 | 1 | DIBBS |
Cross Reference | NSN 5305-00-955-2940
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 296-23 | 09445 | DUKES AEROSPACE, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-955-2940
Related Products | NSN 5305-00-955-2940
Technical Data | NSN 5305-00-955-2940
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.480 INCHES MINIMUM |
| FASTENER LENGTH | 0.540 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TY 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| POINT STYLE | F19 FLAT |
| MANUFACTURERS CODE | 09445 |
| DESIGN CONTROL REFERENCE | 296-23 |
Restrictions/Controls & Freight Information | NSN 5305-00-955-2940
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013680 | ALUM SCREWS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-955-2940
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
