Product Details | THUMBSCREW
5305-01-304-4993 An externally threaded fastener whose threaded portion is of one nominal diameter. It may have an unthreaded portion with a diameter less than, equal to, or greater than the diameter of the threaded portion. It has either a vertically flattened, circular knurled, or wing type head, all of which are designed for rotation by the thumb and fingers. For items having wrenching facilities such as socket recess, multiple spline or slot heads, use SCREW (as modified) or BOLT (as modified).
Part Alternates: A30136071, A3013607-1, A31328311, A3132831-1, 5305-01-304-4993, 01-304-4993, 5305013044993, 013044993
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 JUL 1989 | 01-304-4993 | 06673 ( THUMBSCREW ) |

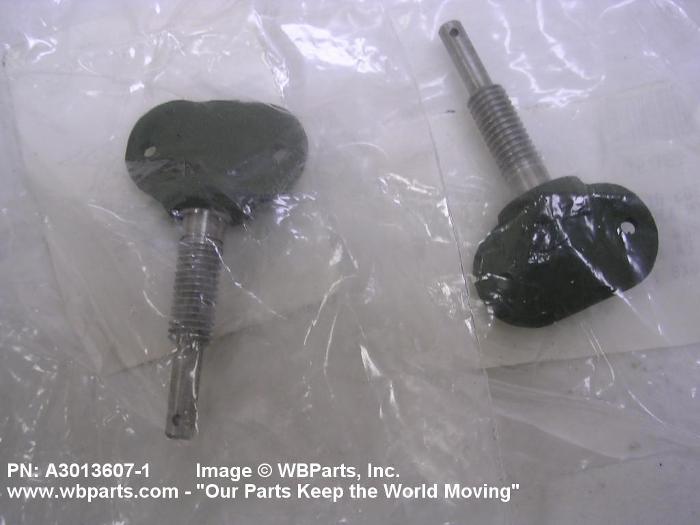

Drawings & Photos | NSN 5305-01-304-4993
Demand History | NSN 5305-01-304-4993
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-304-4993 | 2010-06-176 | 10 | Australia |
| 5305-01-304-4993 | 2009-05-131 | 2800 | DIBBS |
| 5305-01-304-4993 | 2008-07-190 | 150 | US |
| 5305-01-304-4993 | 2008-03-64 | 4758 | DIBBS |
| 5305-01-304-4993 | 2008-02-58 | 8000 | DIBBS |
| 5305-01-304-4993 | 2007-07-191 | 700 | us |
| 5305-01-304-4993 | 2007-05-142 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-304-4993
Related Products | NSN 5305-01-304-4993
Technical Data | NSN 5305-01-304-4993
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | M |
| NOMINAL THREAD DIAMETER | 8.0 MILLIMETERS |
| THREAD PITCH IN MILLIMETERS | 1.25 |
| EXTERNAL THREAD TOLERANCE CLASS | 6G |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 18.25 MILLIMETERS NOMINAL |
| FASTENER LENGTH | 39.0 MILLIMETERS NOMINAL |
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763, COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PAINT OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | A3014011, CAGE 80063 MFR REF SINGLE TREATMENT RESPONSE OVERALL |

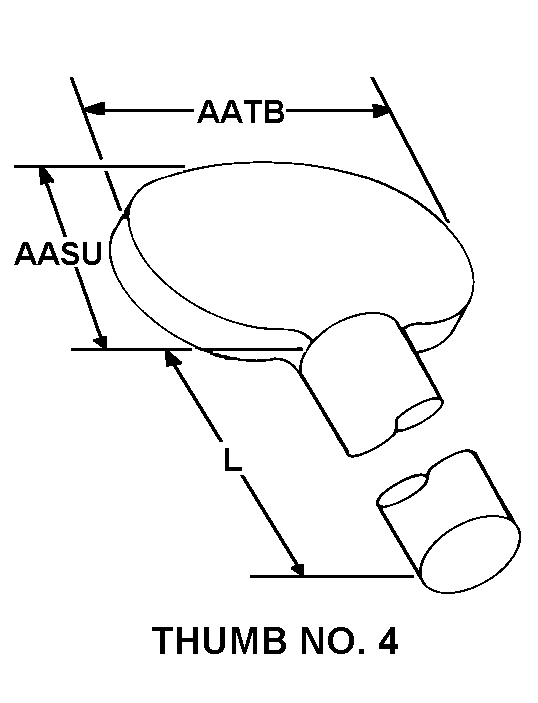

| HEAD STYLE | C80 THUMB NO. 4 |
| HEAD HEIGHT | 22.0 MILLIMETERS NOMINAL |
| WIDTH BETWEEN FLATS | 34.0 MILLIMETERS NOMINAL |

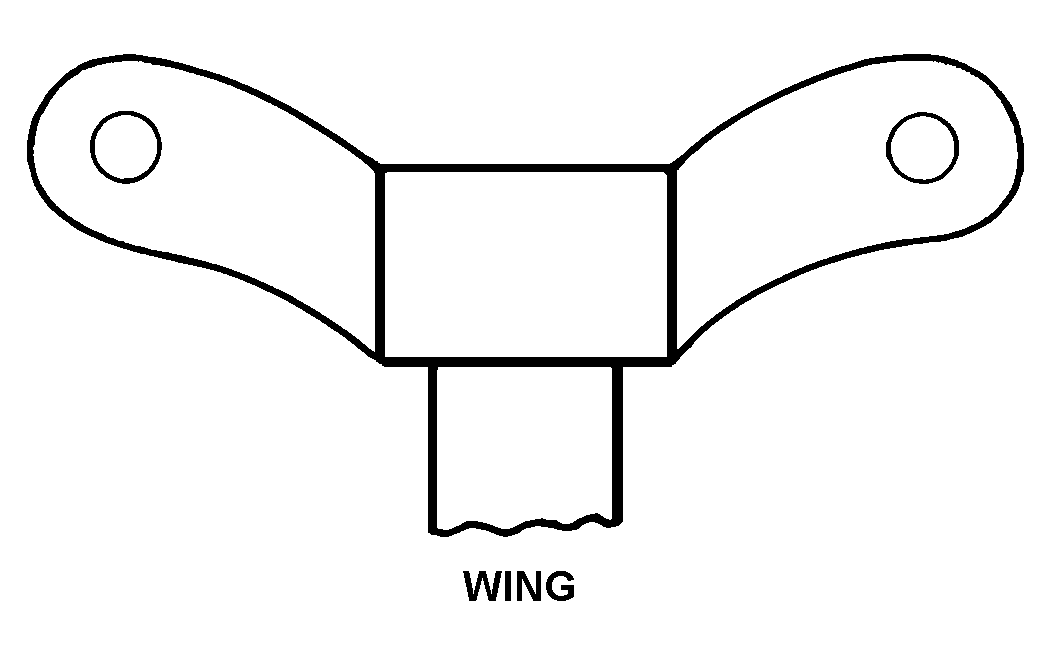

| HOLE CONFIGURATION STYLE | E17 WING |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 2 |
| HOLE DIAMETER | 3.0 MILLIMETERS NOMINAL |
| SPECIAL FEATURES | 1.57 MM MIN AND 1.65 MM MAX DRILLED HOLE IN THREADS, 36.0 MM DISTANCE FROM BEARING SURFACE OF HEAD |
