NSN 5305-01-309-9466 J86T00061, J86T0006-1, 01-309-9466
Product Details | THUMBSCREW
5305-01-309-9466 An externally threaded fastener whose threaded portion is of one nominal diameter. It may have an unthreaded portion with a diameter less than, equal to, or greater than the diameter of the threaded portion. It has either a vertically flattened, circular knurled, or wing type head, all of which are designed for rotation by the thumb and fingers. For items having wrenching facilities such as socket recess, multiple spline or slot heads, use SCREW (as modified) or BOLT (as modified).
Part Alternates: J86T00061, J86T0006-1, 5305-01-309-9466, 01-309-9466, 5305013099466, 013099466
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 OCT 1989 | 01-309-9466 | 06673 ( THUMBSCREW ) |
Drawings & Photos | NSN 5305-01-309-9466
Cross Reference | NSN 5305-01-309-9466
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J86T0006-1 | 12464 | MCDONNELL DOUGLAS CORP MCDONNELL DOUGLAS ELECTRONIC SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-309-9466
Related Products | NSN 5305-01-309-9466
Technical Data | NSN 5305-01-309-9466
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.100 INCHES MINIMUM |
| FASTENER LENGTH | 1.580 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY HEAD STEEL COMP 303 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE FASTENER |
| SURFACE TREATMENT | ANODIZE HEAD PASSIVATE FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE HEAD SPS 03301,TY1,CAGE 12464 MFR REF SINGLE TREATMENT RESPONSE FASTENER |

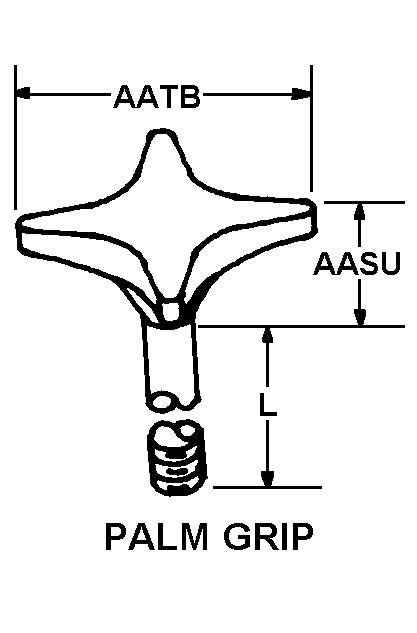

| HEAD STYLE | C64 PALM GRIP |
| HEAD HEIGHT | 1.000 INCHES MINIMUM AND 1.250 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 1.875 INCHES MINIMUM AND 2.125 INCHES MAXIMUM |
| SPECIAL FEATURES | HOLE IN HEAD,NOM 0.078 DIA THROUGH,NOM 0.109 DIA X45 DEGREE COUNTERSINK BOTH SIDED; FURNISH WITH PIN,SPRING SLOTTED |
