NSN 5305-01-116-8939 GS553L4CC19C, 4160M07F09, 4160-M07-F09
Product Details | EXTERNALLY RELIEVED BODY SCREW
5305-01-116-8939 An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercut for thread relief). It is No. 0 (0.060 IN.) (1.5 mm) or larger, and is designed to be held or driven with either a wrench or inserted driver (excluding internal socket and multiple spline types) or both in sizes below No. 10 (0.190 IN.) (5 mm) and larger sizes must have a head designed for any type inserted driver (excluding internal socket and multiple spline types) but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. See also BOLT, EXTERNALLY RELIEVED BODY and BOLT, INTERNAL WRENCHING.
Part Alternates: GS553L4CC19C, 4160M07F09, 4160-M07-F09, 6160SS2520, 6160-SS-2520, 6160SS25207, 6160-SS-2520-7, 5305-01-116-8939, 01-116-8939, 5305011168939, 011168939
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 AUG 1981 | 01-116-8939 | 01852 ( SCREW, EXTERNALLY RELIEVED BODY ) |

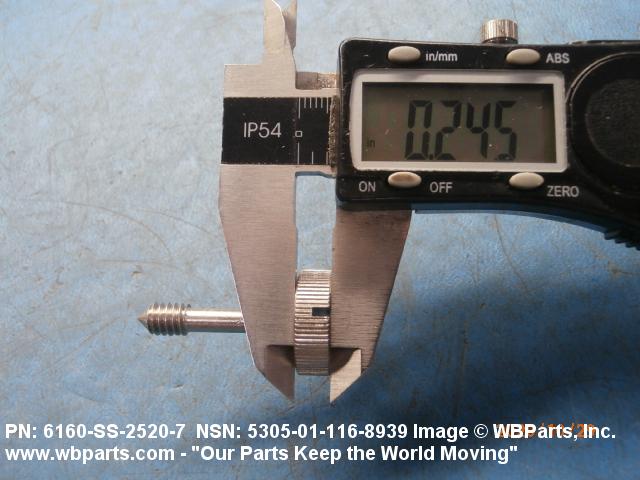

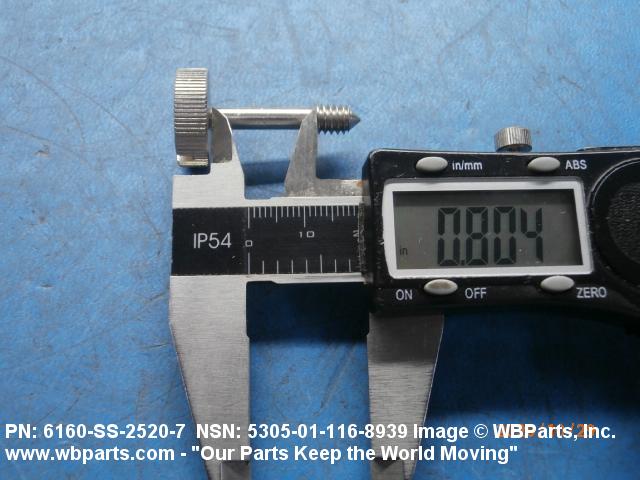

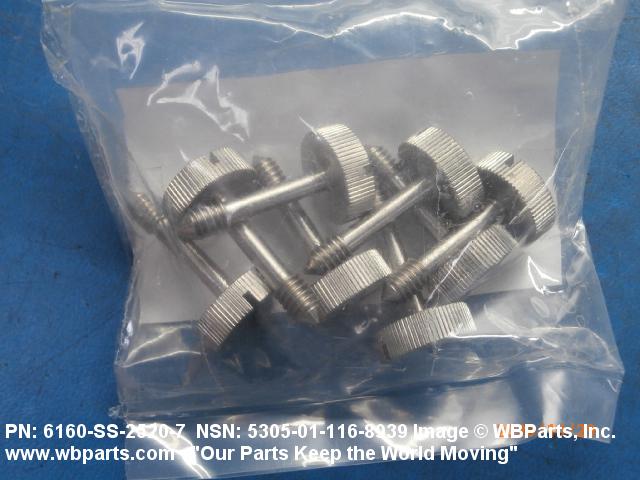

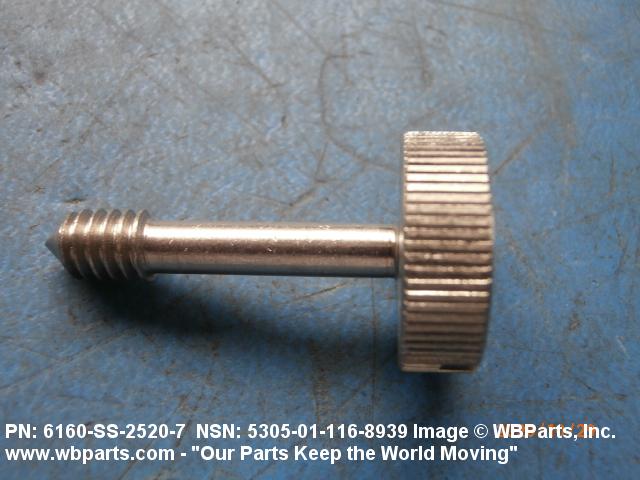

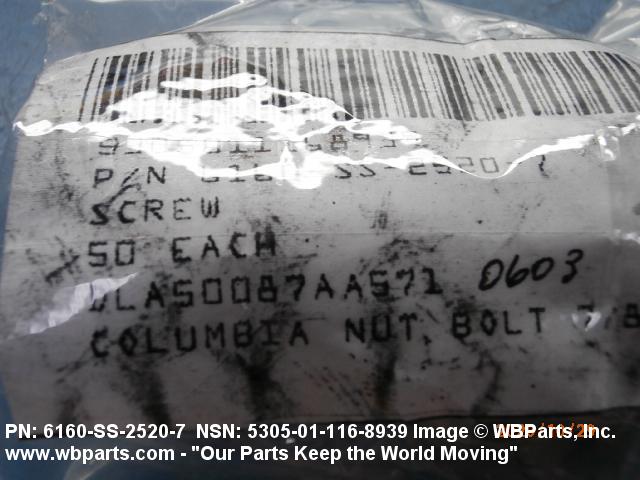

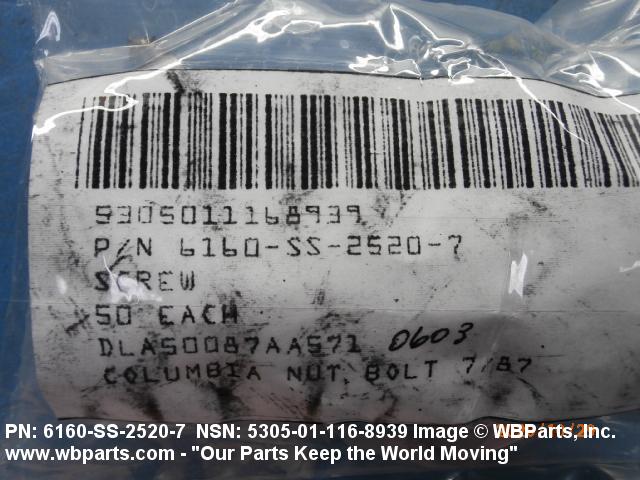

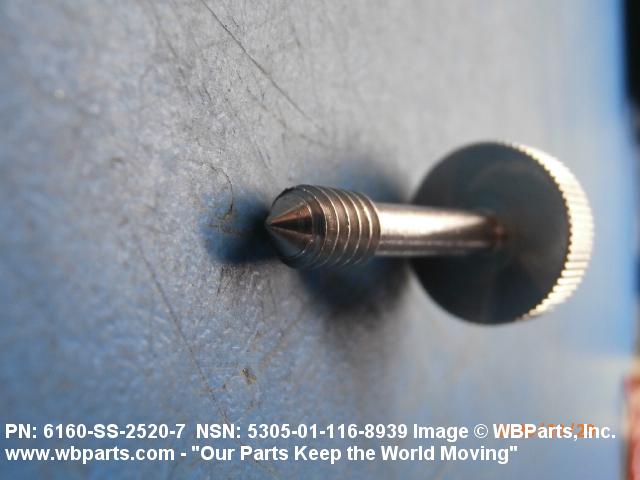

Drawings & Photos | NSN 5305-01-116-8939
Demand History | NSN 5305-01-116-8939
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-116-8939 | 2020-11-309 | 8 | United States |
| 5305-01-116-8939 | 2020-10-293 | 9 | United States |
| 5305-01-116-8939 | 2020-10-290 | 9 | United States |
| 5305-01-116-8939 | 2018-11-310 | 45 | DIBBS |
| 4160M07F09 | 2012-06-166 | 25 | United States |
| 5305-01-116-8939 | 2011-02-34 | 8 | DIBBS |
Cross Reference | NSN 5305-01-116-8939
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4160-M07-F09 | 04729 | UNICORP |
| 6160-SS-2520 | 06540 | NEW HAVEN MFG CORP AMATOM ELECTRONIC HARDWARE DIV |
| 6160-SS-2520 | 1YGB8 | CAREY MANUFACTURING COMPANY, INC. DBA AMATOM ELECTRONIC HARDWARE |
| 6160-SS-2520-7 | 06540 | NEW HAVEN MFG CORP AMATOM ELECTRONIC HARDWARE DIV |
| 6160-SS-2520-7 | 1YGB8 | CAREY MANUFACTURING COMPANY, INC. DBA AMATOM ELECTRONIC HARDWARE |
| GS553L4CC19C | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-116-8939
Related Products | NSN 5305-01-116-8939
Technical Data | NSN 5305-01-116-8939
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

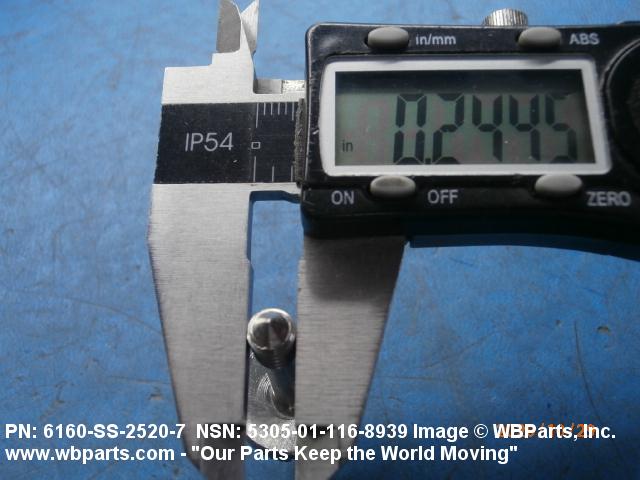

| NOMINAL THREAD DIAMETER | 0.250 INCHES |

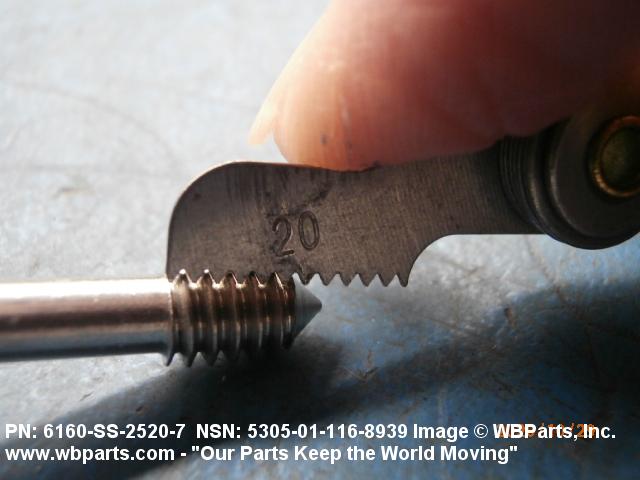

| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

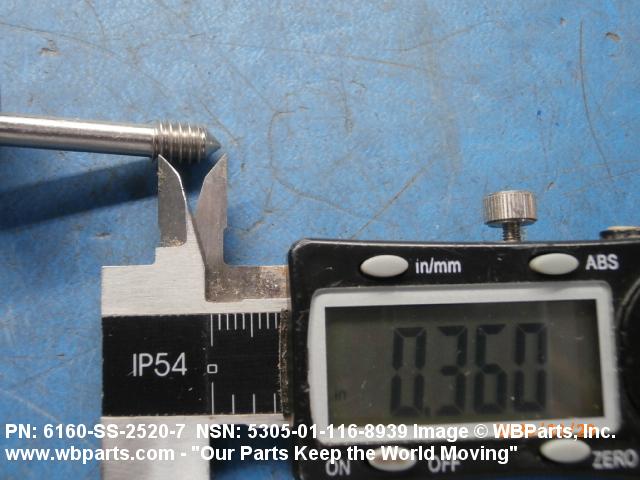

| THREAD LENGTH | 0.359 INCHES MINIMUM AND 0.391 INCHES MAXIMUM |

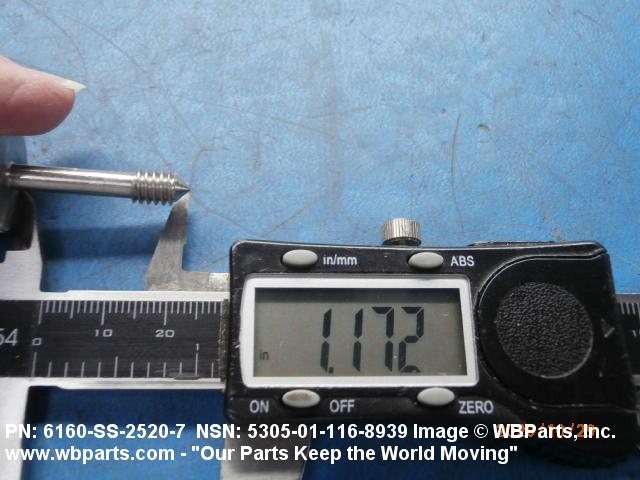

| FASTENER LENGTH | 1.172 INCHES MINIMUM AND 1.202 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTMA555 ASSN STD SINGLE MATERIAL RESPONSE OR ASTMA581 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

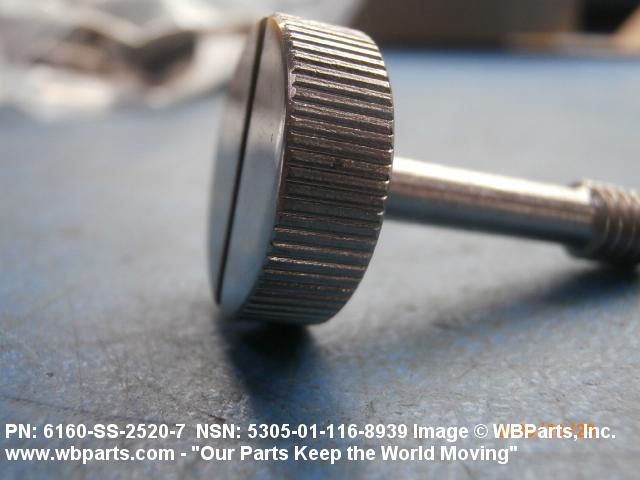

| HEAD STYLE | C66 KNURLED NO. 1 |

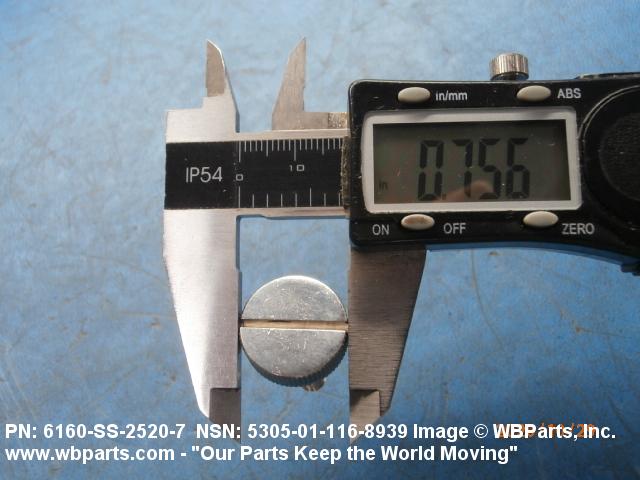

| HEAD DIAMETER | 0.745 INCHES MINIMUM AND 0.755 INCHES MAXIMUM |
| HEAD HEIGHT | 0.235 INCHES MINIMUM AND 0.265 INCHES MAXIMUM |

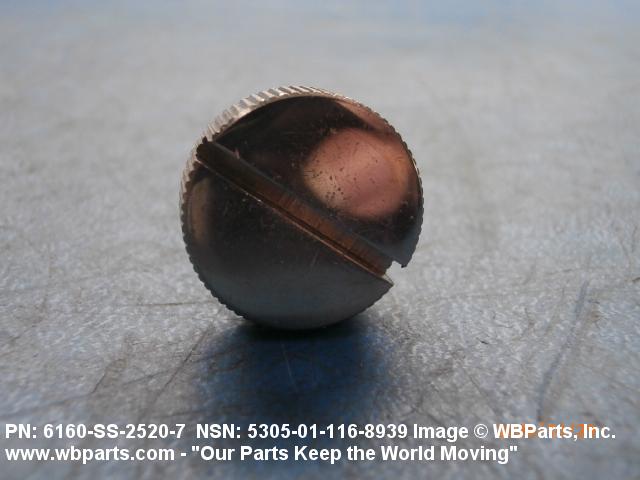

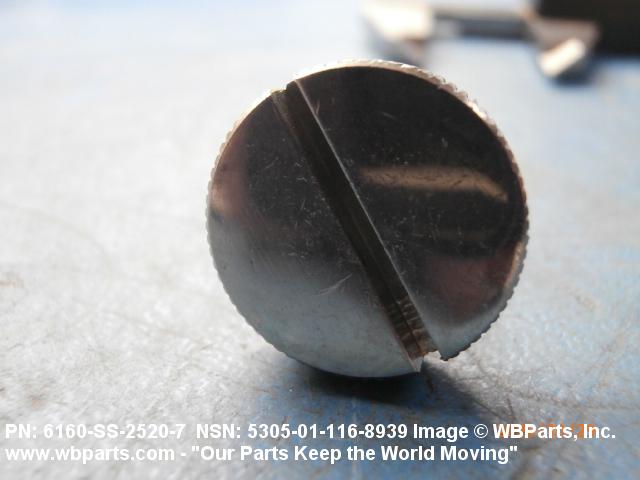

| INTERNAL DRIVE STYLE | D14 SLOT |
| EXTERNALLY RELIEVED BODY DIAMETER QUANTITY | 1 |

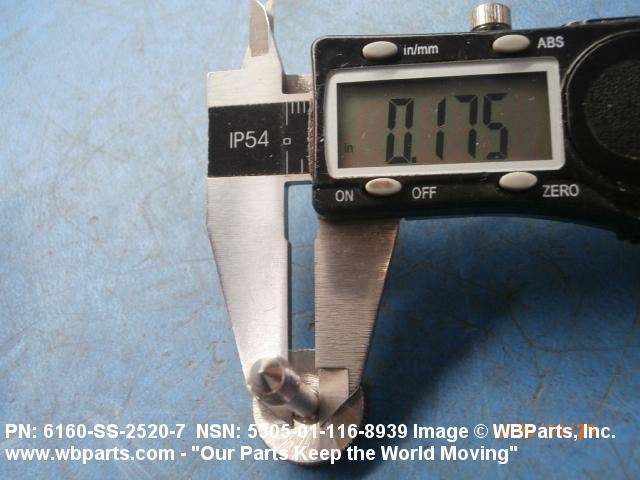

| FIRST DIAMETER FROM HEAD | 0.170 INCHES MINIMUM AND 0.180 INCHES MAXIMUM |
| DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF FIRST DIAMETER | 0.792 INCHES MINIMUM AND 0.832 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5305-01-116-8939
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-116-8939
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
