Product Details | EXTERNALLY RELIEVED BODY SCREW
5305-01-079-9581 An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercut for thread relief). It is No. 0 (0.060 IN.) (1.5 mm) or larger, and is designed to be held or driven with either a wrench or inserted driver (excluding internal socket and multiple spline types) or both in sizes below No. 10 (0.190 IN.) (5 mm) and larger sizes must have a head designed for any type inserted driver (excluding internal socket and multiple spline types) but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. See also BOLT, EXTERNALLY RELIEVED BODY and BOLT, INTERNAL WRENCHING.
Part Alternates: 642AS7511, 5305-01-079-9581, 01-079-9581, 5305010799581, 010799581
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 JUL 1979 | 01-079-9581 | 01852 ( SCREW, EXTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5305-01-079-9581
Cross Reference | NSN 5305-01-079-9581
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 642AS7511 | 30003 | NAVAL AIR SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-079-9581
Technical Data | NSN 5305-01-079-9581
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.120 INCHES NOMINAL |
| FASTENER LENGTH | 0.170 INCHES NOMINAL |
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

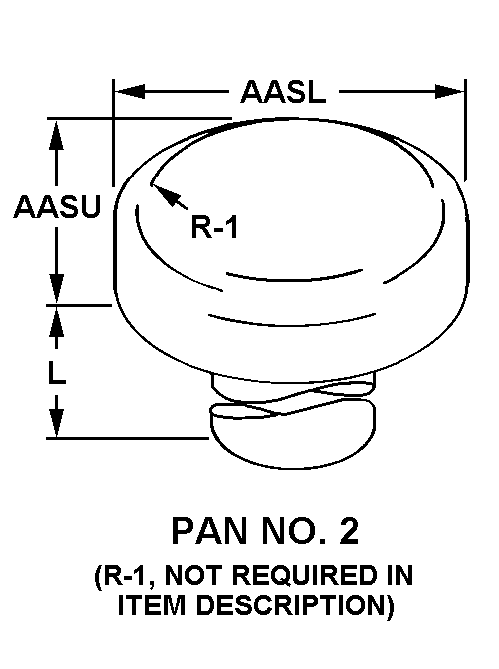

| HEAD STYLE | C33 PAN NO. 2 |
| HEAD DIAMETER | 0.218 INCHES NOMINAL |
| HEAD HEIGHT | 0.260 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D14 SLOT |
| SPLINE MAJOR DIAMETER | 0.218 INCHES NOMINAL |
| SPLINE WIDTH | 0.055 INCHES NOMINAL |
| EXTERNALLY RELIEVED BODY DIAMETER QUANTITY | 1 |
| FIRST DIAMETER FROM HEAD | 0.128 INCHES MINIMUM AND 0.138 INCHES MAXIMUM |
| MANUFACTURERS CODE | 30003 |
| DESIGN CONTROL REFERENCE | 642AS7511 |
