Product Details | SOCKET HEAD CAP SCREW

5305-00-995-2640 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: NAS1352088P, NAS1352-08-8P, WA113659, WA1136-59, 3176207A538, 3176207-A-538, 6300799088, 6300799-08-8, 5305-00-995-2640, 00-995-2640, 5305009952640, 009952640

Hardware and Abrasives | Screws

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-995-2640

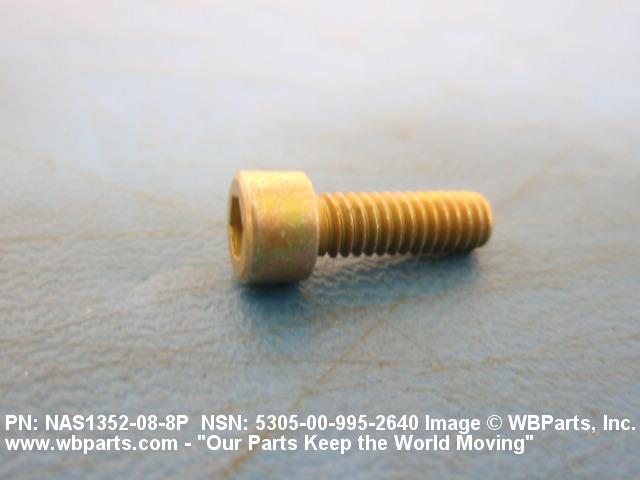

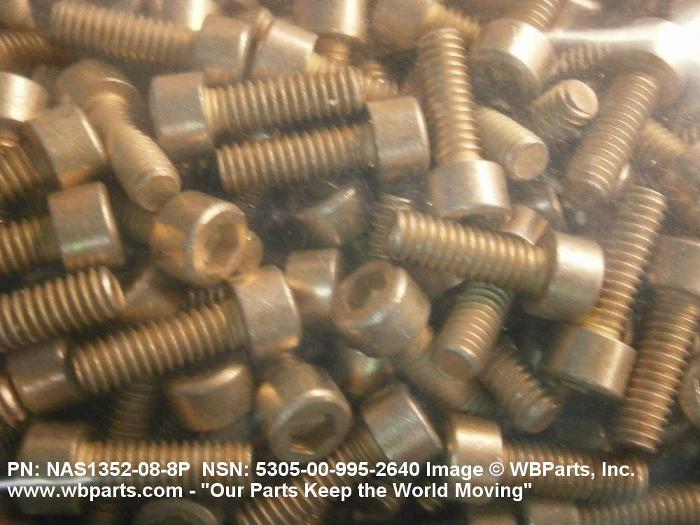

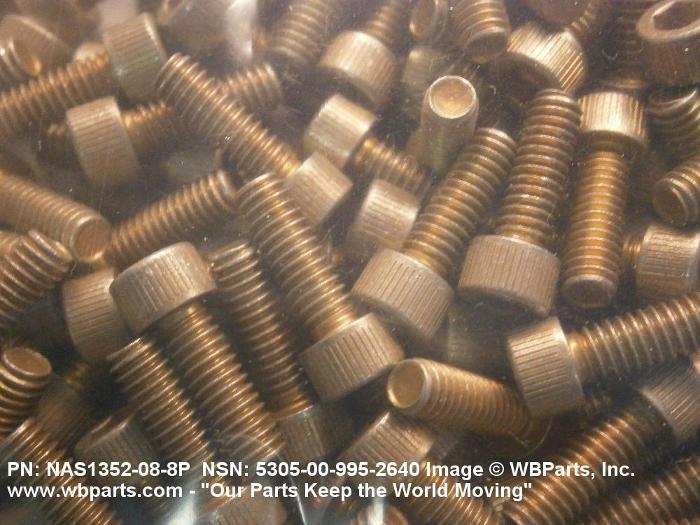

Drawings & Photos | NSN 5305-00-995-2640


Demand History | NSN 5305-00-995-2640

Part Number Request Date QTY Origin
5305-00-995-2640 2024-10-303 32 DIBBS
5305-00-995-2640 2024-10-291 32 DIBBS
5305-00-995-2640 2024-06-169 24 Saudi Arabia
5305-00-995-2640 2024-06-168 10 DIBBS
NAS1352088P 2024-03-78 28 United States
5305-00-995-2640 2024-03-67 6 DIBBS
5305-00-995-2640 2024-01-16 31 DIBBS
5305-00-995-2640 2023-09-260 20 DIBBS
5305-00-995-2640 2023-05-141 9 DIBBS
5305-00-995-2640 2020-07-206 25 US
5305-00-995-2640 2020-02-40 100 Singapore
NAS1352088P 2015-10-293 25 India
NAS1352088P 2015-06-168 420 Canada
NAS1352088P 2012-08-214 450 United States
NAS1352088P 2011-10-277 230 us
NAS1352088P 2010-04-106 9650 United States
NAS1352088P 2009-12-341 12624 United States
NAS1352088P 2009-04-117 50 Australia
5305-00-995-2640 2009-02-49 1550 DIBBS

Cross Reference | NSN 5305-00-995-2640

Part Number Cage Code Manufacturer
3176207-A-538 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
6300799-08-8 53711 NAVAL SEA SYSTEMS COMMAND
NAS1352-08-8P 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
WA1136-59 08484 BREEZE-EASTERN CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-995-2640

Technical Data | NSN 5305-00-995-2640

Characteristic Specifications
THREAD SERIES DESIGNATOR UNC
NOMINAL THREAD DIAMETER 0.164 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 3A
THREAD DIRECTION RIGHT-HAND
THREAD LENGTH 0.408 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
FASTENER LENGTH 0.470 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
MATERIAL STEEL OVERALL
SURFACE TREATMENT CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING 38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH 180000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH 130000 POUNDS PER SQUARE INCH
HEAD STYLE C49 FLAT CHAMFER
HEAD DIAMETER 0.262 INCHES MINIMUM AND 0.270 INCHES MAXIMUM
HEAD HEIGHT 0.159 INCHES MINIMUM AND 0.164 INCHES MAXIMUM
INTERNAL DRIVE STYLE D5 HEXAGON
WIDTH ACROSS FLATS 0.141 INCHES MINIMUM AND 0.143 INCHES MAXIMUM
HOLE CONFIGURATION STYLE E12 ROUND LONGITUDINAL HOLE
HOLE TYPE DRILLED
HOLE QUANTITY 6
HOLE DIAMETER 0.044 INCHES NOMINAL
