NSN 5305-01-553-0530 0642C62422, 0642C624-22, 01-553-0530
Product Details | SOCKET HEAD CAP SCREW
5305-01-553-0530 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: 0642C62422, 0642C624-22, 5305-01-553-0530, 01-553-0530, 5305015530530, 015530530
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 JUL 2007 | 01-553-0530 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

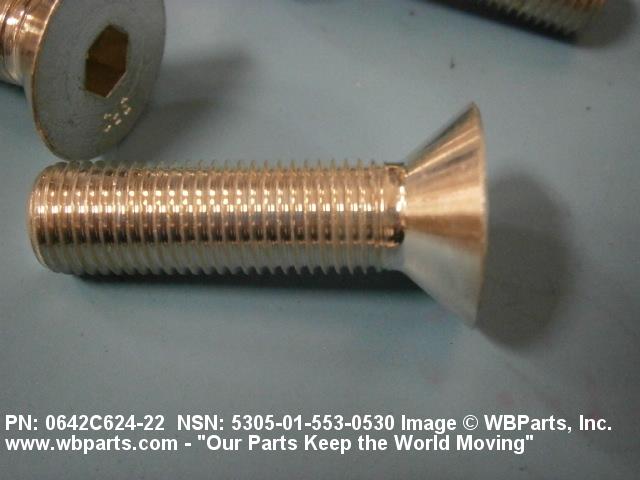

Drawings & Photos | NSN 5305-01-553-0530
Demand History | NSN 5305-01-553-0530
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-553-0530 | 2018-07-201 | 5 | Taiwan |
| 0642C624-22 | 2012-11-310 | 6 | |
| 0642C62422 | 2012-01-23 | 50 | Italy |
| 0642C62422 | 2012-01-23 | 100 | Italy |
| 0642C62422 | 2011-12-353 | 100 | Italy |
| 0642C62422 | 2010-04-116 | 100 | Italy |
Cross Reference | NSN 5305-01-553-0530
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0642C624-22 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-553-0530
Technical Data | NSN 5305-01-553-0530
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | G222 AIRCRAFT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SCREW |
Restrictions/Controls & Freight Information | NSN 5305-01-553-0530
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
