NSN 5305-00-995-2708 AIC811430, AIC811-4-30, AOL4166429

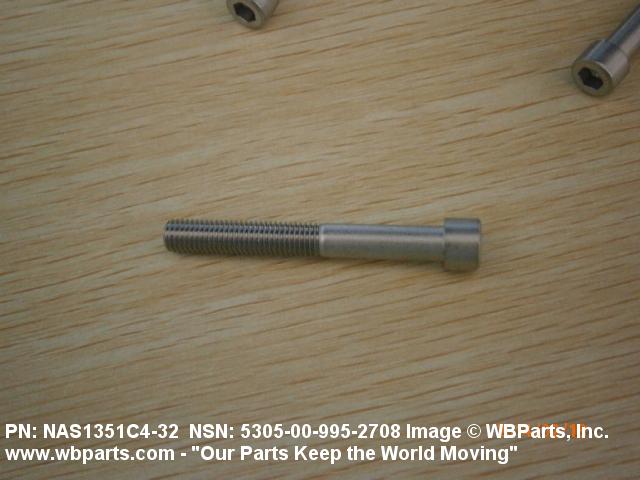

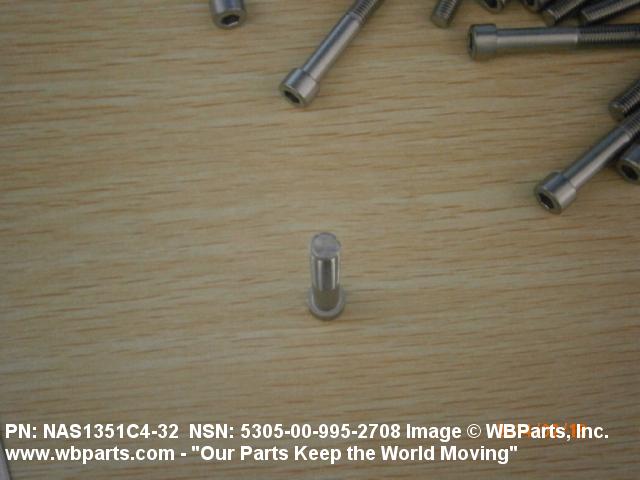

Product Details | SOCKET HEAD CAP SCREW

5305-00-995-2708 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: AIC811430, AIC811-4-30, AOL4166429, AOL4166-429, NAS1351C432, NAS1351C4-32, 73573430C, 73573-4-30C, 965811429C, 965811-429C, 5305-00-995-2708, 00-995-2708, 5305009952708, 009952708

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-995-2708	16282 ( SCREW, CAP, SOCKET HEAD )

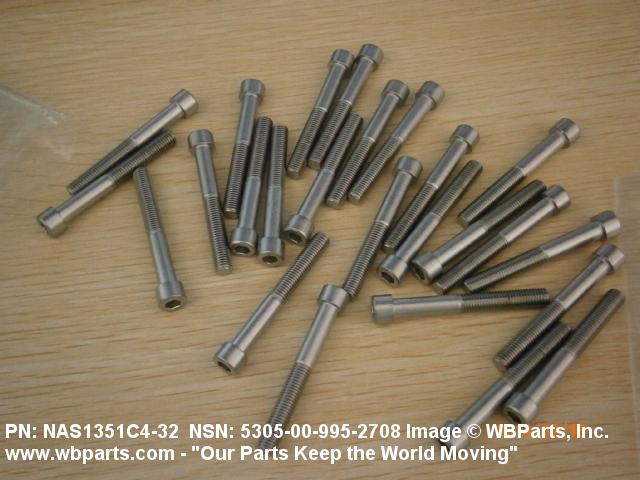

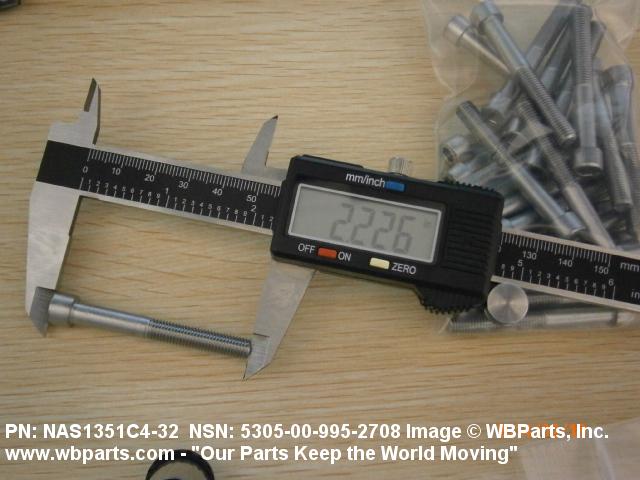

Drawings & Photos | NSN 5305-00-995-2708

Part Number	Request Date	QTY	Origin
73573-4-30C	2023-06-164	537	DIBBS
965811-429C	2023-06-164	537	DIBBS
AIC811-4-30	2023-06-164	537	DIBBS
AOL4166-429	2023-06-164	537	DIBBS
NAS1351C4-32	2023-06-164	537	DIBBS
73573-4-30C	2019-07-202	280	DIBBS
965811-429C	2019-07-202	280	DIBBS
AIC811-4-30	2019-07-202	280	DIBBS
AOL4166-429	2019-07-202	280	DIBBS
NAS1351C4-32	2019-07-202	280	DIBBS
5305-00-995-2708	2018-06-162	300	DIBBS
5305-00-995-2708	2018-06-154	300	DIBBS
5305-00-995-2708	2017-11-311	434	DIBBS
5305-00-995-2708	2016-08-222	259	DIBBS
5305-00-995-2708	2015-12-362	243	DIBBS
5305-00-995-2708	2015-12-354	243	DIBBS
NAS1351C432	2014-02-38	25	South Korea
NAS1351C432	2014-01-23	10	CA
5305-00-995-2708	2012-08-222	6	US
5305-00-995-2708	2012-08-222	6	US
NAS1351C432	2011-11-306	100	United States
NAS1351C432	2010-03-89	100	US
5305-00-995-2708	2008-08-235	20	United States

Cross Reference | NSN 5305-00-995-2708

Part Number	Cage Code	Manufacturer
73573-4-30C	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
965811-429C	0F620	C B S FASTENERS, INC
965811-429C	1ER65	3-V FASTENER CO., INC.
965811-429C	27624	SPS TECHNOLOGIES, LLC DBA PB FASTENERS
965811-429C	58251	FIRST AMERICAN SALES CO INC
965811-429C	58998	EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY
965811-429C	62206	B & B SPECIALTIES, INC
965811-429C	6F810	IDEAL FASTENERS INC.
965811-429C	82577	RAYTHEON COMPANY DBA RAYTHEON
AIC811-4-30	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
AOL4166-429	57472	ALL MANUFACTURERS, INC. DBA ALLIED HARBOR AEROSPACE
NAS1351C4-32	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-995-2708

Compare

Related Products | NSN 5305-00-995-2708

5305-00-995-2710, 5305-00-995-2741, 5305-00-995-2742, 5305-00-995-3022, 5305-00-995-3026

Technical Data | NSN 5305-00-995-2708

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

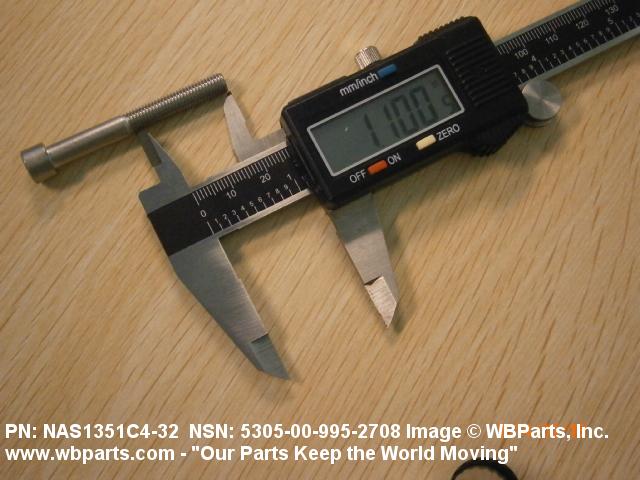

THREAD LENGTH	1.000 INCHES MINIMUM
FASTENER LENGTH	2.000 INCHES NOMINAL
MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	80.0 ROCKWELL B MINIMUM OVERALL
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	30000 POUNDS PER SQUARE INCH
HEAD STYLE	C49 FLAT CHAMFER

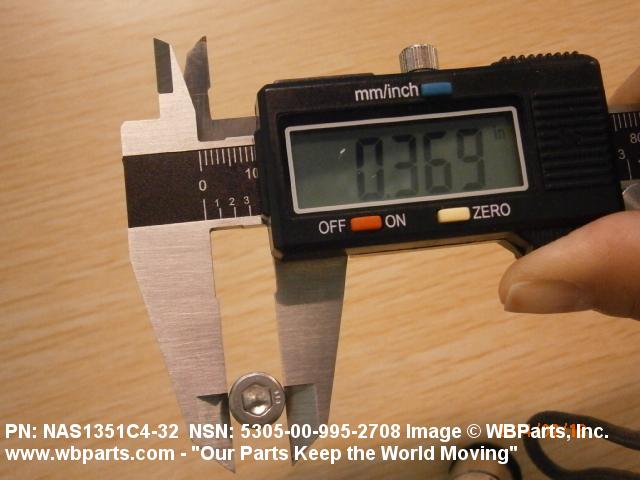

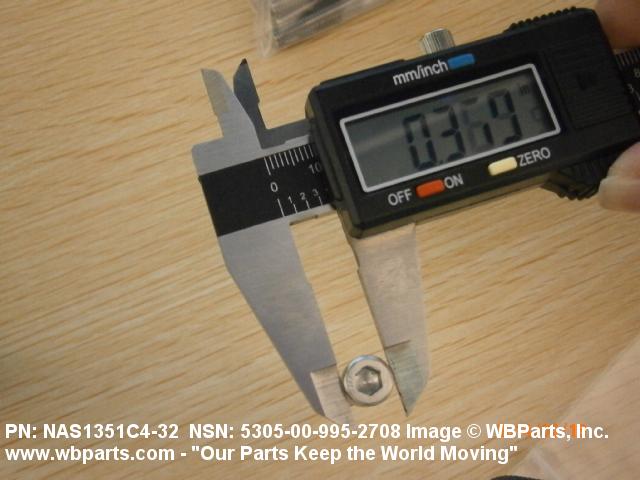

HEAD DIAMETER	0.365 INCHES MINIMUM AND 0.375 INCHES MAXIMUM

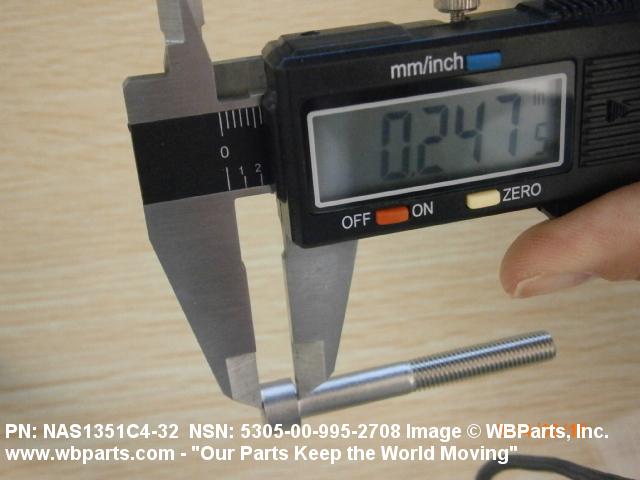

HEAD HEIGHT	0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM

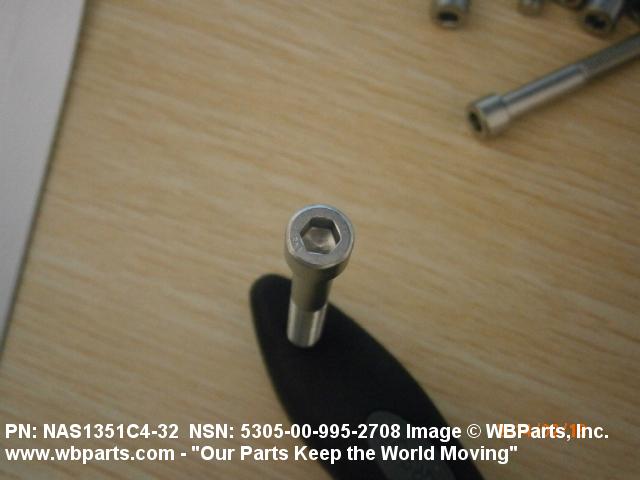

INTERNAL DRIVE STYLE	D5 HEXAGON

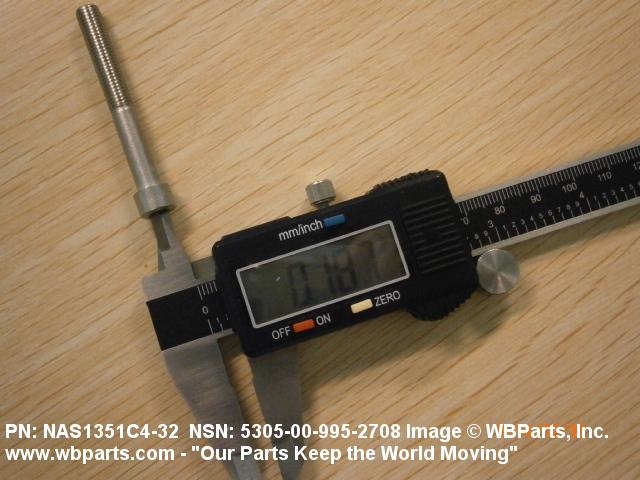

WIDTH ACROSS FLATS	0.187 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA	80205-NAS1351 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5305-00-995-2708

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-995-2708

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
