Product Details | SOCKET HEAD CAP SCREW

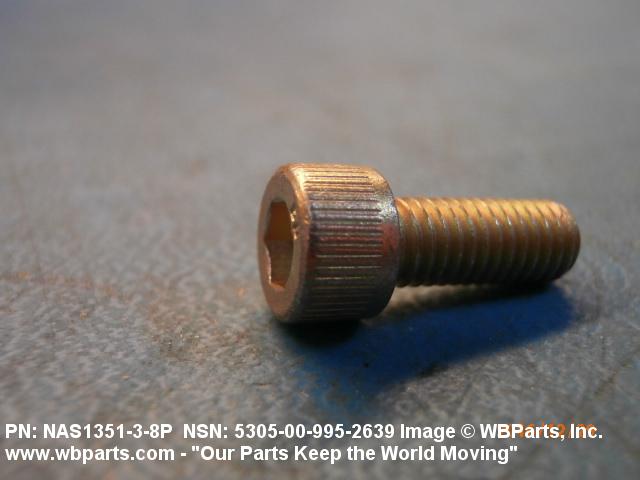

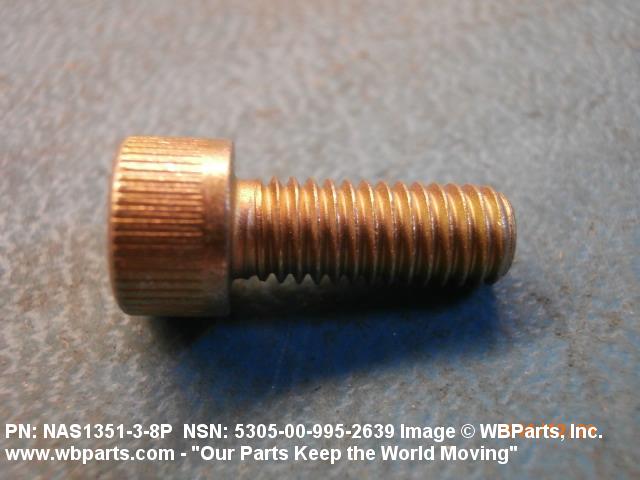

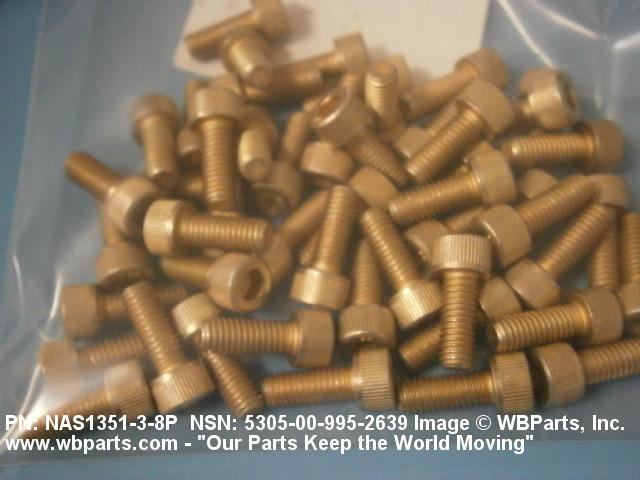

5305-00-995-2639 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: NAS135138P, NAS1351-3-8P, 5305-00-995-2639, 00-995-2639, 5305009952639, 009952639

Hardware and Abrasives | Screws

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-995-2639

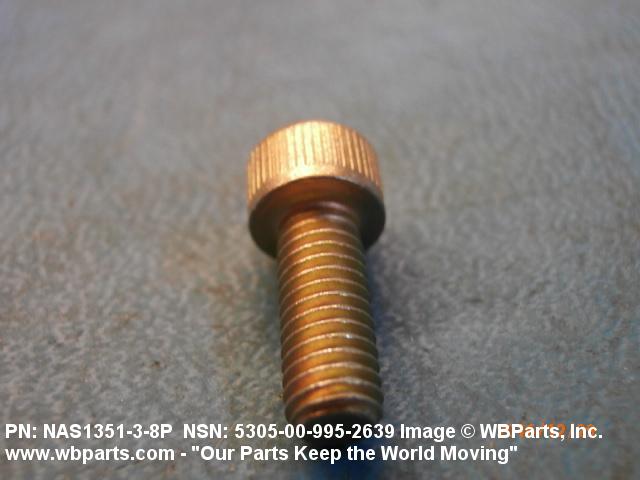

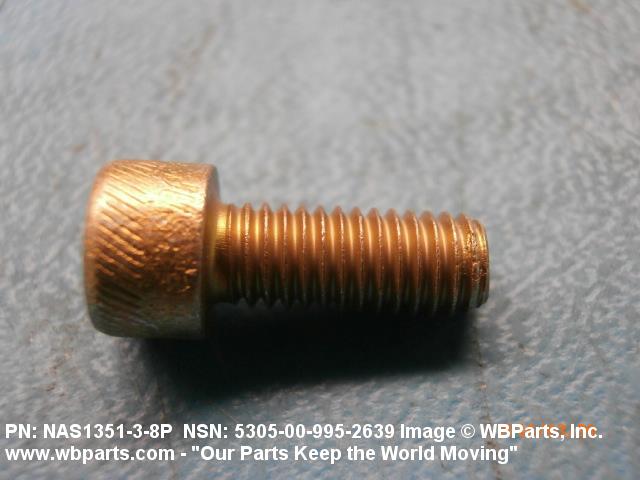

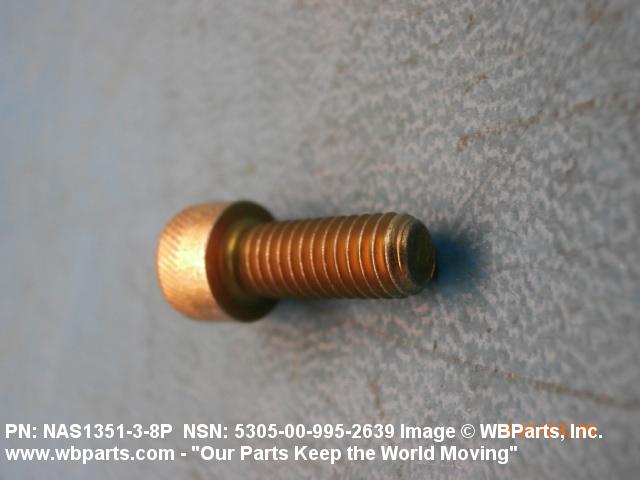

Drawings & Photos | NSN 5305-00-995-2639


Demand History | NSN 5305-00-995-2639

Part Number Request Date QTY Origin
NAS135138P 2024-03-78 76 United States
5305-00-995-2639 2023-11-305 3155 DIBBS
5305-00-995-2639 2023-04-95 5409 DIBBS
5305-00-995-2639 2023-03-64 6236 DIBBS
NAS135138P 2022-04-95 100 Israel
NAS135138P 2020-05-126 32 United States
5305-00-995-2639 2016-12-357 500 United States
NAS135138P 2016-03-84 30 United States
NAS135138P 2015-10-293 25 India
5305-00-995-2639 2015-08-230 5 US
5305-00-995-2639 2014-11-306 4212 DIBBS
NAS135138P 2014-10-280 2000 US
NAS135138P 2013-01-08 30 United States
NAS135138P 2013-01-08 30 United States
5305-00-995-2639 2012-06-160 1289 DIBBS
NAS135138P 2012-04-95 10 NL
NAS135138P 2011-11-322 50 United States
NAS135138P 2009-02-34 44 Israel
5305-00-995-2639 2008-10-297 3334 DIBBS

Cross Reference | NSN 5305-00-995-2639

Part Number Cage Code Manufacturer
NAS1351-3-8P 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-995-2639

Technical Data | NSN 5305-00-995-2639

Characteristic Specifications
THREAD SERIES DESIGNATOR UNF
NOMINAL THREAD DIAMETER 0.190 INCHES

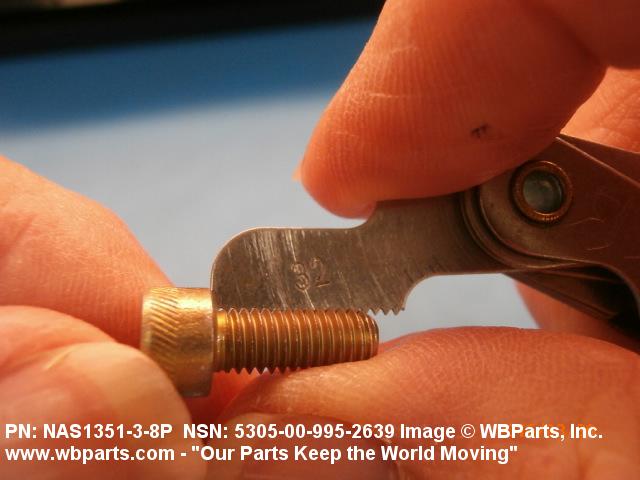

THREAD QUANTITY PER INCH 32
THREAD CLASS 3A
THREAD DIRECTION RIGHT-HAND

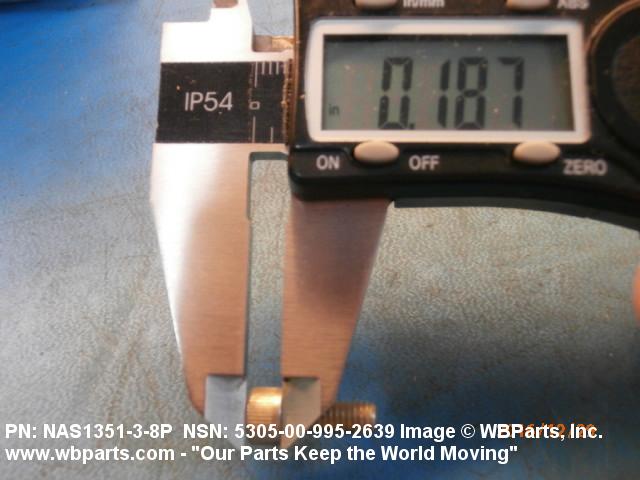

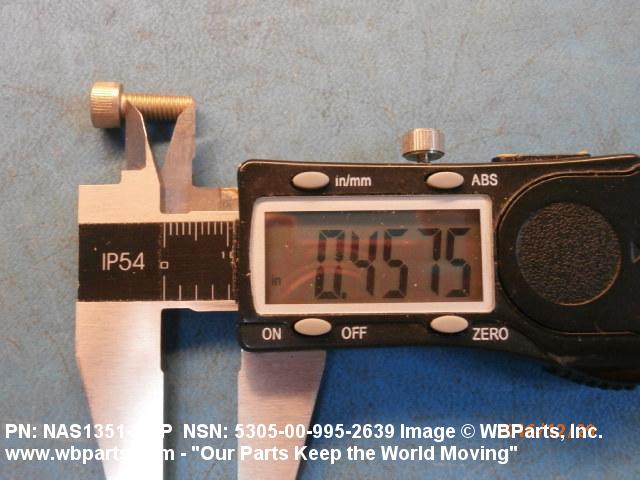

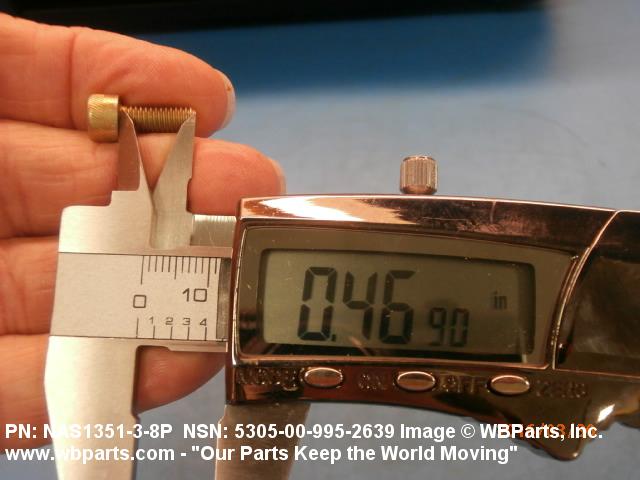

THREAD LENGTH 0.454 INCHES MINIMUM AND 0.500 INCHES MAXIMUM

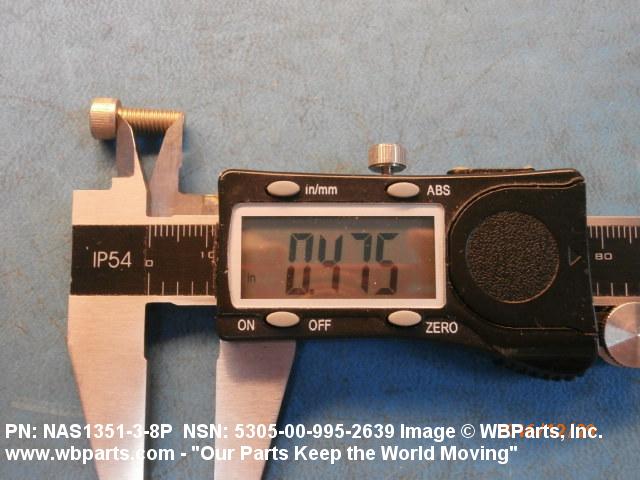

FASTENER LENGTH 0.500 INCHES NOMINAL
MATERIAL STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION 66 FED STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING 36.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH 160000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH 130000 POUNDS PER SQUARE INCH
HEAD STYLE C49 FLAT CHAMFER

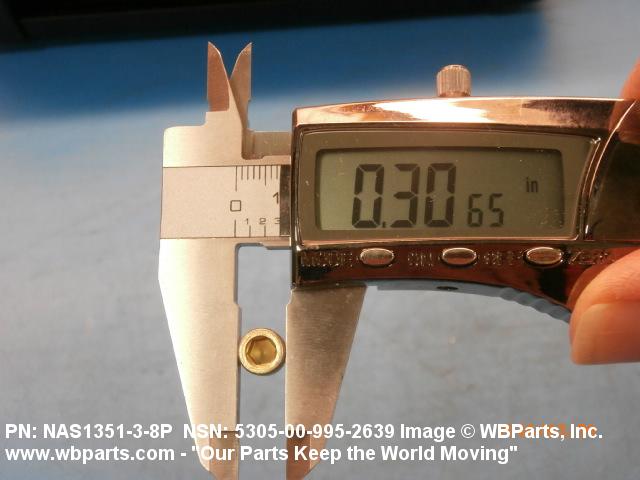

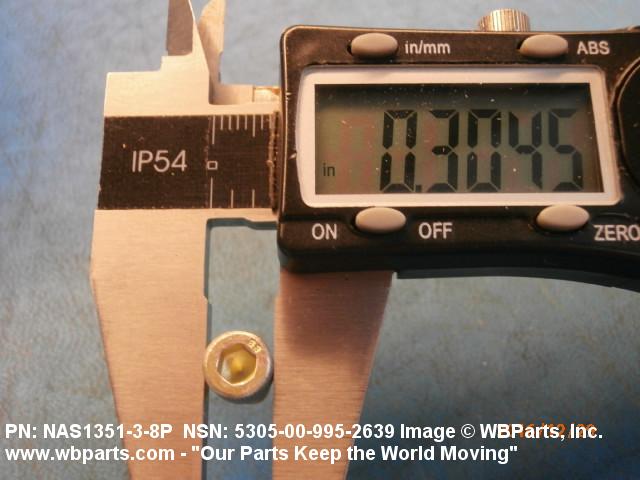

HEAD DIAMETER 0.303 INCHES MINIMUM AND 0.312 INCHES MAXIMUM

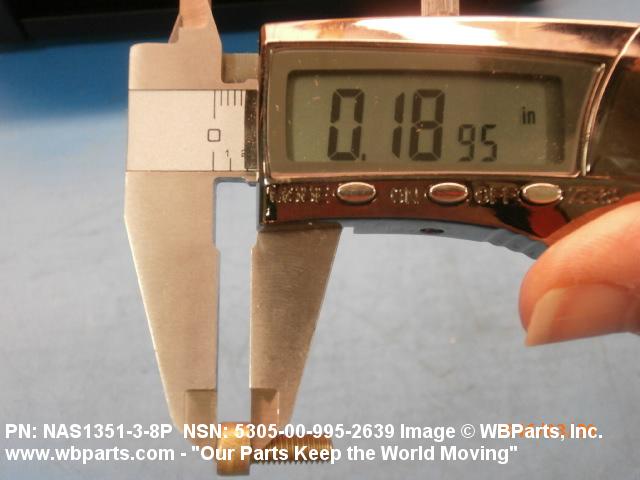

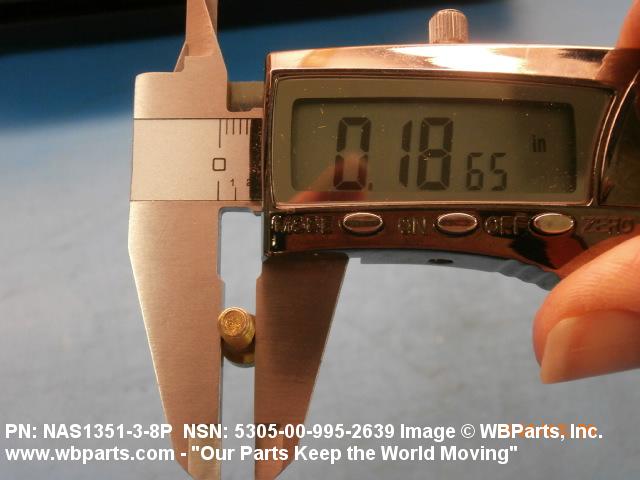

HEAD HEIGHT 0.185 INCHES MINIMUM AND 0.190 INCHES MAXIMUM

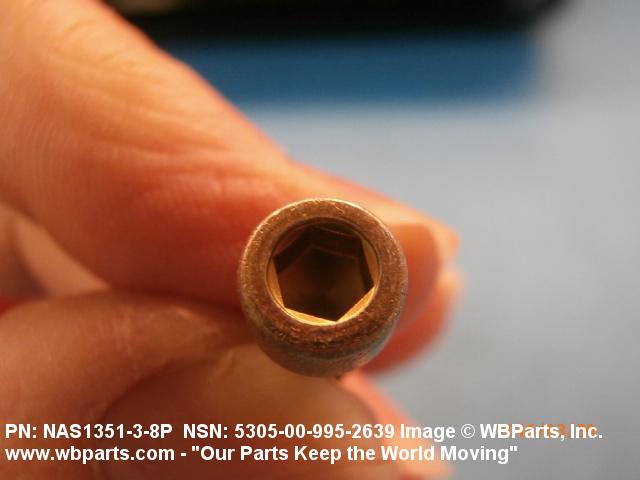

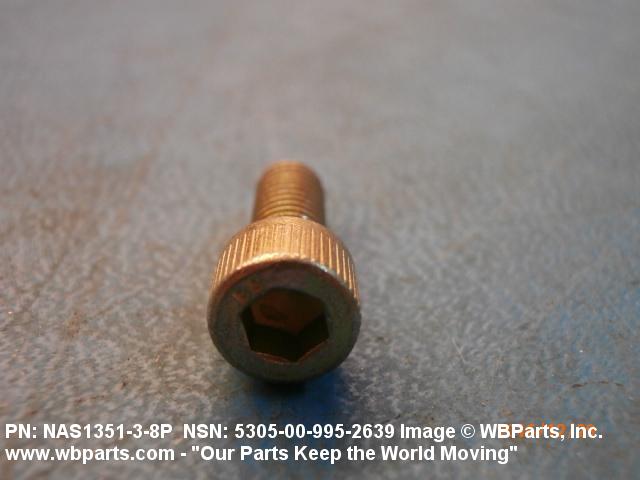

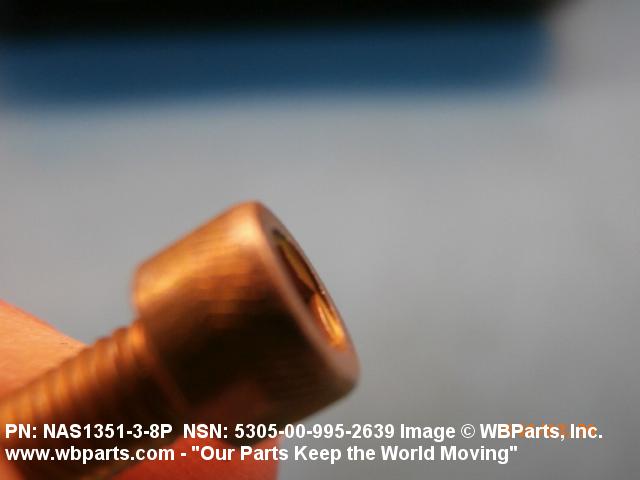

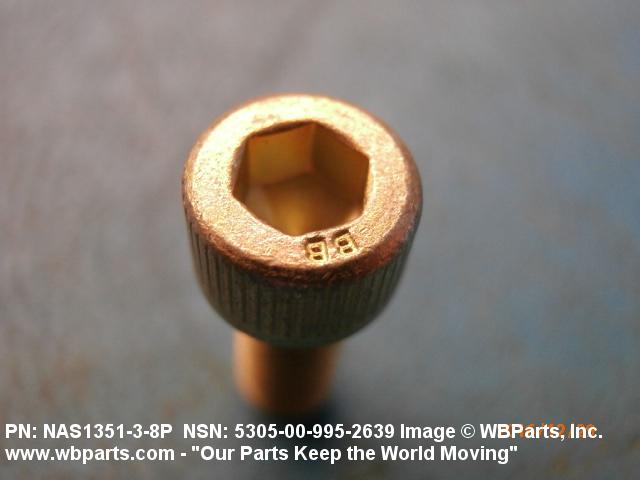

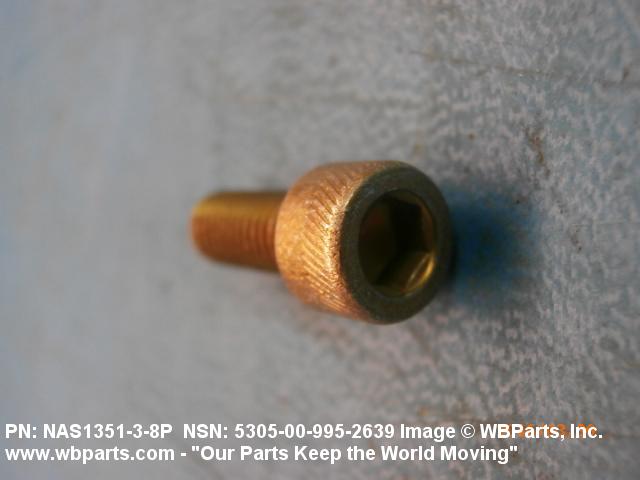

INTERNAL DRIVE STYLE D5 HEXAGON
WIDTH ACROSS FLATS 0.156 INCHES MINIMUM AND 0.159 INCHES MAXIMUM
