Product Details | MACHINE SCREW

5305-00-984-6189 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS2458438, MS24584-38, MS35206241, MS35206-241, MS3522141, MS35221-41, MS3522341, MS35223-41, NASM35206, AN51584, AN515-8-4, AN5158R4, AN515-8R4, AN5268324, AN526-832-4, AN526832R4, AN526-832R4, H5315706BPC60, SPE315C4, T15S84, T15S8-4, 5952820, 81326152, 820228G4AI, 935.63.11.059, 9356311059, 9417273, 9B7242, 0705302, 10511569, 125004, 1503590, 19062, 19062ADX, 260823, 50716741, 507167-41, 5305-00-984-6189, 00-984-6189, 5305009846189, 009846189

Hardware and Abrasives | Screws

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-984-6189

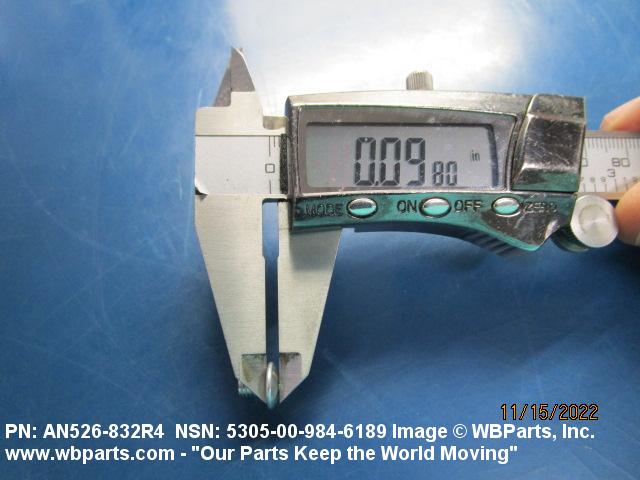

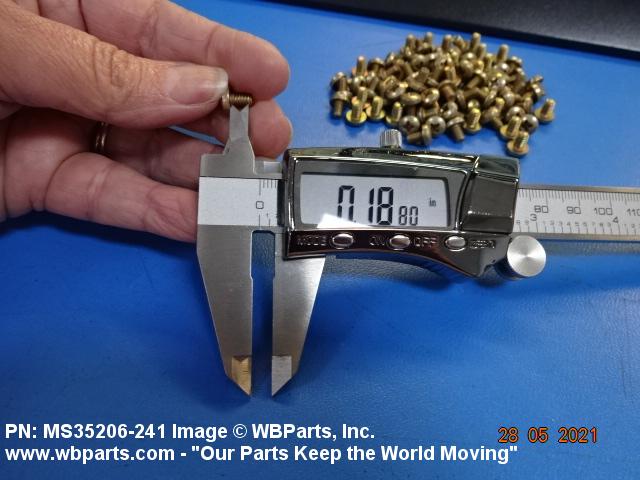

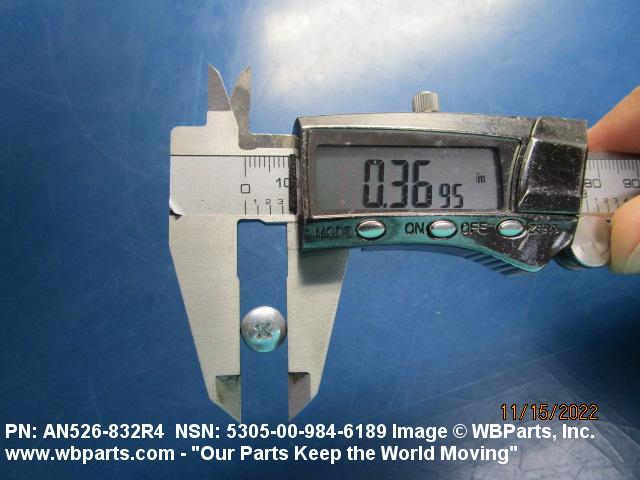

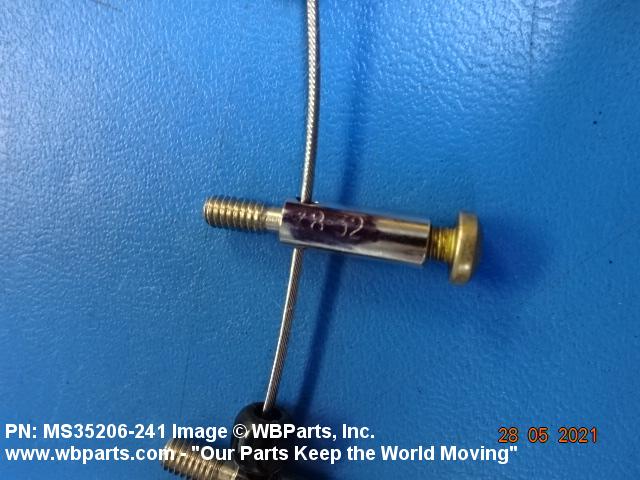

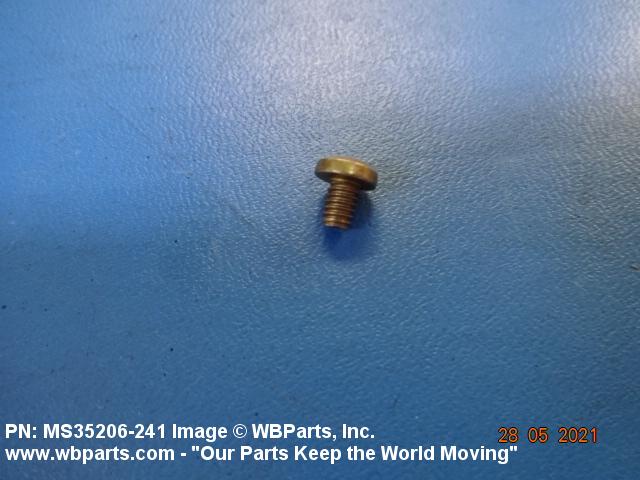

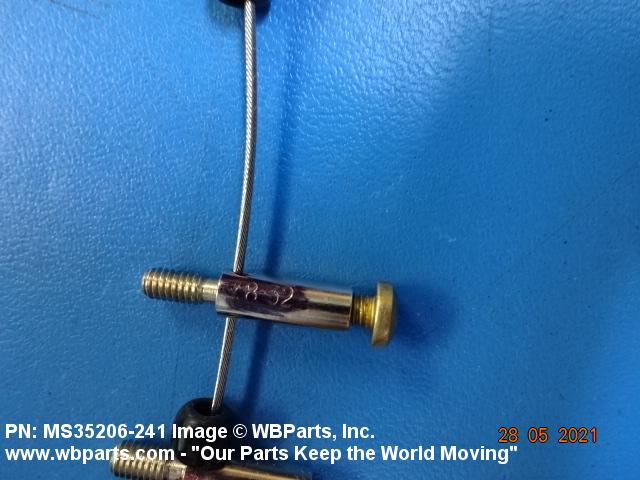

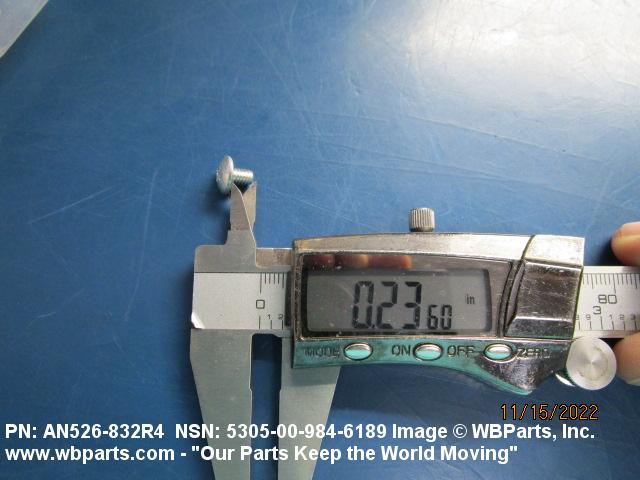

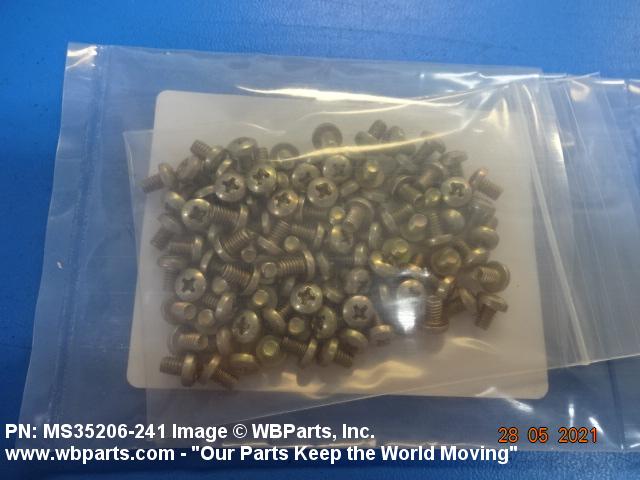

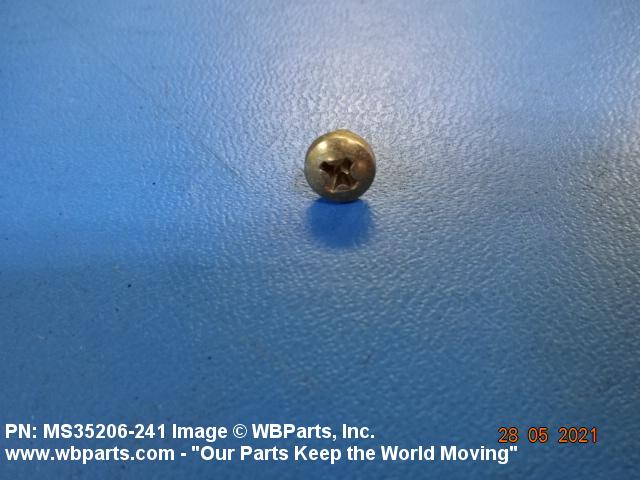

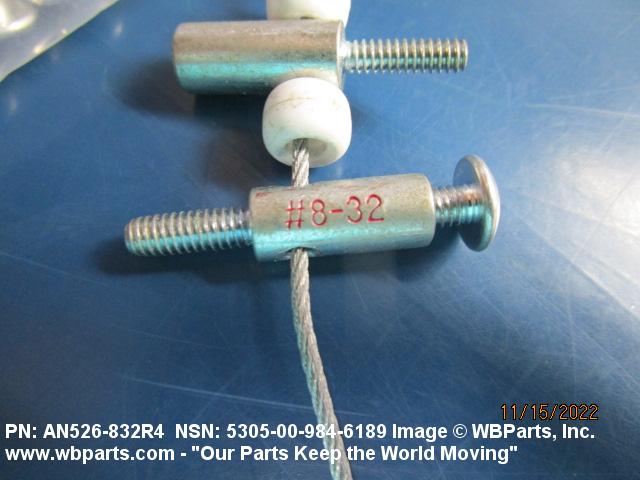

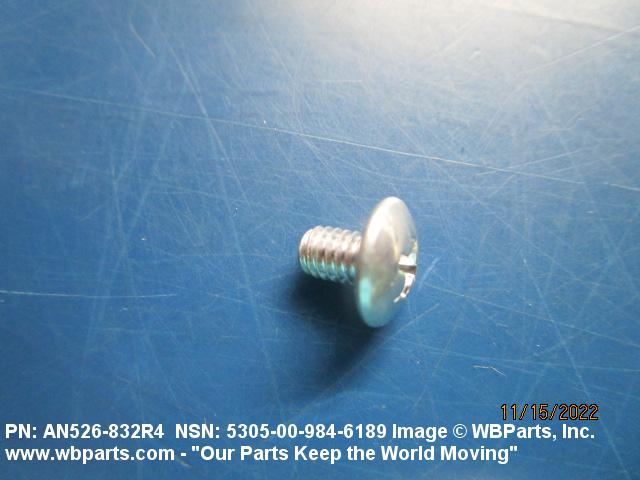

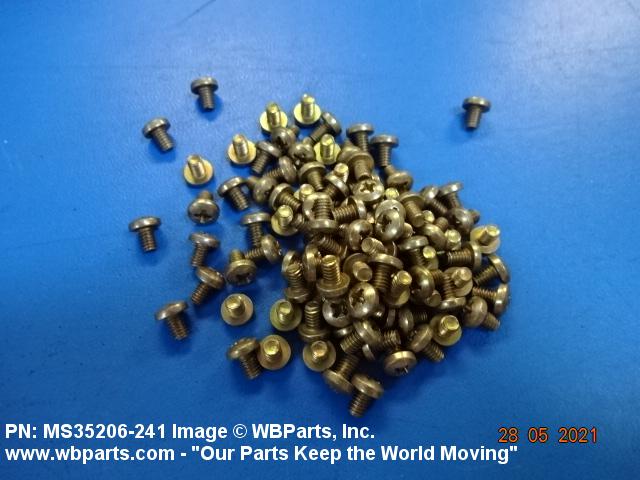

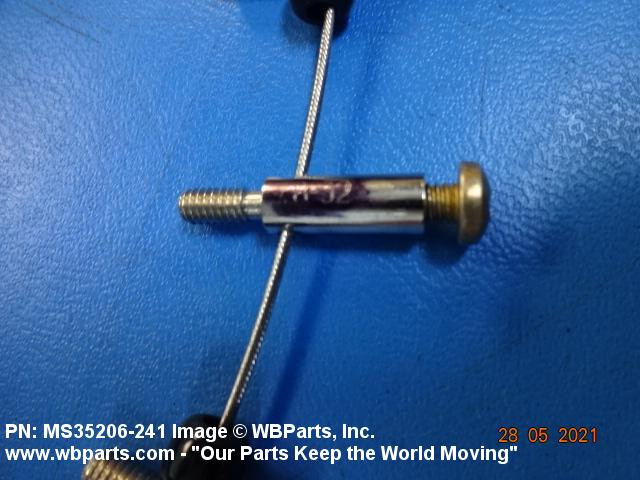

Drawings & Photos | NSN 5305-00-984-6189


Demand History | NSN 5305-00-984-6189

Part Number Request Date QTY Origin
5305-00-984-6189 2018-01-21 691 DIBBS
MS35206241 2014-12-356 400 US
MS35206-241 2012-11-310 215
5305-00-984-6189 2012-04-104 15 MANUAL
5305-00-984-6189 2011-12-355 12 AR
AN526832R4 2011-09-262 2 US
5305-00-984-6189 2011-06-155 15 MANUAL
5305-00-984-6189 2011-06-155 15 MANUAL
MS35206-241 2011-06-155 15 PK
MS35206-241 2011-06-155 15 PK
AN526-832R4 2011-03-69 900
5305-00-984-6189 2009-09-271 1000 US
NASM35206 2009-06-174 1624 US
AN5268324 2007-08-221 20 US

Cross Reference | NSN 5305-00-984-6189

Part Number Cage Code Manufacturer
0705302 S3002 GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH
10511569 56161 GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION
125004 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
1503590 45152 OSHKOSH CORPORATION
1503590 75Q65 OSHKOSH DEFENSE, LLC
19062 73734 FEDERAL SCREW PRODUCTS INC.
19062ADX 1VN02 AIRDALE EXPRESS LLC
260823 05812 HORST ENGINEERING & MANUFACTURING CO.
260823 0EEG3 VALCO CO GOVERNMENT SALES OFFICE
260823 56055 PRECISION SPEED MANUFACTURING, LLC
260823 77445 UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
507167-41 96214 RAYTHEON COMPANY DBA RAYTHEON
5305009846189 SCY13 E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5952820 S0522 TADIRAN LTD
81326152 82796 COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE
820228G4AI 58474 SUPERIOR ELECTRIC HOLDING GROUP LLC DBA SUPERIOR ELECTRIC
935.63.11.059 S4080 PILATUS AIRCRAFT LTD
9417273 11862 GENERAL MOTORS CORP CHEVROLET MOTOR DIV
9417273 7X677 GENERAL MOTORS LLC DBA GENERAL MOTORS
9B7242 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN515-8-4 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN515-8R4 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN526-832-4 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN526-832R4 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
H5315706BPC60 05168 ELSAG BAILEY INC
MS24584-38 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35206-241 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
MS35206-241 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35206-241 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35221-41 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35223-41 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NASM35206 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
SPE315C4 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
T15S8-4 79251 WENCO MFG CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-984-6189

Technical Data | NSN 5305-00-984-6189

Characteristic Specifications
THREAD SERIES DESIGNATOR UNC

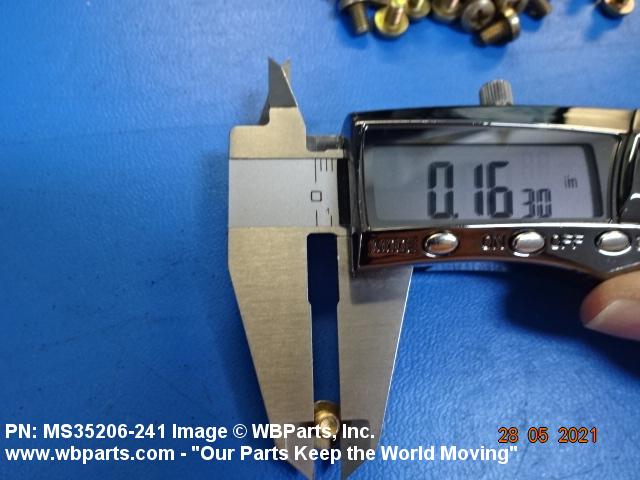

NOMINAL THREAD DIAMETER 0.164 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 2A
THREAD DIRECTION RIGHT-HAND
THREAD LENGTH 0.188 INCHES MINIMUM AND 0.250 INCHES MAXIMUM

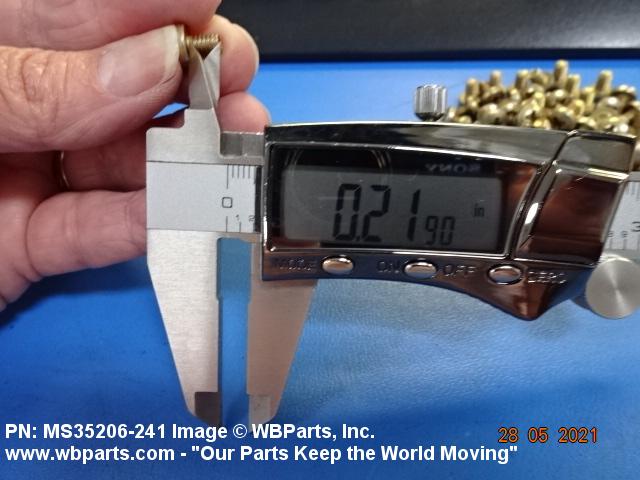

FASTENER LENGTH 0.219 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
SCREW MATERIAL STEEL COMP 1010 OR STEEL COMP 1011 OR STEEL COMP 1013
SCREW MATERIAL DOCUMENT AND CLASSIFICATION 66 FED STD ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH 55000 POUNDS PER SQUARE INCH
HEAD STYLE A23 PAN

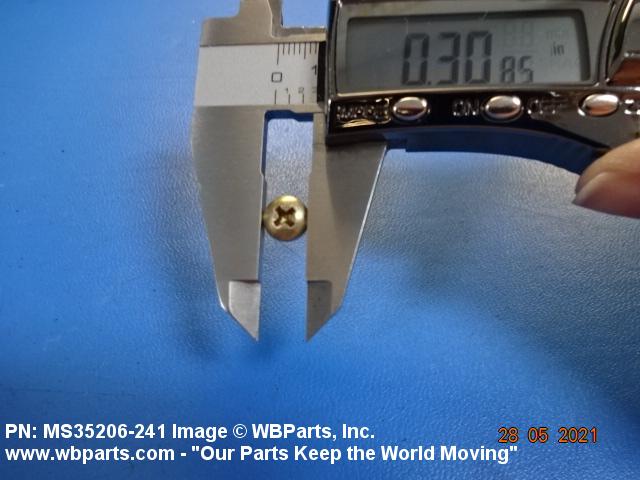

HEAD DIAMETER 0.306 INCHES MINIMUM AND 0.322 INCHES MAXIMUM
HEAD HEIGHT 0.105 INCHES MINIMUM AND 0.115 INCHES MAXIMUM
INTERNAL DRIVE STYLE B1 CROSS RECESS TYPE 1

Restrictions/Controls & Freight Information | NSN 5305-00-984-6189

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5305-00-984-6189

Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code5Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification CodeKReserved
Physical Category Code1Bin
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
HD : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
HD : Each
