NSN 5305-00-984-6193 MS16562191, MS16562-191, MS2458442

Product Details | MACHINE SCREW

5305-00-984-6193 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS16562191, MS16562-191, MS2458442, MS24584-42, MS35206, MS35206245, MS35206-245, MS3520642, MS35206-42, MS3520688, MS35206-8-8, MS3522145, MS35221-45, MS3522545, MS35225-45, NAS3408, NAS340-8, AN51588, AN515-8-8, AN5158R8, AN515-8R8, AN5268328, AN526-832-8, AN526832R8, AN526-832R8, B45253023, B4525-302-3, FFS92, FF-S-92, G30243356, G302433-56, P14935, P15C799140, P15C7991-40, PS1817413, PS1-8174-13, 0000000037, 000-0000-037, 0705305, 1243003161, 124-3003-161, 1550821108, 15508-21108, 19066, 19066ADX, 19070 , 19070ADX, 2002999, 2018841, 2056, 2CH334, 4071301008, 407-13-010-08, 415 449, 415 535, 415 539 , 415449, 415535, 415539, 415754, 4177205028, 4177205-028 , 50P011031307, 50P01103-1307, 514 763, 514763, 521549, 5305PL0725592, 53575108, 53575-10-8, 535788, 53578-8 , 5952315, 6200124, 6-2001-24, 6640211 FIND 35, 6640211FIND35, 71136245, 71136-245, 8221048, 822-1048, 852883 , 857693, 935.63.11.063, 935.63.11.068 , 9356311063, 9356311068, 5305-00-984-6193, 00-984-6193, 5305009846197 , 5305009846193, 009846193

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-984-6193	06657 ( SCREW, MACHINE )

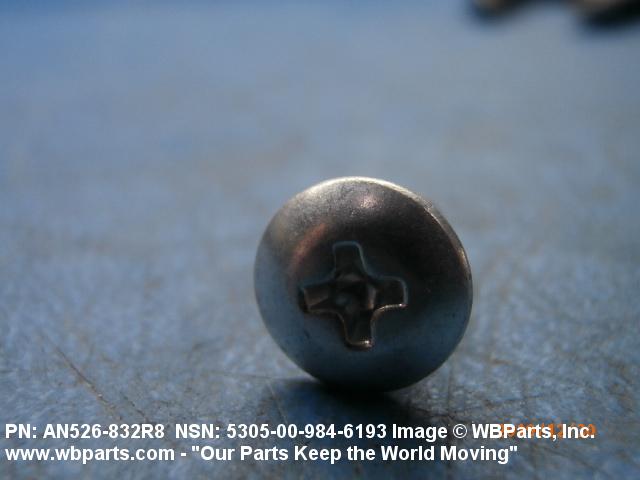

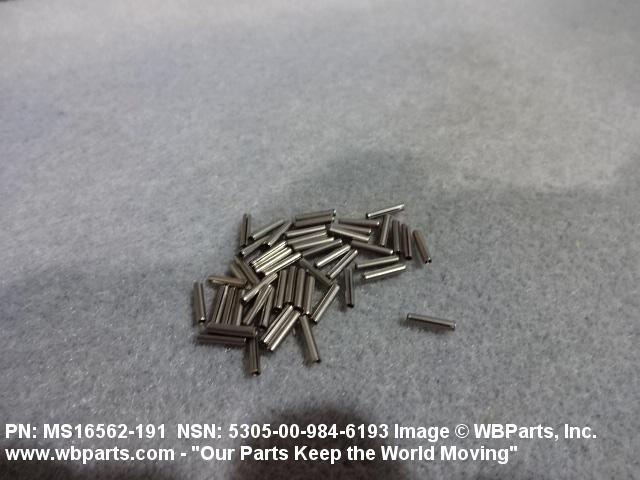

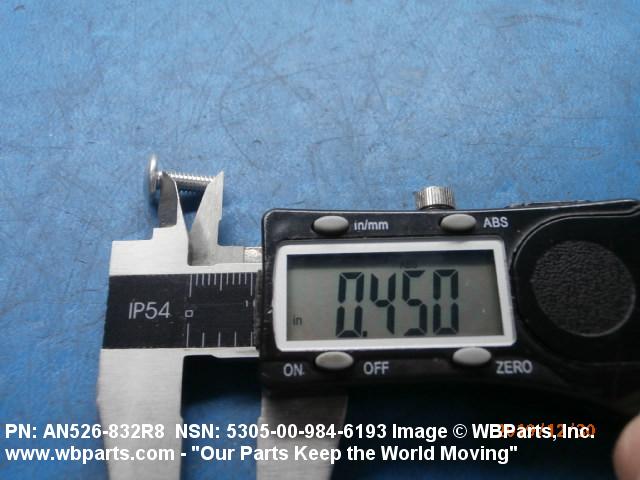

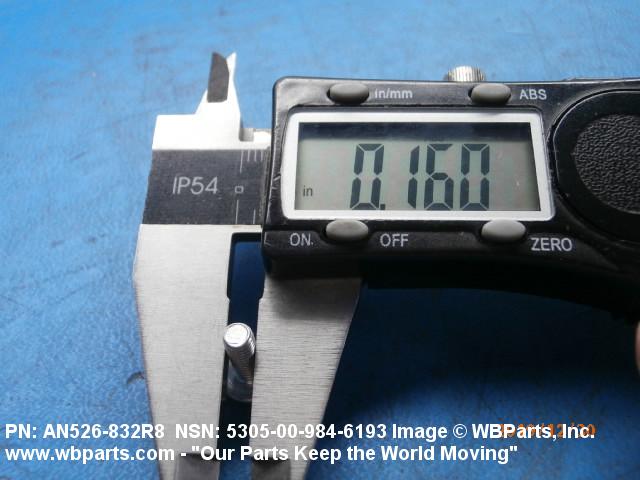

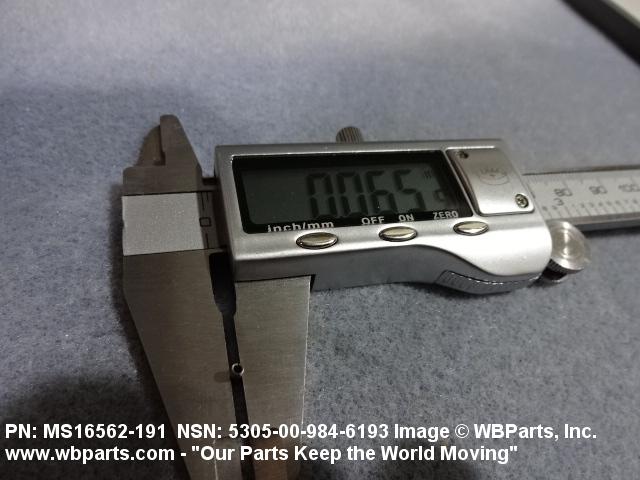

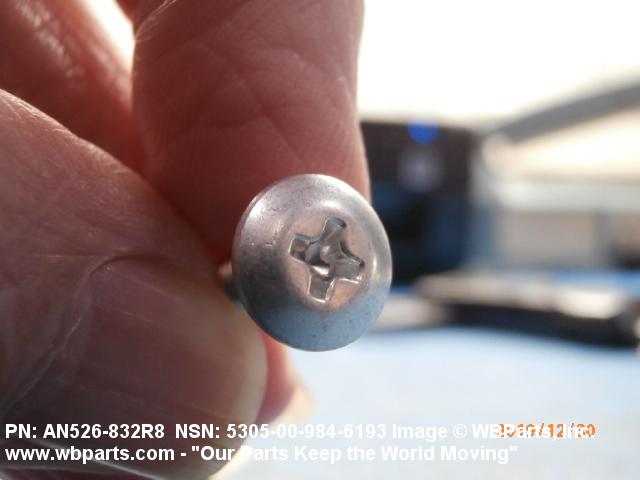

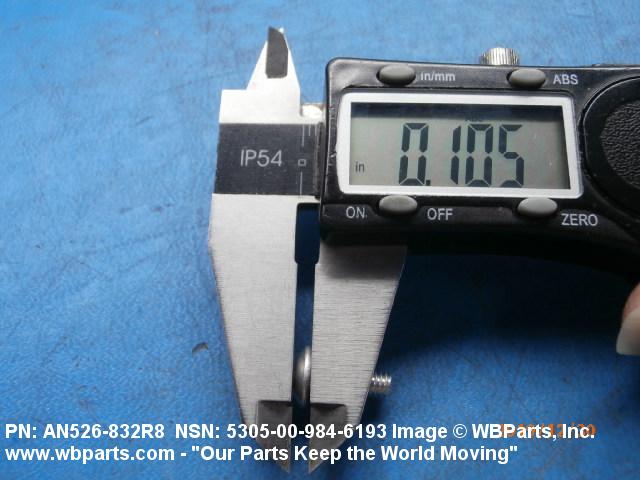

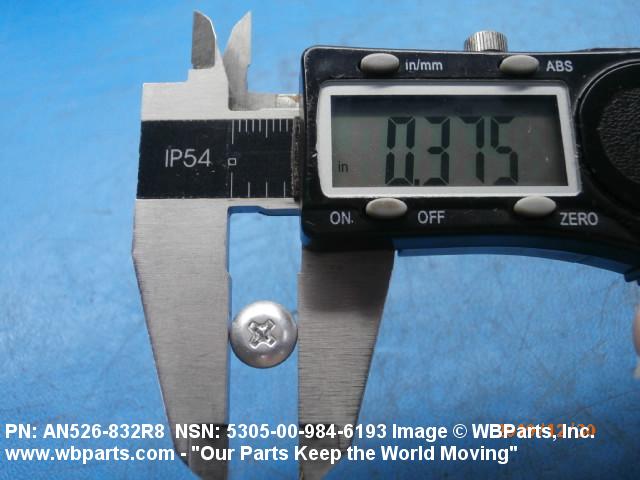

Drawings & Photos | NSN 5305-00-984-6193

Part Number	Request Date	QTY	Origin
5305-00-984-6193	2025-05-149	6	US
AN526832R8	2025-05-134	56	United States
AN526832R8	2025-05-134	56	United States
AN526832R8	2025-03-72	50	US
5305-00-984-6193	2025-02-55	3	United States
AN5158R8	2025-01-29	100	CN
MS35206245	2024-08-227	56	Japan
5305-00-984-6193	2024-02-57	168	United States
5305-00-984-6193	2023-10-298	9000	US
AN526832R8	2023-08-241	10	TR
FFS92	2023-08-236	14	US
MS35206245	2023-08-234	18	United States
MS35206245	2023-08-219	10	us
MS35206245	2023-04-118	30	United States
MS16562191	2023-03-79	220	Korea
MS16562191	2022-11-314	3	United States
MS35206245	2022-07-186	50	Sweden
MS35206245	2021-11-314	28	United States
MS35206245	2021-10-292	3	United States
MS16562191	2021-01-29	400	South Korea
5305-00-984-6193	2021-01-14	1	Brazil
AN51588	2020-11-325	5	United States
5305-00-984-6193	2020-11-314	1	Brazil
5305-00-984-6193	2020-06-182	250	MANUAL
MS16562191	2020-04-105	120	South Korea
MS35206245	2020-04-99	25	United States
MS16562191	2019-11-324	2000	IN
5305-00-984-6193	2018-12-354	8	DIBBS-KIT
MS35206-245	2018-12-353	8
9356311068	2018-09-249	5	IN
MS35206245	2018-04-117	2	United States
MS35206245	2018-03-73	2	United States
MS35206-245	2018-03-61	10	United States
MS35206-245	2018-02-52	10	United States
5305-00-984-6193	2017-05-135	100	US
MS16562191	2016-09-264	4	United States
MS16562191	2016-06-160	550	South Korea
MS16562191	2016-04-97	125	United States
MS35206245	2016-03-82	5	United States
5305-00-984-6193	2015-11-307	300	Malaysia
MS35206245	2015-09-251	12	Malaysia
MS35206245	2015-08-226	70	South Korea
MS35206245	2015-07-196	140	US
MS35206245	2015-05-125	10	United States
MS35206245	2015-04-92	6000	US
MS35206-245	2015-03-78	5000	United States
MS35206245	2015-03-76	200	US
MS16562191	2014-06-161	25	United States
5305-00-984-6193	2014-04-91	36	US
MS35206245	2014-03-78	4	United States
MS35206-245	2014-03-71	19	United States
FF-S-92	2014-02-59	75	United States
5305-00-984-6193	2014-01-14	400	MANUAL
5305-00-984-6193	2014-01-14	4	MANUAL
MS35206245	2013-09-259	2	United States
5305-00-984-6193	2013-09-259	100	US
MS35206245	2013-08-241	4	United States
AN515-8-8	2013-08-229	3800	Canada
MS35206-245	2013-07-200	5500
MS35206245	2013-07-197	1000	United States
MS35206245	2013-05-129	350	US
MS35206245	2013-04-95	16	United Kingdom
MS35206-245	2013-01-24	120	US
MS35206-245	2012-11-310	1355
AN5158R8	2012-02-41	500	CO
5305-00-984-6193	2011-10-292	20	KR
5305-00-984-6193	2011-08-243	1330	DIBBS
5305-00-984-6193	2011-07-201	133	MANUAL
MS16562191	2011-07-182	10	US
FFS92	2011-02-49	5	US
FFS92	2011-02-49	50	US
5305-00-984-6193	2011-01-01	30	FR
MS35206245	2010-12-356	1	Italy
FFS92	2010-11-323	165	US
MS16562191	2010-10-298	600	Turkey
5305-00-984-6193	2010-09-249	10	US
AN526832R8	2010-07-196	8	United States
MS35206245	2010-05-147	2000	Italy
MS16562191	2010-05-140	40	United States
MS35206245	2010-04-113	8	United States
MS16562191	2010-04-112	2	US
5305-00-984-6193	2010-03-90	10000	United States
FFS92	2009-12-338	100	US
5305-00-984-6193	2009-12-337	10	US
5305-00-984-6193	2009-11-321	3	US
5305-00-984-6193	2009-11-317	468	Italy
FFS92	2009-10-292	50	United States
5305-00-984-6193	2009-10-288	50	Malaysia
5305-00-984-6193	2009-10-286	50	Malaysia
5305-00-984-6193	2009-10-279	2000	DIBBS
5305-00-984-6193	2009-09-264	2000	DIBBS
5305-00-984-6193	2009-08-231	200	US
5305-00-984-6193	2009-08-218	100	US
MS35206245	2009-05-125	2000	Italy
5305-00-984-6193	2009-04-104	6	US
AN5158R8	2008-12-345	10	IT
MS35206245	2008-10-287	500	Italy
MS35206245	2008-03-81	500	United States
FFS92	2008-03-80	50	United States
MS35206245	2007-07-194	50	US
5305-00-984-6193	2007-05-136	10000	Spain

Cross Reference | NSN 5305-00-984-6193

Part Number	Cage Code	Manufacturer
000-0000-037	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
0705305	S3002	GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH
124-3003-161	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
124-3003-161	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
15508-21108	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
19066	73734	FEDERAL SCREW PRODUCTS INC.
19066ADX	1VN02	AIRDALE EXPRESS LLC
2002999	001JK	EMBRAER S/A
2002999	FB459	EMBRAER AVIATION INTERNATIONAL
2002999	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
2018841	001JK	EMBRAER S/A
2018841	FB459	EMBRAER AVIATION INTERNATIONAL
2018841	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
2056	73734	FEDERAL SCREW PRODUCTS INC.
2CH334	45152	OSHKOSH CORPORATION
407-13-010-08	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
415 449	77294	PIPER AIRCRAFT INC.
415 535	77294	PIPER AIRCRAFT INC.
415754	77294	PIPER AIRCRAFT INC.
50P01103-1307	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
514 763	77294	PIPER AIRCRAFT INC.
521549	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5305009846193	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
53575-10-8	94833	KECO INDUSTRIES INC.
5952315	S0522	TADIRAN LTD
6-2001-24	49956	RAYTHEON COMPANY DBA RAYTHEON
6640211 FIND 35	53711	NAVAL SEA SYSTEMS COMMAND
71136-245	95097	LITTLE GIANT CRANE AND SHOVEL INC
822-1048	44940	CUMMINS POWER GENERATION INC.
857693	19203	PICATINNY ARSENAL
935.63.11.063	S4080	PILATUS AIRCRAFT LTD
AN515-8-8	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN515-8R8	81352	AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS
AN515-8R8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN5158R8	81352	AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS
AN526-832-8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN526-832R8	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
B4525-302-3	60532	TRANE U.S. INC. DBA TRANE
FF-S-92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
G302433-56	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS16562-191	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24584-42	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35206	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35206-245	0158B	PSA PEUGEOT-CITROEN ESPA?A, SA
MS35206-245	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
MS35206-245	60144	UNIFAB INDUSTRIES INC
MS35206-245	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35206-245	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35206-42	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35206-8-8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35221-45	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35225-45	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS340-8	80201	SKF USA INC. DBA SKF AEROSPACE SEALING SOLUTIONS
P14935	06848	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
P15C7991-40	99167	HAMILTON SUNDSTRAND CORPORATION
PS1-8174-13	23917	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN SPACE SYSTEM CO
PS1-8174-13	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-984-6193

Compare

Related Products | NSN 5305-00-984-6193

5305-00-984-6194, 5305-00-984-6195, 5305-00-984-6196, 5305-00-984-6197, 5305-00-984-6198

Technical Data | NSN 5305-00-984-6193

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.438 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
FASTENER LENGTH	0.500 INCHES NOMINAL
SCREW MATERIAL	STEEL COMP 1010 OR STEEL COMP 1011 OR STEEL COMP 1013
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH	60000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN
HEAD DIAMETER	0.306 INCHES MINIMUM AND 0.322 INCHES MAXIMUM
HEAD HEIGHT	0.105 INCHES MINIMUM AND 0.115 INCHES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1
NONDEFINITIVE SPEC/STD DATA	3 TYPE AND 9C STYLE
III END ITEM IDENTIFICATION	NSN 4210-01-486-1035 TFFT (TACTICAL FIRE FIGHTING TRUCK)
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-S-92

Restrictions/Controls & Freight Information | NSN 5305-00-984-6193

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-984-6193

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
