NSN 5305-00-984-6192 MS35206244, MS35206-244, MS3522344

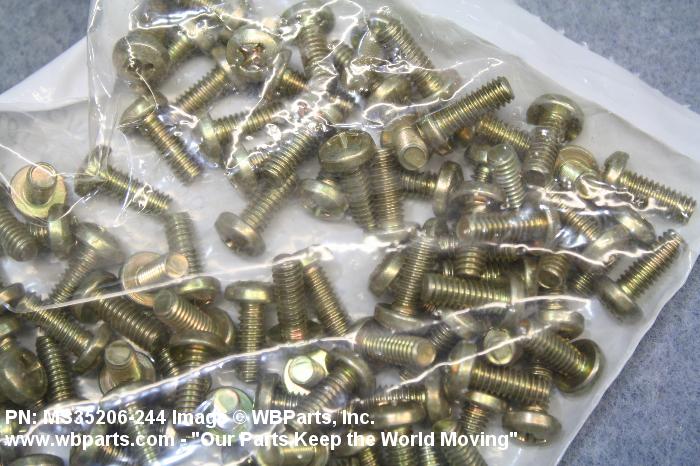

Product Details | MACHINE SCREW
5305-00-984-6192 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS35206244, MS35206-244, MS3522344, MS35223-44, NAS6027P, NAS602-7P, AN515832R7, AN515-832R7, B203502G180AB, B203502G180-AB, FFS92, FF-S-92, 19065, 19065ADX, 2053501, 2F2860, 415 544, 415544, 5109031, 5305005310, 819178-114, 852662, 85838000, 858380-00, 8X1496, 935.63.11.062, 9356311062, 9461192807, 946119-2807, 5305-00-984-6192, 00-984-6192, 5305009846192, 009846192, 819178114
Hardware and Abrasives | Screws
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 01 JAN 1962 | 00-984-6192 | 06657 ( SCREW, MACHINE ) |
Demand History | NSN 5305-00-984-6192
Part Number | Request Date | QTY | Origin |
---|---|---|---|
MS35206244 | 2024-10-289 | 300 | United States |
MS35206244 | 2024-10-289 | 600 | United States |
MS35206244 | 2024-10-289 | 1200 | United States |
MS35206244 | 2024-09-267 | 12 | Spain |
MS35206244 | 2024-08-226 | 40 | Japan |
MS35206244 | 2024-02-53 | 50 | United States |
5305-00-984-6192 | 2023-11-310 | 26 | DIBBS |
MS35206244 | 2023-10-286 | 10 | us |
FFS92 | 2023-08-236 | 14 | US |
MS35206244 | 2023-05-146 | 50 | us |
5305-00-984-6192 | 2023-04-120 | 469 | DIBBS |
MS35206244 | 2020-04-99 | 25 | United States |
5305-00-984-6192 | 2020-03-90 | 15 | MANUAL |
MS35206-244 | 2020-03-90 | 15 | US |
MS35206-244 | 2019-02-42 | 280 | Lebanon |
MS35206244 | 2018-02-37 | 190 | China |
5305-00-984-6192 | 2018-01-08 | 1039 | DIBBS |
5305-00-984-6192 | 2017-11-334 | 857 | DIBBS |
5305-00-984-6192 | 2017-11-334 | 167 | DIBBS |
5305-00-984-6192 | 2017-10-302 | 504 | DIBBS |
5305-00-984-6192 | 2017-09-271 | 4 | US |
5305-00-984-6192 | 2017-09-247 | 4116 | DIBBS |
5305-00-984-6192 | 2017-04-100 | 366 | DIBBS |
5305-00-984-6192 | 2016-11-312 | 2500 | DIBBS |
MS35206244 | 2016-10-302 | 100 | United States |
NAS6027P | 2016-09-246 | 100 | Singapore |
MS35206-244 | 2016-04-96 | 500 | Romania |
5305-00-984-6192 | 2016-01-10 | 1434 | DIBBS |
5305-00-984-6192 | 2015-05-148 | 1066 | DIBBS |
5305-00-984-6192 | 2015-04-109 | 621 | DIBBS |
MS35206-244 | 2015-03-78 | 20000 | United States |
5305-00-984-6192 | 2014-06-180 | 878 | DIBBS |
NAS6027P | 2014-02-59 | 25 | us |
FF-S-92 | 2014-02-59 | 75 | United States |
5305-00-984-6192 | 2014-01-14 | 994 | DIBBS |
MS35206244 | 2014-01-10 | 100 | us |
MS35206-244 | 2012-11-310 | 519 | |
5305-00-984-6192 | 2011-08-231 | 2485 | DIBBS |
5305-00-984-6192 | 2011-03-76 | 4 | US |
5305-00-984-6192 | 2011-02-54 | 1931 | DIBBS |
FFS92 | 2011-02-49 | 5 | US |
FFS92 | 2011-02-49 | 50 | US |
5305-00-984-6192 | 2011-02-32 | 2015 | DIBBS |
5305-00-984-6192 | 2010-12-365 | 20 | FR |
FFS92 | 2010-11-323 | 165 | US |
5305-00-984-6192 | 2010-10-292 | 10 | US |
NAS6027P | 2010-02-41 | 200 | Italy |
MS35206244 | 2010-02-39 | 1200 | Italy |
FFS92 | 2009-12-338 | 100 | US |
FFS92 | 2009-10-292 | 50 | United States |
5305-00-984-6192 | 2009-08-240 | 1 | us |
5305-00-984-6192 | 2009-08-222 | 264 | US |
5305-00-984-6192 | 2009-04-117 | 2133 | DIBBS |
NAS6027P | 2009-04-110 | 50 | Italy |
5305-00-984-6192 | 2009-02-55 | 1003 | DIBBS |
FFS92 | 2008-03-80 | 50 | United States |
Cross Reference | NSN 5305-00-984-6192
Part Number | Cage Code | Manufacturer |
---|---|---|
19065 | 73734 | FEDERAL SCREW PRODUCTS INC. |
19065ADX | 1VN02 | AIRDALE EXPRESS LLC |
2053501 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
2F2860 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
303846 | H0G87 | WIBA ZEVENAAR B.V. |
415 544 | 77294 | PIPER AIRCRAFT INC. |
5109031 | 001JK | EMBRAER S/A |
5109031 | FB459 | EMBRAER AVIATION INTERNATIONAL |
5109031 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
5305005310 | 0125B | GENERAL DYNAMICS EUROPEAN LANDSYSTEMS - SANTA BARBARA SISTEMAS |
5305009846192 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
819178-114 | 83298 | ALLIED SIGNAL INC AEROSPACE EQUIPMENT SYSTEMS |
852662 | 19203 | PICATINNY ARSENAL |
858380-00 | 32345 | DEFENSE REDUCTION AGENCY |
8X1496 | 24975 | PRESTOLITE ELECTRIC INCORPORATED |
935.63.11.062 | S4080 | PILATUS AIRCRAFT LTD |
946119-2807 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
AN515-832R7 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
B203502G180-AB | 58474 | SUPERIOR ELECTRIC HOLDING GROUP LLC DBA SUPERIOR ELECTRIC |
FF-S-92 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
MS35206-244 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
MS35206-244 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
MS35206-244 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
MS35223-44 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
NAS602-7P | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5305-00-984-6192
Technical Data | NSN 5305-00-984-6192
Characteristic | Specifications |
---|---|
THREAD SERIES DESIGNATOR | UNC |
NOMINAL THREAD DIAMETER | 0.164 INCHES |
THREAD QUANTITY PER INCH | 32 |
THREAD CLASS | 2A |
THREAD DIRECTION | RIGHT-HAND |
THREAD LENGTH | 0.376 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
FASTENER LENGTH | 0.438 INCHES NOMINAL |
SCREW MATERIAL | STEEL COMP 1010 OR STEEL COMP 1011 OR STEEL COMP 1013 |
SCREW MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES |
SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
MINIMUM TENSILE STRENGTH | 60000 POUNDS PER SQUARE INCH |
HEAD STYLE | A23 PAN |
HEAD DIAMETER | 0.306 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
HEAD HEIGHT | 0.105 INCHES MINIMUM AND 0.115 INCHES MAXIMUM |
INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 9C STYLE |
MANUFACTURERS CODE | 81348 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-S-92 |
Restrictions/Controls & Freight Information | NSN 5305-00-984-6192
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
Category | Code | Description |
---|---|---|
NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 713 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-984-6192
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
Price Validation | V | The current standard price has been validated.
|
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 HD : Each |
Category | Code | Description |
---|---|---|
Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
Physical Category Code | 1 | Bin |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DM | U.S. Marine Corps |
Service Organization | M | U.S. Marine Corps |
Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 HD : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 HD : Each |
