NSN 5305-00-959-0379 MS1699510, MS16995-10, N171P90061

Product Details | SOCKET HEAD CAP SCREW

5305-00-959-0379 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: MS1699510, MS16995-10, N171P90061, N171P9006-1, NAS1352C046, NAS1352C04-6, NASM1699510, NASM16995-10, A3029C46, A302-9C4-6, H667160406, HP933R12440, HP933R12-440, 74455244010, 91160304, 911603-04, 92200A108, 324-0564-00, 352250020266, 41826210, 418262-10, 460680406S, 46068-0406S, 4806030, 4806-030, 523077, 52-30-77, 010231-010, 011924, 081910, 0819-10, 10045066 , 10050150019, 1005-0150-019, 1058123723, 10581237-23, 1087511305, 108751-1305, 12Z10073, 12-Z-1007-3, 003007868010, 003-007868-010, 1C6368P06, 2000876, 200087-6, 2301007005, 23-01007-005, 946594-406, 5305-00-959-0379, 00-959-0379, 5305009590379 , 946594406, 010231010, 009590379, 324056400, 140300200

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-959-0379	16282 ( SCREW, CAP, SOCKET HEAD )

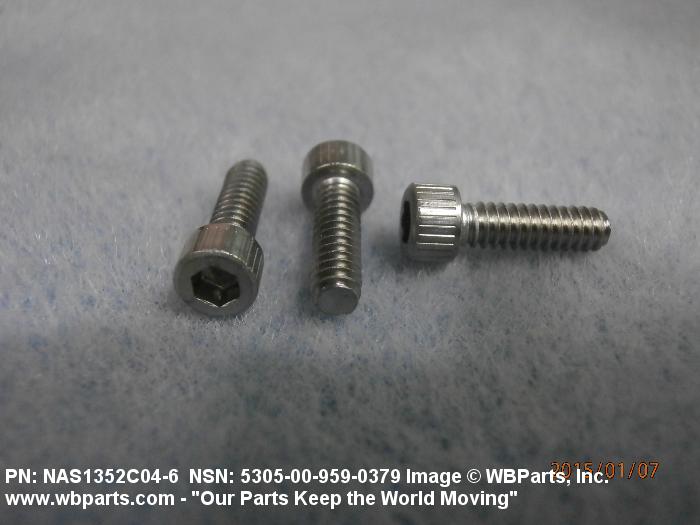

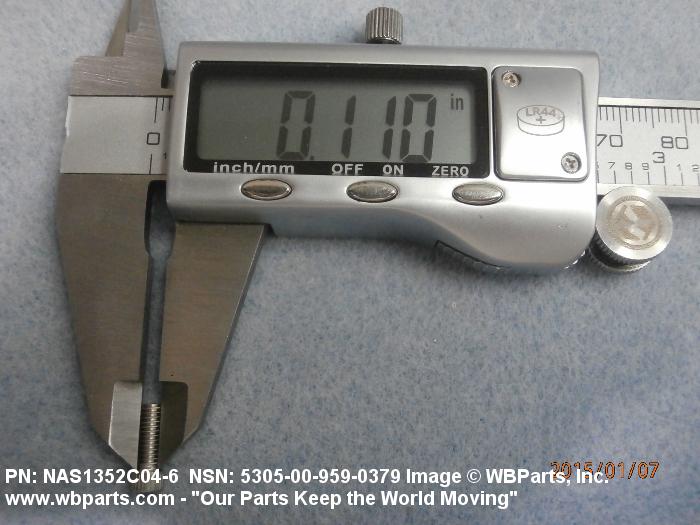

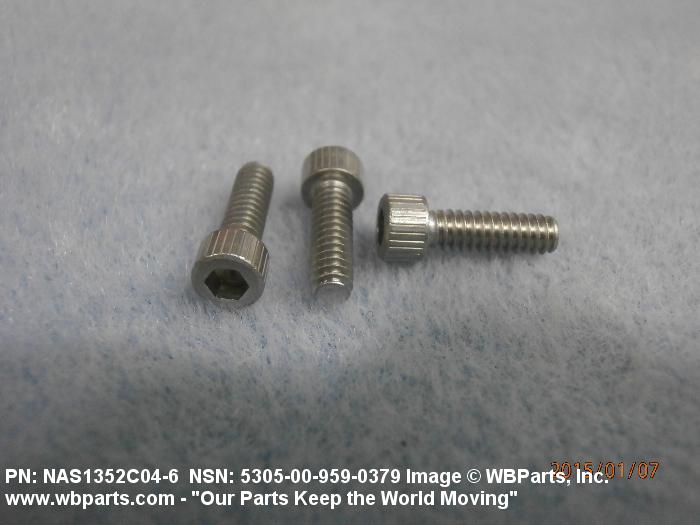

Drawings & Photos | NSN 5305-00-959-0379

Part Number	Request Date	QTY	Origin
NAS1352C046	2024-04-94	20	MA
MS1699510	2023-11-332	40	TW
MS1699510	2023-07-205	380	United States
MS1699510	2023-03-79	1200	Korea
NAS1352C046	2022-10-284	3	United States
MS1699510	2021-12-348	1050	Korea
5305-00-959-0379	2021-06-168	5	US
MS16995-10	2020-12-365	254	United States
NAS1352C046	2020-12-352	425	United States
5305-00-959-0379	2020-10-294	100	IL
5305-00-959-0379	2020-10-294	200	IL
5305-00-959-0379	2020-10-294	200	IL
5305-00-959-0379	2020-10-294	200	IL
MS16995-10	2020-09-268	603	South Korea
MS16995-10	2020-09-268	603	South Korea
NAS1352C046	2020-09-260	280	United States
5305-00-959-0379	2020-08-221	24	US
MS16995-10	2020-06-174	2720	Hong Kong
NAS1352C046	2020-04-119	500	United States
MS1699510	2019-10-288	10	United States
NAS1352C046	2019-04-91	8	India
5305-00-959-0379	2019-03-74	100	United States
NAS1352C046	2018-12-352	425	United States
5305-00-959-0379	2018-12-351	100	United States
MS1699510	2018-07-211	6600	Malaysia
MS1699510	2018-07-211	6600	Malaysia
MS1699510	2018-07-198	280	IN
MS16995-10	2018-05-150	2470	South Korea
MS16995-10	2018-05-149	2470	South Korea
NAS1352C046	2018-05-128	100	US
MS1699510	2017-10-298	17500	Malaysia
NAS1352C046	2017-05-144	415	United States
NAS1352C046	2017-02-37	60	US
MS1699510	2017-02-33	100	United States
MS1699510	2016-05-146	34	IN
NAS1352C046	2016-04-95	410	United States
NAS1352C046	2016-03-63	50	us
NAS1352C046	2016-03-63	50	us
NAS1352C046	2015-12-336	700	United States
NAS1352C046	2015-05-146	420	United States
MS16995-10	2015-05-141	4	United States
MS16995-10	2015-05-141	4	United States
NAS1352C046	2015-02-57	1000	KR
NAS1352C046	2015-02-42	210	United States
5305-00-959-0379	2014-12-342	55	US
MS1699510	2014-11-318	400	United States
MS1699510	2014-10-281	24	United States
MS1699510	2014-02-43	4	United States
NAS1352C046	2014-01-31	1000	United States
MS1699510	2013-08-239	1800	United States
NAS1352C046	2013-08-224	210	United States
NAS1352C046	2013-07-189	420	United States
NAS1352C046	2013-02-52	420	United States
MS1699510	2013-01-29	51	United States
MS1699510	2013-01-02	400	United States
MS1699510	2012-12-349	37	US
NAS1352C046	2012-11-318	25	us
NAS1352C046	2012-10-293	420	United States
NAS1352C046	2012-09-270	215	United States
NAS1352C046	2012-04-93	210	United States
NAS1352C046	2012-04-93	300	United States
MS1699510	2012-03-88	50	Israel
MS1699510	2012-03-83	8	US
NAS1352C046	2012-01-18	400	United States
MS1699510	2012-01-13	320	United States
NAS1352C046	2012-01-11	28	United States
MS1699510	2011-10-304	37	United States
NAS1352C046	2011-10-285	400	United States
NAS1352C046	2011-09-250	1000	United States
NAS1352C046	2011-07-202	130	United States
MS1699510	2011-05-133	200	US
NAS1352C046	2011-05-126	500	US
NAS1352C046	2011-05-125	315	United States
MS1699510	2011-04-116	500	US
NAS1352C046	2011-03-89	510	United States
MS1699510	2011-02-41	75	US
5305-00-959-0379	2011-01-28	3000	CA
5305-00-959-0379	2011-01-28	1000	CA
5305-00-959-0379	2010-10-277	116	US
5305-00-959-0379	2010-09-272	790	Germany
5305-00-959-0379	2010-09-246	50	US
5305-00-959-0379	2010-08-225	300	United States
NAS1352C046	2010-08-223	3	United States
5305-00-959-0379	2010-02-54	208	US
5305-00-959-0379	2009-11-315	10	United States
5305-00-959-0379	2009-03-81	30	South Korea
MS1699510	2009-01-22	296	Greece
NAS1352C046	2008-09-261	420	IL
NAS1352C046	2008-09-261	420	IL
NAS1352C046	2008-09-261	420	IL
5305-00-959-0379	2008-09-255	850	US
MS1699510	2008-09-247	92	United States
NAS1352C046	2008-05-133	5	us
NAS1352C046	2008-05-127	100	United States

Cross Reference | NSN 5305-00-959-0379

Part Number	Cage Code	Manufacturer
003-007868-010	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
010231-010	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
011924	D0078	DIEHL BGT DEFENCE GMBH & CO. KG
0819-10	02769	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
0819-10	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
1005-0150-019	04577	CARLETON TECHNOLOGIES INC
10581237-23	18876	U S ARMY AVIATION AND MISSILE COMMAND
108751-1305	37695	RAYTHEON COMPANY DBA RAYTHEON
12-Z-1007-3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
140300200	D1876	L-3 COMMUNICATIONS ELAC NAUTIK GMBH DBA L-3 ELAC NAUTIK
140300200	D9444	HONEYWELL REGELSYSTEME GMBHGESCHAEFTSBEREICH SONDERTECHNIK
1C6368P06	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
200087-6	02145	RICHARDS IMAGERY INTERPRETATION SYSTEMS L.L.C.
23-01007-005	00724	RAYTHEON COMPANY DBA RAYTHEON
324-0564-00	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
352250020266	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
418262-10	96214	RAYTHEON COMPANY DBA RAYTHEON
46068-0406S	27914	HONEYWELL INTERNATIONAL INC DBA HONEYWELL
46068-0406S	97896	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
4806-030	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
52-30-77	31949	BROOKS AUTOMATION, INC. DIV CTI CRYOGENICS
5305009590379	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
74455244010	89944	KOLLSMAN, INC.
911603-04	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
92200A108	39428	MCMASTER-CARR SUPPLY COMPANY
946594-406	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
A302-9C4-6	34228	L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO
H667160406	88818	KEARFOTT CORPORATION DBA KEARFOTT
HP933R12-440	94931	BENDIX CORP THE BENDIX INTERNATIONAL DIV
MS16995-10	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS16995-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS16995-10	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
N171P9006-1	97424	AMETEK, INC. DIV AEROSPACE & DEFENSE
NAS1352C04-6	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NASM16995-10	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-959-0379

Compare

Related Products | NSN 5305-00-959-0379

5305-00-959-0382, 5305-00-959-0514, 5305-00-959-0753, 5305-00-959-0939, 5305-00-959-0980

Technical Data | NSN 5305-00-959-0379

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

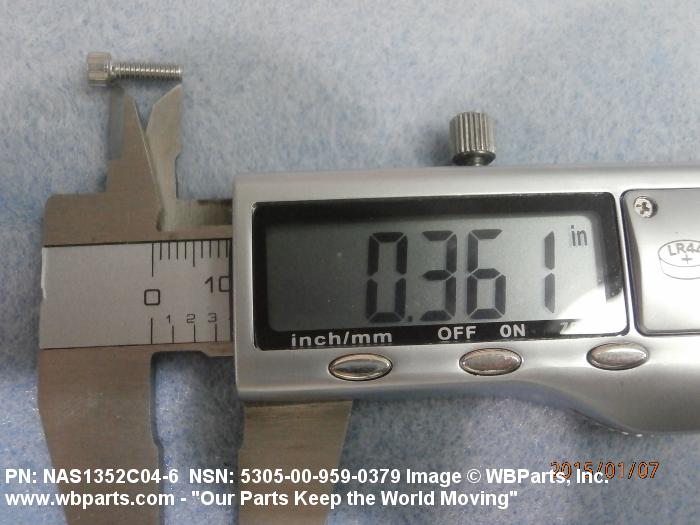

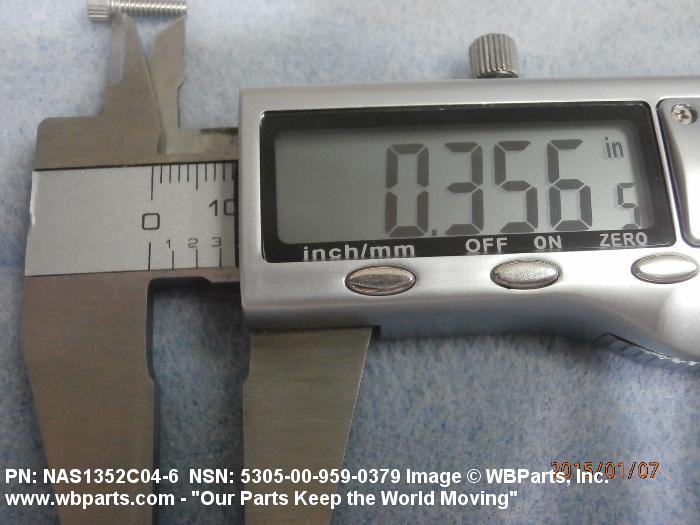

THREAD LENGTH	0.341 INCHES MINIMUM

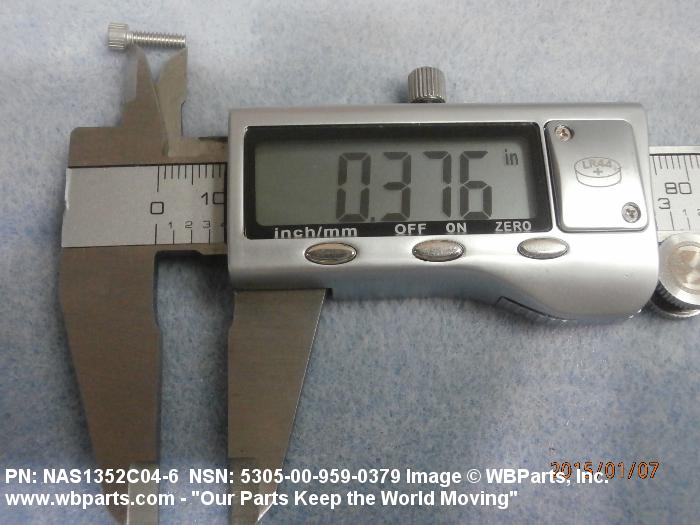

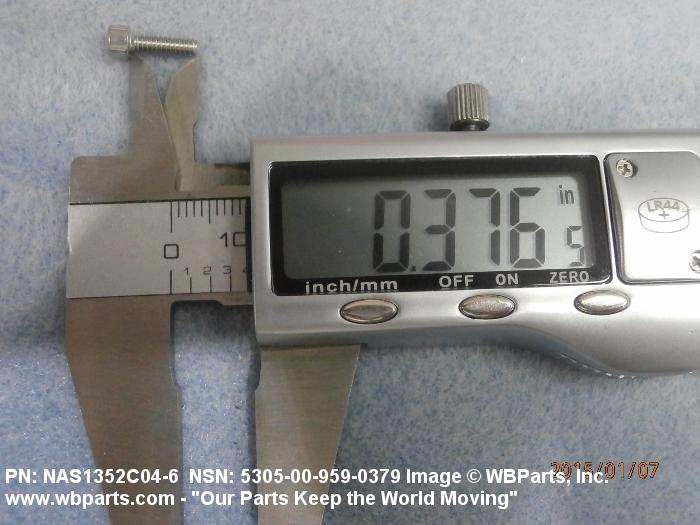

FASTENER LENGTH	0.375 INCHES NOMINAL
MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	80.0 ROCKWELL B MINIMUM OVERALL
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	30 POUNDS PER SQUARE INCH
HEAD STYLE	C49 FLAT CHAMFER

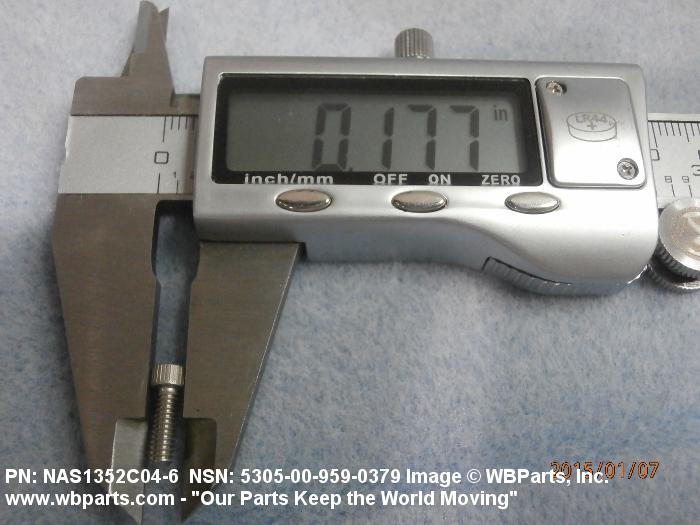

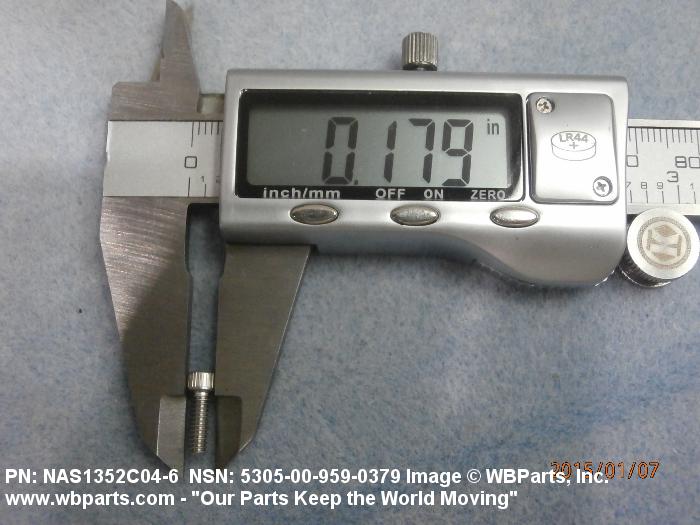

HEAD DIAMETER	0.176 INCHES MINIMUM AND 0.183 INCHES MAXIMUM

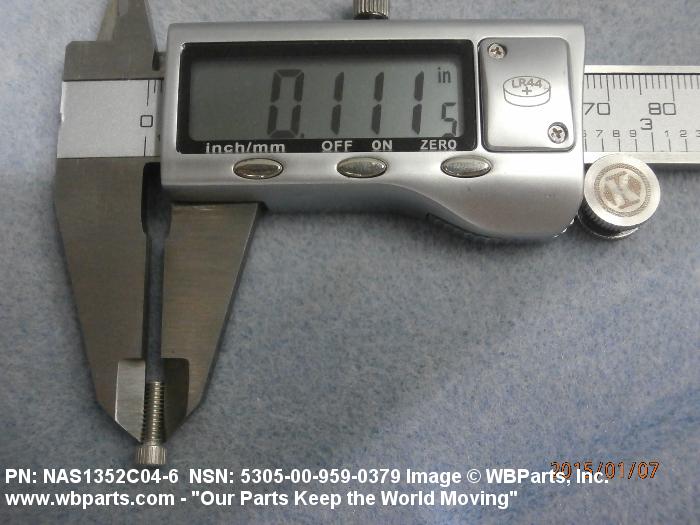

HEAD HEIGHT	0.108 INCHES MINIMUM AND 0.112 INCHES MAXIMUM
INTERNAL DRIVE STYLE	D5 HEXAGON
WIDTH ACROSS FLATS	0.094 INCHES MINIMUM AND 0.095 INCHES MAXIMUM
MANUFACTURERS CODE	81348
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFS86TYPEV1KNURCED4-40{CX3-8CRES

Restrictions/Controls & Freight Information | NSN 5305-00-959-0379

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-959-0379

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
