Product Details | SOCKET HEAD CAP SCREW

5305-00-959-0382 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: MS1699517, MS16995-17, N171P13006, N28P13006, PL520D01000001 ITEM 112, PL520D01000001/112, PL520D01000001112, PL520D01000001ITEM112, FF-S- 86, FFS86, 003007868017, 003-007868-017, 590968, 6080488, 765013, 7-65-013, 7871213001, 787-12-13-001, 86107527, 861075-27, 92200A146, 064506326RDK, 0645-0632-6RDK, 081917, 0819-17, 100A900014, 10114749, 103A1001419, 103A10014-19, 12Z100715, 12Z1007-15 , 2001626, 200162-6, 345884PC302 , 41826217, 418262-17, 43S522837015, 43S52283-7015 , 50206061, 5020-6061, 5305-00-959-0382, 00-959-0382, 5305009590382 , 009590382

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-959-0382	16282 ( SCREW, CAP, SOCKET HEAD )

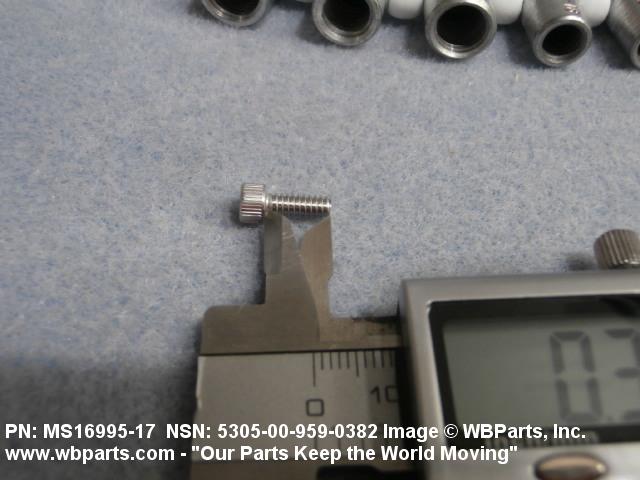

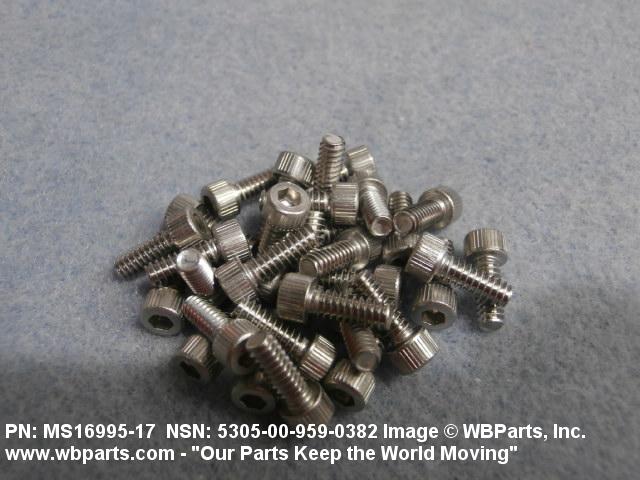

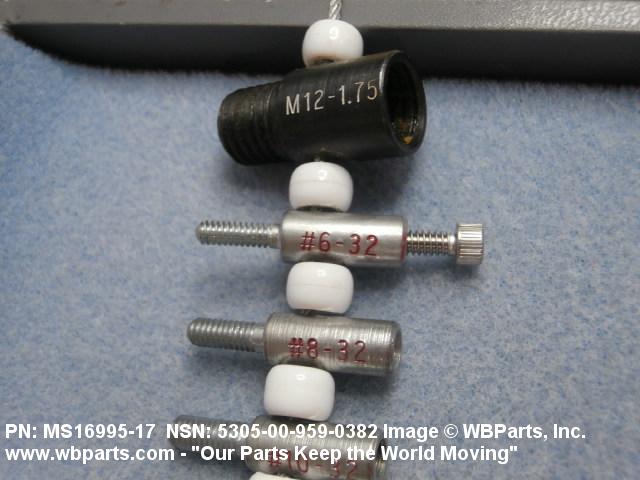

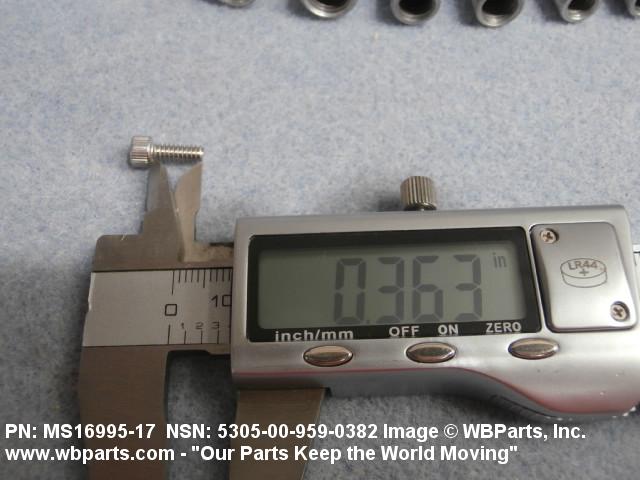

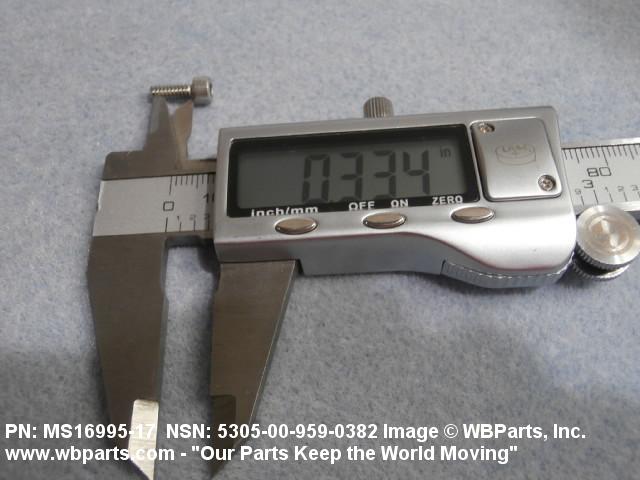

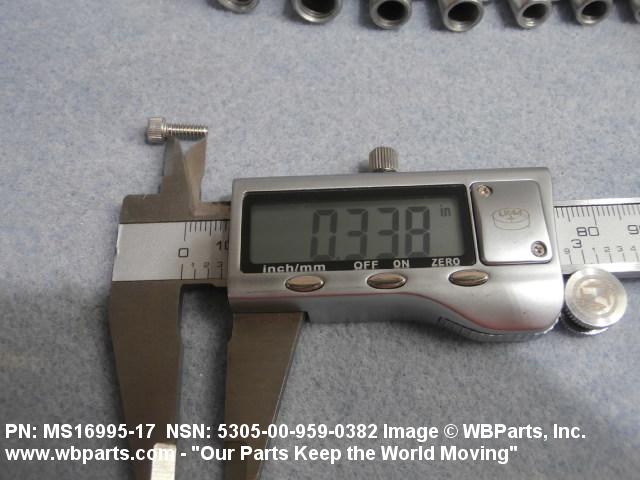

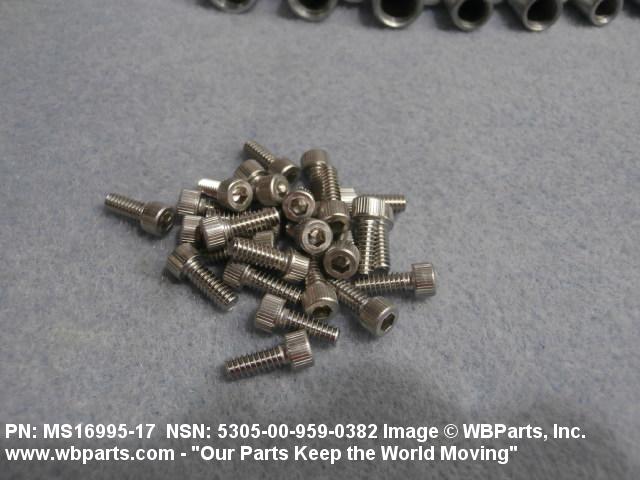

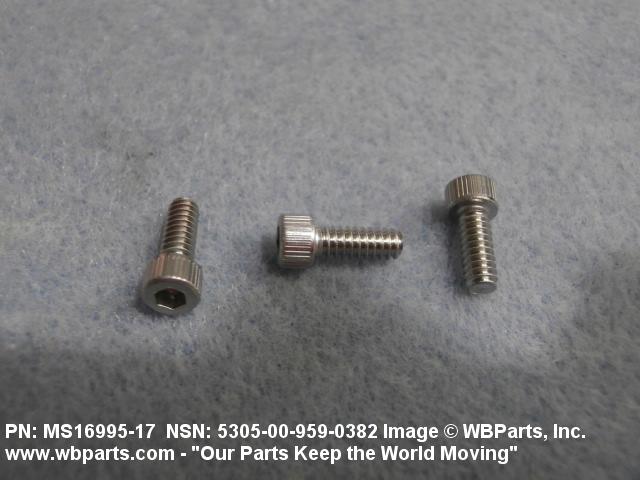

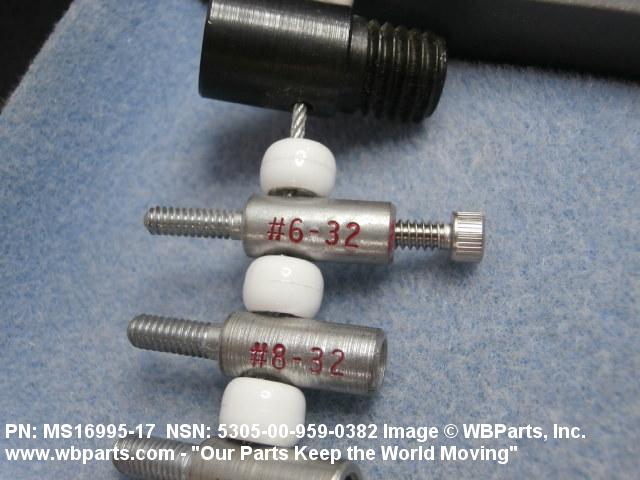

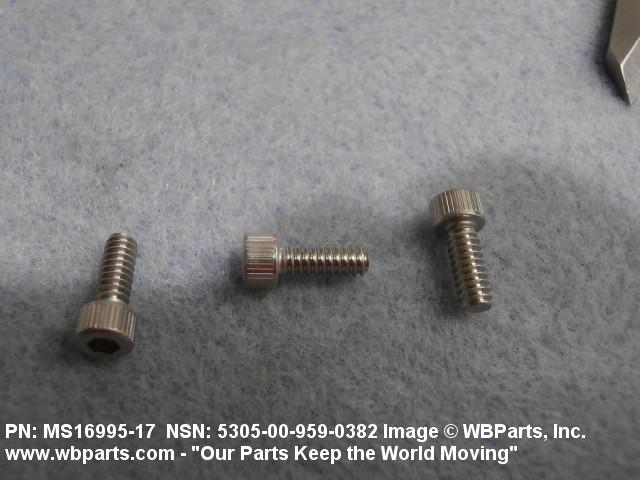

Drawings & Photos | NSN 5305-00-959-0382

Part Number	Request Date	QTY	Origin
MS1699517	2024-05-138	48	IN
MS1699517	2024-03-88	100	AE
FFS86	2022-05-143	40	United States
FFS86	2021-12-347	40	US
MS1699517	2021-06-161	5000	us
MS1699517	2021-06-161	10000	us
MS1699517	2021-06-161	15000	us
MS1699517	2021-04-118	80	United States
MS1699517	2019-10-288	10	United States
MS1699517	2019-05-135	6	Taiwan
MS1699517	2018-05-143	43	United States
5305-00-959-0382	2015-10-278	2	US
MS16995-17	2015-05-141	19	United States
MS16995-17	2015-05-141	19	United States
MS1699517	2014-10-304	24	United States
MS1699517	2014-06-168	1333	UM
MS1699517	2014-06-153	2000	CN
MS1699517	2014-04-91	130	United States
MS1699517	2014-04-91	500	United States
MS1699517	2014-04-91	1000	United States
MS16995-17	2014-03-71	263	United States
FFS86	2013-08-229	80	Canada
5305-00-959-0382	2013-03-74	3	us
MS1699517	2013-01-28	15	United Kingdom
MS1699517	2012-11-313	800	us
FFS86	2012-03-74	2	US
MS1699517	2012-01-02	155	IN
FFS86	2011-08-222	50	US
FFS86	2011-08-214	50	US
MS1699517	2011-05-151	269	US
MS1699517	2011-04-116	500	US
MS1699517	2011-03-89	75	United States
N171P13006	2011-03-89	75	United States
FFS86	2011-03-61	8	US
FFS86	2011-03-60	5000	US
MS1699517	2011-02-33	100	TW
MS1699517	2010-10-280	250	US
MS1699517	2009-05-126	5	United States
5305-00-959-0382	2008-12-360	10	Turkey
MS1699517	2008-05-151	26	US
MS1699517	2008-03-80	120	United States
MS1699517	2007-10-299	100	India

Cross Reference | NSN 5305-00-959-0382

Part Number	Cage Code	Manufacturer
003-007868-017	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
0645-0632-6RDK	99167	HAMILTON SUNDSTRAND CORPORATION
0819-17	06424	ALLIANT TECHSYSTEMS OPERATIONS LLC DIV DEFENSE ELECTRONIC SYSTEMS
0819-17	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
100A900014	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
103A10014-19	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
12Z1007-15	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
200162-6	02145	RICHARDS IMAGERY INTERPRETATION SYSTEMS L.L.C.
345884PC302	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
418262-17	96214	RAYTHEON COMPANY DBA RAYTHEON
43S52283-7015	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
5020-6061	96214	RAYTHEON COMPANY DBA RAYTHEON
5305009590382	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
590968	21450	ARMY WEAPONS COMMAND ATTN AMSWE-REE-S
6080488	03640	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
7-65-013	00912	AKRON BRASS COMPANY
787-12-13-001	13913	WESTERN RESERVE ELECTRONICS INC
861075-27	49671	LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS
92200A146	39428	MCMASTER-CARR SUPPLY COMPANY
FF-S- 86	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS16995-17	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS16995-17	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N171P13006	09172	GENERAL ELECTRIC CO MATERIALS INFORMATION SERVICES
N28P13006	09172	GENERAL ELECTRIC CO MATERIALS INFORMATION SERVICES
PL520D01000001 ITEM 112	S7669	AWA DEFENCE INDUSTRIES PTY LTD
PL520D01000001 ITEM 112	Z1F21	BAE SYSTEMS AUSTRALIA LTD C/O DLMSECURE ROOM
PL520D01000001/112	S7669	AWA DEFENCE INDUSTRIES PTY LTD
PL520D01000001/112	Z1F21	BAE SYSTEMS AUSTRALIA LTD C/O DLMSECURE ROOM
