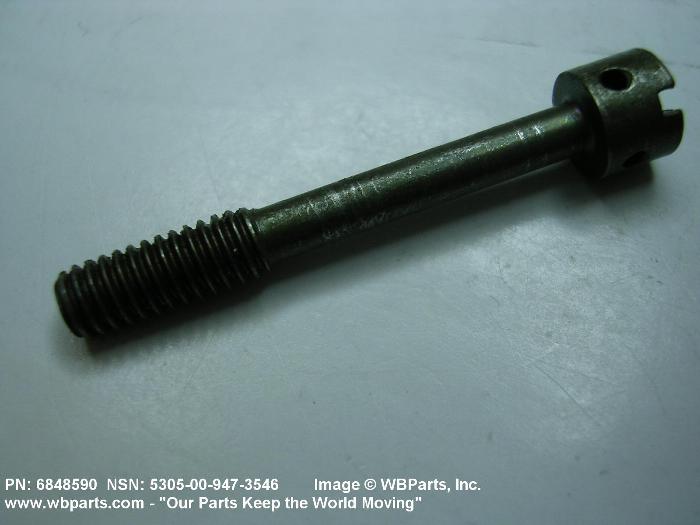

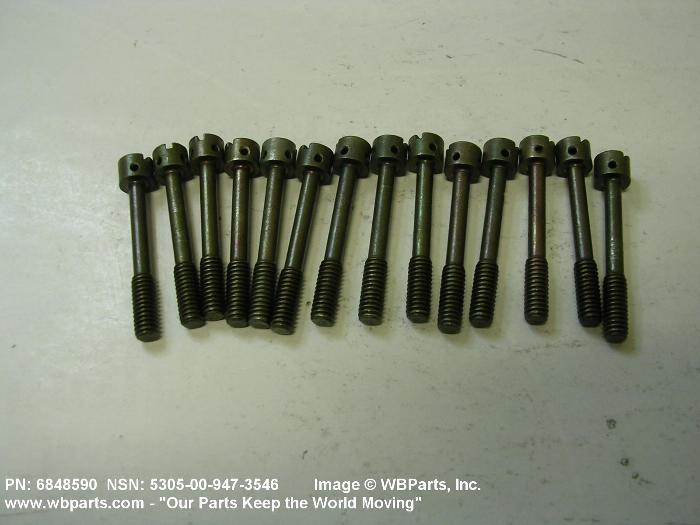

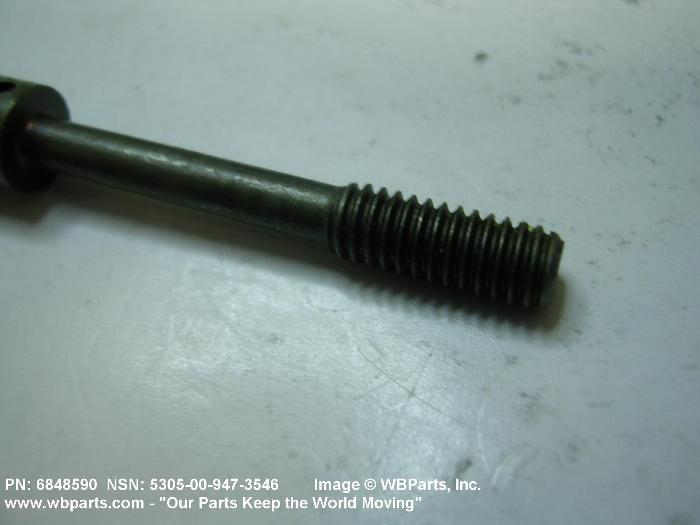

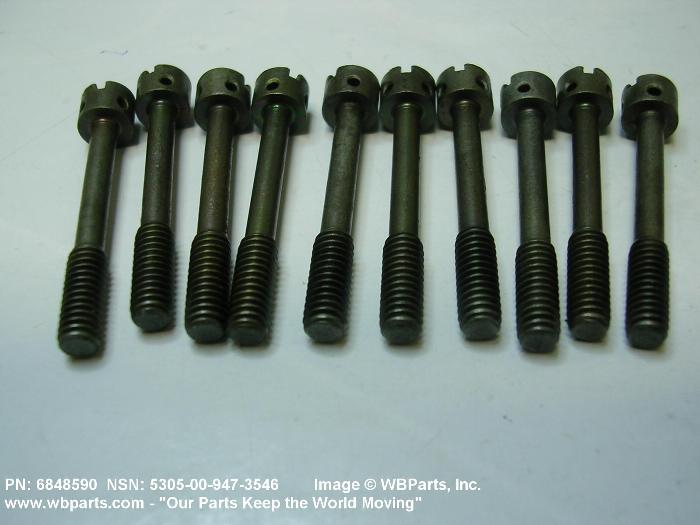

Product Details | EXTERNALLY RELIEVED BODY SCREW
5305-00-947-3546 An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercut for thread relief). It is No. 0 (0.060 IN.) (1.5 mm) or larger, and is designed to be held or driven with either a wrench or inserted driver (excluding internal socket and multiple spline types) or both in sizes below No. 10 (0.190 IN.) (5 mm) and larger sizes must have a head designed for any type inserted driver (excluding internal socket and multiple spline types) but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. See also BOLT, EXTERNALLY RELIEVED BODY and BOLT, INTERNAL WRENCHING.
Part Alternates: 6848590, 5305-00-947-3546, 00-947-3546, 5305009473546, 009473546
Hardware and Abrasives | Screws
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 25 MAR 1966 | 00-947-3546 | 01852 ( SCREW, EXTERNALLY RELIEVED BODY ) |
Demand History | NSN 5305-00-947-3546
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5305-00-947-3546 | 2008-04-95 | 24 | Australia |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5305-00-947-3546
Technical Data | NSN 5305-00-947-3546
Characteristic | Specifications |
---|---|
THREAD SERIES DESIGNATOR | UNJC |
NOMINAL THREAD DIAMETER | 0.164 INCHES |
THREAD QUANTITY PER INCH | 32 |
THREAD CLASS | 3A |
THREAD DIRECTION | RIGHT-HAND |
THREAD LENGTH | 0.381 INCHES MINIMUM AND 0.461 INCHES MAXIMUM |
FASTENER LENGTH | 1.178 INCHES MINIMUM AND 1.198 INCHES MAXIMUM |
MATERIAL DOCUMENT AND CLASSIFICATION | AMS6304 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
SURFACE TREATMENT | CADMIUM OVERALL |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2416 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
HEAD STYLE | C49 FLAT CHAMFER |
HEAD DIAMETER | 0.250 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
HEAD HEIGHT | 0.191 INCHES MINIMUM AND 0.214 INCHES MAXIMUM |

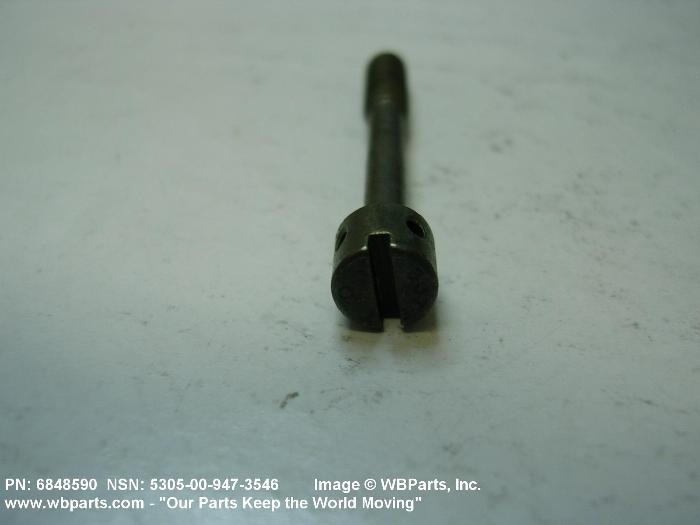

INTERNAL DRIVE STYLE | D14 SLOT |
HOLE CONFIGURATION STYLE | E9 ROUND |
HOLE TYPE | DRILLED |
HOLE QUANTITY | 2 |
HOLE DIAMETER | 0.046 INCHES NOMINAL |
EXTERNALLY RELIEVED BODY DIAMETER QUANTITY | 1 |
FIRST DIAMETER FROM HEAD | 0.120 INCHES MINIMUM AND 0.123 INCHES MAXIMUM |
DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF FIRST DIAMETER | 0.737 INCHES MINIMUM AND 0.797 INCHES MAXIMUM |
MANUFACTURERS CODE | 63005 |
DESIGN CONTROL REFERENCE | 6848590 |
