NSN 5305-00-941-6411 NAS11345, NAS1134-5, 00-941-6411
Product Details | CLOSE TOLERANCE SCREW
5305-00-941-6411 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: NAS11345, NAS1134-5, 5305-00-941-6411, 00-941-6411, 5305009416411, 009416411
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 DEC 1965 | 00-941-6411 | 29294 ( SCREW, CLOSE TOLERANCE ) |

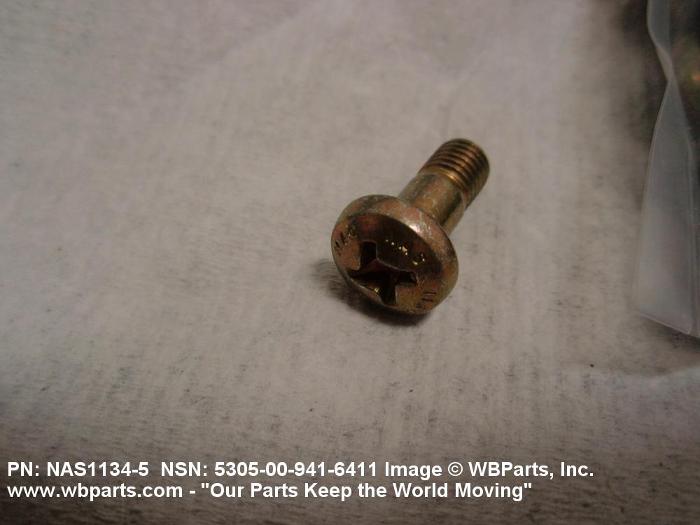

Drawings & Photos | NSN 5305-00-941-6411
Demand History | NSN 5305-00-941-6411
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS11345 | 2021-12-349 | 20 | United States |
| NAS11345 | 2021-06-166 | 33 | United States |
| NAS11345 | 2021-05-133 | 33 | United States |
| 5305-00-941-6411 | 2021-02-53 | 1 | US |
| 5305-00-941-6411 | 2011-01-10 | 120 | Malta |
| 5305-00-941-6411 | 2011-01-10 | 120 | Malta |
| 5305-00-941-6411 | 2010-10-290 | 240 | Malta |
| NAS11345 | 2010-06-166 | 1000 | Singapore |
| NAS11345 | 2010-05-130 | 1000 | Singapore |
| 5305-00-941-6411 | 2009-10-275 | 120 | Malta |
Cross Reference | NSN 5305-00-941-6411
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1134-5 | 04348 | LAWRENCE ENGINEERING AND SUPPLY INC |
| NAS1134-5 | 07851 | NOR-CAL SUPPLY CO.INC. |
| NAS1134-5 | 08938 | AIR INDUSTRIES CO INC |
| NAS1134-5 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1134-5 | 30902 | F AND C SALES INC |
| NAS1134-5 | 50568 | APCOM INC |
| NAS1134-5 | 53606 | PLASTIC AND METAL PRODUCTS CORPORATION |
| NAS1134-5 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| NAS1134-5 | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| NAS1134-5 | 73197 | HI-SHEAR CORPORATION |
| NAS1134-5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1134-5 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| NAS1134-5 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1134-5 | 97928 | HUCK INTL INC |
| NAS1134-5 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| NAS1134-5 | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-941-6411
Related Products | NSN 5305-00-941-6411
Technical Data | NSN 5305-00-941-6411
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.316 INCHES MINIMUM |
| FASTENER LENGTH | 0.613 INCHES MINIMUM AND 0.643 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 6150 OR STEEL COMP 8735 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 5TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C32 PAN |
| HEAD DIAMETER | 0.424 INCHES MINIMUM AND 0.492 INCHES MAXIMUM |
| HEAD HEIGHT | 0.162 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D8 TORQUE SET |
| GRIP LENGTH | 0.312 INCHES NOMINAL |
| GRIP DIAMETER | 0.2485 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES BEARING SURFACE OF HEAD 32.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS |
| SPECIFICATION/STANDARD DATA | 80205-NAS1134 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-00-941-6411
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-941-6411
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
