NSN 5305-00-721-3060 NAS12046, NAS1204-6, NAS498

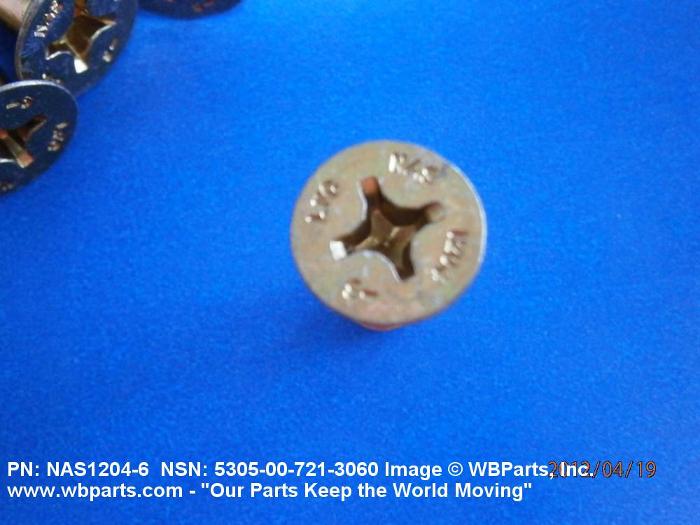

Product Details | CLOSE TOLERANCE SCREW
5305-00-721-3060 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: NAS12046, NAS1204-6, NAS498, 5305-00-721-3060, 00-721-3060, 5305007213060, 007213060
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-721-3060 | 29294 ( SCREW, CLOSE TOLERANCE ) |

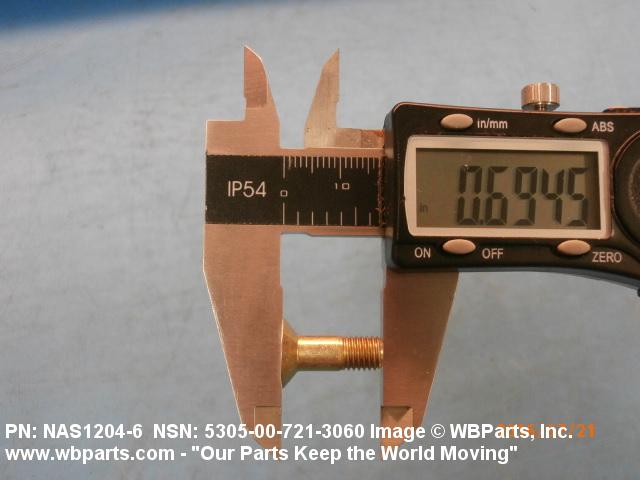

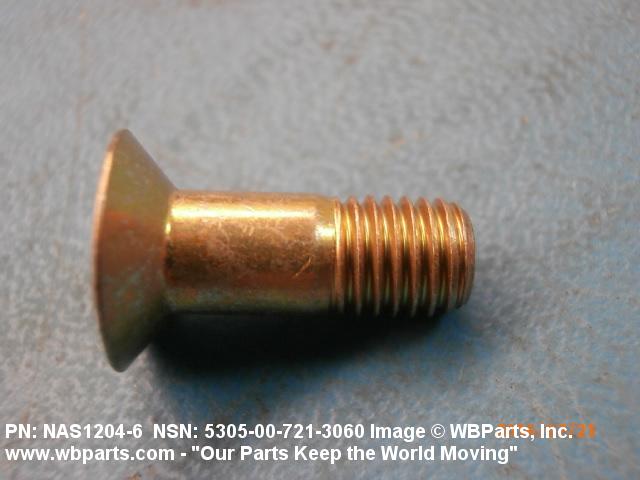

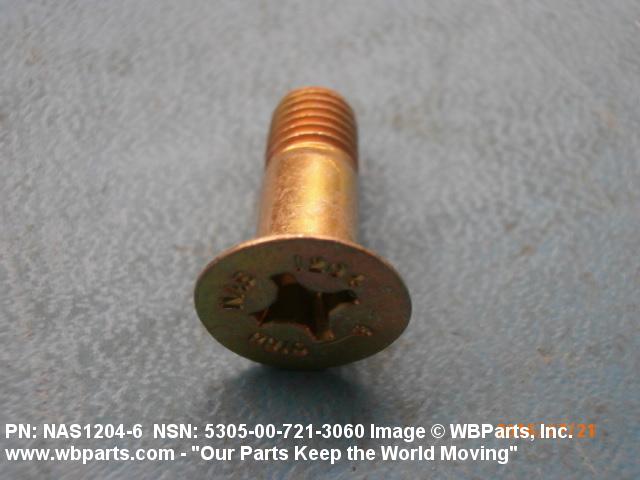

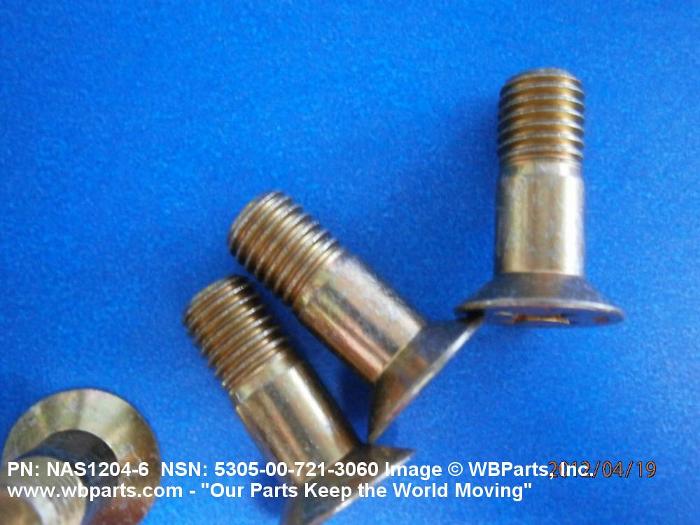

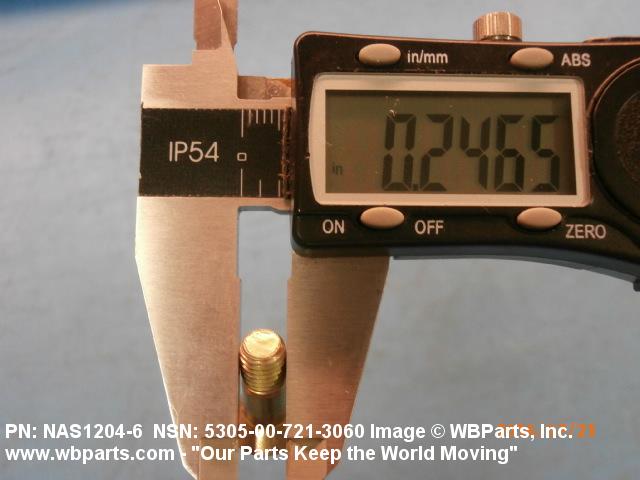

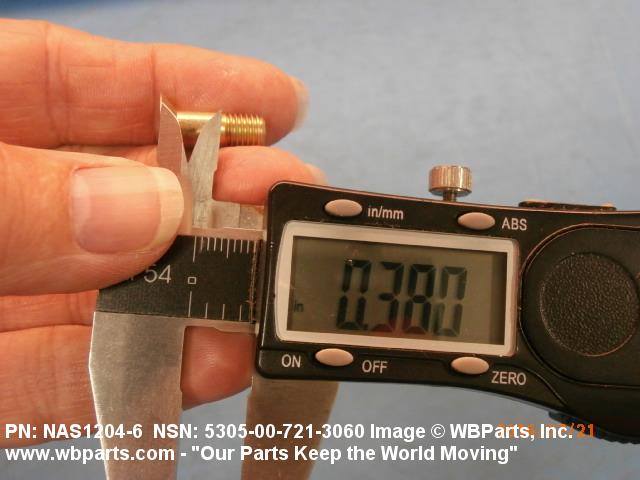

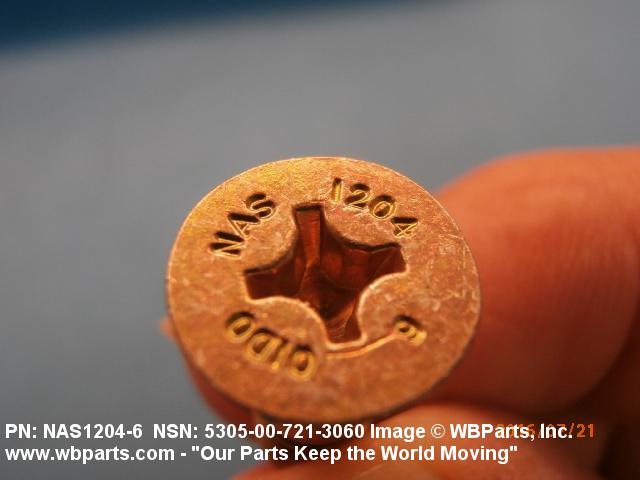

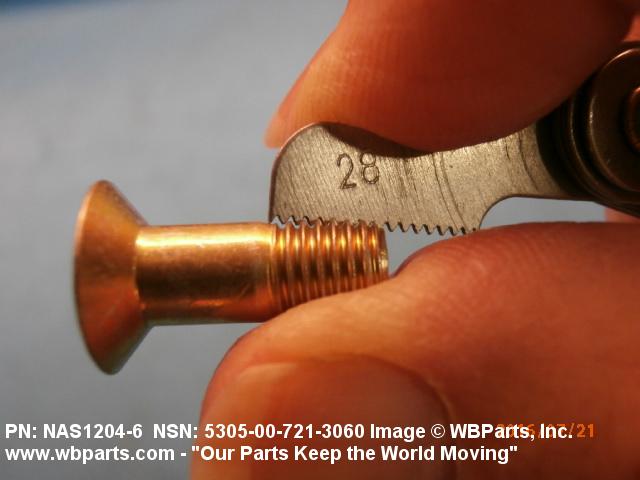

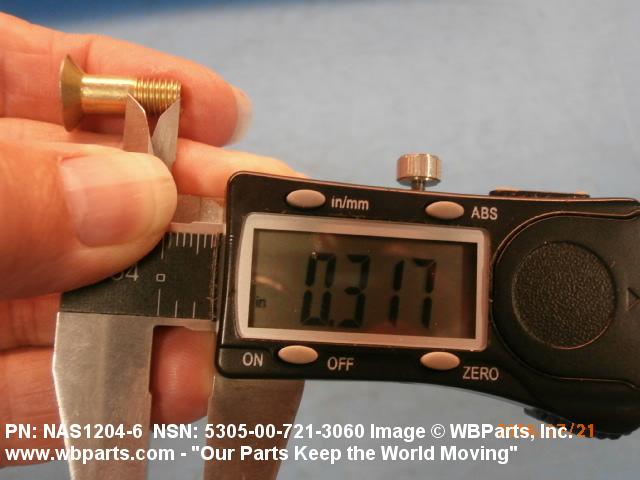

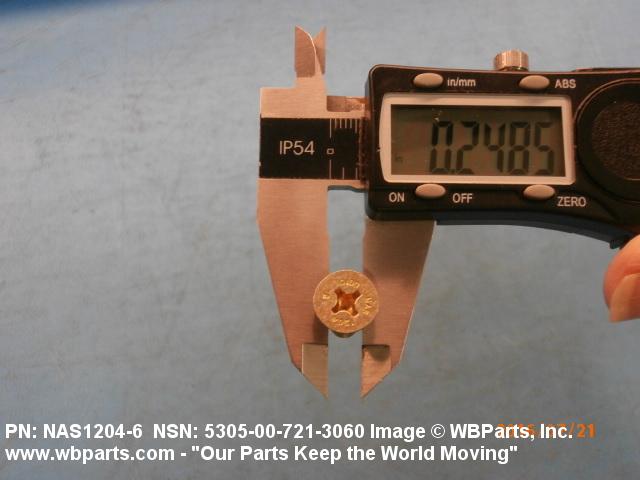

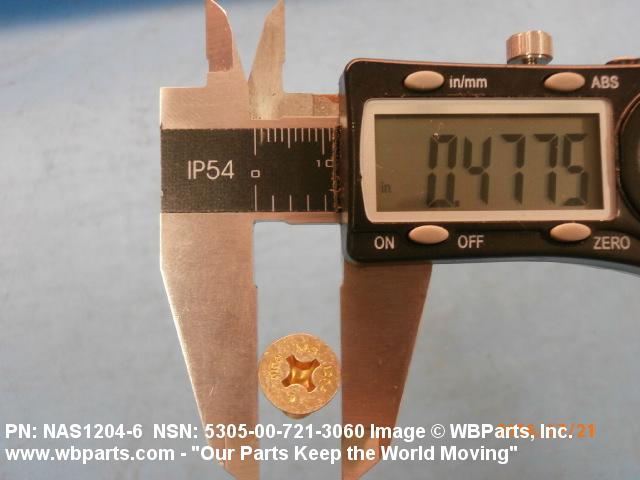

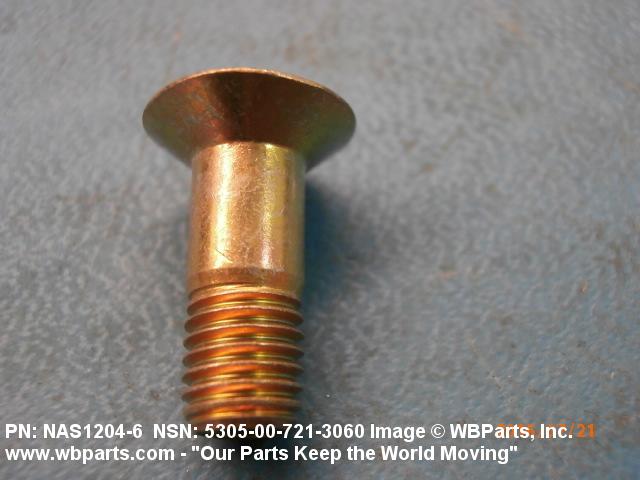

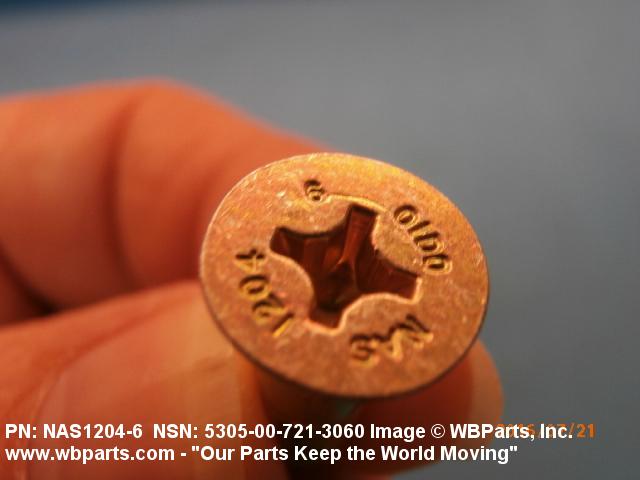

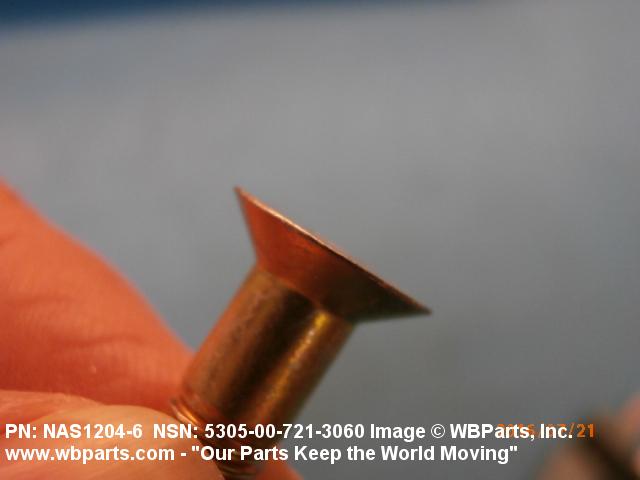

Drawings & Photos | NSN 5305-00-721-3060
Demand History | NSN 5305-00-721-3060
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS12046 | 2024-07-208 | 20 | Croatia |
| NAS12046 | 2024-07-207 | 20 | Croatia |
| 5305-00-721-3060 | 2024-07-205 | 186 | DIBBS |
| NAS12046 | 2016-07-202 | 30 | United States |
| NAS498 | 2013-08-229 | 250 | Canada |
| NAS12046 | 2012-03-67 | 50 | United States |
| NAS12046 | 2012-03-65 | 50 | United States |
| 5305-00-721-3060 | 2009-08-223 | 11908 | DIBBS |
| 5305-00-721-3060 | 2009-07-208 | 2365 | DIBBS |
Cross Reference | NSN 5305-00-721-3060
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1204-6 | 04348 | LAWRENCE ENGINEERING AND SUPPLY INC |
| NAS1204-6 | 07851 | NOR-CAL SUPPLY CO.INC. |
| NAS1204-6 | 08938 | AIR INDUSTRIES CO INC |
| NAS1204-6 | 30889 | ERIKS SOUTHWEST INC DBA MONTCLAIR ENTERPRISES |
| NAS1204-6 | 30902 | F AND C SALES INC |
| NAS1204-6 | 50568 | APCOM INC |
| NAS1204-6 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| NAS1204-6 | 71563 | COLLINS ENGINEERING CORP |
| NAS1204-6 | 73197 | HI-SHEAR CORPORATION |
| NAS1204-6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1204-6 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| NAS1204-6 | 82172 | DURHAM AIRCRAFT SERVICE INC |
| NAS1204-6 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| NAS1204-6 | L4528 | LISI AEROSPACE CANADA CORP |
| NAS1204-6 | R1120 | SATAIR A/S |
| NAS498 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
