NSN 5305-00-720-9112 NAS12044, NAS1204-4, NAS498
Product Details | CLOSE TOLERANCE SCREW
5305-00-720-9112 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: NAS12044, NAS1204-4, NAS498, 5305-00-720-9112, 00-720-9112, 5305007209112, 007209112
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-720-9112 | 29294 ( SCREW, CLOSE TOLERANCE ) |

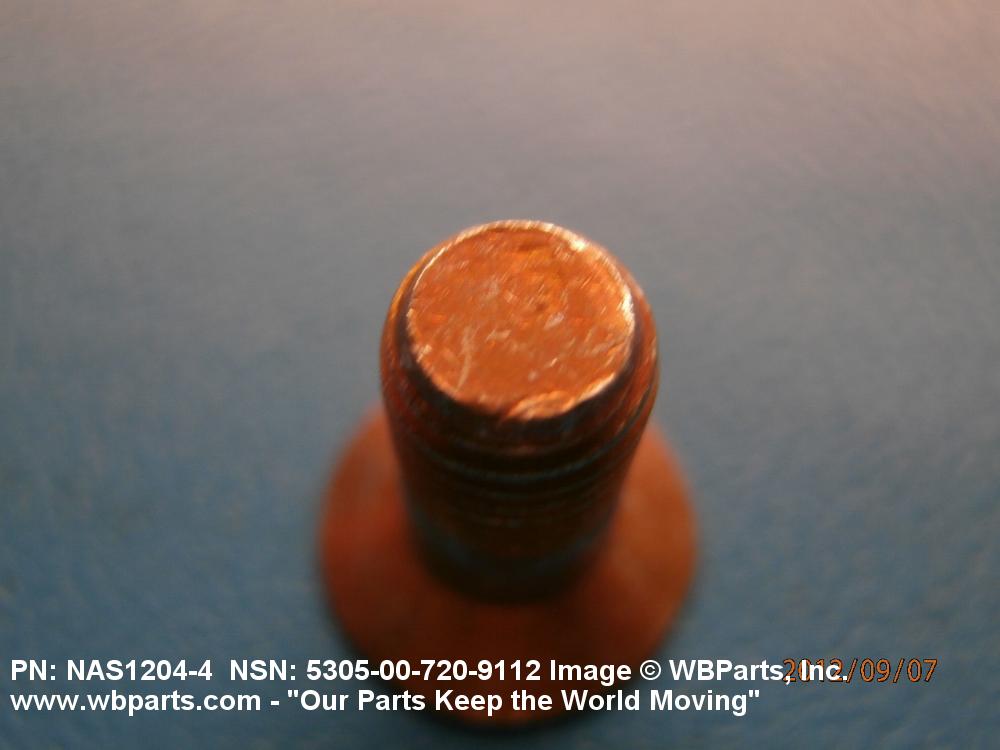

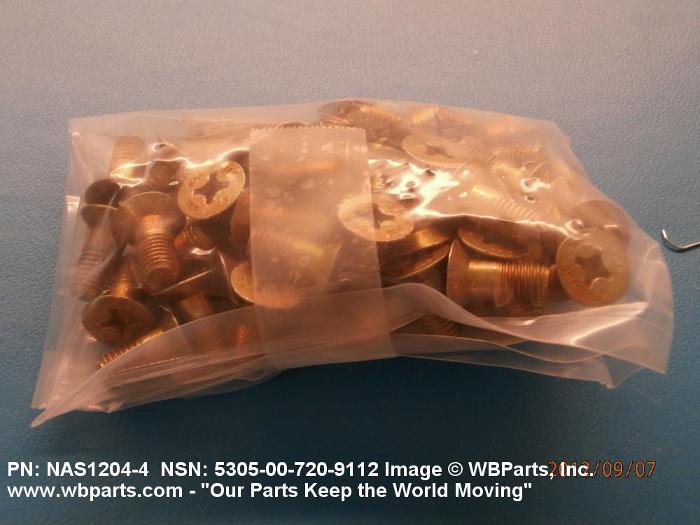

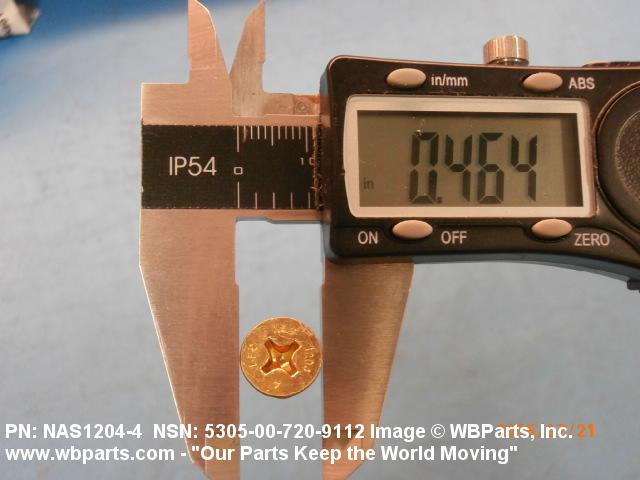

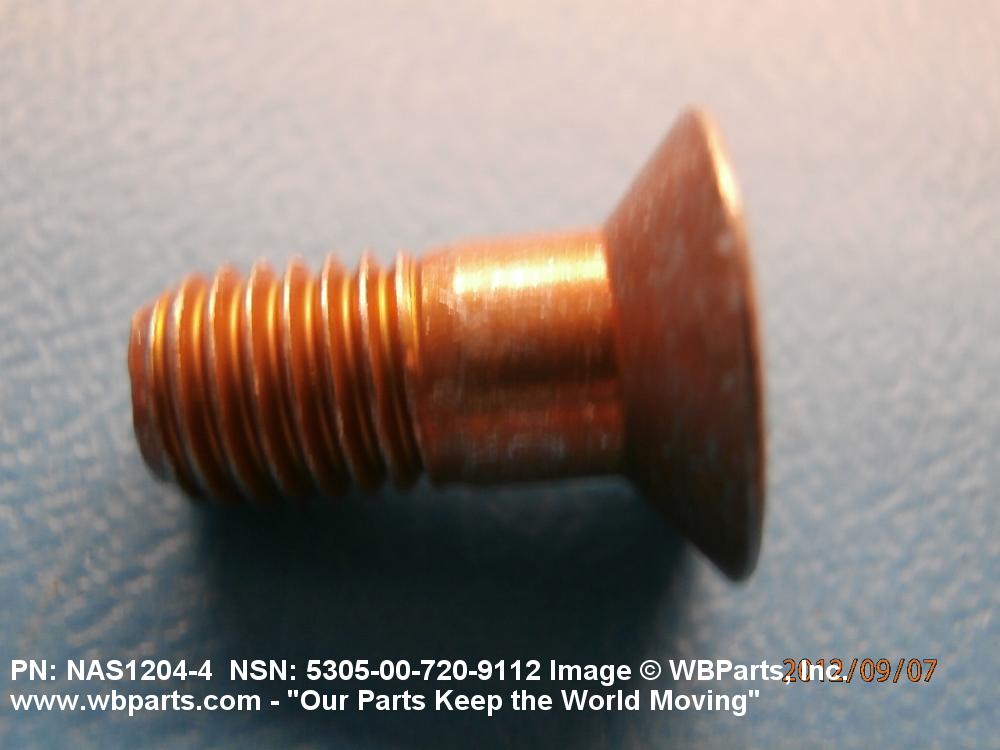

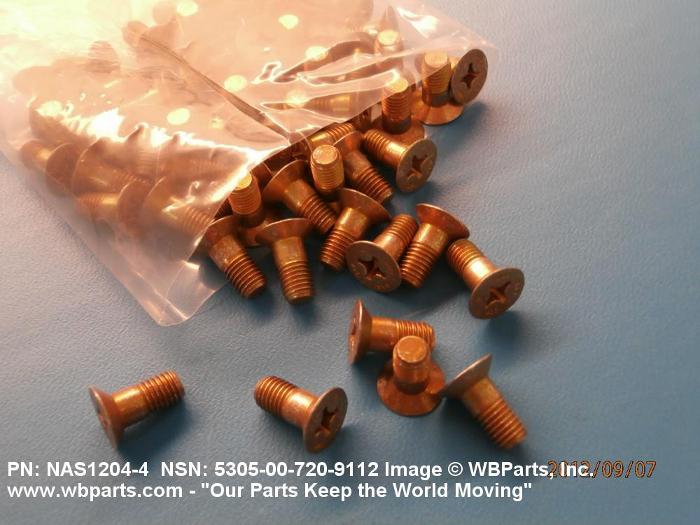

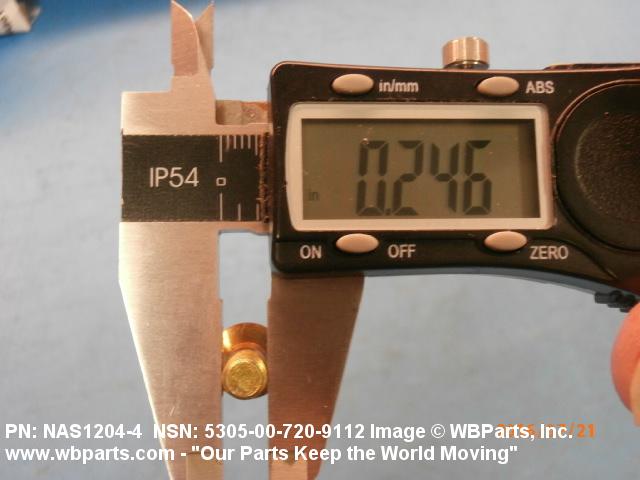

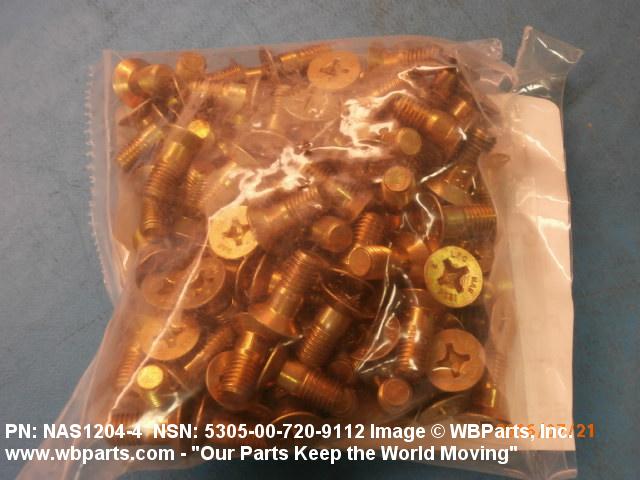

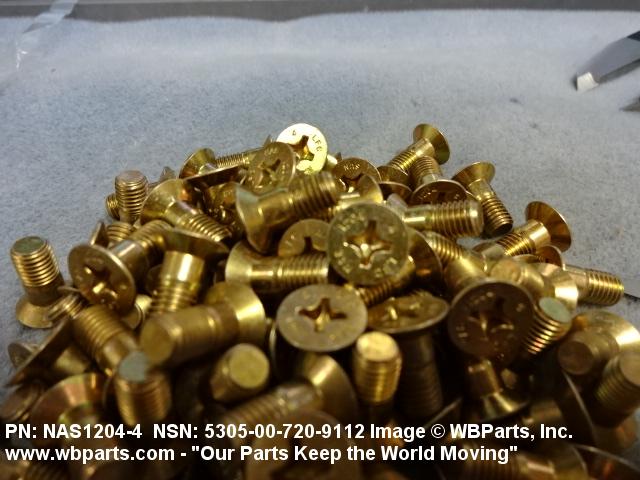

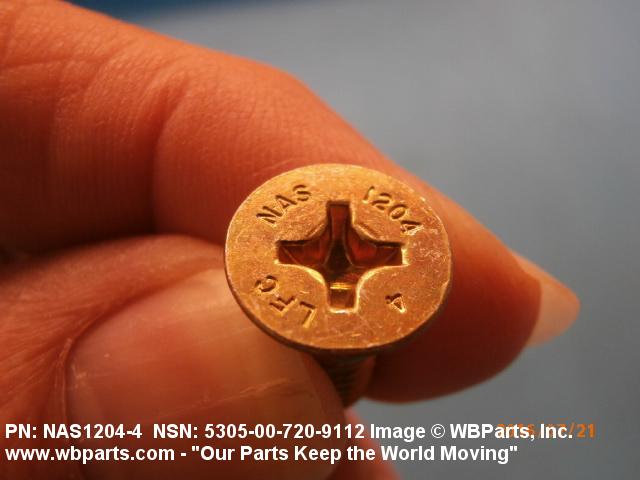

Drawings & Photos | NSN 5305-00-720-9112
Demand History | NSN 5305-00-720-9112
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS12044 | 2016-07-20 | 30 | United States |
| NAS498 | 2013-08-17 | 250 | Canada |
| NAS1204-4 | 2012-11-05 | 50 | |
| NAS12044 | 2012-09-04 | 60 | United States |
Cross Reference | NSN 5305-00-720-9112
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1204-4 | 04348 | LAWRENCE ENGINEERING AND SUPPLY INC |
| NAS1204-4 | 07851 | NOR-CAL SUPPLY CO.INC. |
| NAS1204-4 | 08938 | AIR INDUSTRIES CO INC |
| NAS1204-4 | 30889 | ERIKS SOUTHWEST INC DBA MONTCLAIR ENTERPRISES |
| NAS1204-4 | 30902 | F AND C SALES INC |
| NAS1204-4 | 50568 | APCOM INC |
| NAS1204-4 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| NAS1204-4 | 71563 | COLLINS ENGINEERING CORP |
| NAS1204-4 | 73197 | HI-SHEAR CORPORATION |
| NAS1204-4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1204-4 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| NAS1204-4 | 82172 | DURHAM AIRCRAFT SERVICE INC |
| NAS1204-4 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| NAS1204-4 | L4528 | LISI AEROSPACE CANADA CORP |
| NAS498 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-720-9112
Technical Data | NSN 5305-00-720-9112
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |

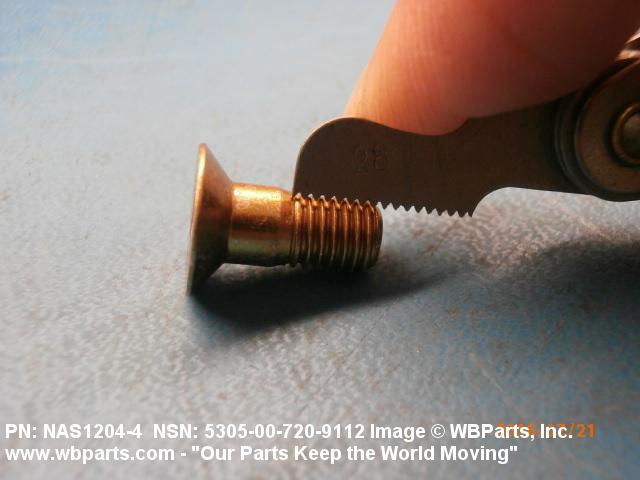

| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

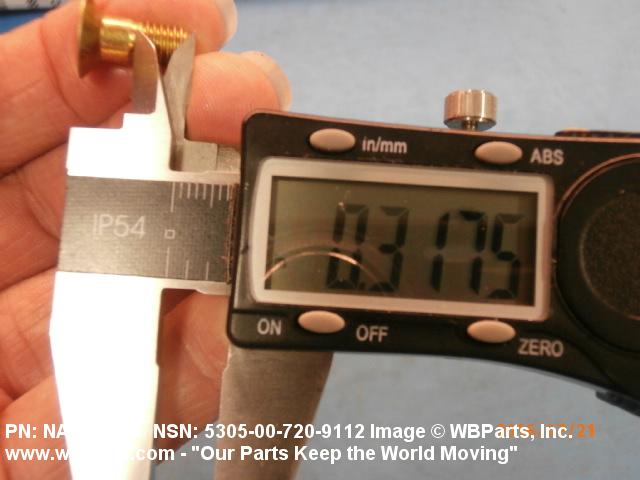

| THREAD LENGTH | 0.316 INCHES MINIMUM |

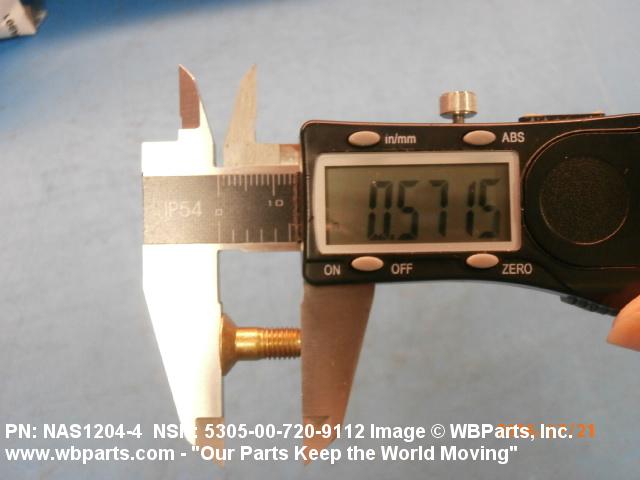

| FASTENER LENGTH | 0.551 INCHES MINIMUM AND 0.581 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 6150 OR STEEL COMP 8735 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 5TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY2 CL3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |

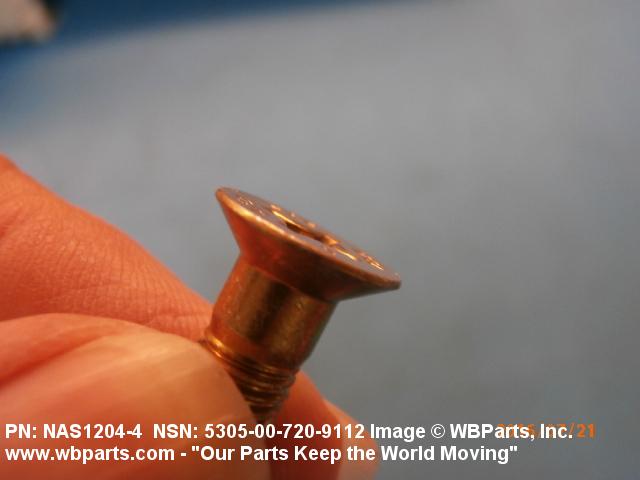

| HEAD STYLE | C50 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.449 INCHES MINIMUM AND 0.507 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

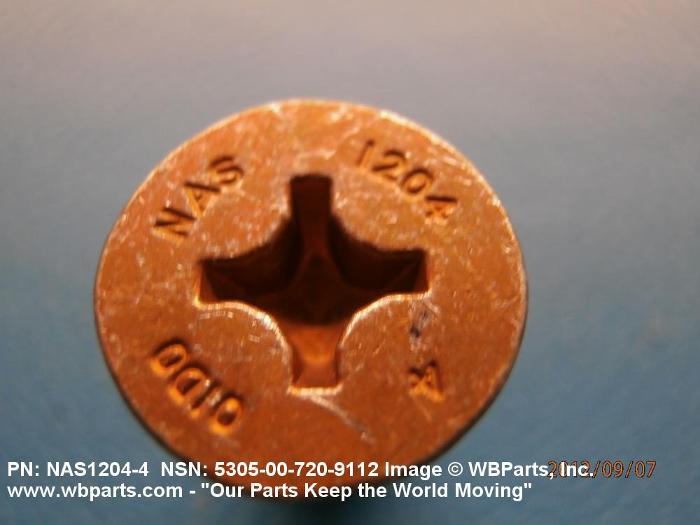

| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| GRIP LENGTH | 0.250 INCHES NOMINAL |

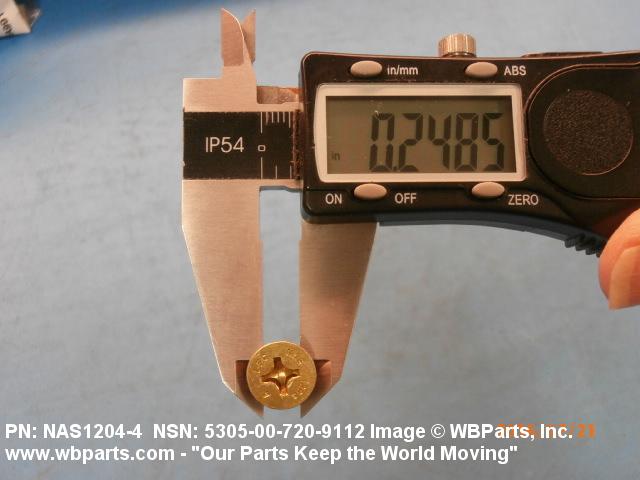

| GRIP DIAMETER | 0.2485 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1204 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-00-720-9112
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
