NSN 5305-00-206-3741 TB2091022REV1PT1, TB209-1022REV1PT1, YA15871107P1
Product Details | THUMBSCREW
5305-00-206-3741 An externally threaded fastener whose threaded portion is of one nominal diameter. It may have an unthreaded portion with a diameter less than, equal to, or greater than the diameter of the threaded portion. It has either a vertically flattened, circular knurled, or wing type head, all of which are designed for rotation by the thumb and fingers. For items having wrenching facilities such as socket recess, multiple spline or slot heads, use SCREW (as modified) or BOLT (as modified).
Part Alternates: TB2091022REV1PT1, TB209-1022REV1PT1, YA15871107P1, YA1587-1107P1, 5305-00-206-3741, 00-206-3741, 5305002063741, 002063741
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-206-3741 | 06673 ( THUMBSCREW ) |

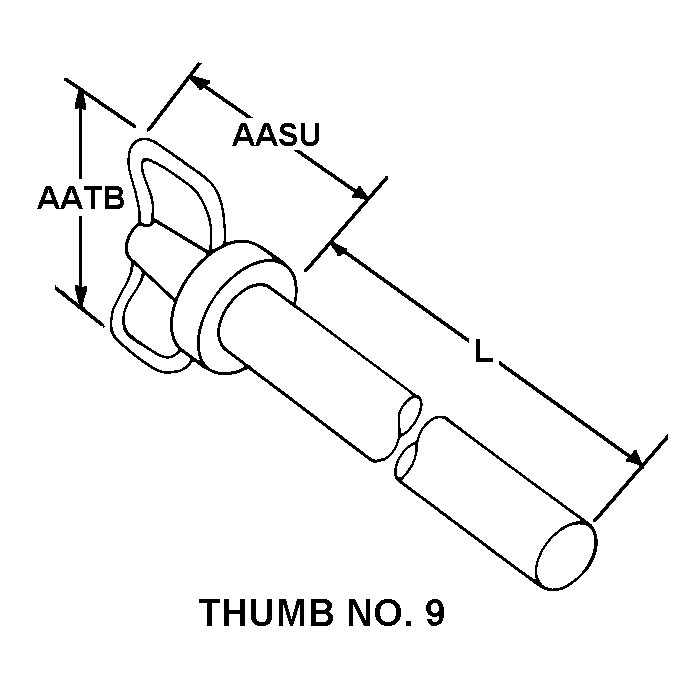

Drawings & Photos | NSN 5305-00-206-3741
Cross Reference | NSN 5305-00-206-3741
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-206-3741
Technical Data | NSN 5305-00-206-3741
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.188 INCHES MINIMUM |
| FASTENER LENGTH | 2.312 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY OVERALL |
| HEAD STYLE | C85 THUMB NO. 9 |
| HEAD HEIGHT | 0.438 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.938 INCHES NOMINAL |
| POINT STYLE | F19 FLAT |
| FIRST DIAMETER FROM HEAD | 0.135 INCHES NOMINAL |
| SECOND DIAMETER FROM HEAD | 0.312 INCHES NOMINAL |
| DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF SECOND DIAMETER | 0.562 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5305-00-206-3741
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013680 | ALUM SCREWS |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
