NSN 5305-00-068-5276 MS169959, MS16995-9, NAS1352C044

Product Details | SOCKET HEAD CAP SCREW

5305-00-068-5276 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: MS169959, MS16995-9, NAS1352C044, NAS1352C04-4, A01404300, A01404-300, ASC1540919, FFS86, FF-S-86, TL2111/009, TL2111009, VA970177009, VA-97-0177-009, 953510-410 , 003007868009, 003-007868-009, 01023009, 01023-009, 011076, 0418262009, 0418262-009, 08199, 0819-9, 10000600, 100A900008, 10124950 , 10545180-5, 16750347304, 16750347-304, 2000874, 200087-4, 2009894C4, 20098-94C4, 33AF11210404, 33AF1121-04-04, 352250023902, 410991-404, 4176086-17, 4182629, 418262-9, 946594-404, 9474630404, 947463-0404, 6969T, 8054456S00, 947463-404, 5305-00-068-5276, 00-068-5276, 5305000685276 , 000685276, 417608617, 953510410, 946594404, 947463404, 410991404, 105451805

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-068-5276	16282 ( SCREW, CAP, SOCKET HEAD )

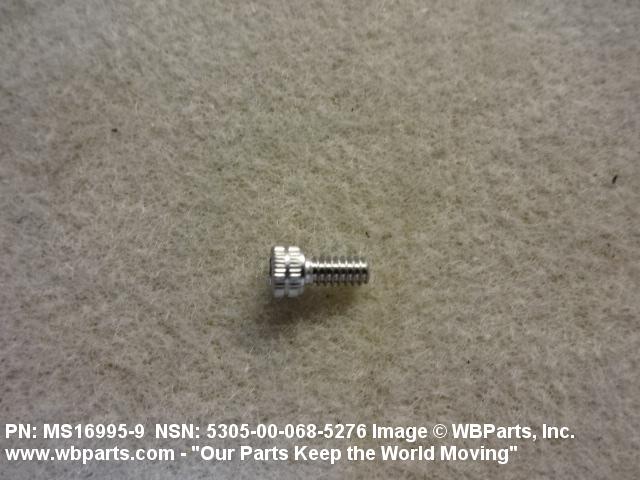

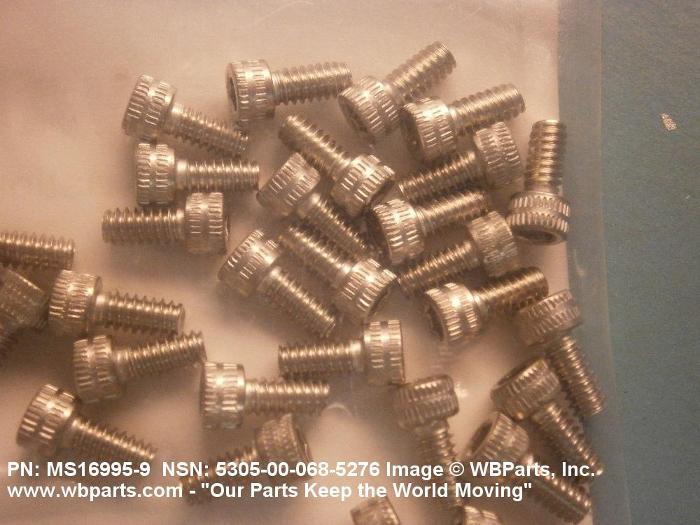

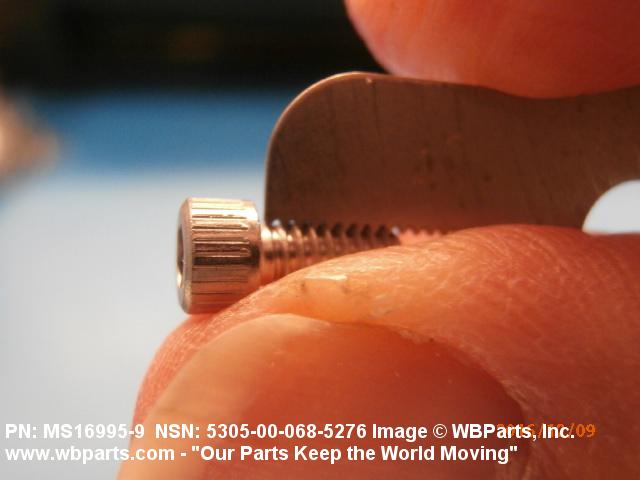

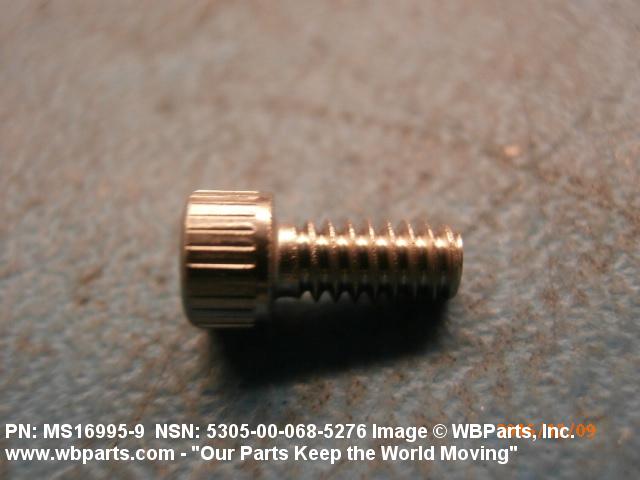

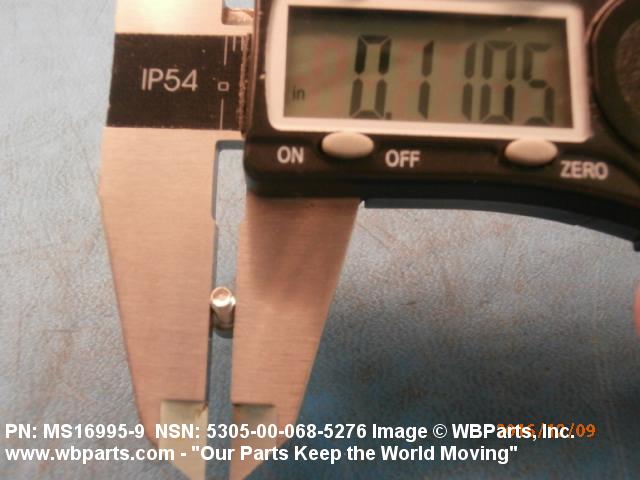

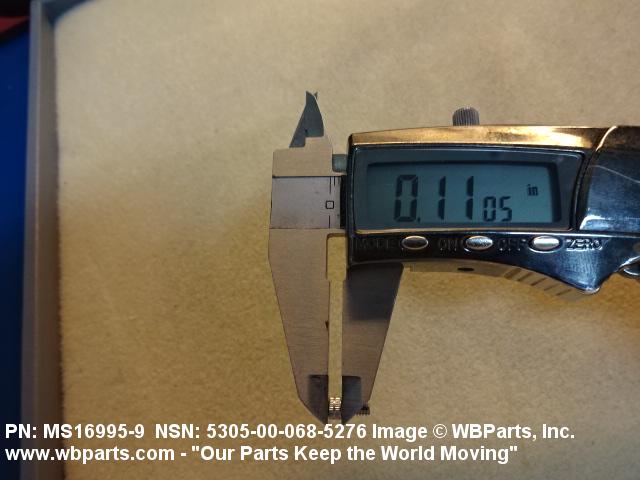

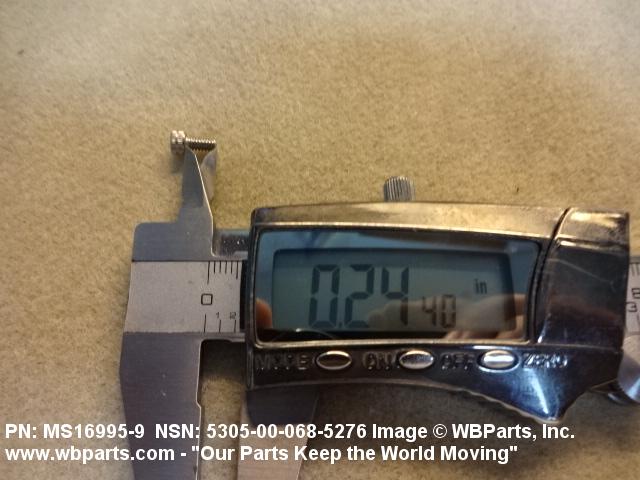

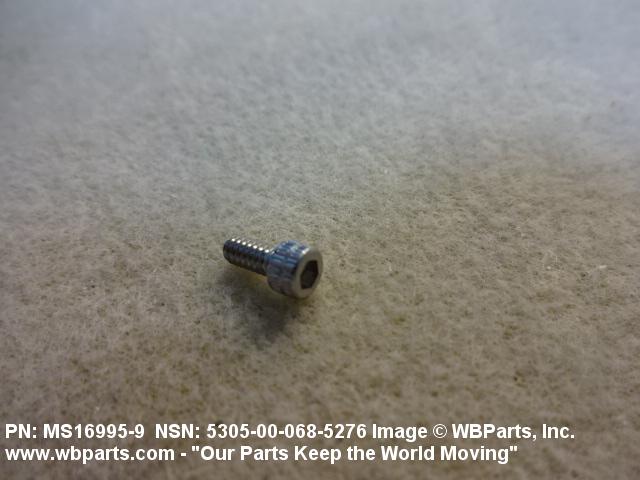

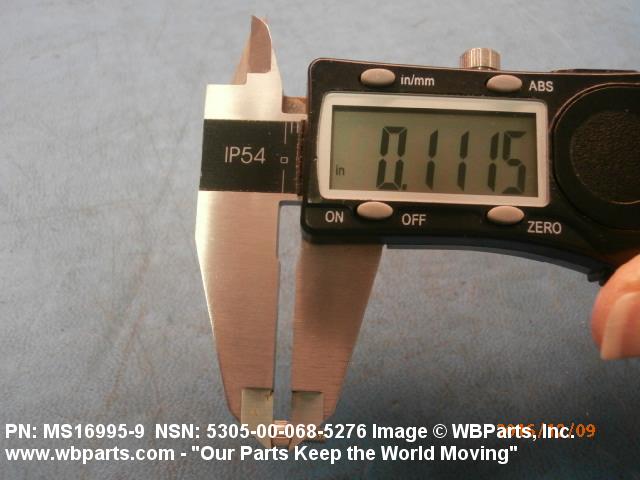

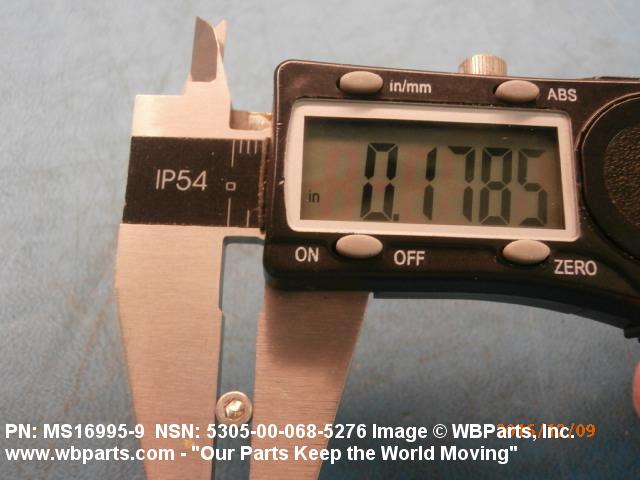

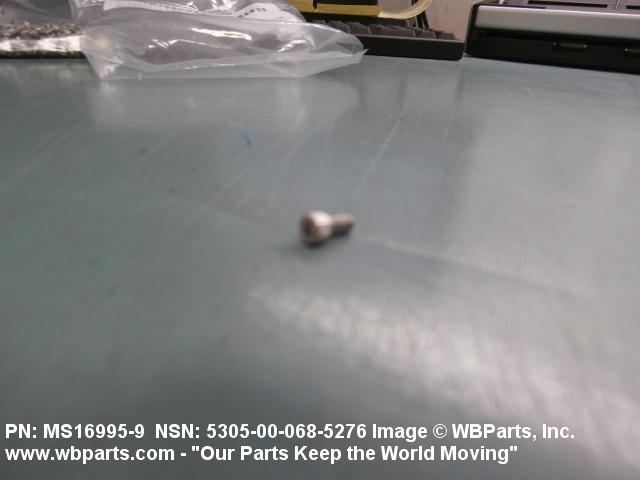

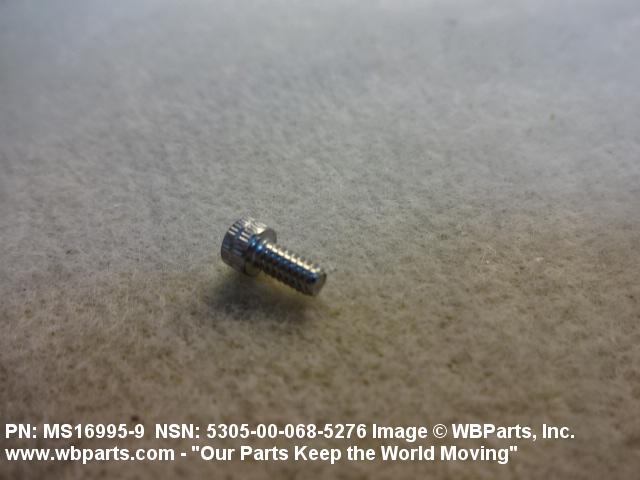

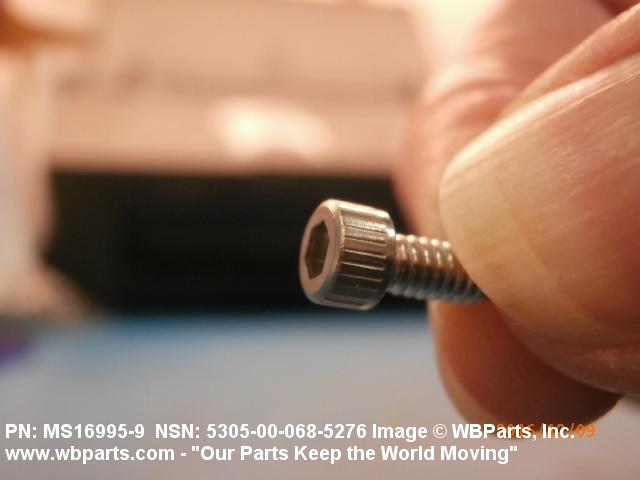

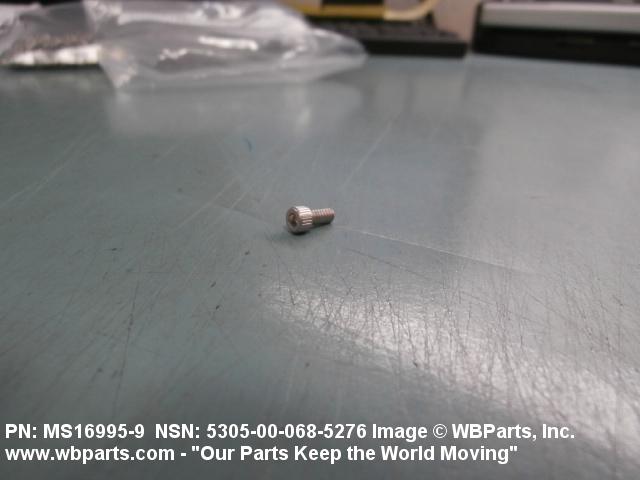

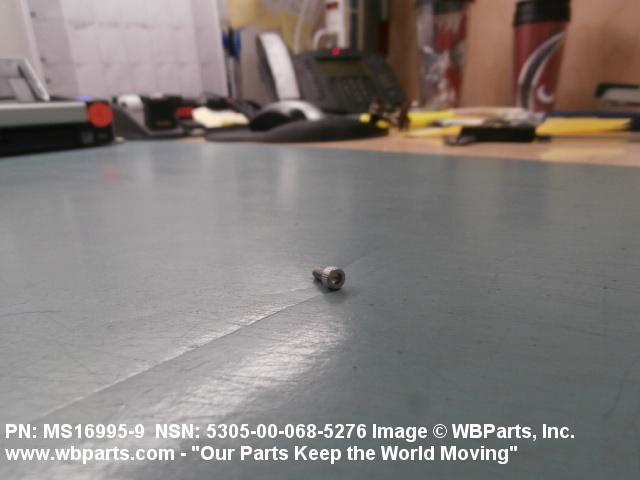

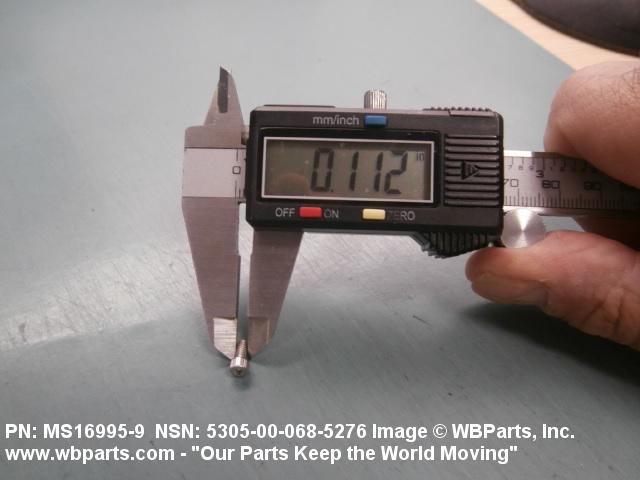

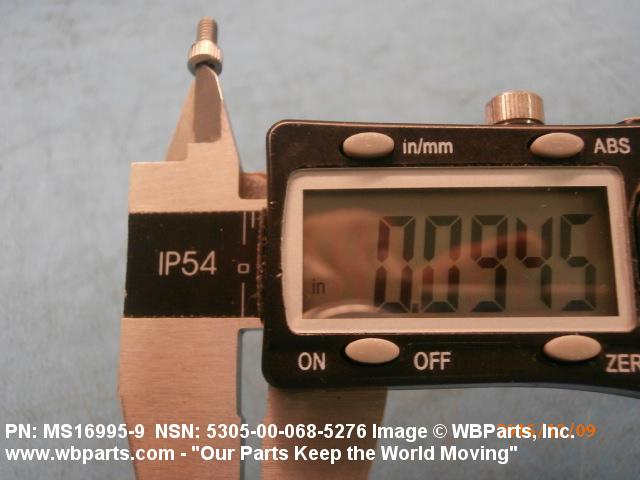

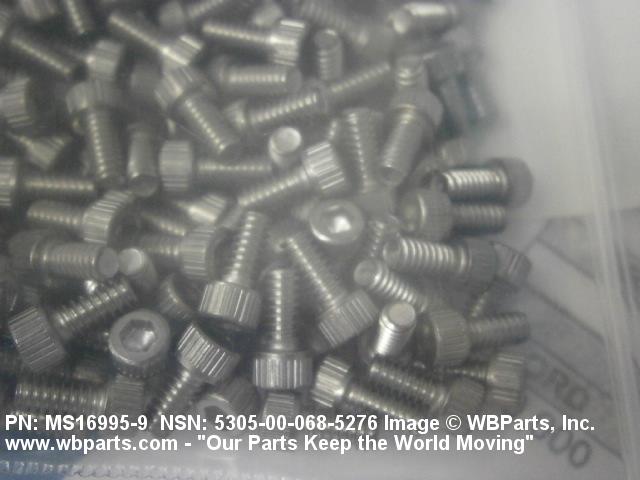

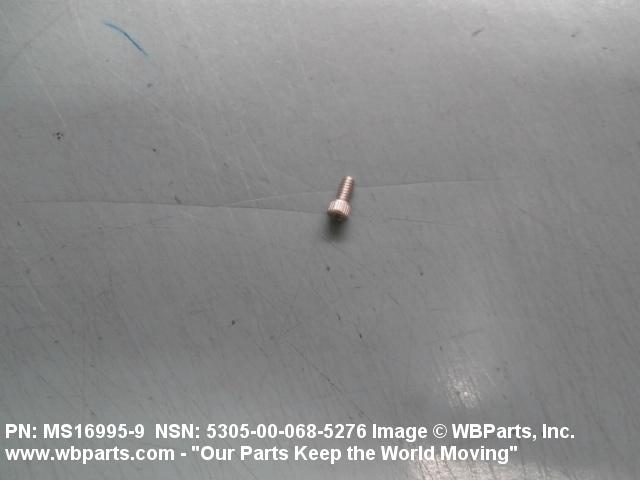

Drawings & Photos | NSN 5305-00-068-5276

Part Number	Request Date	QTY	Origin
NAS1352C044	2023-04-96	20	US
FFS86	2022-05-143	40	United States
FFS86	2021-12-347	40	US
5305-00-068-5276	2021-11-322	6800	TW
NAS1352C044	2021-07-203	125	United States
NAS1352C044	2021-07-203	25	United States
NAS1352C044	2020-09-260	740	United States
MS16995-9	2020-06-174	240	Hong Kong
NAS1352C044	2018-11-306	1240	US
MS16995-9	2018-02-37	20	Seychelles
MS169959	2017-11-306	1000	United States
MS169959	2016-12-348	50	United States
MS169959	2016-12-341	1000	United States
NAS1352C044	2016-04-111	100	Korea
NAS1352C044	2015-02-57	1000	KR
NAS1352C044	2014-10-280	10000	US
MS169959	2014-07-210	1000	United States
MS169959	2014-06-153	4000	CN
MS169959	2013-09-260	400	United States
FFS86	2013-08-229	80	Canada
MS169959	2012-10-278	18800	US
NAS1352C044	2012-09-257	30	United States
5305-00-068-5276	2012-06-153	25	Taiwan
5305-00-068-5276	2012-06-153	25	Taiwan
FFS86	2012-03-74	2	US
5305-00-068-5276	2012-01-25	500	United States
FFS86	2011-08-222	50	US
FFS86	2011-08-214	50	US
MS169959	2011-07-185	500	IL
MS169959	2011-05-151	165	US
MS169959	2011-05-133	100	US
NAS1352C044	2011-04-91	500	us
5305-00-068-5276	2011-03-83	25	US
FFS86	2011-03-61	8	US
FFS86	2011-03-60	5000	US
NAS1352C044	2011-02-46	8	United States
5305-00-068-5276	2008-07-192	200	US
5305-00-068-5276	2008-06-182	25	US
MS169959	2008-06-178	20000	United States

Cross Reference | NSN 5305-00-068-5276

Part Number	Cage Code	Manufacturer
003-007868-009	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
01023-009	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
011076	D0078	DIEHL BGT DEFENCE GMBH & CO. KG
0418262-009	96214	RAYTHEON COMPANY DBA RAYTHEON
0819-9	02769	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
0819-9	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
10000600	64869	FLIR SYSTEMS, INC. DIV CORPORATE
100A900008	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
10545180-5	19200	US ARMY ARDEC RDECOM
16750347-304	28009	SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC -
16750347-304	70318	ALLMETAL SCREW PRODUCTS CORP DBA ALL METAL SCREW PRODUCTS
200087-4	02145	RICHARDS IMAGERY INTERPRETATION SYSTEMS L.L.C.
20098-94C4	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
33AF1121-04-04	35351	GE AVIATION SYSTEMS LLC
352250023902	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
410991-404	96214	RAYTHEON COMPANY DBA RAYTHEON
4176086-17	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
418262-9	96214	RAYTHEON COMPANY DBA RAYTHEON
5305000685276	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6969T	91816	CIRCOR AEROSPACE, INC. DBA CIRCLE SEAL CONTROLS
8054456S00	F0555	MBDA FRANCE
946594-404	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
947463-0404	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
947463-404	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
953510-410	06848	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
A01404-300	94697	MOOG, INC.
A01404-300	C0328	MOOG GMBH
ASC1540919	Z4779	ASC PTY LTD
FF-S-86	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS16995-9	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS16995-9	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS1352C04-4	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
TL2111/009	S3514	SAAB AB PUBL - ELECTRONIC DEFENCE SYSTEMS
VA-97-0177-009	K0668	SELEX ES LTD DBA SELEX S & A S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-068-5276

Compare

Related Products | NSN 5305-00-068-5276

5305-00-068-5277, 5305-00-068-5278, 5305-00-068-5282, 5305-00-068-5287, 5305-00-068-5371

Technical Data | NSN 5305-00-068-5276

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.170 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
FASTENER LENGTH	0.220 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	80.0 ROCKWELL B MINIMUM OVERALL
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	30000 POUNDS PER SQUARE INCH
HEAD STYLE	C49 FLAT CHAMFER
HEAD DIAMETER	0.176 INCHES MINIMUM AND 0.183 INCHES MAXIMUM
HEAD HEIGHT	0.108 INCHES MINIMUM AND 0.112 INCHES MAXIMUM
INTERNAL DRIVE STYLE	D5 HEXAGON
WIDTH ACROSS FLATS	0.094 INCHES MINIMUM AND 0.095 INCHES MAXIMUM
NONDEFINITIVE SPEC/STD DATA	6 TYPE
III END ITEM IDENTIFICATION	W/S: COMMUNICATIONS TERMINAL, AN/UGC-74; COMMUNICATIONS TERMINAL, SATELLITE AN/GSC-39(V)1; TRAFFIC JAM, AN/TLQ-17A; SUPPORT EQUIPMENT, B-52 AIRCRAFT; AIRCRAFT, (AC-130H, MC-130H, EC-130E, HC-130); CLOSE IN WEAPON SYSTEM (CIWS-PHALANX); MISSILE, ADVANCED MEDIUM RANGE AIR-TO-AIR (AMRAAM)/AIM120A; AIRCRAFT, AIRLIFTER C-17A; TRAINER, B-1B AIRCRAFT; SUPPORT EQUIPMENT, B-1 AIRCRAFT
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-S-86

Restrictions/Controls & Freight Information | NSN 5305-00-068-5276

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-068-5276

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
