NSN 5305-00-068-5287 MS2469349, MS24693-49, MS24693C49

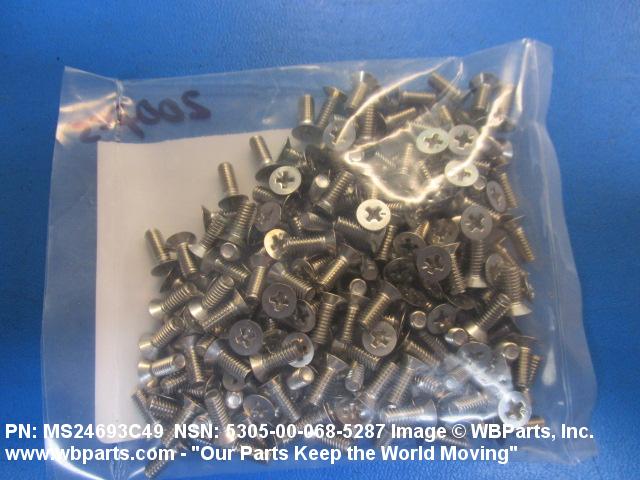

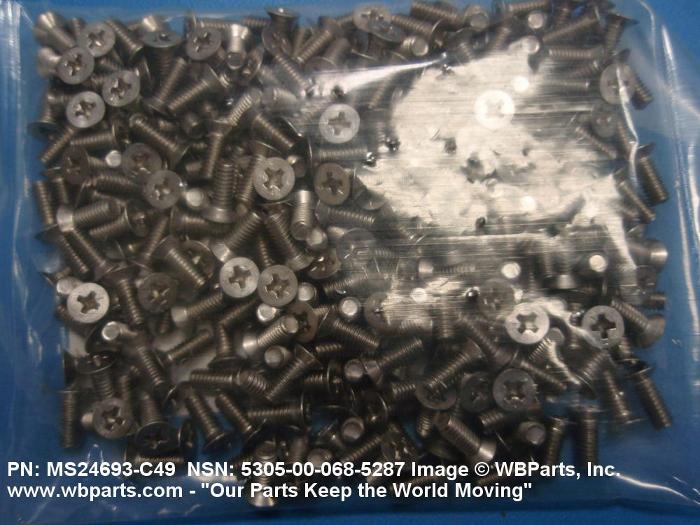

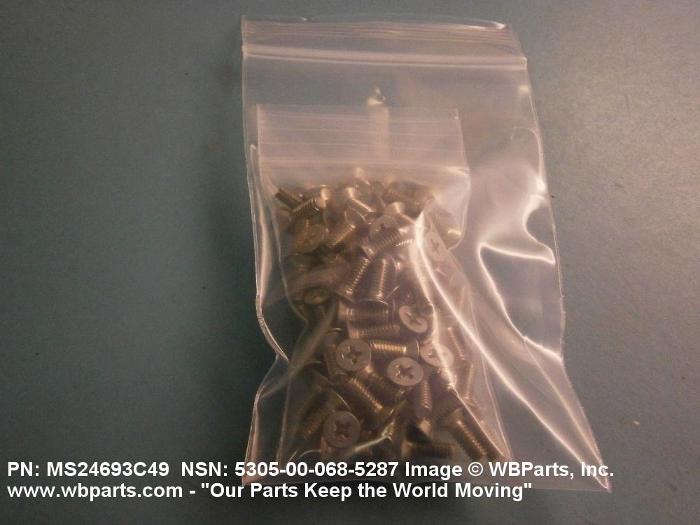

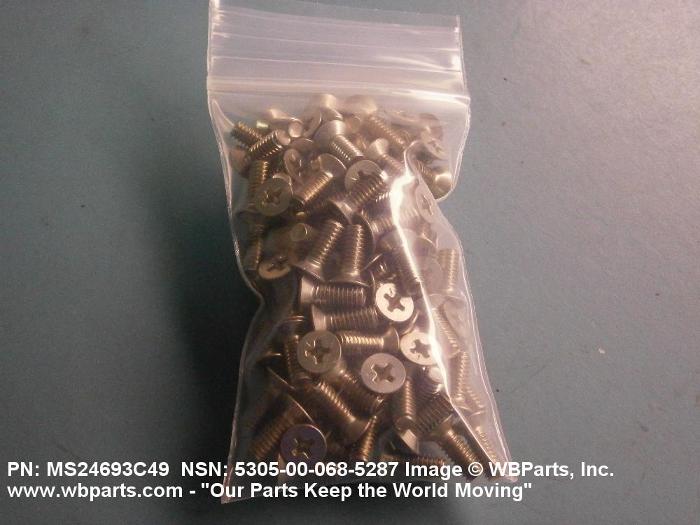

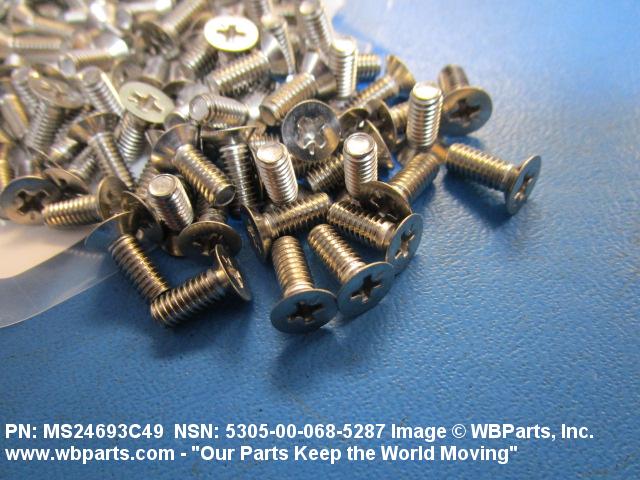

Product Details | MACHINE SCREW

5305-00-068-5287 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS2469349, MS24693-49, MS24693C49, MS24693-C49, MS24693PC49, AN507C8327, AN507C832-7, AN507C832R7, AN507CR8327, AN507CR832-7, AOL4168306, AOL4168-306, E125306, E125-306, E2129900, E21299-00 , FS2003-08/306C, FS200308306C, P34399, WC1053033, WC1053-033, 10124951 , 10675108306C, 106751-08-306C, 1121055033, 112-1055-033, 2012653, 3421350350, 342-1350-350, 4177085-86, 7903133-32, 9145306, 9145-306, 9465313049, 946531-3049, 5305-00-068-5287, 00-068-5287, 5305000685287, 000685287, 417708586, 790313332

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-068-5287	06657 ( SCREW, MACHINE )

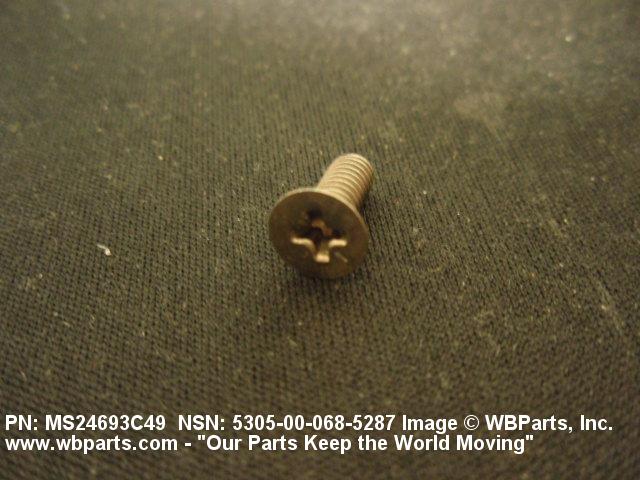

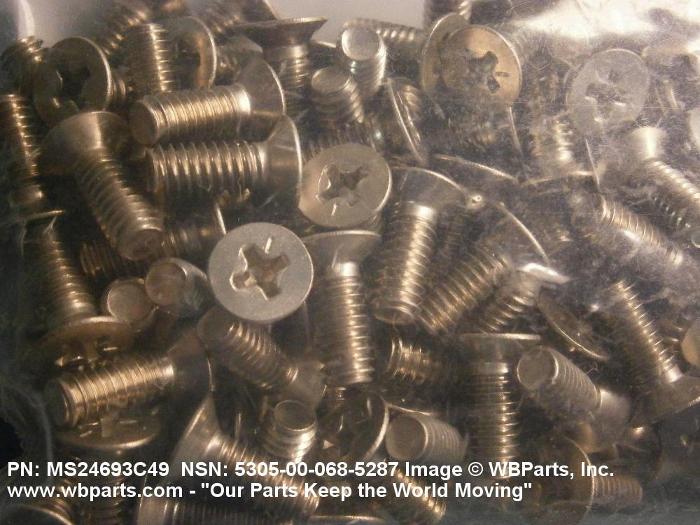

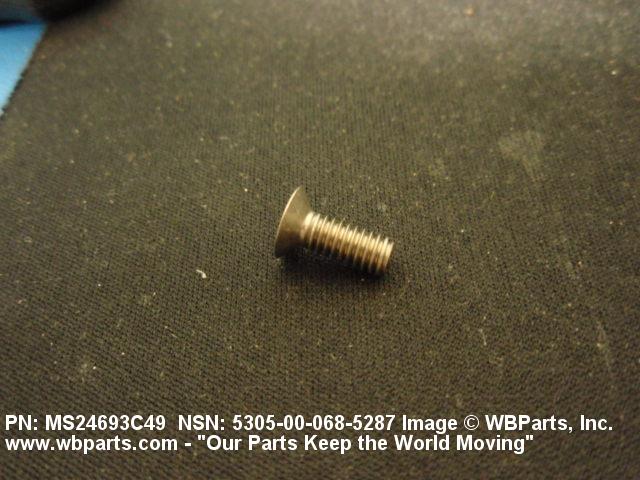

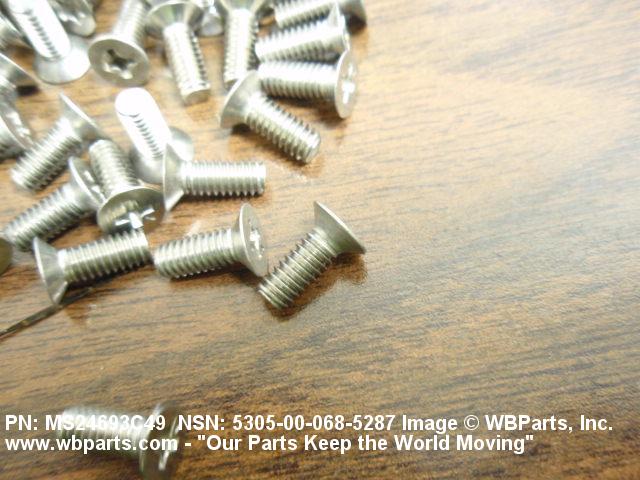

Drawings & Photos | NSN 5305-00-068-5287

Part Number	Request Date	QTY	Origin
MS24693C49	2024-04-99	250	OM
MS24693C49	2024-04-93	159	TR
MS24693C49	2024-03-81	200	AE
MS24693C49	2023-09-249	100	US
5305-00-068-5287	2023-06-179	499	DIBBS
5305-00-068-5287	2023-03-88	96	DIBBS
MS24693C49	2023-02-48	20	US
MS24693C49	2022-02-40	15	United States
5305-00-068-5287	2021-04-116	5	US
MS24693-C49	2020-12-365	72	United States
5305-00-068-5287	2020-02-52	20	Lebanon
5305-00-068-5287	2019-01-02	4	DIBBS-KIT
AN507C832-7	2019-01-02	4
MS2469349	2017-03-75	50	Malaysia
5305-00-068-5287	2017-03-72	16	Malaysia
5305-00-068-5287	2017-03-66	16	Malaysia
MS2469349	2017-03-65	16	Malaysia
5305-00-068-5287	2016-10-280	16	Malaysia
MS24693C49	2015-11-328	12	United States
5305-00-068-5287	2015-08-243	1	MANUAL
MS24693-C49	2015-08-243	1	US
MS24693C49	2015-04-92	15000	US
MS24693C49	2015-03-78	20000	United States
MS24693C49	2014-06-176	25	US
MS24693C49	2012-11-310	50
MS24693C49	2012-06-167	120	Canada
MS24693-C49	2012-06-163	32	India
MS24693C49	2011-07-201	100	United Kingdom
MS24693C49	2011-06-171	320	Canada
MS24693C49	2010-10-298	500	United States
MS24693C49	2010-10-298	100	United States
5305-00-068-5287	2010-07-211	75	Canada
5305-00-068-5287	2010-03-67	535	Canada
5305-00-068-5287	2008-09-268	110	US
MS24693C49	2008-09-260	50	India
5305-00-068-5287	2008-09-250	50	India

Cross Reference | NSN 5305-00-068-5287

Part Number	Cage Code	Manufacturer
106751-08-306C	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
112-1055-033	94756	BOEING COMPANY, THE DBA BOEING
2012653	001JK	EMBRAER S/A
2012653	FB459	EMBRAER AVIATION INTERNATIONAL
2012653	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
342-1350-350	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
4177085-86	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
7903133-32	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
9145-306	58251	FIRST AMERICAN SALES CO INC
946531-3049	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
946531-3049	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
AN507C832-7	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN507C832R7	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN507CR832-7	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AOL4168-306	57472	ALL MANUFACTURERS, INC. DBA ALLIED HARBOR AEROSPACE
E125-306	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
E125-306	97928	HUCK INTL INC
E21299-00	D1379	B/E AEROSPACE SYSTEMS GMBH DIV OXYGEN & PSU SYSTEMS
FS2003-08/306C	58998	EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY
MS24693-49	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24693-C49	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS24693-C49	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24693C49	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24693PC49	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
P34399	F0754	SOC EXPLOITATION MATERIELS MARTINBAKER
WC1053-033	70318	ALLMETAL SCREW PRODUCTS CORP DBA ALL METAL SCREW PRODUCTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-068-5287

Compare

Related Products | NSN 5305-00-068-5287

5305-00-068-5371, 5305-00-068-5388, 5305-00-068-5389, 5305-00-068-5393, 5305-00-068-5395

Technical Data | NSN 5305-00-068-5287

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC

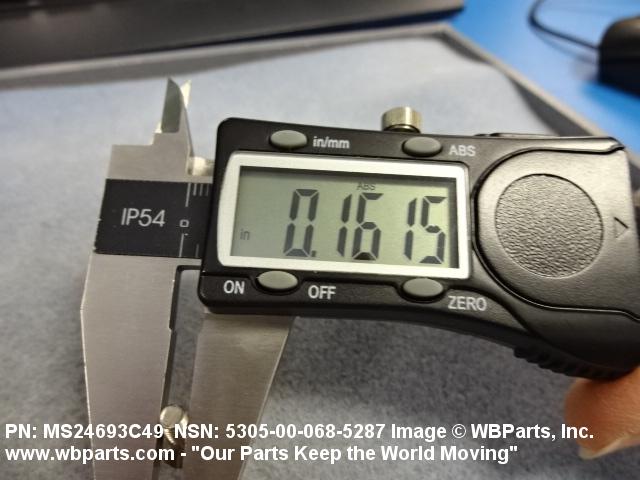

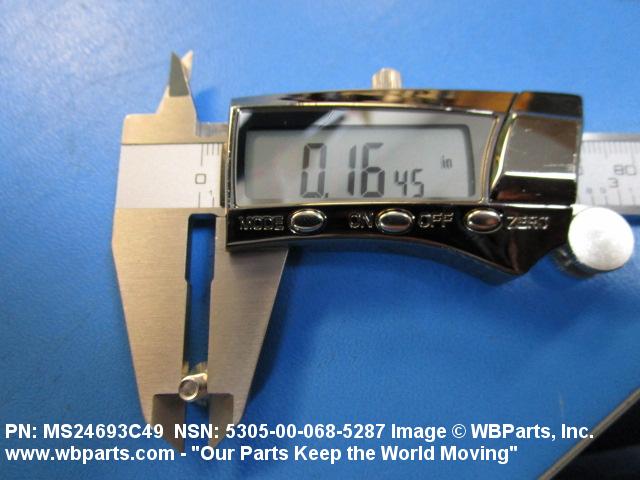

NOMINAL THREAD DIAMETER	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND

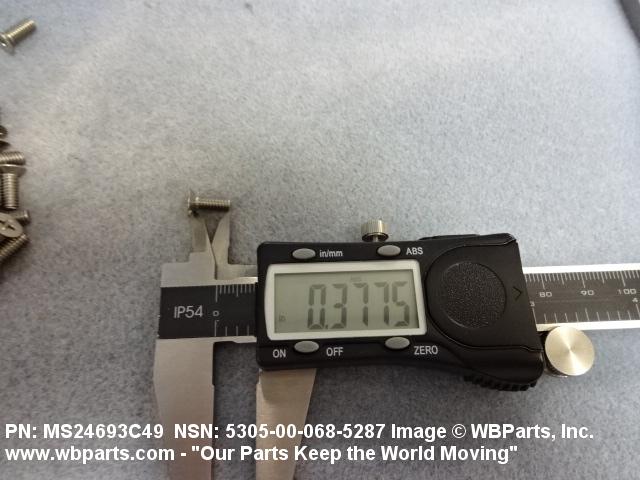

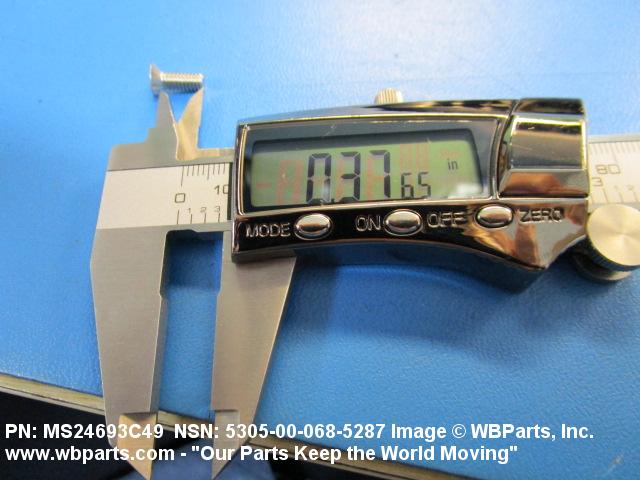

THREAD LENGTH	0.376 INCHES MINIMUM AND 0.438 INCHES MAXIMUM

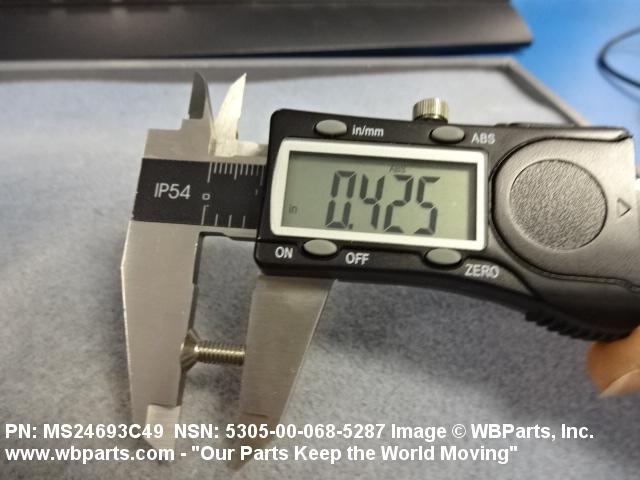

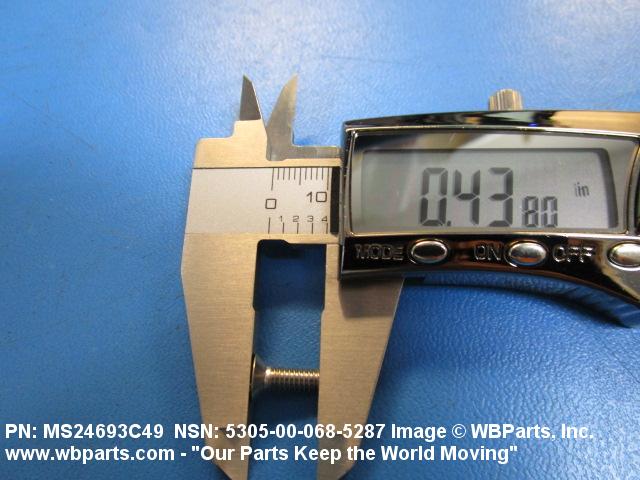

FASTENER LENGTH	0.438 INCHES NOMINAL
SCREW MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT	PASSIVATE
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
HEAD STYLE	A39 FLAT COUNTERSUNK

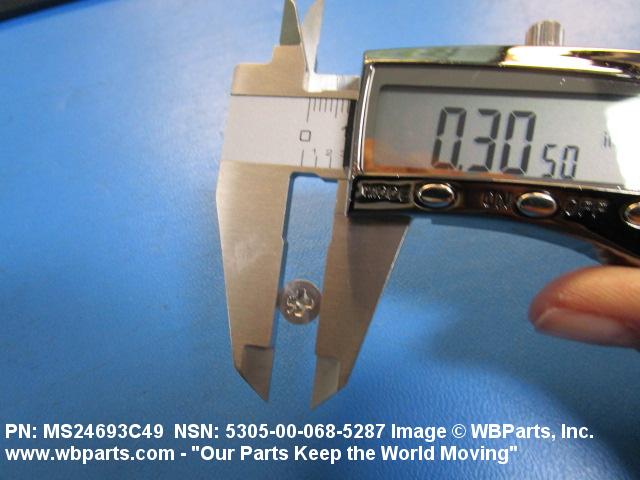

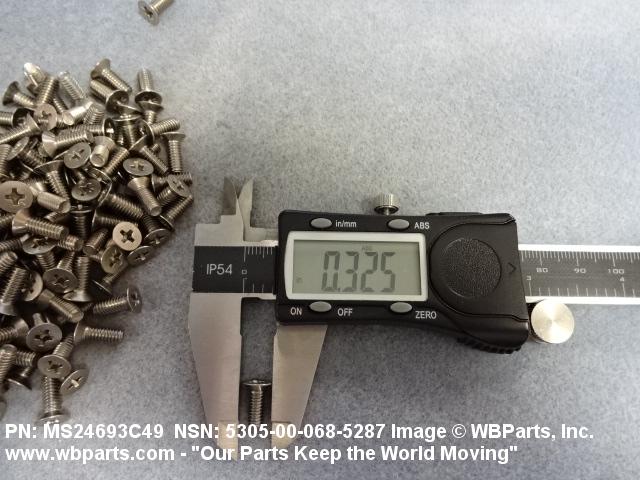

HEAD DIAMETER	0.285 INCHES MINIMUM AND 0.332 INCHES MAXIMUM
