NSN 5305-00-068-0502 MS352916, MS35291-6, MS907256

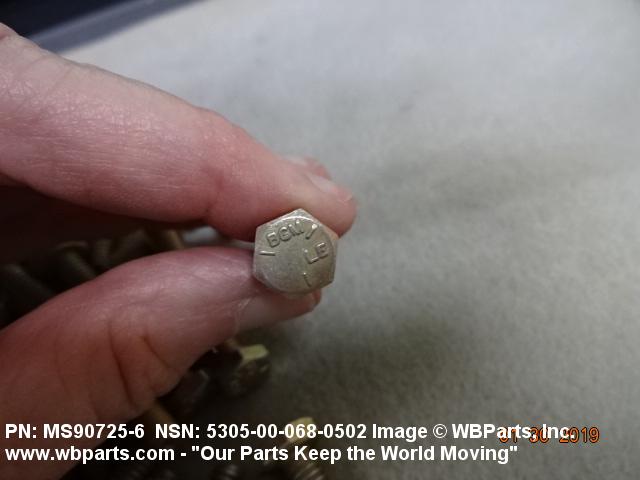

Product Details | HEXAGON HEAD CAP SCREW

5305-00-068-0502 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: MS352916, MS35291-6, MS907256, MS90725-6, MA2521035, MA25-21035, NASM90725, AMSE B18.2.1, AMSEB1821, B18.2, BACS12CF6, SK70029, SK-7002-9, H7756, FA02010393, FFS85, FF-S-85, FF-S-85 TY2ST10PGR5, FFS85TY2ST10PGR5, P14596, M696, F98, B182, 53050680502, 5305-068-0502 , 6201619, 62016-19 , 700096, 70009-6, 8001005, 800-1005, 85105676, 8510567-6, 90700, 95423596, 0123544, 012354-4, 0702079, 128720, 13003 , 13412, 13-412, 1454510926B7, 145-4510926B7, 1918330, 1C412J, 251514, 2BC646, 300646, 34694, 37539, 400101, 4123314, 412-3314 , 436, 45A115P11, 45A115-P11, 5305-00-068-0502, 00-068-0502, 5305000680502, 000680502

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-068-0502	18257 ( SCREW, CAP, HEXAGON HEAD )

Drawings & Photos | NSN 5305-00-068-0502

Part Number	Request Date	QTY	Origin
MS907256	2024-08-240	100	US
MS907256	2024-08-226	276	United States
MS907256	2024-06-177	4	United States
5305-00-068-0502	2024-05-138	5	US
MS90725-6	2023-06-170	51	US
5305-00-068-0502	2022-04-94	400	US
90700	2019-01-24	1
MS907256	2019-01-23	100	United States
MS907256	2018-03-78	66	United States
MS907256	2018-02-50	20	us
MS907256	2018-01-25	1	Singapore
MS907256	2017-06-166	810	US
5305-00-068-0502	2016-06-182	100	United States
MS90725-6	2014-03-71	552	United States
B182	2013-04-114	1	United States
FFS85	2013-01-11	473	US
800-1005	2012-08-214	1
B182	2012-03-83	3
436	2012-01-30	20	United States
B182	2011-11-322	2
FFS85	2011-10-280	95	United States
FFS85	2011-09-265	14	US
MS907256	2010-08-230	24	US
MS907256	2010-06-160	100	US
P14596	2010-05-124	655	US
FFS85	2010-03-84	100	US
MS907256	2010-02-54	100	United States
FFS85	2010-02-43	10	United States
MS907256	2009-10-295	100	Canada
FFS85	2009-09-272	50	US
5305-00-068-0502	2009-05-135	40	US
MS907256	2009-05-131	78	US
5305-00-068-0502	2008-10-304	10	US
5305-00-068-0502	2007-10-288	10	United States

Cross Reference | NSN 5305-00-068-0502

Part Number	Cage Code	Manufacturer
012354-4	1FP59	IKON SYSTEMS INC
0702079	S3002	GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH
128720	30076	NACCO MATERIALS HANDLING GROUP INC DBA HYSTER
13-412	10988	CNH INDUSTRIAL AMERICA LLC
13003	6BHP8	BELLEFLEX TECHNOLOGIES, LLC DBA BELLEFLEX TECHNOLOGIES
145-4510926B7	51563	ROHR, INC DBA GOODRICH AEROSTRUCTURES GROUP
1918330	1LW55	REMY, INC.
1C412J	12603	CLARK EQUIPMENT CO
251514	H0001	DAF TRUCKS N.V.
2BC646	45152	OSHKOSH CORPORATION
300646	32195	OUTBOARD MARINE CORP JOHNSON MOTORS DIV
300646	U1621	SIMPSON-LAWRENCE LTD JOHNSON AND EVI RUDE OUTBOARD MOTORS
34694	13841	TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
37539	96046	CRANE PUMPS & SYSTEMS, INC.
400101	5X050	CRYSTEEL MANUFACTURING, INC. DBA TBEI-CRYSTEEL
436	23834	ELLIOTT MACHINE WORKS INC.
45A115-P11	088A2	C SYSTEMS LLC DBA CRAIG SYSTEMS
5305-068-0502	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305000680502	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
62016-19	5RQL2	DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S
62016-19	90598	ENGINEERED AIR SYSTEMS INC. DBA DRS SUSTAINMENT SYSTEMS
70009-6	95097	LITTLE GIANT CRANE AND SHOVEL INC
800-1005	44940	CUMMINS POWER GENERATION INC.
8510567-6	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
90700	08645	BRIGGS AND STRATTON CORP
95423596	57498	EAGLE COMPRESSORS, INC. DBA EAGLE COMPRESSORS
AMSE B18.2.1	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
B18.2	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
BACS12CF6	81205	THE BOEING COMPANY DBA BOEING
F98	00365	TLD ACE CORPORATION
FA02010393	44185	NMC/WOLLARD, INC.
FF-S-85	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
FF-S-85 TY2ST10PGR5	80244	GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE
H7756	77260	PIERCE CO INC THE SUB OF AVIS INDUSTRIAL CORP
M696	11568	GARDNER DENVER INC.
MA25-21035	34623	AM GENERAL, LLC
MS35291-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90725-6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS90725-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NASM90725	00756	AEROSPACE INDUSTRIES ASSOCIATION OF AMERICA INC
NASM90725	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
P14596	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
SK-7002-9	0EAK3	GSE MANAGEMENT CO

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-068-0502

Compare

Related Products | NSN 5305-00-068-0502

5305-00-068-0503, 5305-00-068-0504, 5305-00-068-0505, 5305-00-068-0506, 5305-00-068-0507

Technical Data | NSN 5305-00-068-0502

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC

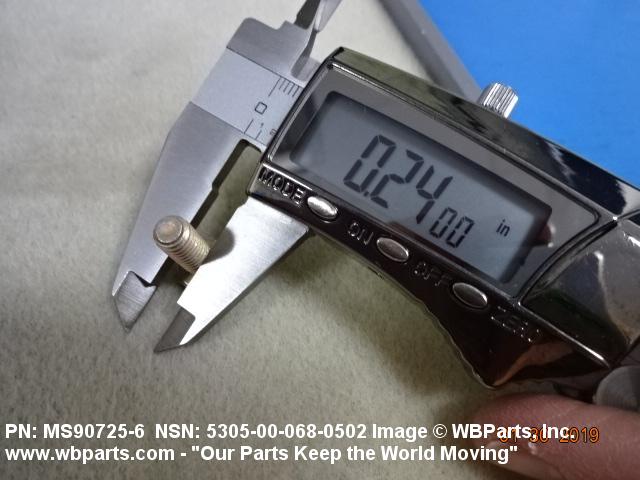

NOMINAL THREAD DIAMETER	0.250 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND

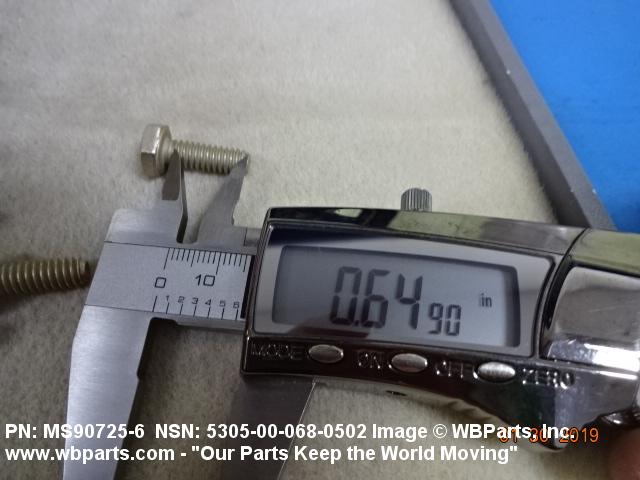

THREAD LENGTH	0.625 INCHES MINIMUM

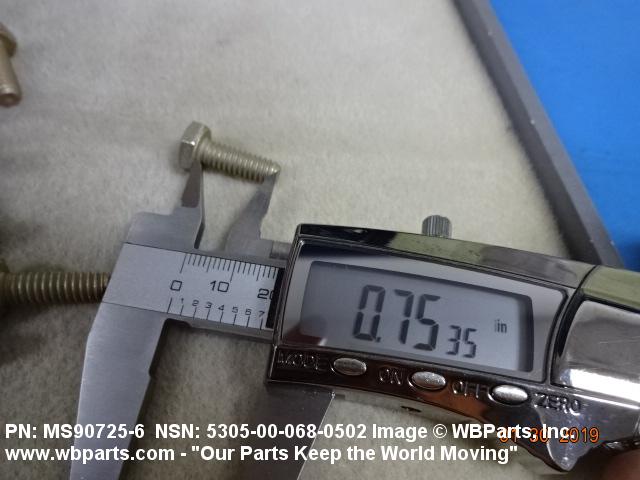

FASTENER LENGTH	0.750 INCHES NOMINAL
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	SAE GR 5 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	23.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	120000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON

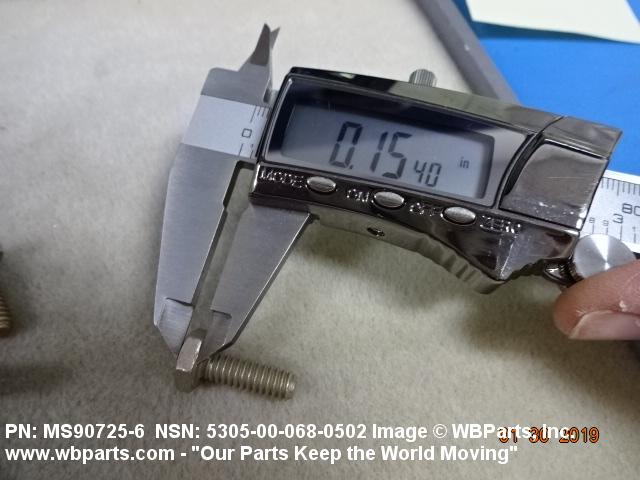

HEAD HEIGHT	0.150 INCHES MINIMUM AND 0.163 INCHES MAXIMUM

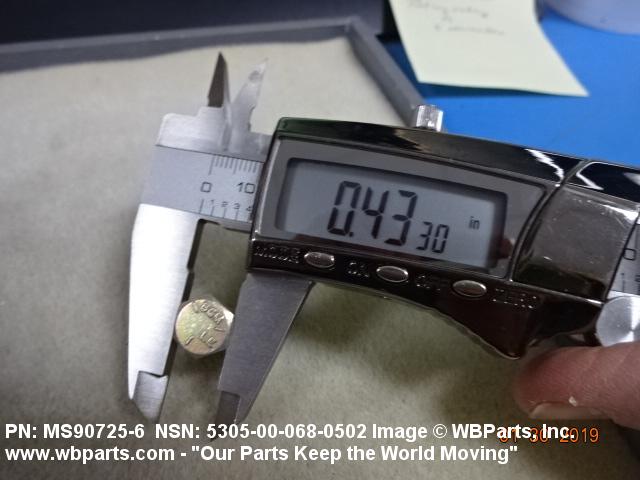

WIDTH BETWEEN FLATS	0.428 INCHES MINIMUM AND 0.438 INCHES MAXIMUM
