NSN 5305-00-068-0500 MS352913, MS35291-3, MS352973

Product Details | HEXAGON HEAD CAP SCREW

5305-00-068-0500 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: MS352913, MS35291-3, MS352973, MS35297-3, MS907253, MS90725-3, MS907255, MS90725-5 , AF6544, AF65-4-4, AN6544, AN65-4-4, ASME B18.2.1, ASMEB1821, B18.2.1, B1821, CSA46563, SK60016, SK-6001-6, TG201271 PC6, TG201271PC6, P3260160000, P326-0160-000 , D214961, D-21496-1, 0001131 , 326-0160-00 , 38706 , 0123542, 012354-2, 015587T, 02200, 024021584PC8, 024-021584PC8 , 0251512, 0702060, 0702074 , 0826V003, 0F34060400, 0F34-0604-00 , 132848, 1420X58, 1-4-20X5-8 , 14554490005, 145-544-90005 , 16257, 211372P, 21-1372P , 22488R1 , 251513, 289884, 28988-4, 302654 , 318.2, 3182, 53050680500, 5305-068-0500 , 5305PL0370528, 6024 , 605121V, 625007, 62500-7, 700093, 70009-3, 700095, 70009-5 , 7112140450, 7-112-140450, 8001004, 800-1004 , 8U56702112, 8U56702-112, 95053070, 95423653, 5305-00-068-0500, 00-068-0500, 5305000680500, 5305000680501 , 402352308, 000680500, 326016000

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-068-0500	18257 ( SCREW, CAP, HEXAGON HEAD )

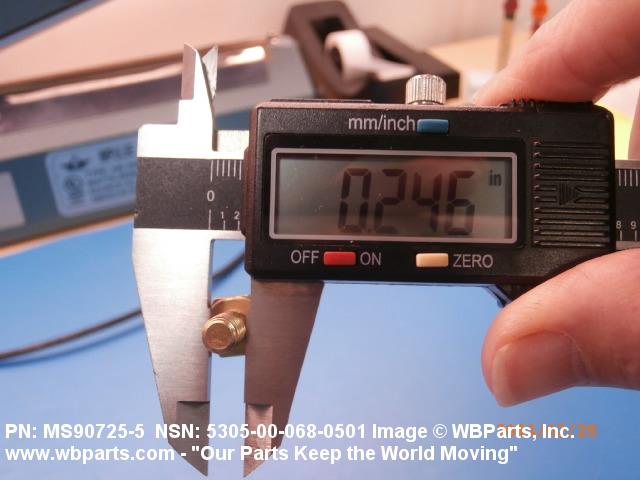

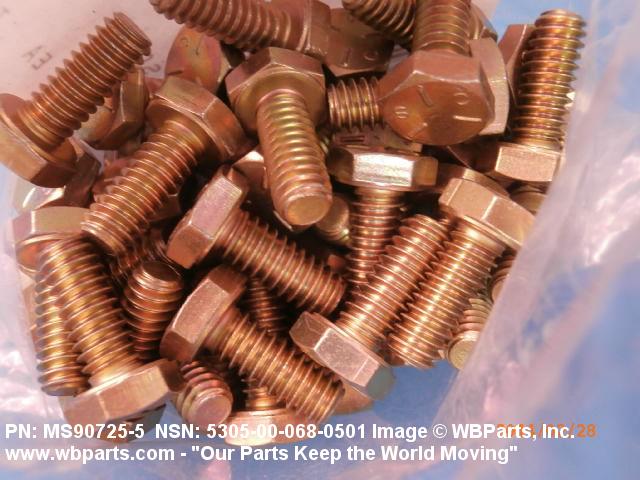

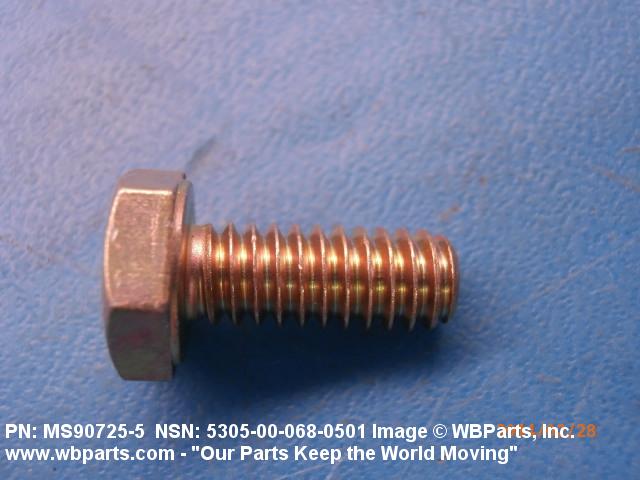

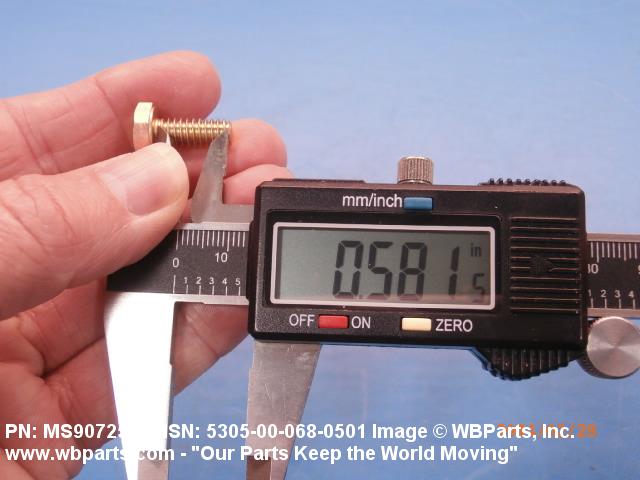

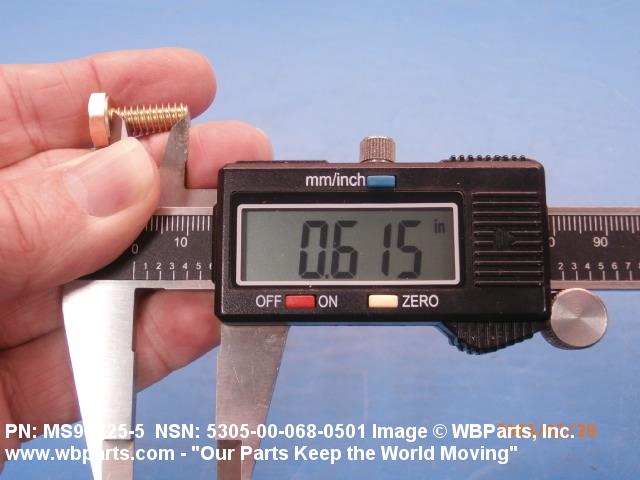

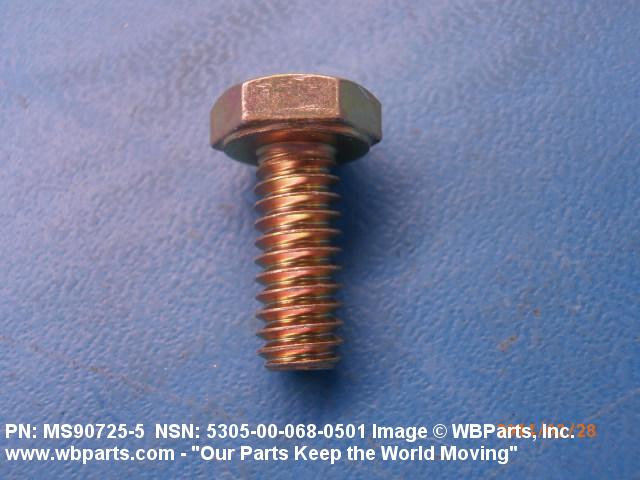

Drawings & Photos | NSN 5305-00-068-0500

Part Number	Request Date	QTY	Origin
MS907253	2024-08-240	100	US
MS907253	2023-09-271	100	United States
MS907255	2022-04-97	13	United States
MS907255	2021-02-46	88	United States
ASMEB1821	2020-07-189	48	United States
ASMEB1821	2020-07-189	8	United States
5305-00-068-0500	2018-12-354	4	DIBBS-KIT
MS90725-3	2018-12-353	4
MS907253	2018-02-50	110	us
ASMEB1821	2014-03-65	5	South Africa
MS907255	2014-02-56	50	United States
MS907255	2014-02-34	50	United States
MS907255	2013-10-287	1000	United States
B1821	2012-06-164	25	United States
5305-00-068-0500	2012-04-104	25	MANUAL
5305-00-068-0500	2011-06-155	25	MANUAL
5305-00-068-0500	2011-06-155	25	MANUAL
MS90725-3	2011-06-155	25	PK
MS90725-3	2011-06-155	25	PK
ASMEB1821	2011-04-111	160	United States
MS907255	2010-12-356	1	Italy
5305-00-068-0501	2009-11-313	2052	Italy
MS907255	2009-09-259	2200	US
5305-00-068-0501	2009-05-135	25	US
ASMEB1821	2009-04-97	24	United States
MS907255	2009-02-41	1900	US
MS907253	2008-03-64	100	US
ASMEB1821	2008-01-23	80	United States

Cross Reference | NSN 5305-00-068-0500

Part Number	Cage Code	Manufacturer
012354-2	1FP59	IKON SYSTEMS INC
015587T	59556	KOVATCH CORP.
02200	96046	CRANE PUMPS & SYSTEMS, INC.
0251512	H0001	DAF TRUCKS N.V.
0702060	S3002	GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH
132848	89646	SANSTORM INC
16257	19422	DEMARKUS CORP REFRIGERATION ENGINEERING CORP
28988-4	11599	TRIUMPH ENGINE CONTROL SYSTEMS, LLC
318.2	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
402352308	S5686	ISRAEL MILITARY INDUSTRIES LTD DBA TAAS - ISRAEL INDUSTRIES LTD -
5305-068-0500	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305000680500	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
62500-7	5RQL2	DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S
62500-7	90598	ENGINEERED AIR SYSTEMS INC. DBA DRS SUSTAINMENT SYSTEMS
7-112-140450	12361	GROVE U.S. L.L.C DBA MANITOWOC CRANE GROUP
70009-3	95097	LITTLE GIANT CRANE AND SHOVEL INC
8U56702-112	07703	ATK LAUNCH SYSTEMS INC. DBA ATK LAUNCH SYSTEMS-PROMONTORY
95053070	51436	INGERSOLL-RAND COMPANY DBA INGERSOLL-RAND
95423653	57498	EAGLE COMPRESSORS, INC. DBA EAGLE COMPRESSORS
AF65-4-4	82395	VINCO PRODUCTS
AN65-4-4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
ASME B18.2.1	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
B18.2.1	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
CSA46563	82254	CURTIS DYNA-FOG, LTD.
D-21496-1	5RQL2	DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S
D-21496-1	90598	ENGINEERED AIR SYSTEMS INC. DBA DRS SUSTAINMENT SYSTEMS
MS35291-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35297-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90725-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SK-6001-6	0EAK3	GSE MANAGEMENT CO
TG201271 PC6	28839	TELEDYNE INDUSTRIES INC TELEDYNE POWER SYSTEMS DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-068-0500

Compare

Related Products | NSN 5305-00-068-0500

5305-00-068-0501, 5305-00-068-0502, 5305-00-068-0503, 5305-00-068-0504, 5305-00-068-0505

Technical Data | NSN 5305-00-068-0500

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.250 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.500 INCHES MAXIMUM
FASTENER LENGTH	0.500 INCHES NOMINAL
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	SAE GR 5 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	23.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	120000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	85000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON
HEAD HEIGHT	0.150 INCHES MINIMUM AND 0.163 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.428 INCHES MINIMUM AND 0.438 INCHES MAXIMUM
MANUFACTURERS CODE	96906
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS90725-3

Restrictions/Controls & Freight Information | NSN 5305-00-068-0500

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-068-0500

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	0	GSA MaterielItems cataloged by the Marine Corps and managed by the General Services Administration.
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Cognizance Codes	9Q	Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
