Product Details | TWIST DRILL

5133-01-144-9894 An end cutting tool having two or more cutting edges, and having helical flutes or grooves adjacent thereto for the admission of coolant and the ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified); and DRILL,TWIST, BONE. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED.

Part Alternates: 723-075461, 5133-01-144-9894, 01-144-9894, 5133011449894, 723075461, 011449894

Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine

Supply Group (FSG) NSN Assign. NIIN
51 04-JAN-83 01-144-9894

Drawings & Photos | NSN 5133-01-144-9894


Cross Reference | NSN 5133-01-144-9894

Part Number Cage Code Manufacturer
723-075461 18056 DOALL BALTIMORE COMPANY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5133-01-144-9894

Technical Data | NSN 5133-01-144-9894

Characteristic Specifications
MATERIAL STEEL COMP M4 OVERALL
HARDNESS RATING NOT RATED

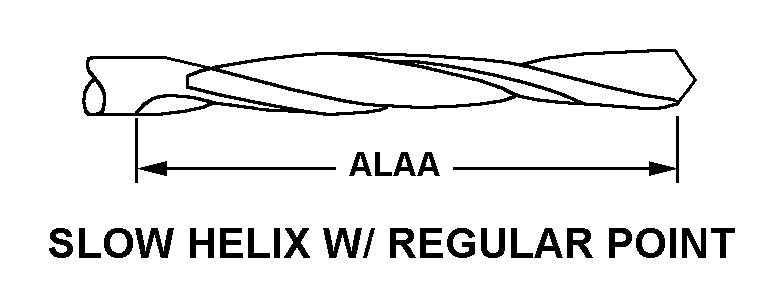

CUTTING END STYLE 50 SLOW HELIX W/REGULAR POINT
FLUTE LENGTH 1.375 INCHES NOMINAL
SHANK STYLE 76 STRAIGHT ROUND
OVERALL LENGTH 2.500 INCHES NOMINAL
NOMINAL CUTTING DIAMETER 0.1440 INCHES
CUTTING ROTATION DIRECTION RIGHT-HAND
SPECIAL FEATURES WIRE GUAGE NO. 27

Restrictions/Controls & Freight Information | NSN 5133-01-144-9894

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
