NSN 5133-00-953-2186 SR31D, 00-953-2186, 009532186
Product Details | TWIST DRILL
5133-00-953-2186 An end cutting tool having two or more cutting edges, and having helical flutes or grooves adjacent thereto for the admission of coolant and the ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified); and DRILL,TWIST, BONE. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED.
Part Alternates: SR31D, 5133-00-953-2186, 00-953-2186, 5133009532186, 009532186
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-953-2186 | 05237 ( DRILL, TWIST ) |

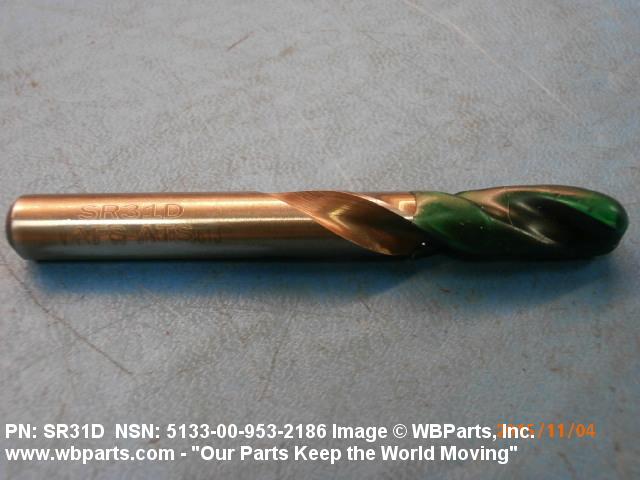

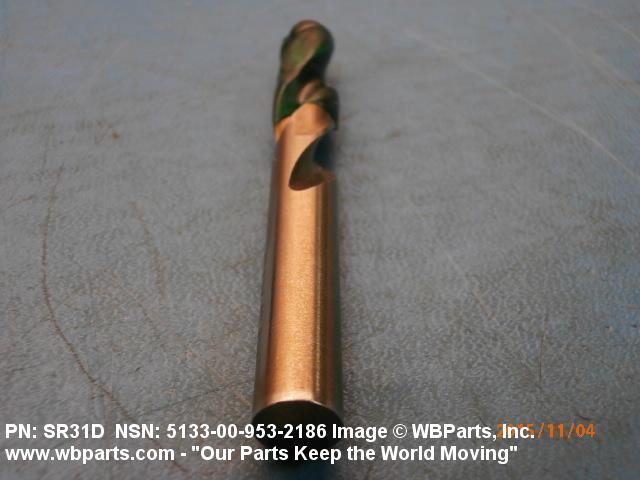

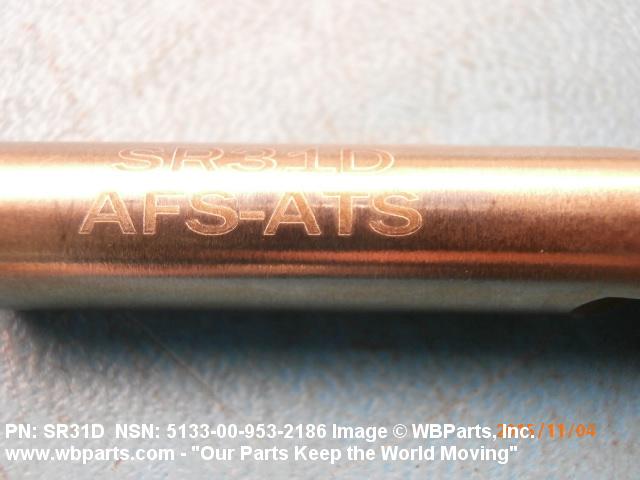

Drawings & Photos | NSN 5133-00-953-2186
Demand History | NSN 5133-00-953-2186
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SR31D | 2015-11-307 | 1 | United States |
Cross Reference | NSN 5133-00-953-2186
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SR31D | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5133-00-953-2186
Technical Data | NSN 5133-00-953-2186
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, HIGH SPEED OVERALL |
| HARDNESS RATING | 58.0 ROCKWELL C MINIMUM AND 64.0 ROCKWELL C MAXIMUM |
| CUTTING END STYLE | 66 STEP DRILL |
| SMALL FLUTED SECTION LENGTH | 0.701 INCHES NOMINAL |
| SHANK STYLE | 76 STRAIGHT ROUND |

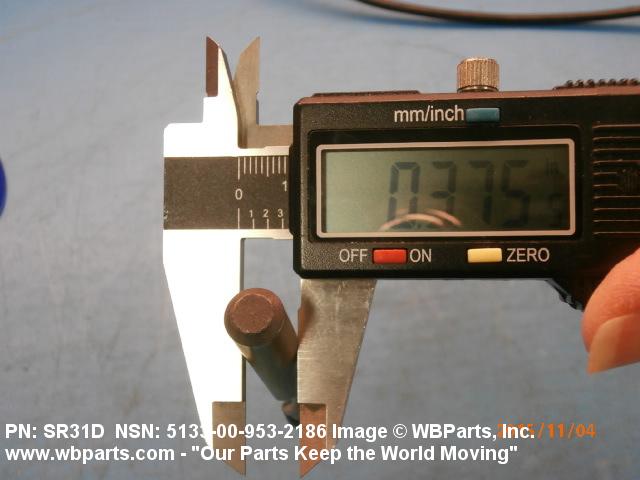

| SHANK DIAMETER | 0.374 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |

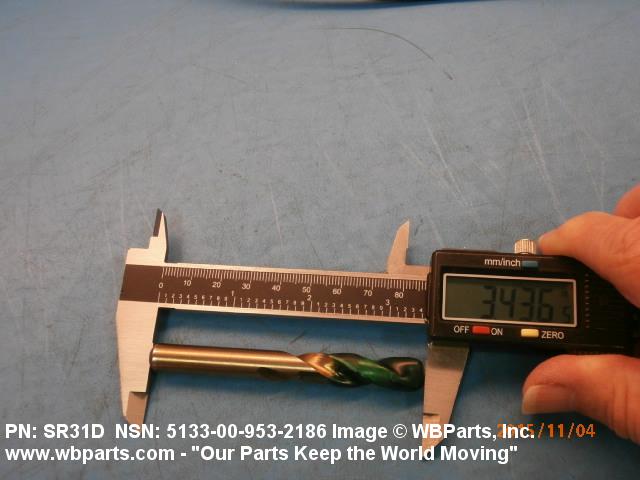

| OVERALL LENGTH | 3.250 INCHES NOMINAL |

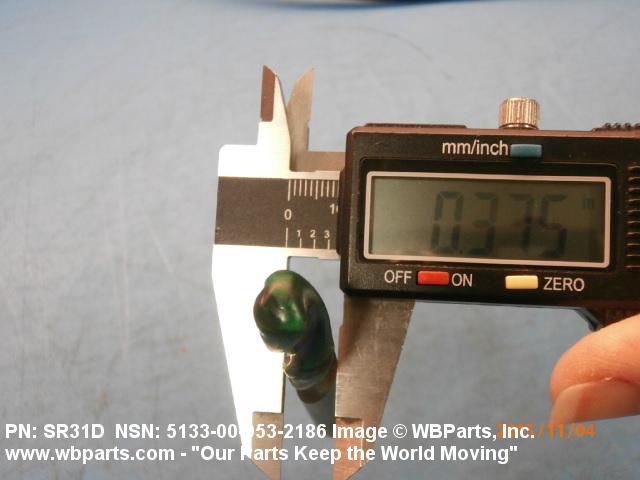

| NOMINAL CUTTING DIAMETER | 0.3430 INCHES AND 0.3750 INCHES |
| CUTTING ROTATION DIRECTION | RIGHT-HAND |
| POINT TYPE | CONVENTIONAL |
| POINT ANGLE | 118.0 DEGREES NOMINAL |
| FLUTE QUANTITY | 2 |
| SPECIAL FEATURES | 90 DEG INCLUDED ANGLE COUNTERSINK |
Restrictions/Controls & Freight Information | NSN 5133-00-953-2186
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5133-00-953-2186
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | M | HANDTOOLS AND SHOP EQUIPMENT |
| Shelf Life Code | 0 | Nondeteriorative |
