Product Details | STRAIGHT FLUTE DRILL

5133-00-516-3099 An end cutting tool having one or more cutting edges, and having straight flutes or grooves adjacent thereto for the admission of coolant and ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified) and DRILL, FLAT, RAILWAY RAIL. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED.

Part Alternates: 5133-00-516-3099, 00-516-3099, 5133005163099, 005163099

Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine

Supply Group (FSG) NSN Assign. NIIN
51 00-516-3099

Drawings & Photos | NSN 5133-00-516-3099


Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5133-00-516-3099

Technical Data | NSN 5133-00-516-3099

Characteristic Specifications
MATERIAL STEEL OVERALL
HARDNESS RATING 40.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM

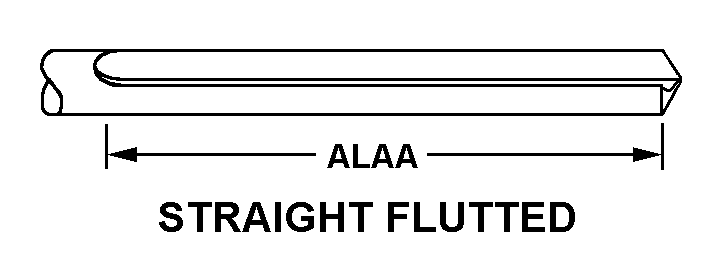

CUTTING END STYLE 53 STRAIGHT FLUTED
FLUTE LENGTH 0.750 INCHES MINIMUM

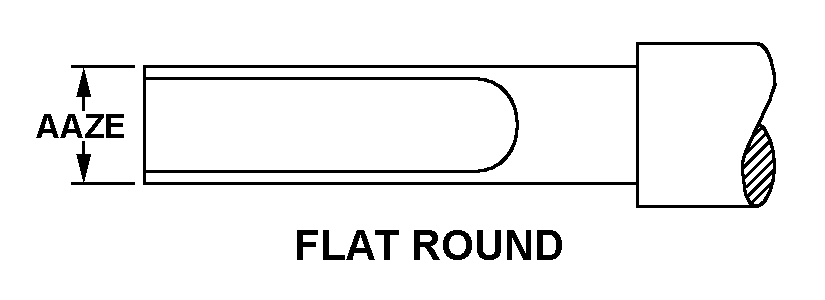

SHANK STYLE 75 FLAT ROUND
SHANK DIAMETER 0.125 INCHES NOMINAL
OVERALL LENGTH 1.750 INCHES MINIMUM AND 2.000 INCHES MAXIMUM
NOMINAL CUTTING DIAMETER 0.1250 INCHES
CUTTING ROTATION DIRECTION RIGHT-HAND
POINT TYPE CONVENTIONAL
POINT ANGLE ANY ACCEPTABLE
FLUTE QUANTITY 2

Restrictions/Controls & Freight Information | NSN 5133-00-516-3099

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Category Code Description
No Freight Information
