NSN 5133-00-517-8216 PWA20089, 00-517-8216, 005178216
Product Details | COUNTERSINK
5133-00-517-8216 An angular cutting tool, usually made with angular relief, having one or more flutes with specific size angle cutting edges. It is used for chamfering and countersinking holes. The tool may have a straight shank, tapered shank, bit stock shank or special shank requiring a special holder, for holding in a power- or hand-operated machine. It may be designed to be driven or turned by means of a wrench or carpenter's brace. For items requiring a holder but the holder is not included, use CUTTER, COUNTERSINK.20251330060Drill Bits, Counterbores, and Countersinks: Hand and Machine65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: PWA20089, 5133-00-517-8216, 00-517-8216, 5133005178216, 005178216
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
51 | 09 JUL 1971 | 00-517-8216 | 05260 ( COUNTERSINK ) |
Cross Reference | NSN 5133-00-517-8216
Part Number | Cage Code | Manufacturer |
---|---|---|
PWA20089 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5133-00-517-8216
Technical Data | NSN 5133-00-517-8216
Characteristic | Specifications |
---|---|
MATERIAL | STEEL OVERALL |

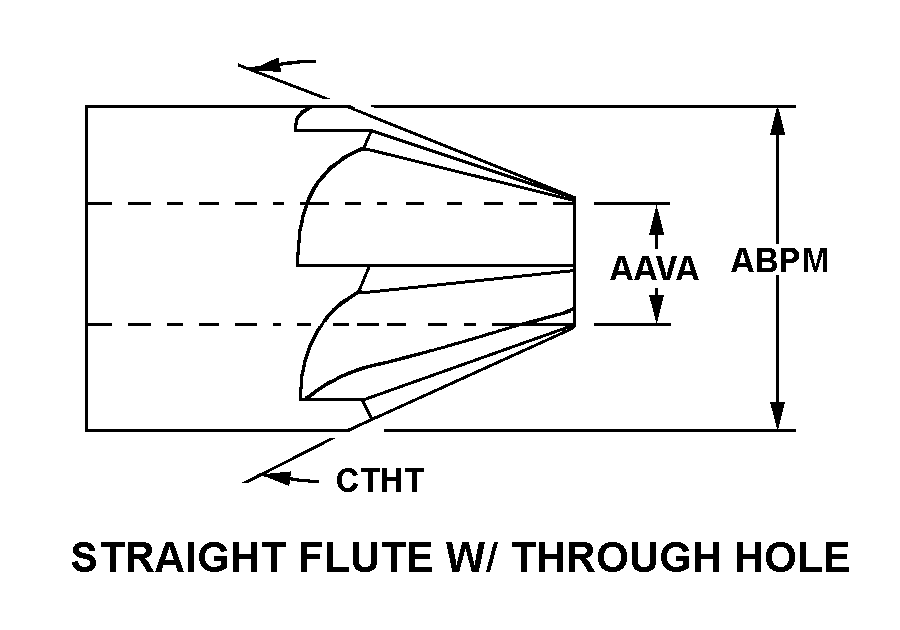

CUTTING END STYLE | 30 STRAIGHT FLUTE W/THROUGH HOLE |
POINT DIAMETER | 0.438 INCHES NOMINAL |
BODY DIAMETER | 0.685 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
INCLUDED ANGLE | 90.0 DEGREES NOMINAL |
OVERALL LENGTH | 12.500 INCHES NOMINAL |
CUTTING ROTATION DIRECTION | RIGHT-HAND |
FLUTE QUANTITY | 4 |
FEATURES PROVIDED | REPLACEABLE PILOT |
PILOT HOLE NOMINAL DIAMETER | 0.250 INCHES |
MANUFACTURERS CODE | 77445 |
DESIGN CONTROL REFERENCE | PWA20089 |
