NSN 5133-00-517-5523 C46429 , 879 7/16 , 879716
Product Details | MACHINE COUNTERBORE
5133-00-517-5523 An end cutting tool having two or more cutting edges with flutes or grooves for the passage of cuttings, an integral or removable holder designed for adaption to the end of a machine spindle. The flutes or grooves are usually helical to give a positive rake at the cutting edges. It is designed to form a flat-bottomed enlargement of the mouth of a previously formed cylindrical hole. For items requiring a holder but the holder is not included, use CUTTER, COUNTERBORE.
Part Alternates: C46429 , 879 7/16 , 879716, 879-7-16, 5133-00-517-5523, 00-517-5523, 5133005175523, 005175523
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
51 | 01 JAN 1963 | 00-517-5523 | 05259 ( COUNTERBORE, MACHINE ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5133-00-517-5523
Related Products | NSN 5133-00-517-5523
Technical Data | NSN 5133-00-517-5523
Characteristic | Specifications |
---|---|
MATERIAL | STEEL OVERALL |
HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM |

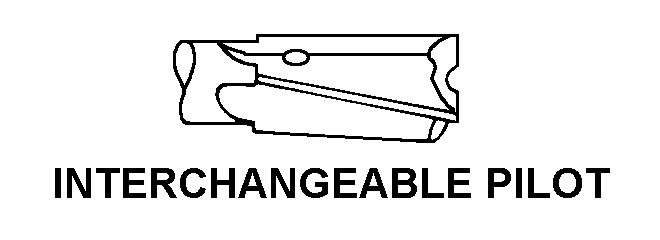

CUTTING END STYLE | 22 INTERCHANGEABLE PILOT |
SHANK STYLE | 76 STRAIGHT ROUND |
SHANK DIAMETER | 0.375 INCHES NOMINAL |
OVERALL LENGTH | 4.062 INCHES NOMINAL |
NOMINAL CUTTING DIAMETER | 0.4375 INCHES |
FLUTE QUANTITY | 3 |
FEATURES PROVIDED | REPLACEABLE PILOT |
PILOT HOLE NOMINAL DIAMETER | 0.156 INCHES |
PILOT DIAMETER | 0.187 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
