NSN 5133-00-247-1253 GGGC613, GGG-C-613, GGG-C-613 TY2CLB
Product Details | COUNTERSINK
5133-00-247-1253 An angular cutting tool, usually made with angular relief, having one or more flutes with specific size angle cutting edges. It is used for chamfering and countersinking holes. The tool may have a straight shank, tapered shank, bit stock shank or special shank requiring a special holder, for holding in a power- or hand-operated machine. It may be designed to be driven or turned by means of a wrench or carpenter's brace. For items requiring a holder but the holder is not included, use CUTTER, COUNTERSINK.20251330060Drill Bits, Counterbores, and Countersinks: Hand and Machine65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: GGGC613, GGG-C-613, GGG-C-613 TY2CLB, GGGC613TY2CLB, 04139, 04-139, 5133-00-247-1253, 00-247-1253, 5133002471253, 002471253
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
51 | 01 JAN 1963 | 00-247-1253 | 05260 ( COUNTERSINK ) |
Cross Reference | NSN 5133-00-247-1253
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5133-00-247-1253
Technical Data | NSN 5133-00-247-1253
Characteristic | Specifications |
---|---|
MATERIAL | STEEL OVERALL |
HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM |

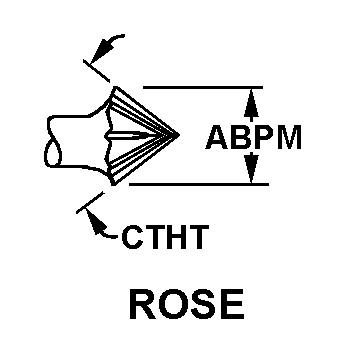

CUTTING END STYLE | 34 ROSE |
BODY DIAMETER | 0.734 INCHES MINIMUM AND 0.812 INCHES MAXIMUM |
INCLUDED ANGLE | 81.0 DEGREES NOMINAL |
SHANK STYLE | 81 TAPER-SQUARE |
SHANK LARGE END SQUARE WIDTH | 0.312 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
SHANK SMALL END SQUARE WIDTH | 0.156 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
OVERALL LENGTH | 3.000 INCHES MINIMUM AND 4.500 INCHES MAXIMUM |
CUTTING ROTATION DIRECTION | RIGHT-HAND |
FLUTE QUANTITY | ANY ACCEPTABLE |
