5133-00-247-1256 An angular cutting tool, usually made with angular relief, having one or more flutes with specific size angle cutting edges. It is used for chamfering and countersinking holes. The tool may have a straight shank, tapered shank, bit stock shank or special shank requiring a special holder, for holding in a power- or hand-operated machine. It may be designed to be driven or turned by means of a wrench or carpenter's brace. For items requiring a holder but the holder is not included, use CUTTER, COUNTERSINK.20251330060Drill Bits, Counterbores, and Countersinks: Hand and Machine65150057Medical and Surgical Instruments, Equipment, and Supplies

Part Alternates: GGGC613, GGG-C-613, GGG-C-613 TY5SZ11, GGGC613TY5SZ11, 5133-00-247-1256, 00-247-1256, 5133002471256, 002471256

Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine

Supply Group (FSG) NSN Assign. NIIN
51 01 JAN 1963 00-247-1256

Drawings & Photos | NSN 5133-00-247-1256


Cross Reference | NSN 5133-00-247-1256

Part Number Cage Code Manufacturer
GGG-C-613 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
GGG-C-613 TY5SZ11 80244 GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5133-00-247-1256

Technical Data | NSN 5133-00-247-1256

Characteristic Specifications
MATERIAL STEEL OVERALL
HARDNESS RATING 40.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM

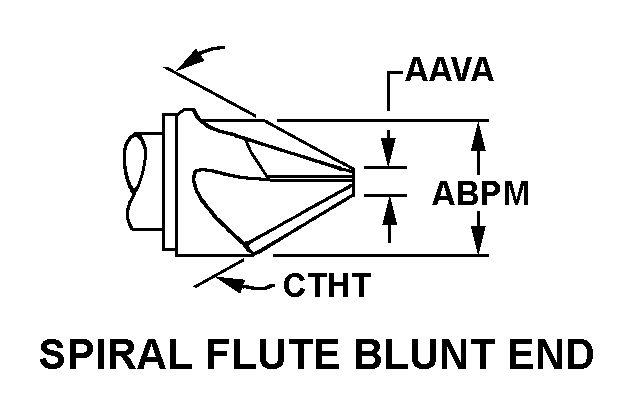

CUTTING END STYLE 32 SPIRAL FLUTE BLUNT END
POINT DIAMETER 0.219 INCHES NOMINAL
BODY DIAMETER 1.188 INCHES NOMINAL
INCLUDED ANGLE 90.0 DEGREES NOMINAL
SHANK STYLE 79 STANDARD TAPER W/TANG
TAPER SHANK SIZE DESIGNATOR 2 MORSE
OVERALL LENGTH 5.875 INCHES NOMINAL
CUTTING ROTATION DIRECTION RIGHT-HAND
FLUTE QUANTITY ANY ACCEPTABLE
NONDEFINITIVE SPEC/STD DATA 5 TYPE AND 11 SIZE
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE GGG-C-613
