NSN 5133-00-247-1255 GGGC613, GGG-C-613, GGG-C-613 TY2CLD
Product Details | COUNTERSINK
5133-00-247-1255 An angular cutting tool, usually made with angular relief, having one or more flutes with specific size angle cutting edges. It is used for chamfering and countersinking holes. The tool may have a straight shank, tapered shank, bit stock shank or special shank requiring a special holder, for holding in a power- or hand-operated machine. It may be designed to be driven or turned by means of a wrench or carpenter's brace. For items requiring a holder but the holder is not included, use CUTTER, COUNTERSINK.20251330060Drill Bits, Counterbores, and Countersinks: Hand and Machine65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: GGGC613, GGG-C-613, GGG-C-613 TY2CLD, GGGC613TY2CLD, 5133-00-247-1255, 00-247-1255, 5133002471255, 002471255
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-247-1255 | 05260 ( COUNTERSINK ) |
Drawings & Photos | NSN 5133-00-247-1255
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5133-00-247-1255
Technical Data | NSN 5133-00-247-1255
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM |

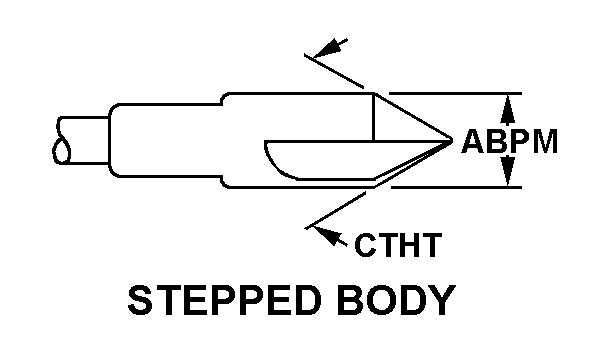

| CUTTING END STYLE | 36 STEPPED BODY |
| BODY DIAMETER | 0.906 INCHES NOMINAL |
| INCLUDED ANGLE | 82.0 DEGREES NOMINAL |
| SHANK STYLE | 81 TAPER-SQUARE |
| SHANK LARGE END SQUARE WIDTH | 0.312 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| SHANK SMALL END SQUARE WIDTH | 0.156 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| OVERALL LENGTH | 5.250 INCHES NOMINAL |
| CUTTING ROTATION DIRECTION | RIGHT-HAND |
| FLUTE QUANTITY | 3 |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND D CLASS AND 29/32 SIZE |
| DEPARTURE FROM CITED DESIGNATOR | AS MOD BY MATERIAL |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-C-613 |
