NSN 5133-00-227-9658 MS15444100, MS15444-100, B94.11M
Product Details | TWIST DRILL
5133-00-227-9658 An end cutting tool having two or more cutting edges, and having helical flutes or grooves adjacent thereto for the admission of coolant and the ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified); and DRILL,TWIST, BONE. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED.
Part Alternates: MS15444100, MS15444-100, B94.11M, B9411M, DBF1/4B, DBF14B, GGGD751, GGG-D-751, GGG-D-751 TYBCL1, GGGD751TYBCL1, 01204, 107E474K, 150 1/4, 15014, 2001 1/4, 200114, 206 1/4, 20614, 44016, 663UW47454W, 917 1/4, 91714, 663-.47-400-5 , 5133-00-227-9658, 00-227-9658, 5133002279658, 002279658, 663474005
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-227-9658 | 05237 ( DRILL, TWIST ) |

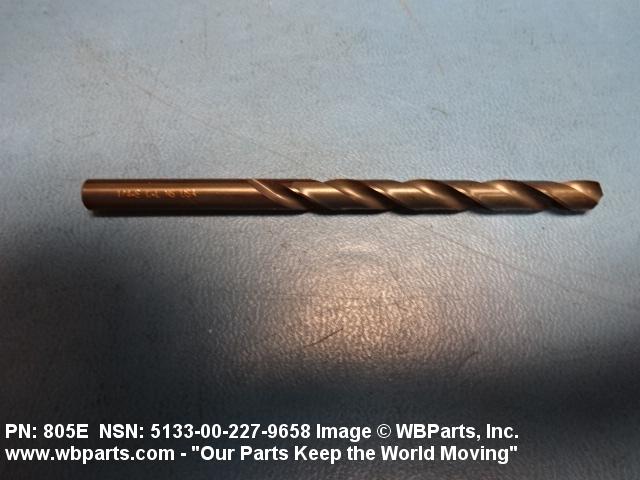

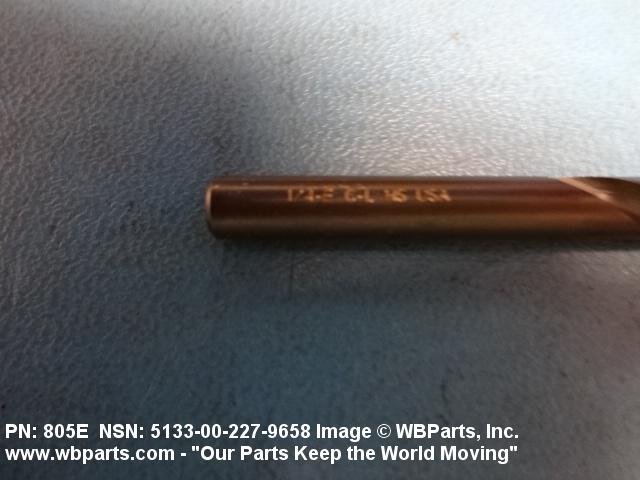

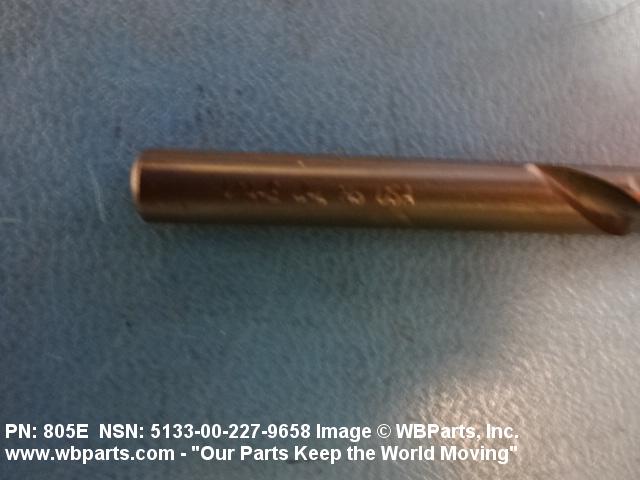

Drawings & Photos | NSN 5133-00-227-9658
Demand History | NSN 5133-00-227-9658
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5133-00-227-9658 | 2022-08-236 | 10 | Taiwan |
| GGGD751 | 2020-04-104 | 1 | US |
| 5133-00-227-9658 | 2018-07-192 | 44 | MANUAL |
| 5133-00-227-9658 | 2018-04-93 | 15 | MANUAL |
| 5133-00-227-9658 | 2018-01-29 | 11 | DIBBS-KIT |
Cross Reference | NSN 5133-00-227-9658
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01204 | 13130 | CLEVELAND TWIST DRILL CO DIV OF GREENFIELD INDUSTRIES INC |
| 150 1/4 | 60NQ9 | GREENFIELD INDUSTRIES, INC. |
| 150 1/4 | 65400 | GREENFIELD INDUSTRIES INC |
| 2001 1/4 | 13130 | CLEVELAND TWIST DRILL CO DIV OF GREENFIELD INDUSTRIES INC |
| 206 1/4 | 42970 | LEAR SIEGLER INC NATIONAL TWIST DRILL AND TOOL DIV |
| 44016 | 60NQ9 | GREENFIELD INDUSTRIES, INC. |
| 44016 | 65400 | GREENFIELD INDUSTRIES INC |
| 917 1/4 | 13130 | CLEVELAND TWIST DRILL CO DIV OF GREENFIELD INDUSTRIES INC |
| B94.11M | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| DBF1/4B | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
| GGG-D-751 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-D-751 TYBCL1 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| MS15444-100 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5133-00-227-9658
Related Products | NSN 5133-00-227-9658
Technical Data | NSN 5133-00-227-9658
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, HIGH SPEED OVERALL |
| HARDNESS RATING | NOT RATED |
| CUTTING END STYLE | 52 GENERAL PURPOSE |
| FLUTE LENGTH | 2.750 INCHES NOMINAL |
| SHANK STYLE | 76 STRAIGHT ROUND |
| SHANK DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| NOMINAL CUTTING DIAMETER | 0.2500 INCHES |
| CUTTING ROTATION DIRECTION | RIGHT-HAND |
| POINT TYPE | CONVENTIONAL |
| POINT ANGLE | 118.0 DEGREES NOMINAL |
| FLUTE QUANTITY | 2 |
| SPECIAL FEATURES | JOBBERS LG; FRACTIONAL SIZE 1/4 (LETTER SIZE E) |
| SPECIFICATION/STANDARD DATA | 05047-ASME B94.11M PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
