NSN 5120-01-019-8551 01-019-8551, 010198551, 115648050
Product Details | SPANNER WRENCH
5120-01-019-8551 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: 5120-01-019-8551, 01-019-8551, 5120010198551, 010198551, 115648050
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 20 APR 1976 | 01-019-8551 | 03476 ( WRENCH, SPANNER ) |
Drawings & Photos | NSN 5120-01-019-8551
Demand History | NSN 5120-01-019-8551
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-01-019-8551 | 2015-10-287 | 14 | DIBBS |
| 5120-01-019-8551 | 2015-09-267 | 14 | US |
| 5120-01-019-8551 | 2015-08-223 | 14 | DIBBS |
| 5120-01-019-8551 | 2015-07-207 | 7 | DIBBS |
Cross Reference | NSN 5120-01-019-8551
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 115648050 | 07309 | ROLLS-ROYCE MARINE NORTH AMERICA INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-019-8551
Technical Data | NSN 5120-01-019-8551
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1018 OVERALL |

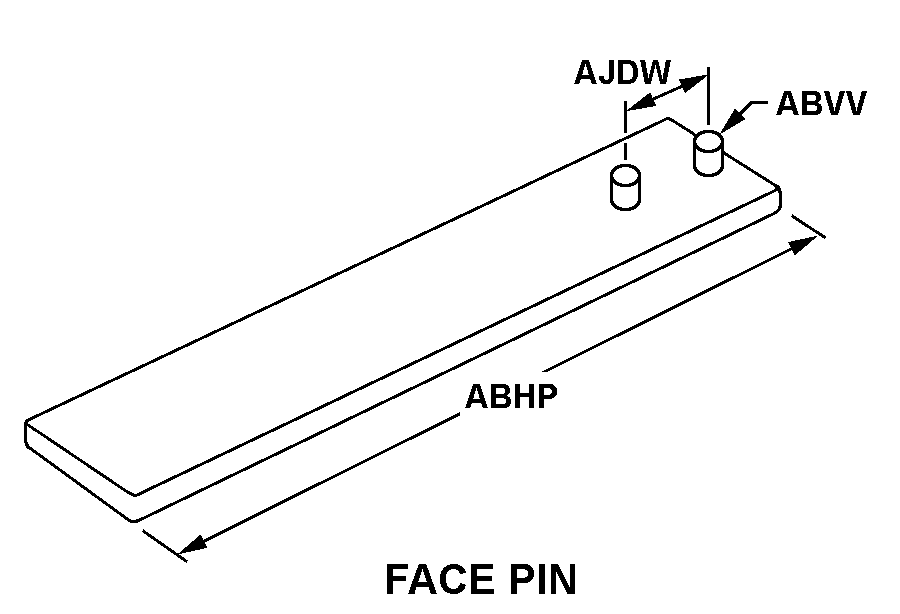

| STYLE DESIGNATOR | 721 FACE PIN |
| OVERALL LENGTH | 65.000 INCHES MINIMUM AND 65.250 INCHES MAXIMUM |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| PIN DIAMETER | 0.688 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN PINS | 29.120 INCHES MINIMUM AND 29.130 INCHES MAXIMUM |
| MANUFACTURERS CODE | 07309 |
| DESIGN CONTROL REFERENCE | 115648050 |
Restrictions/Controls & Freight Information | NSN 5120-01-019-8551
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-01-019-8551
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
