NSN 5120-00-562-4735 105GT1005, 00-562-4735, 005624735
Product Details | SPANNER WRENCH

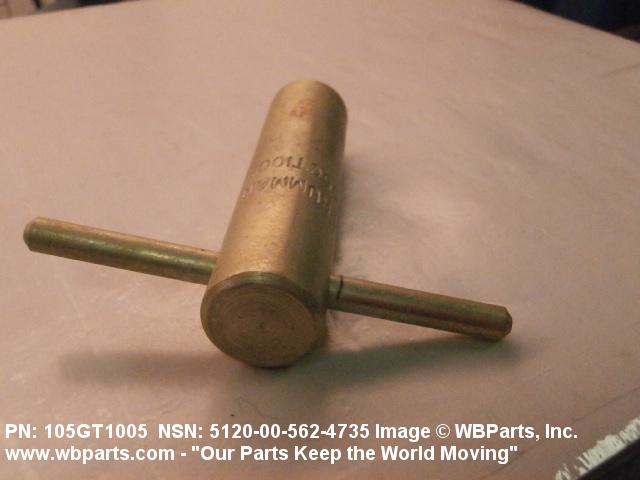

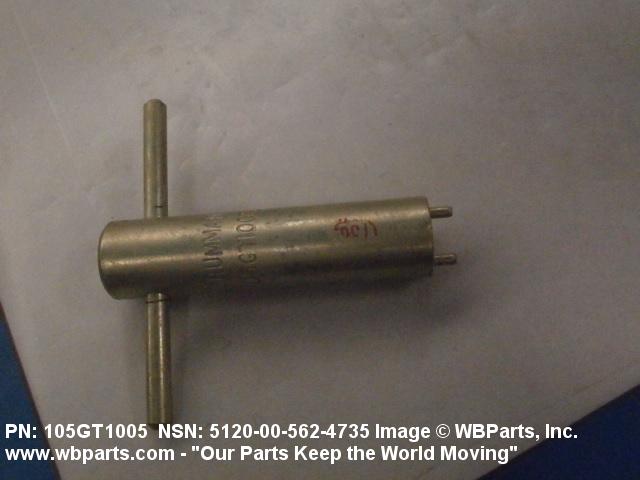

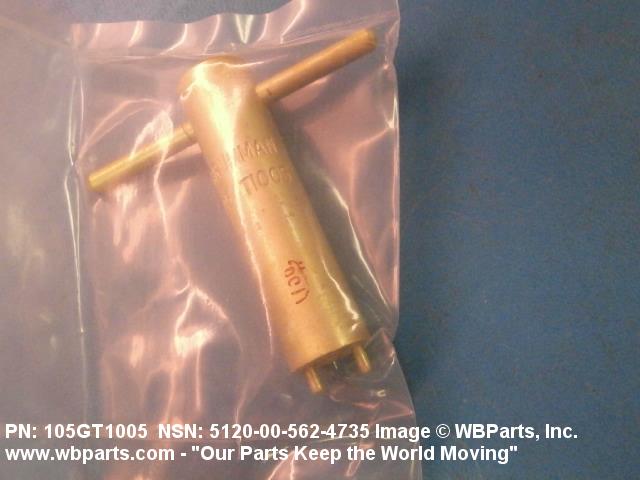

5120-00-562-4735 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: 105GT1005, 5120-00-562-4735, 00-562-4735, 5120005624735, 005624735
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-562-4735 | 03476 ( WRENCH, SPANNER ) |

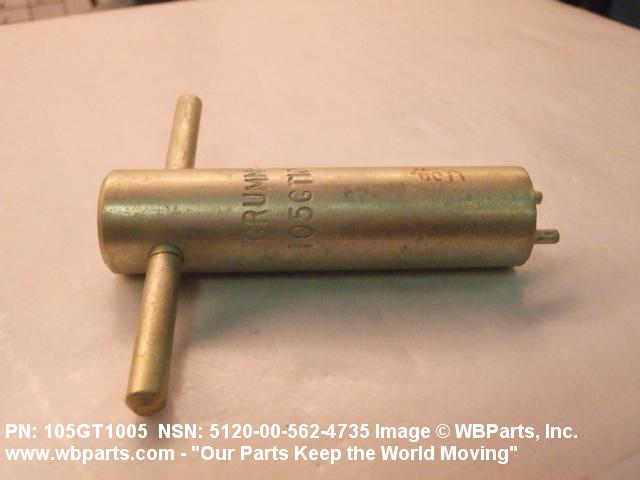

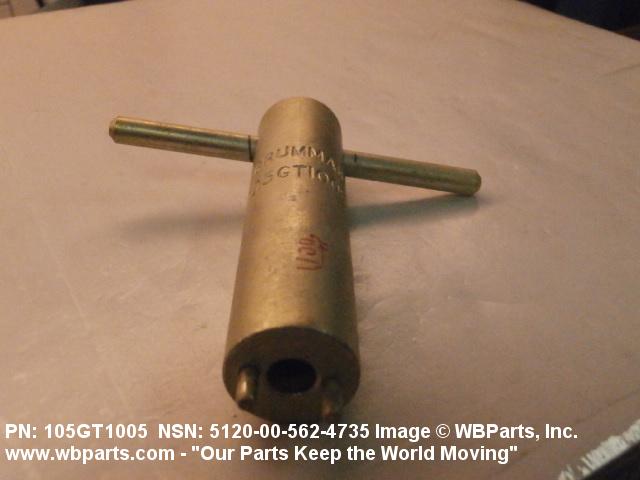

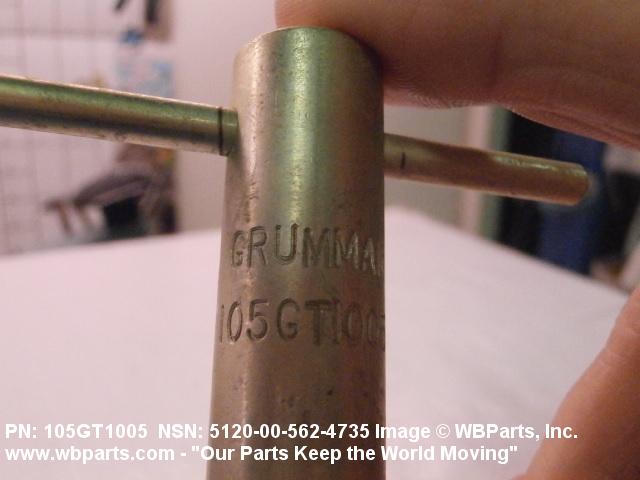

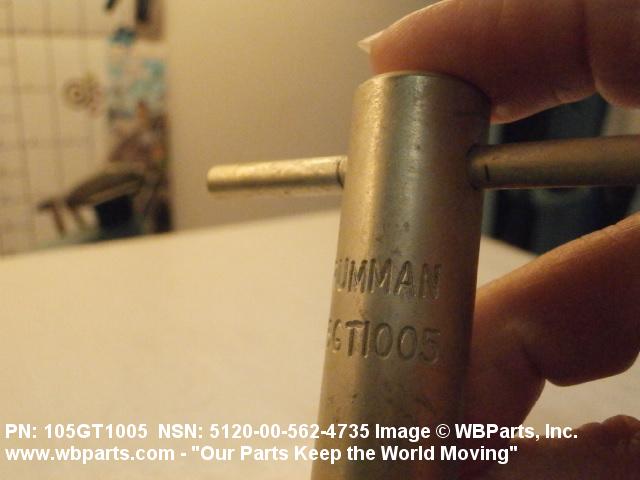

Drawings & Photos | NSN 5120-00-562-4735
Demand History | NSN 5120-00-562-4735
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-562-4735 | 2013-08-224 | 1 | United States |
| 5120-00-562-4735 | 2010-11-314 | 1 | United States |
Cross Reference | NSN 5120-00-562-4735
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 105GT1005 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-562-4735
Technical Data | NSN 5120-00-562-4735
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | CHROMIUM AND NICKEL AND OXIDE OVERALL |
| STYLE DESIGNATOR | 796 TUBULAR PIN |

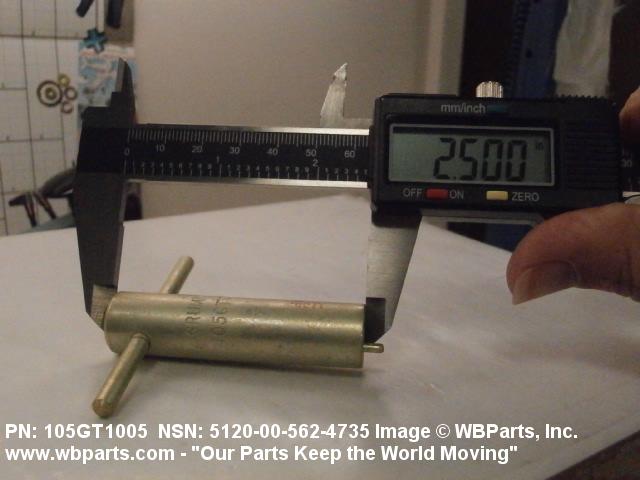

| OVERALL LENGTH | 2.500 INCHES NOMINAL |

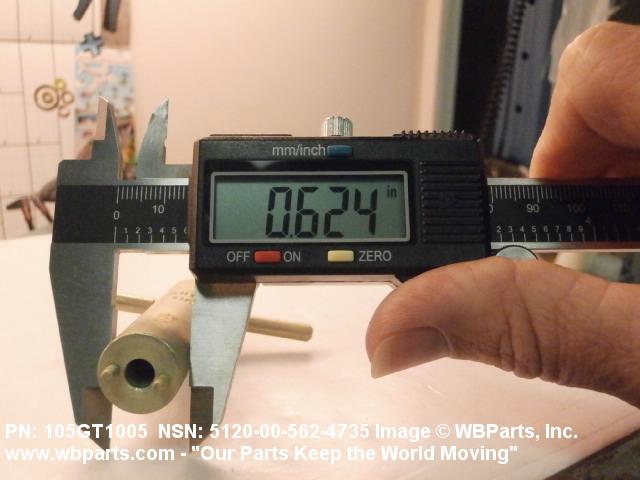

| OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |

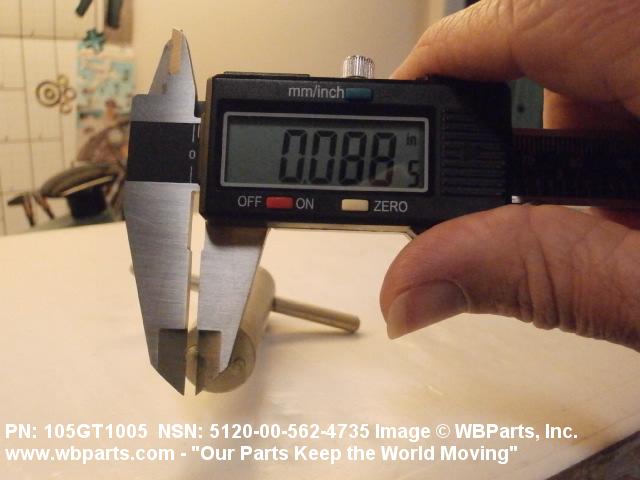

| PIN DIAMETER | 0.089 INCHES NOMINAL |

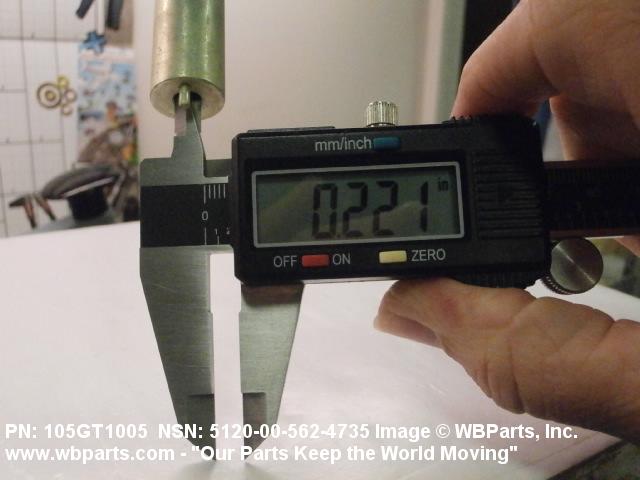

| OPENING DIAMETER | 0.219 INCHES NOMINAL |

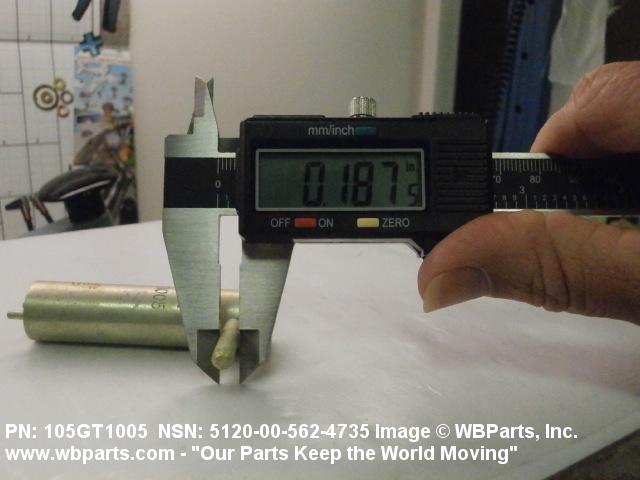

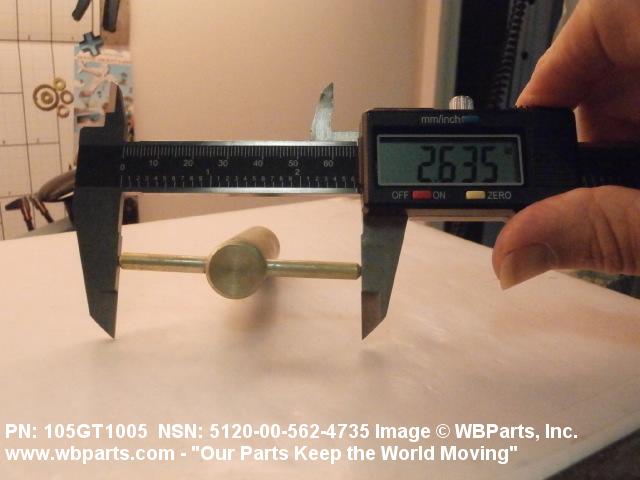

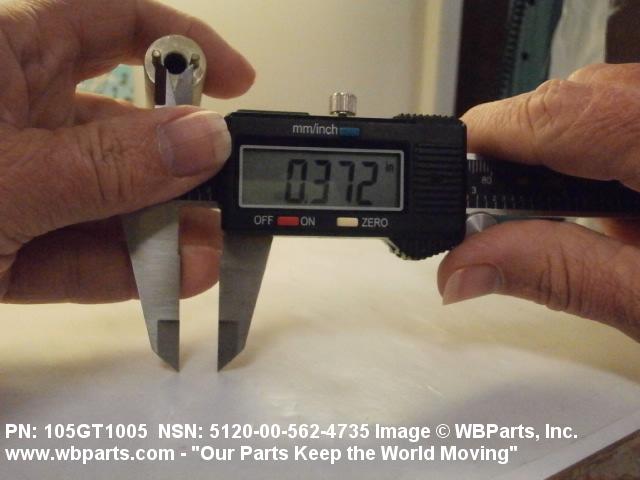

| SPECIAL FEATURES | 0.375 IN. C TO C OF PINS;0.187 IN. NOM FREE LG OF PIN;2.625 IN. LG HANDLE,0.187 IN. DIA |
| MANUFACTURERS CODE | 26512 |
| DESIGN CONTROL REFERENCE | 105GT1005 |
Restrictions/Controls & Freight Information | NSN 5120-00-562-4735
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-562-4735
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
