NSN 5120-01-020-1202 PWA53360, 01-020-1202, 010201202
Product Details | SPANNER WRENCH
5120-01-020-1202 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: PWA53360, 5120-01-020-1202, 01-020-1202, 5120010201202, 010201202
Hand Tools | Hand Tools, Nonedged, Nonpowered
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
51 | 25 APR 1976 | 01-020-1202 | 03476 ( WRENCH, SPANNER ) |
Cross Reference | NSN 5120-01-020-1202
Part Number | Cage Code | Manufacturer |
---|---|---|
PWA53360 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5120-01-020-1202
Related Products | NSN 5120-01-020-1202
Technical Data | NSN 5120-01-020-1202
Characteristic | Specifications |
---|---|
MATERIAL | STEEL OVERALL |

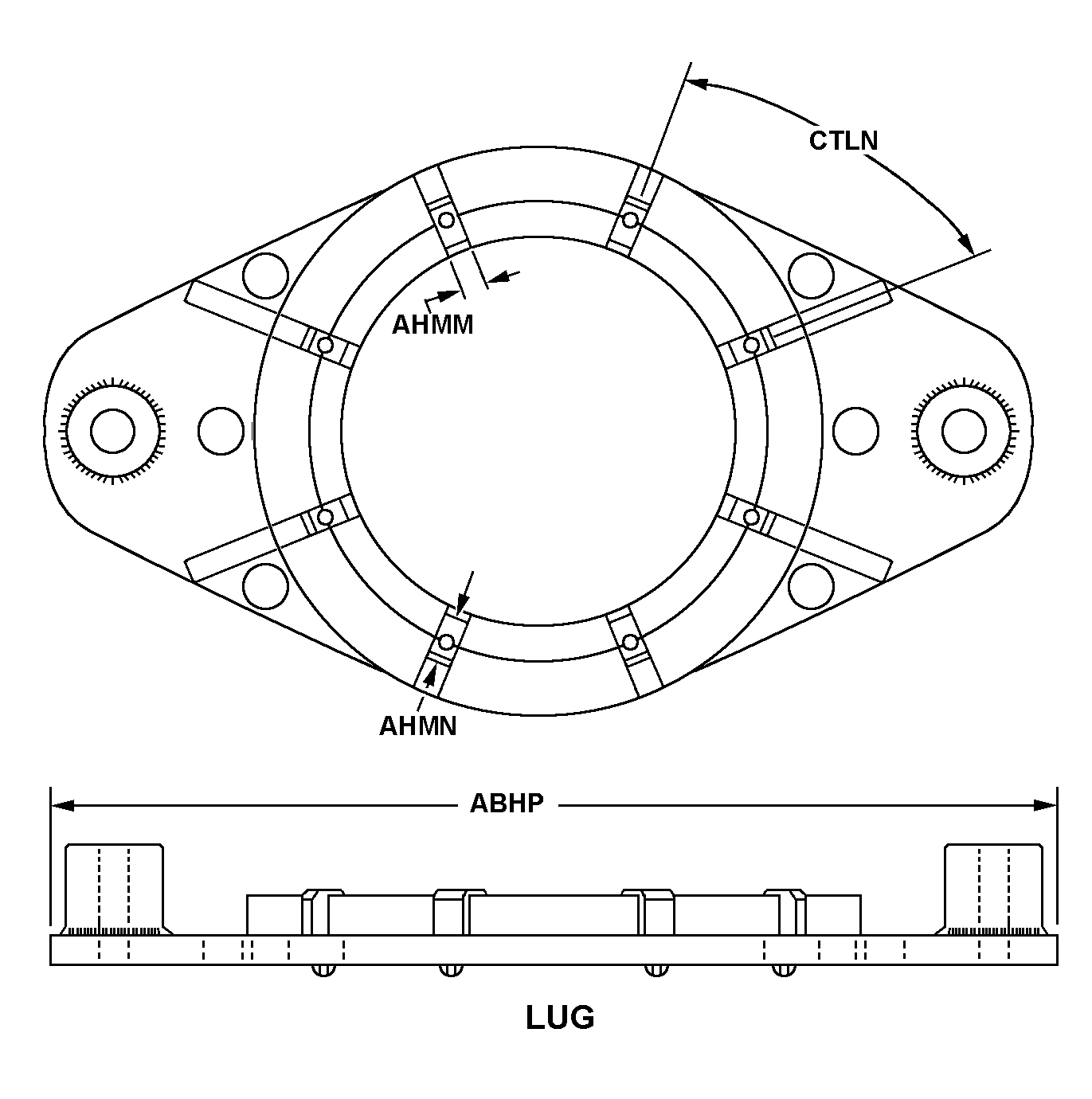

STYLE DESIGNATOR | 609 LUG |
III END ITEM IDENTIFICATION | F100-PW-100 ACFT ENGINE |
III PART NAME ASSIGNED BY CONTROLLING AGENCY | U/O NO.5 BEARING SEAL PLATE RETAINING NUT |
MANUFACTURERS CODE | 77445 |
DESIGN CONTROL REFERENCE | PWA53360 |
Restrictions/Controls & Freight Information | NSN 5120-01-020-1202
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
Less than car load rating | Q | 70 |
Less than truck load rating | W | Rating Variable |
Water commodity Code | 732 | unknown |
Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | Z | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-01-020-1202
Category | Code | Description |
---|---|---|
Materiel Management Aggregation Code | JX | TG:AIRCRAFT MAINTENANCE EQUIPMENT |
Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
Agency | DF | Department of the Air Force |
Service Organization | L | Lead Service - 22 (Repairable) |
Reparability | U | AF Equipment Management System (AFEMS) |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
