NSN 5120-00-026-7289 298870PC1, 00-026-7289, 000267289
Product Details | SPANNER WRENCH
5120-00-026-7289 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: 298870PC1, 5120-00-026-7289, 00-026-7289, 5120000267289, 000267289
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-026-7289 | 03476 ( WRENCH, SPANNER ) |
Drawings & Photos | NSN 5120-00-026-7289
Cross Reference | NSN 5120-00-026-7289
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 298870PC1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-026-7289
Technical Data | NSN 5120-00-026-7289
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |

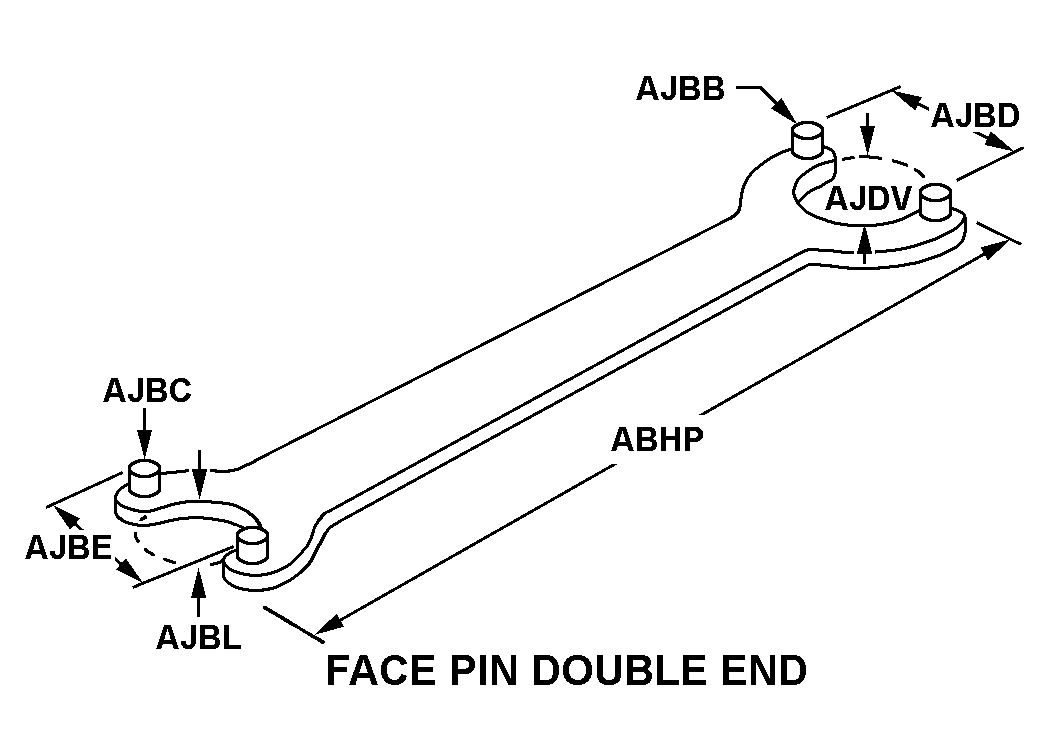

| STYLE DESIGNATOR | 724 FACE PIN DOUBLE END |
| OVERALL LENGTH | 12.937 INCHES NOMINAL |
| LARGE END PIN DIAMETER | 0.290 INCHES NOMINAL |
| SMALL END PIN DIAMETER | 0.290 INCHES NOMINAL |
| LARGE END CENTER TO CENTER DISTANCE BETWEEN PINS | 3.750 INCHES NOMINAL |
| SMALL END CENTER TO CENTER DISTANCE BETWEEN PINS | 1.970 INCHES NOMINAL |
| SMALL END OPENING DIAMETER | 1.540 INCHES NOMINAL |
| LARGE END OPENING DIAMETER | 3.312 INCHES NOMINAL |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 298870PC1 |
Restrictions/Controls & Freight Information | NSN 5120-00-026-7289
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-026-7289
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
