Product Details | SPANNER WRENCH

5120-00-026-7499 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.

Part Alternates: 827311, 5120-00-026-7499, 00-026-7499, 5120000267499, 000267499

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 01 JAN 1963 00-026-7499

Drawings & Photos | NSN 5120-00-026-7499


Cross Reference | NSN 5120-00-026-7499

Part Number Cage Code Manufacturer
827311 10001 NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-00-026-7499

Technical Data | NSN 5120-00-026-7499

Characteristic Specifications
MATERIAL STEEL OVERALL

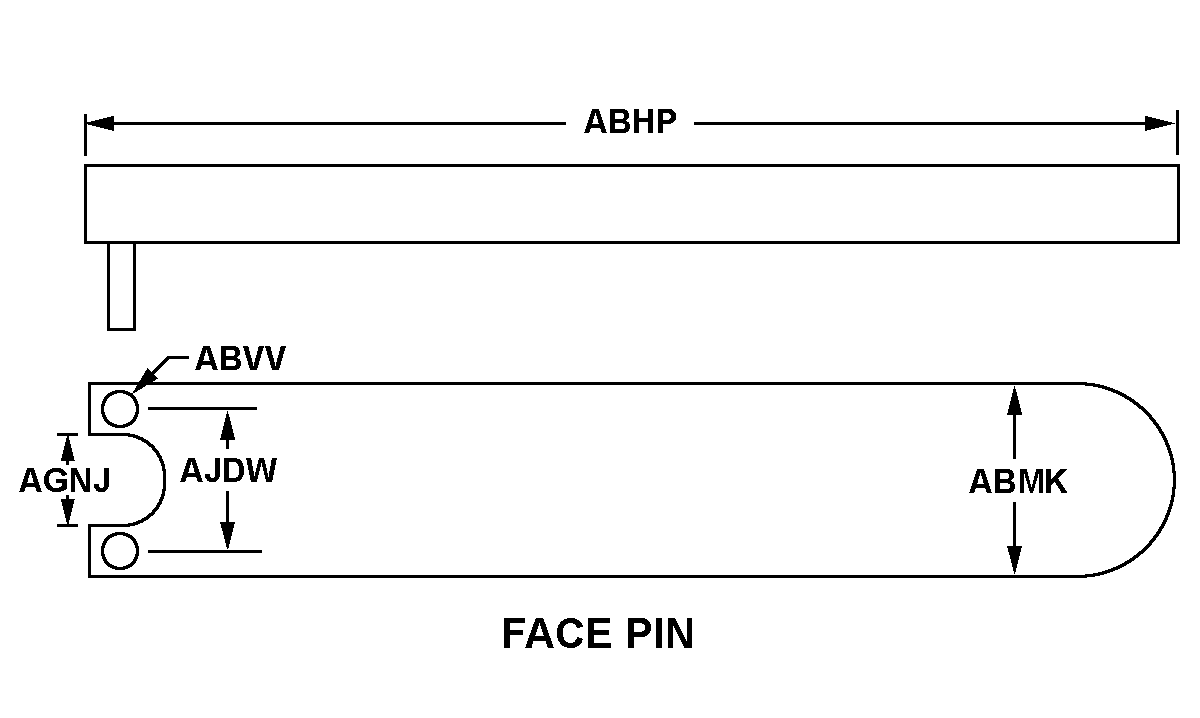

STYLE DESIGNATOR 722 FACE PIN
OVERALL LENGTH 4.838 INCHES MINIMUM AND 5.000 INCHES MAXIMUM
OVERALL WIDTH 1.359 INCHES MINIMUM AND 1.391 INCHES MAXIMUM
PIN DIAMETER 0.125 INCHES MINIMUM AND 0.126 INCHES MAXIMUM
OPENING DIAMETER 0.624 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN PINS 0.995 INCHES MINIMUM AND 1.005 INCHES MAXIMUM
SPECIAL FEATURES OFFSET HANDLE
MANUFACTURERS CODE 10001
DESIGN CONTROL REFERENCE 827311
