NSN 4920-01-502-8124 015028124
Product Details | QUICK DISCONNECT COUPLING HALF
4920-01-502-8124 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 015028124
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 21 NOV 2002 | 01-502-8124 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-01-502-8124
Demand History | NSN 4920-01-502-8124
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6534K56 | 2024-11-319 | 582 | DIBBS |
| 4730-01-502-8124 | 2017-02-52 | 973 | DIBBS |
| 4730-01-502-8124 | 2017-01-23 | 973 | DIBBS |
| 4730-01-502-8124 | 2012-01-24 | 130 | DIBBS |
| 4730-01-502-8124 | 2012-01-24 | 422 | DIBBS |
| 4730-01-502-8124 | 2011-09-244 | 422 | DIBBS |
| 4730-01-502-8124 | 2011-08-235 | 130 | DIBBS |
| 4730-01-502-8124 | 2011-08-230 | 126 | DIBBS |
| 4730-01-502-8124 | 2011-03-69 | 427 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4920-01-502-8124
Related Products | NSN 4920-01-502-8124
Technical Data | NSN 4920-01-502-8124
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MAXIMUM OPERATING PRESSURE | 300.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 250.0 DEG FAHRENHEIT SINGLE RESPONSE |
| STYLE DESIGNATOR | A2A FEMALE COUPLING HALF |
| CONNECTION TYPE | UNTHREADED EXTERNAL HOSE FIRST FLUID END CONNECTION |

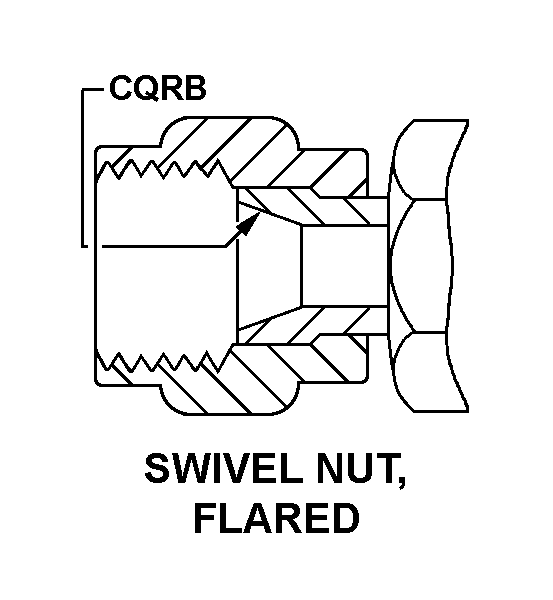

| CONNECTION STYLE | B1 SWIVEL NUT, FLARED SECOND QUICK DISCONNECT END |
